Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

24 part groups · 6 illustrations

Illustrations

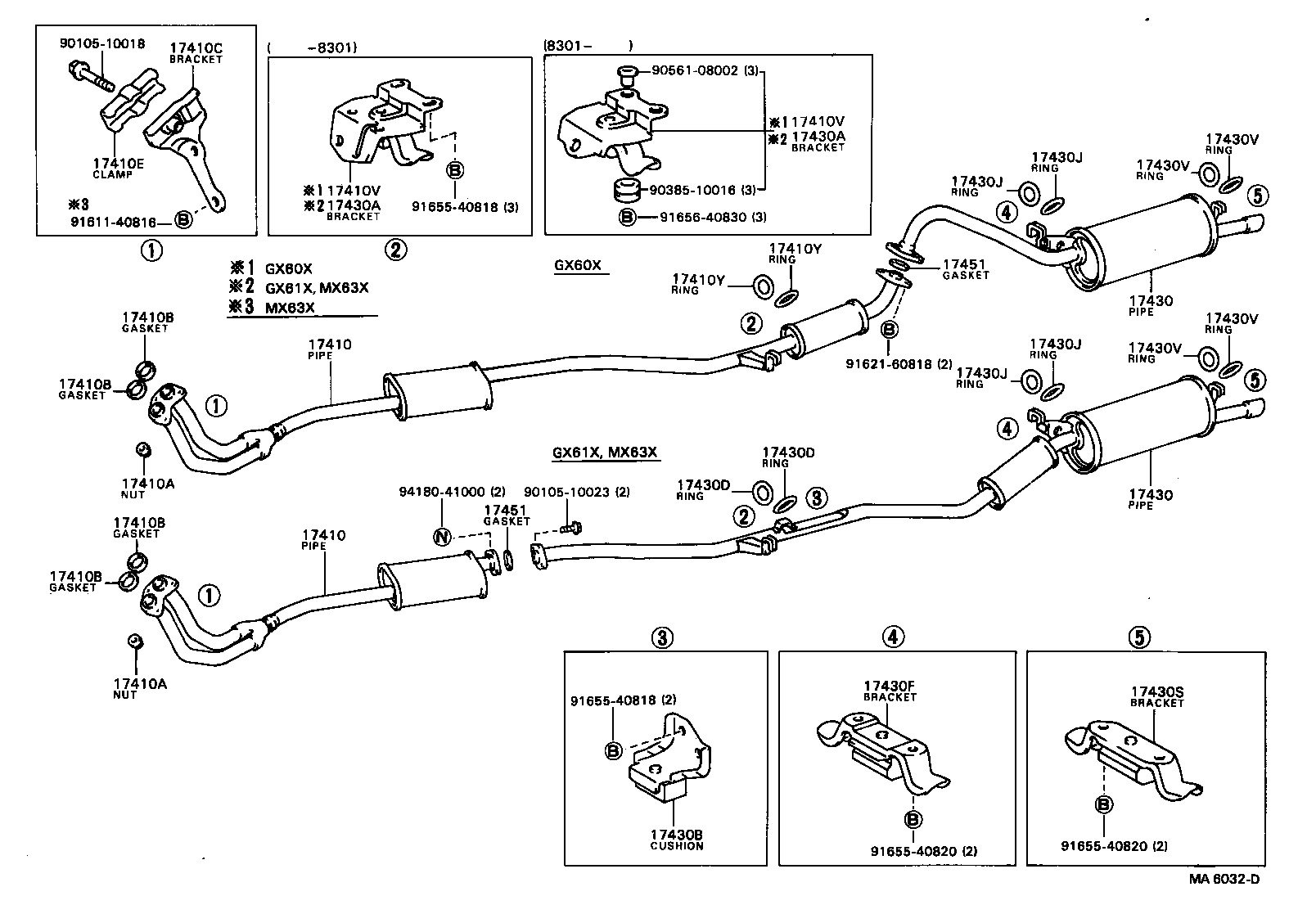

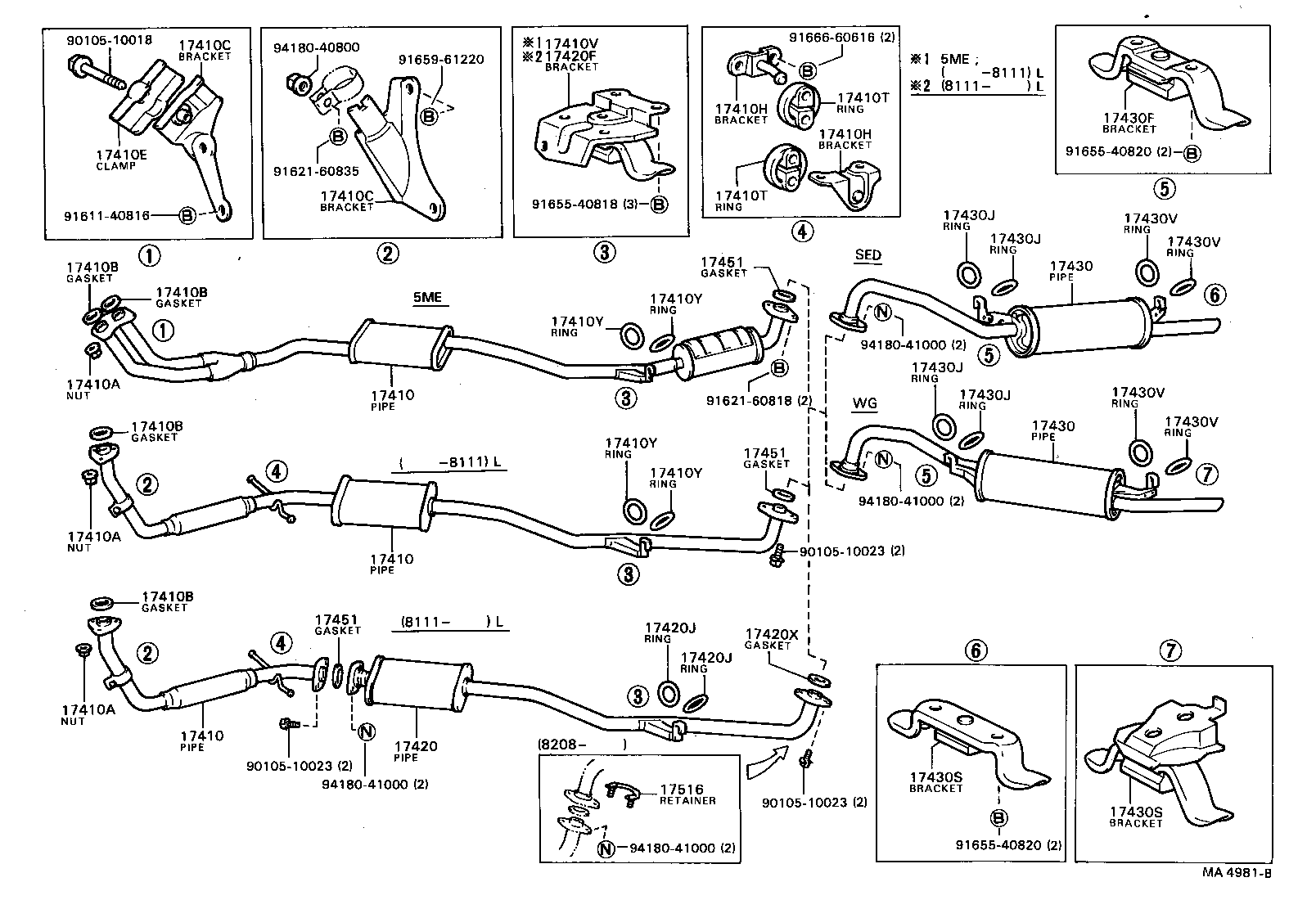

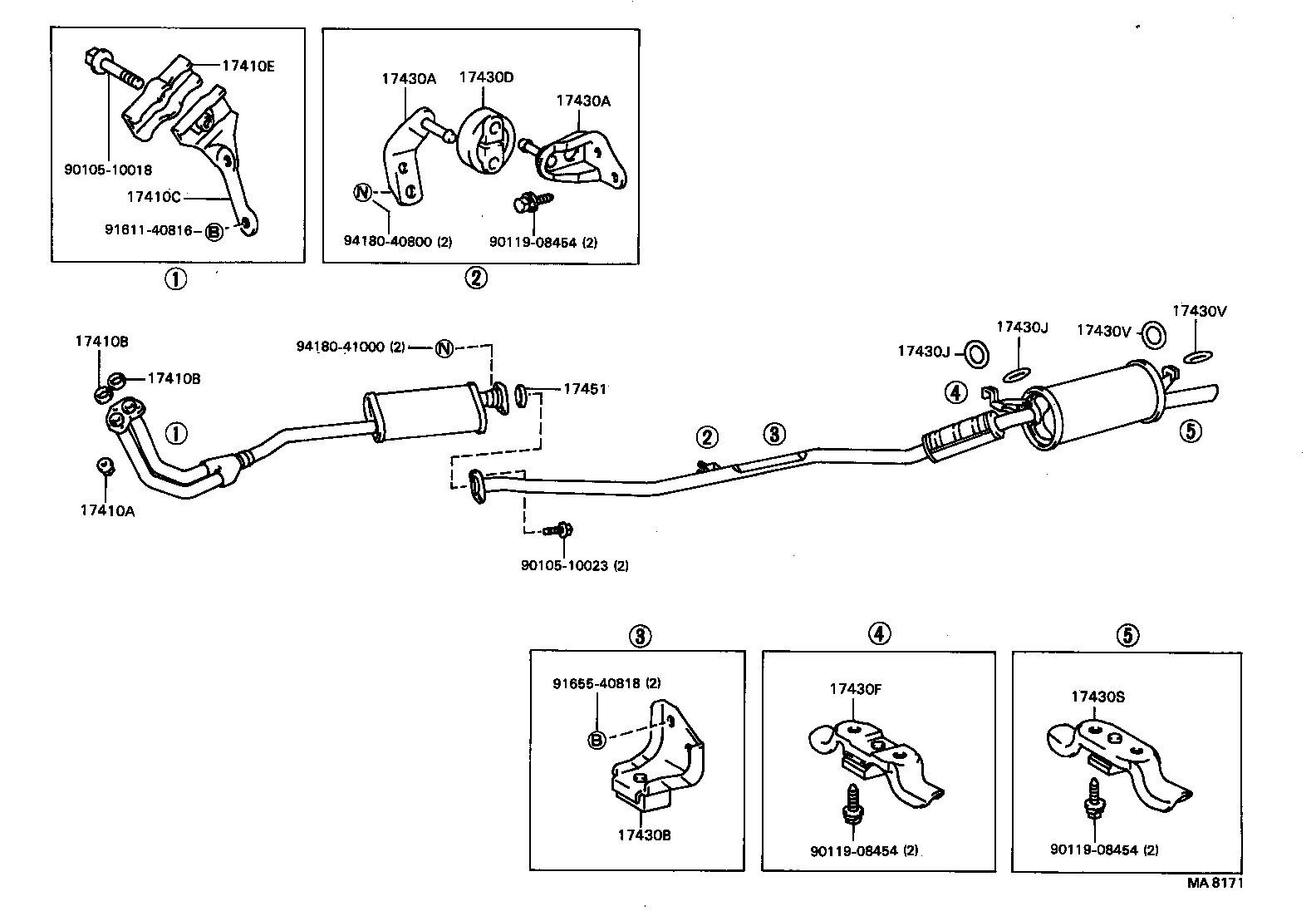

Figure MA4980C MA4980C 1980-09 → — Figure MA6032D MA6032D 1982-08 → — Figure MA6032D MA6032D 1983-12 → 1984-04 Figure MA8171 MA8171 1984-04 → — Figure MA4981B MA4981B 1980-09 → 1984-07 Figure MA4981B MA4981B 1980-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410T Bolt OR Ring, Exhaust Pipe Front (FOR CENTER)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420F Bracket, Exhaust Pipe, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17516 Retainer, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
