Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Pump

5 part groups · 2 illustrations

Illustrations

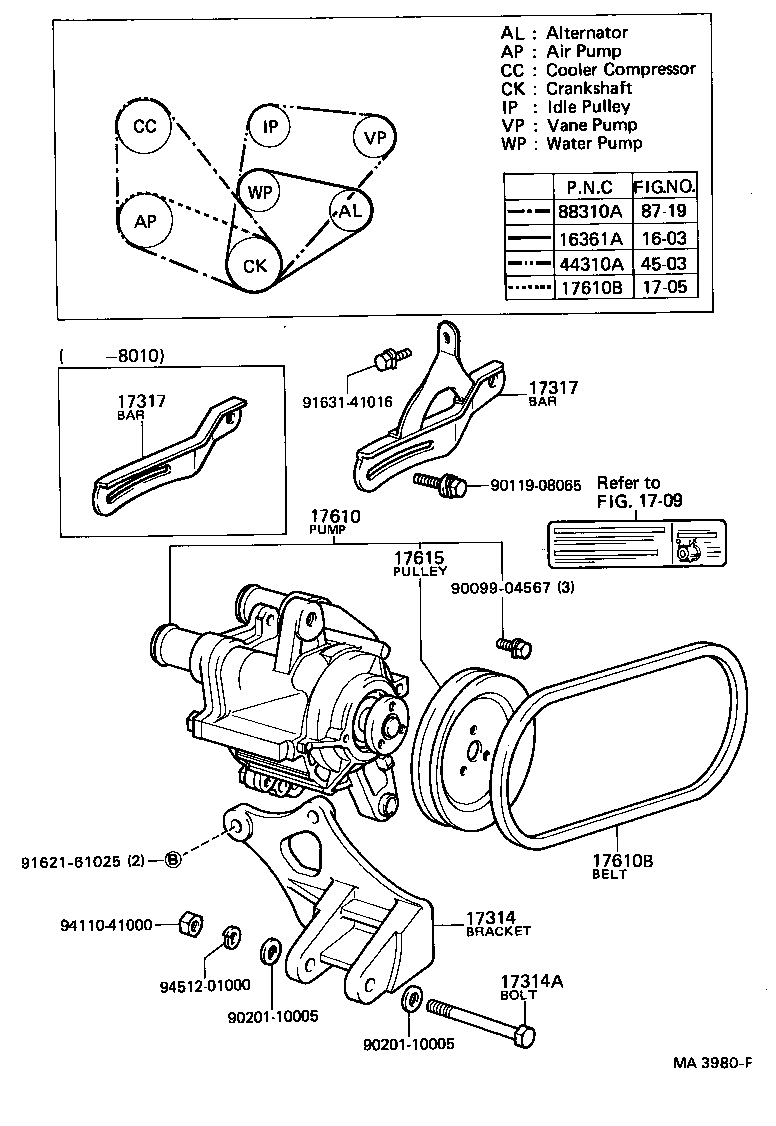

Figure MA6854 MA6854 1980-09 → 1984-07 Figure MA3980F MA3980F 1980-09 → —

Part groups

PNCDescription
17314 Bracket, Air Pump
17314A Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING)
17317 Bar, Air Pump Adjusting, NO.1
17610 Pump Assy, Air
17615 Pulley(FOR AIR PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
