Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

14 part groups · 2 illustrations

Illustrations

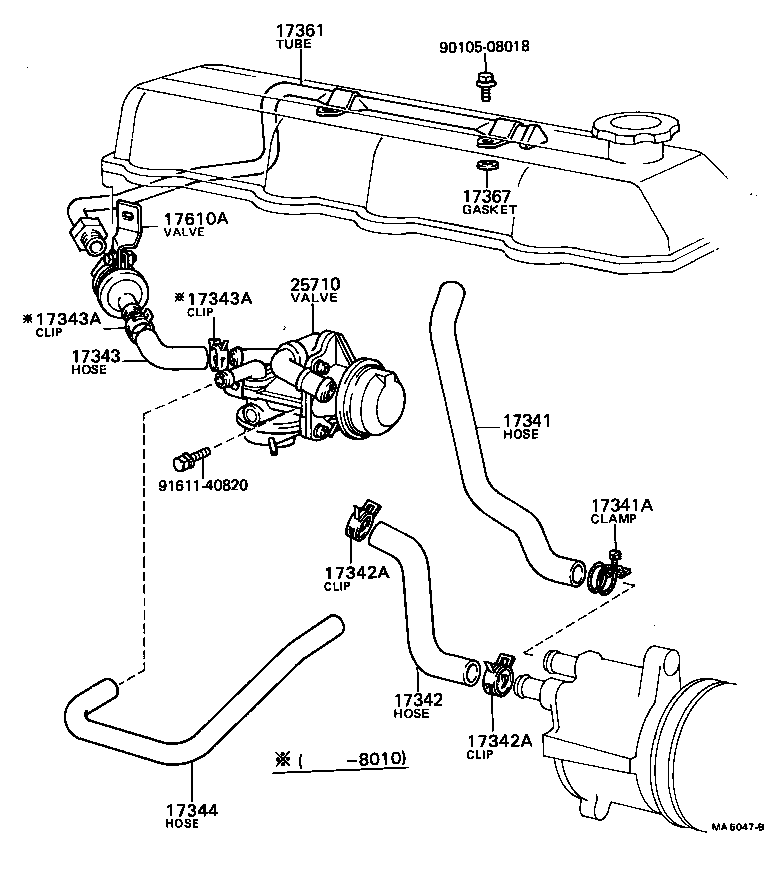

Figure MA5051B MA5051B 1980-09 → 1984-07 Figure MA5047B MA5047B 1980-09 → —

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17351 Manifold, Air Injection
17361 Tube, Air
17367 Gasket, Air Tube
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
25710 Valve Assy, Air Switching
25710C Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
