Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

29 part groups · 22 illustrations

Illustrations

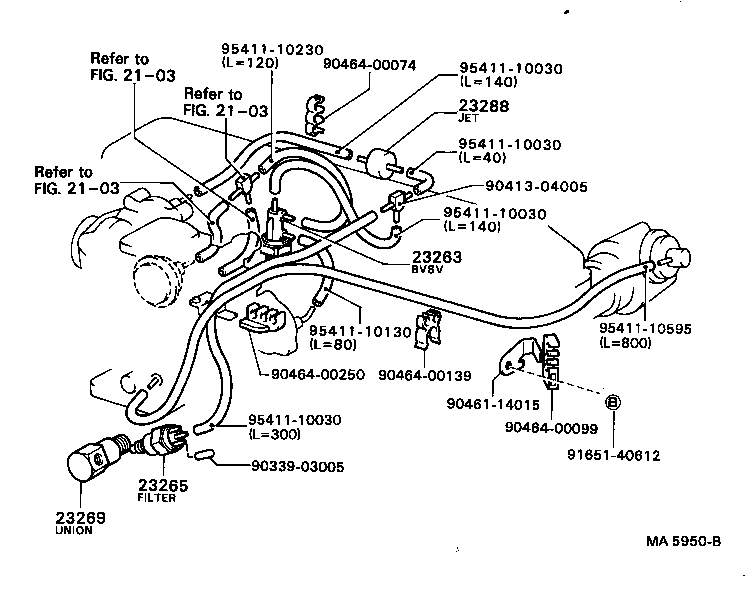

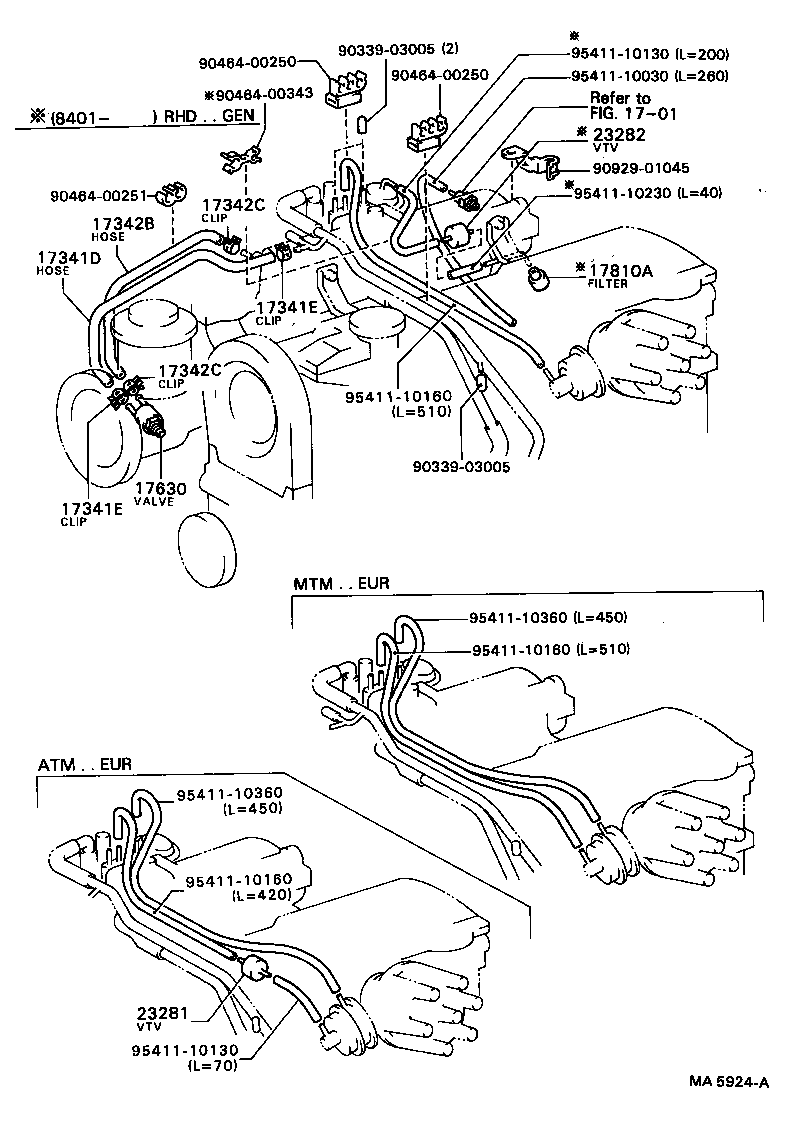

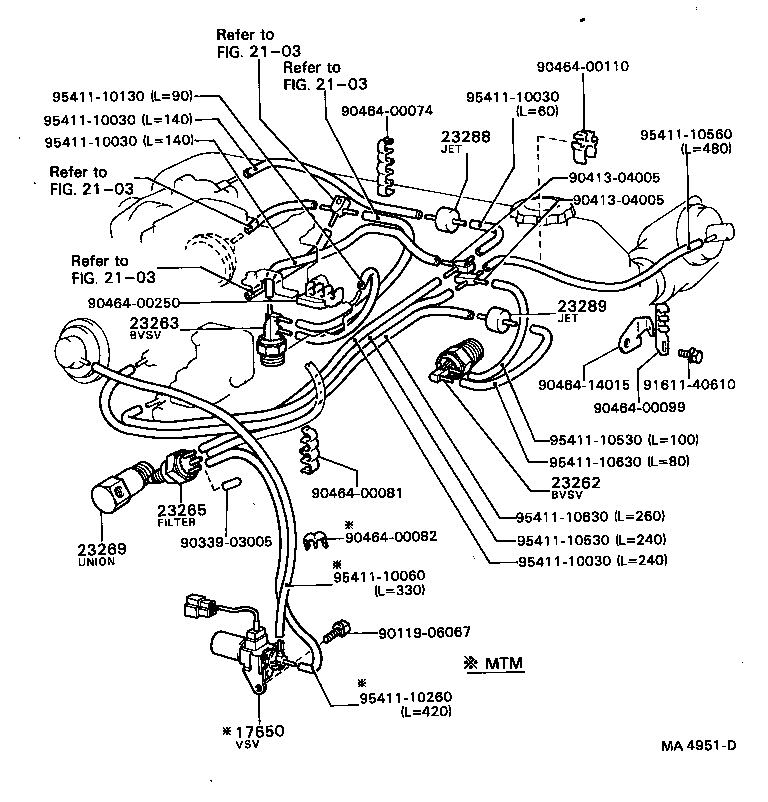

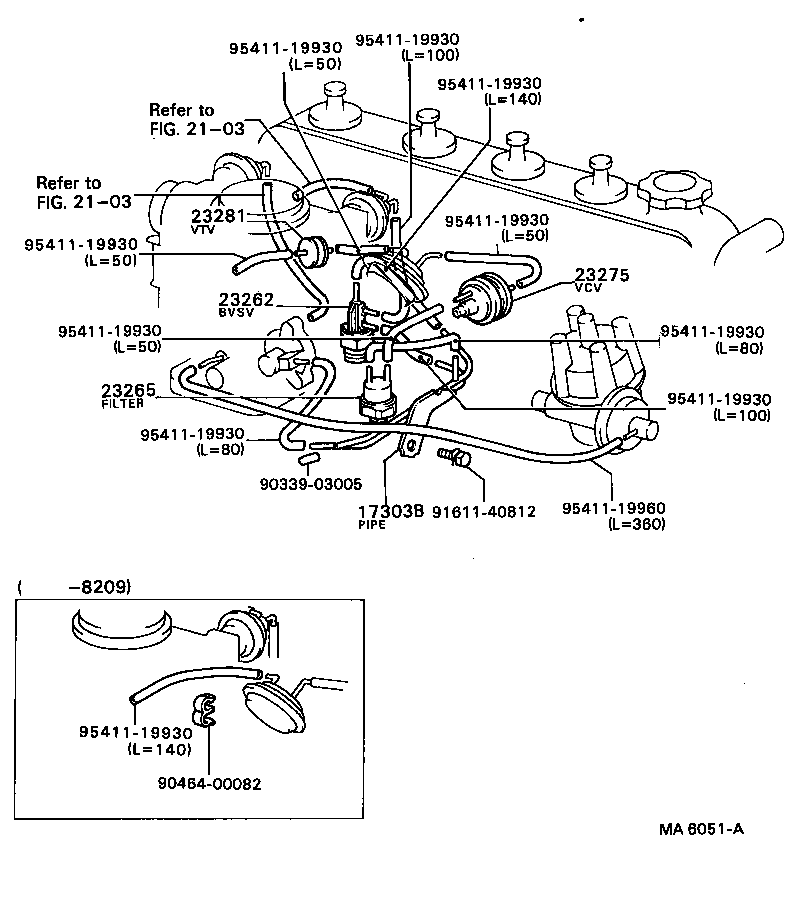

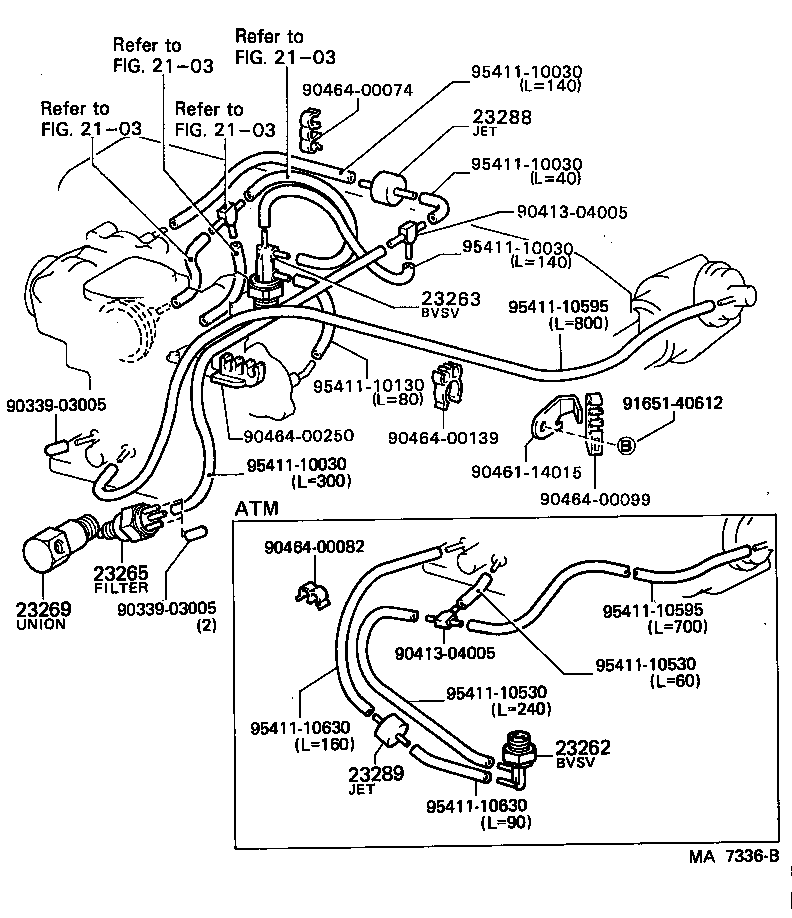

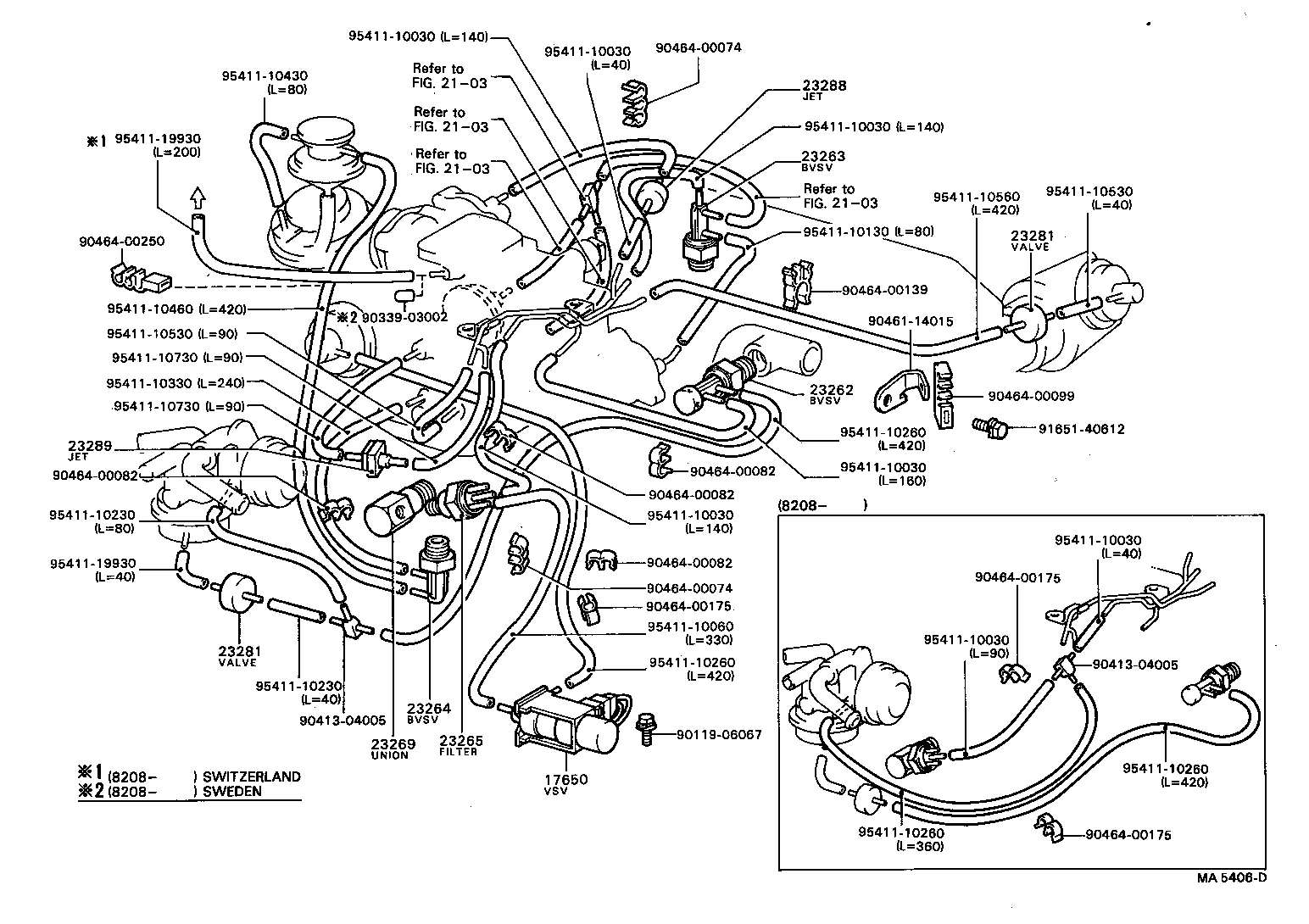

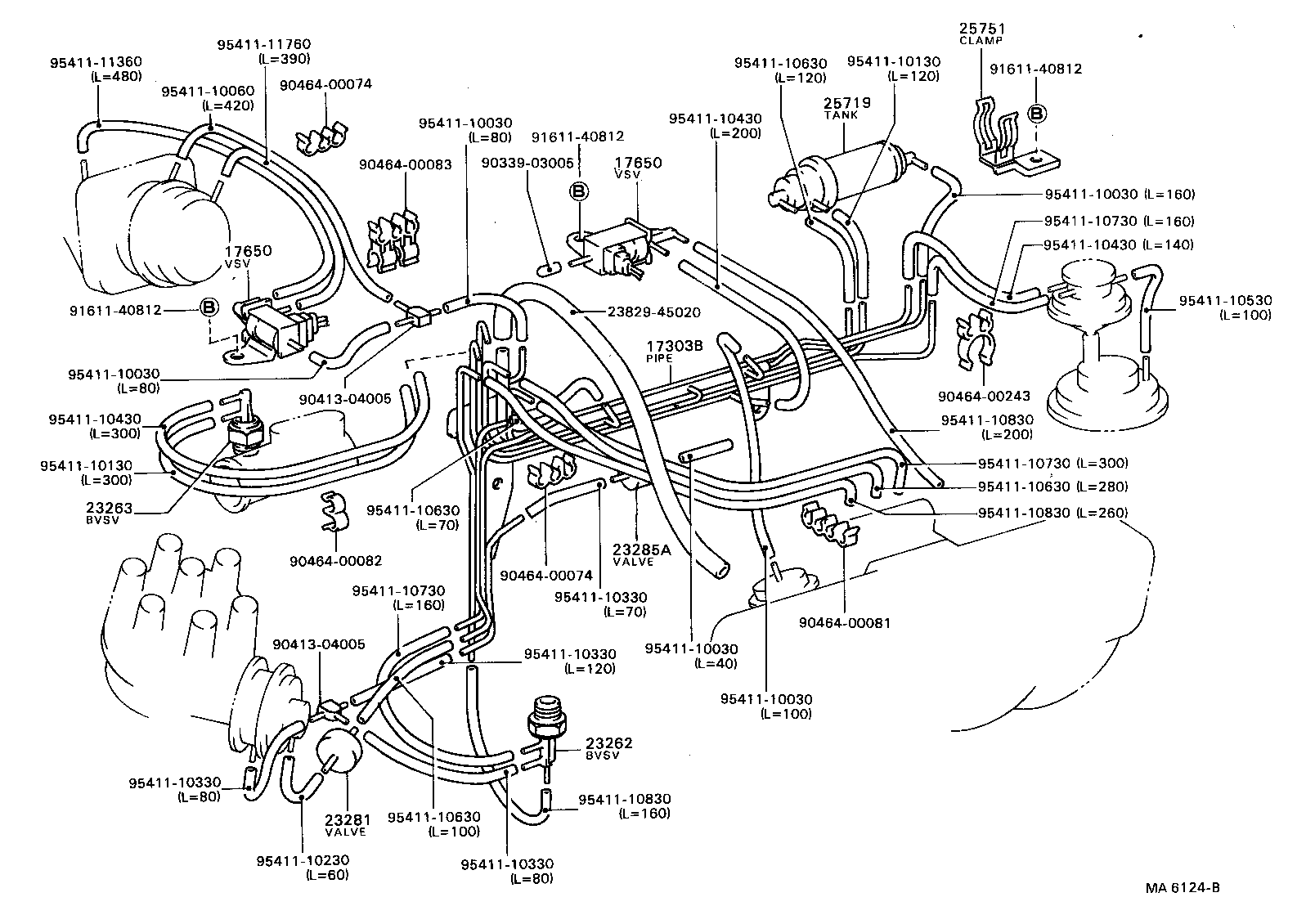

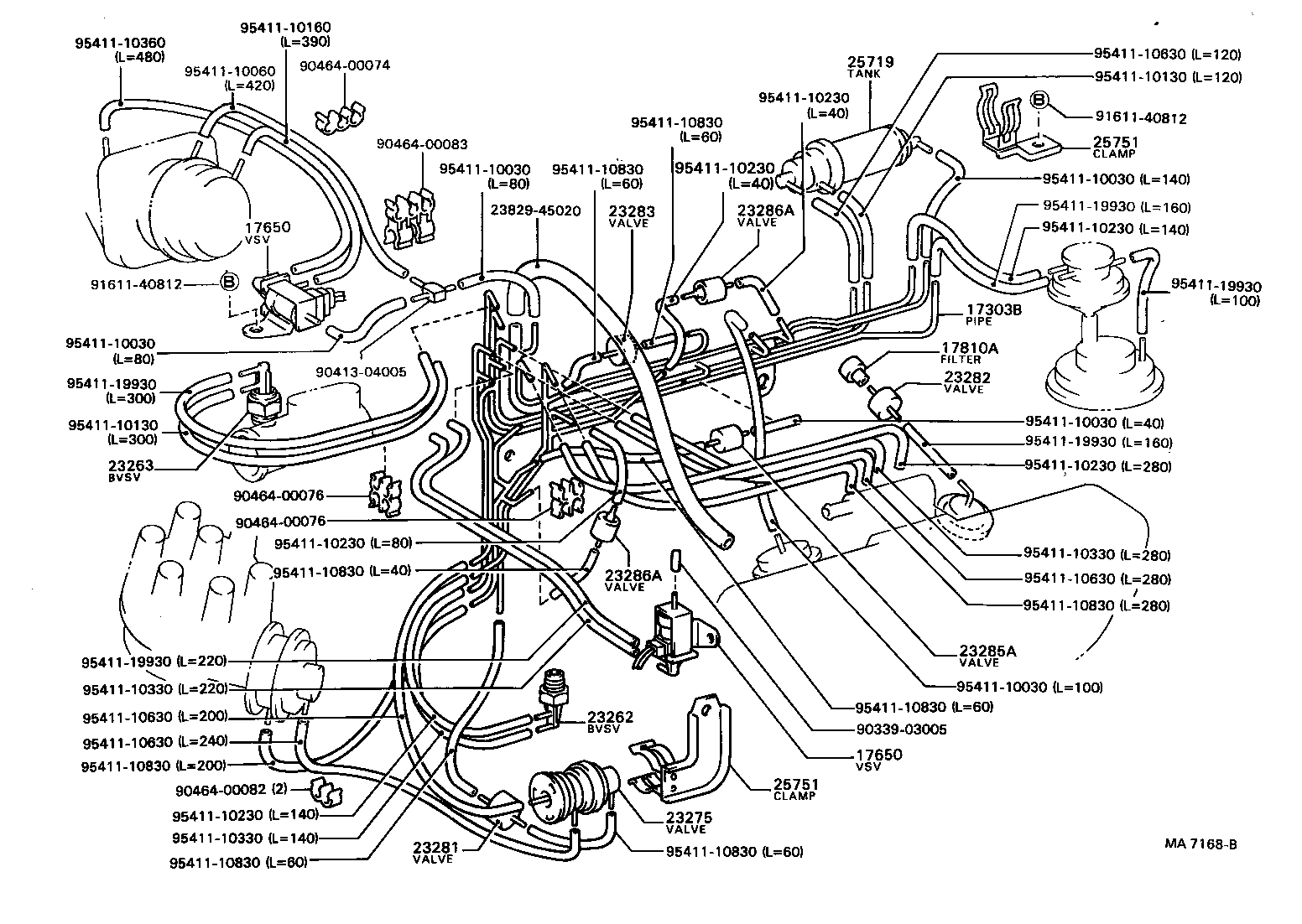

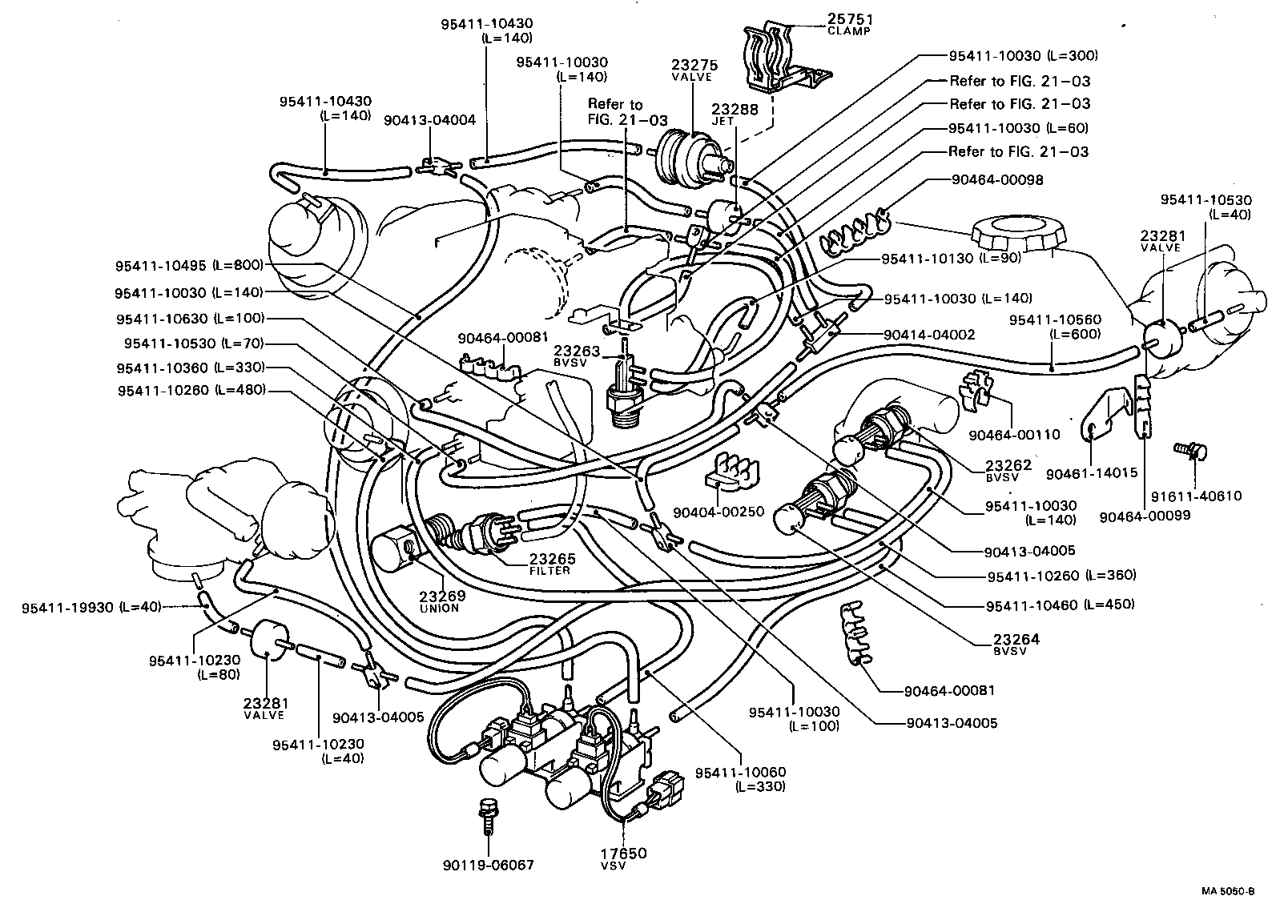

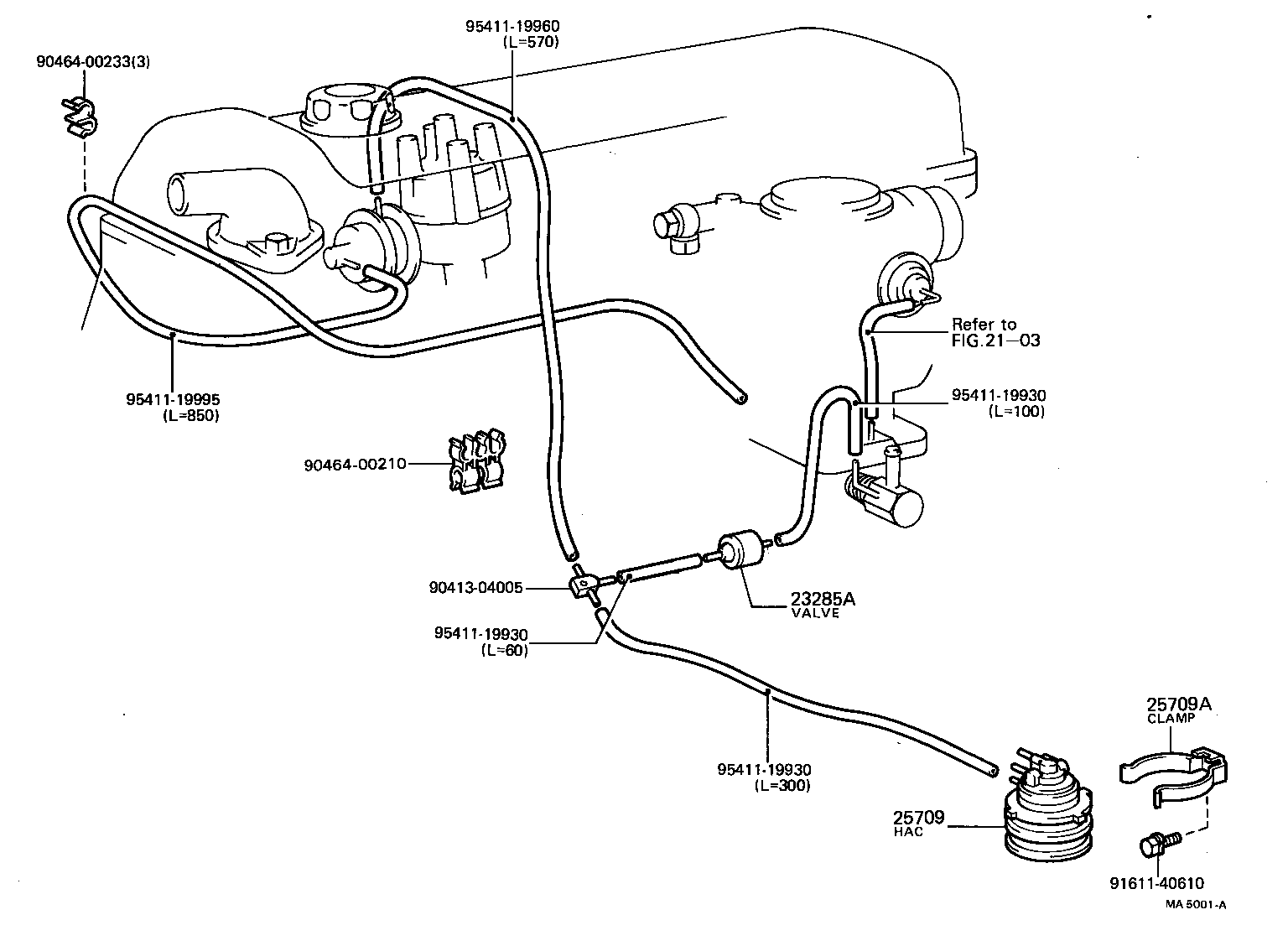

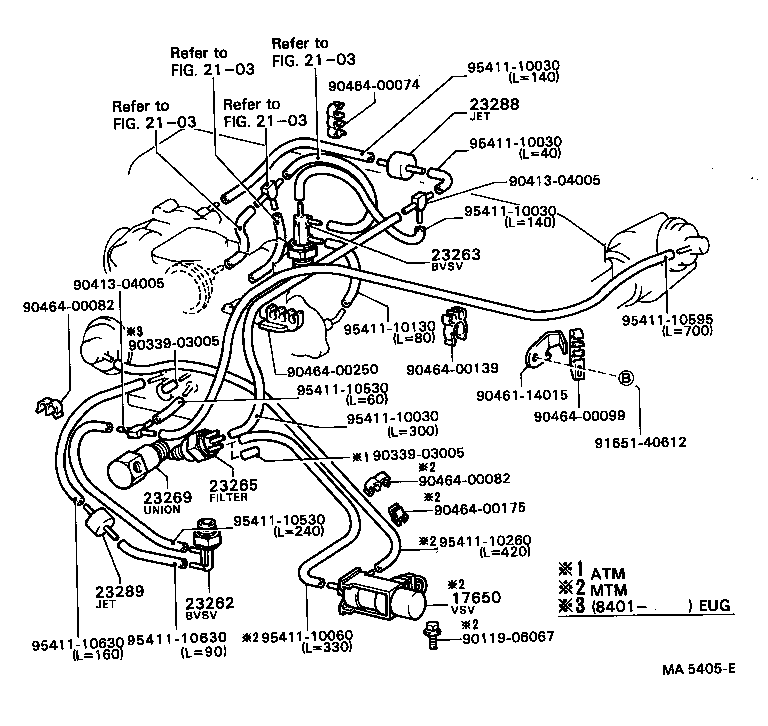

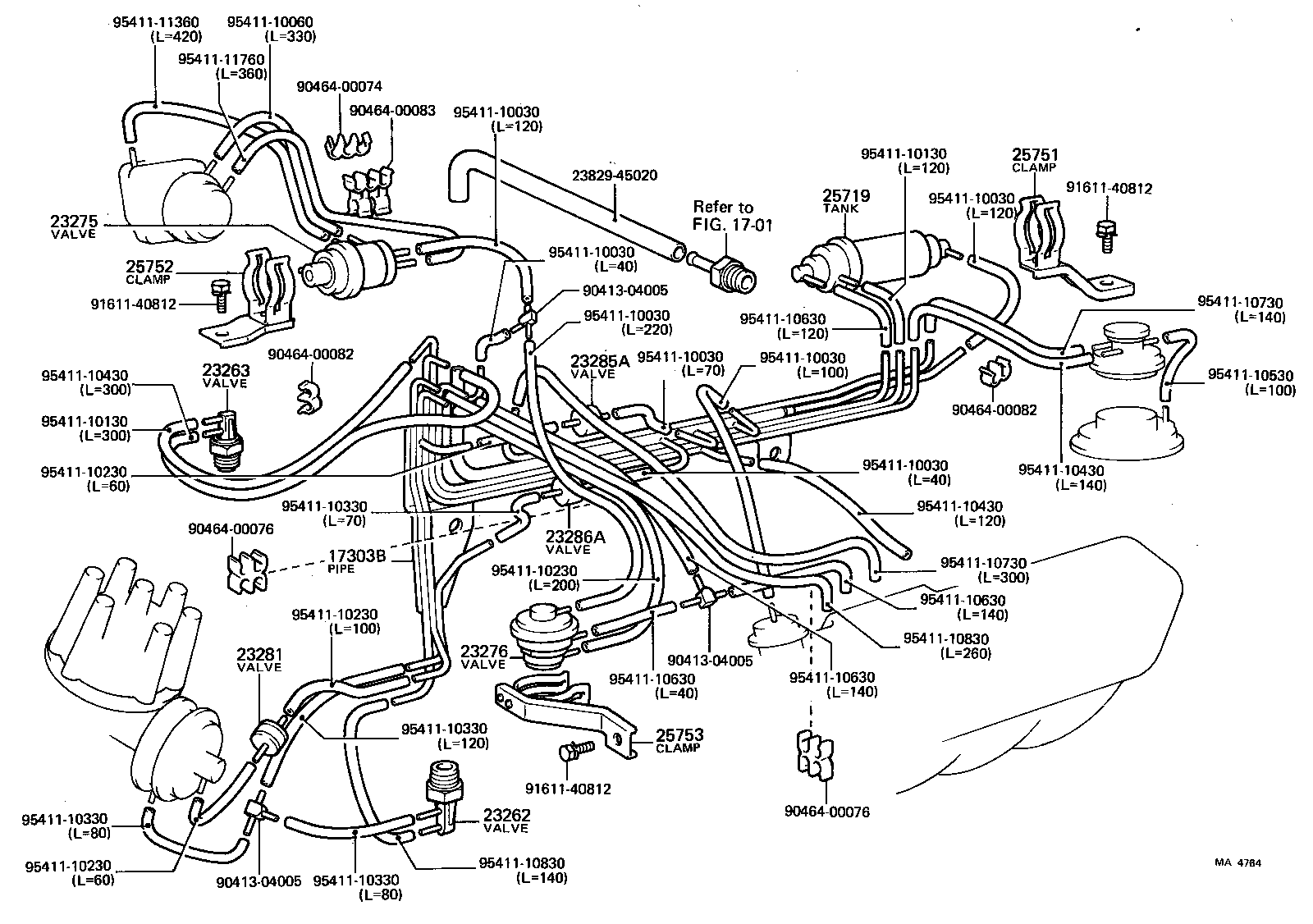

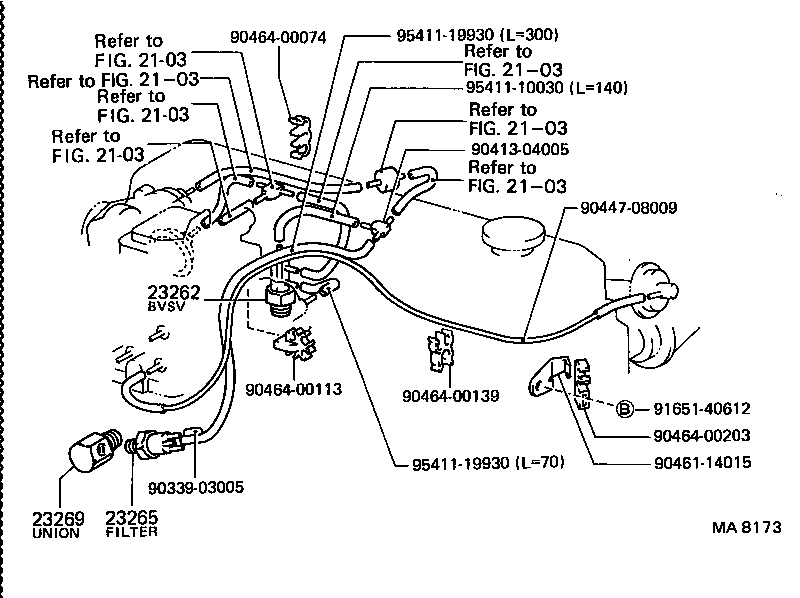

Figure MA9501 MA9501 1980-09 → — Figure MA5924A MA5924A 1982-08 → — Figure MA9501 MA9501 1980-09 → — Figure MA9501 MA9501 1980-09 → — Figure MA4764 MA4764 1980-09 → 1982-08 Figure MA6124B MA6124B 1982-08 → 1983-08 Figure MA7168B MA7168B 1980-09 → 1984-07 Figure MA7311 MA7311 1983-12 → — Figure MA9501 MA9501 1980-09 → — Figure MA5001A MA5001A 1981-07 → 1982-08 Figure MA4950E MA4950E 1980-09 → 1981-10 Figure MA5950B MA5950B 1981-10 → 1984-07 Figure MA8173 MA8173 1984-08 → — Figure MA4951D MA4951D 1980-09 → 1981-08 Figure MA5405E MA5405E 1981-08 → 1982-02 Figure MA5405E MA5405E 1981-08 → — Figure MA7336B MA7336B 1984-01 → — Figure MA5050B MA5050B 1980-09 → 1981-08 Figure MA5406D MA5406D 1981-08 → — Figure MA9501 MA9501 1980-09 → — Figure MA4025A MA4025A 1981-07 → 1982-06 Figure MA6051A MA6051A 1982-06 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25753 Clamp, Vacuum Control Valve, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
