Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

11 part groups · 3 illustrations

Illustrations

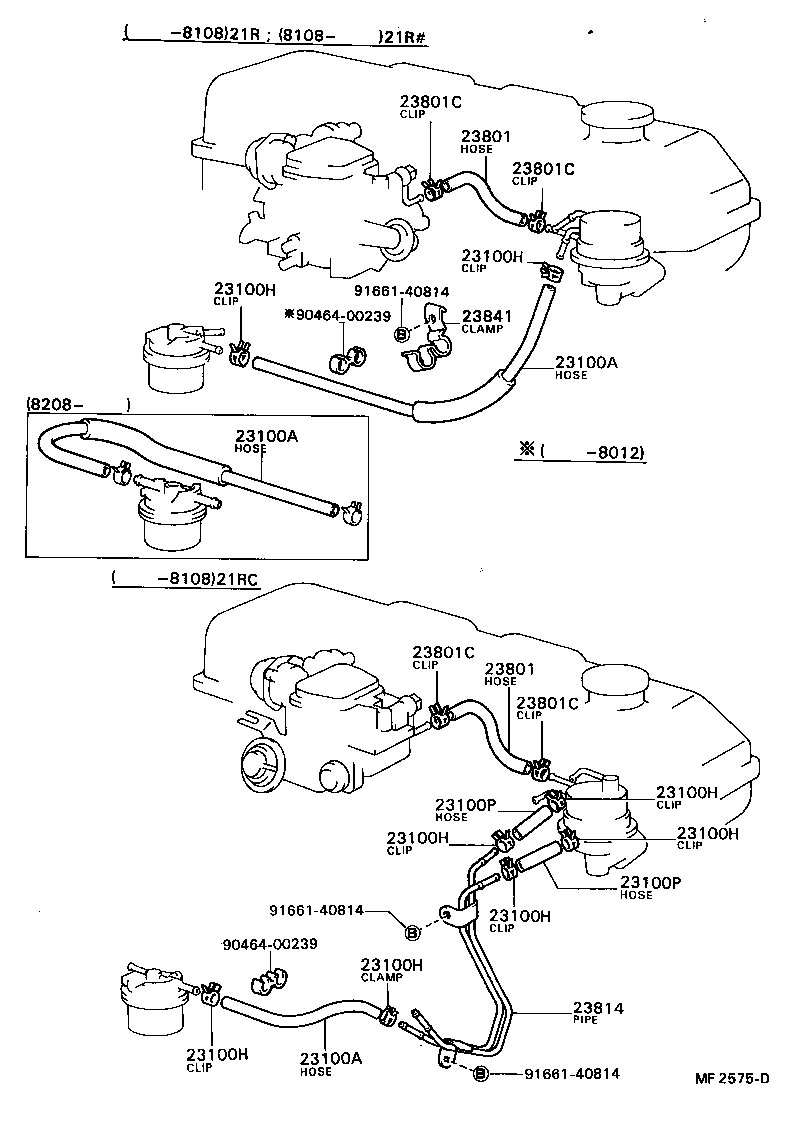

Figure MF2339A MF2339A 1981-07 → — Figure MF2575D MF2575D 1980-09 → — Figure MF2415B MF2415B 1981-07 → —

Part groups

PNCDescription
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23100P Hose(FOR FUEL PUMP TO FUEL TUBE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23814 Pipe, Fuel Delivery
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
