Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04

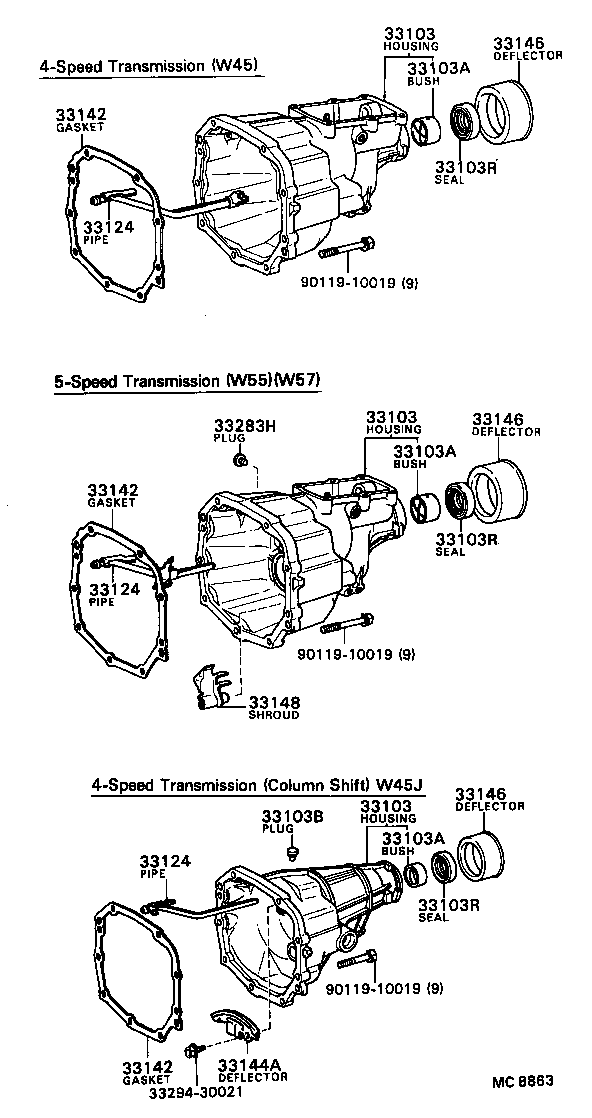

Extension Housing (MTM)
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103B | Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33124 | Pipe, Oil Receiver(MTM) |
| 33124A | Clamp(FOR TRANSMISSION OIL RECEIVER PIPE) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33144A | Deflector, Extension Housing Oil(MTM) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
| 33148 | Shroud, Gear, NO.1 |
| 33283H | Plug, W/Head Straight Screw |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
