Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04

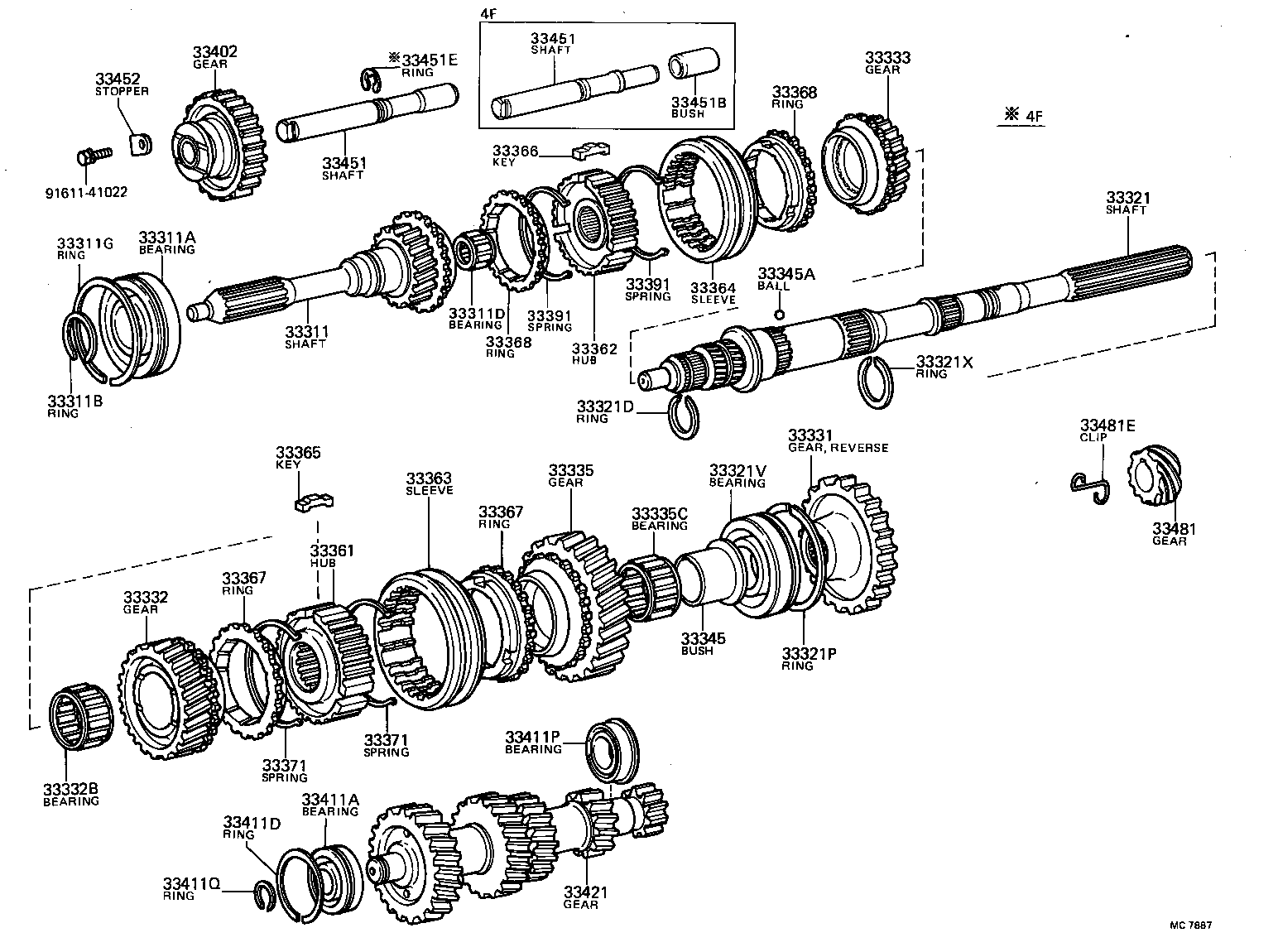

Transmission Gear (MTM)
79 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33029 | Shaft Set, Input |
| 33103G | Ring, Hole Snap(FOR REAR BEARING SET) |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311B | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311C | Ring, Hole Snap (FOR NEEDLE ROLLER) |
| 33311D | Bearing, Input Shaft |
| 33311G | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321B | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321C | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321D | Ring, Shaft Snap (FOR CLUTCH HUB SET) |
| 33321P | Ring, Snap (FOR OUTPUT SHAFT CENTER BEARING) |
| 33321V | Bearing (FOR OUTPUT SHAFT CENTER) |
| 33321X | Ring, Shaft Snap (FOR OUTPUT SHAFT CENTER BEARING) |
| 33331 | Gear, Reverse |
| 33331A | Bearing (FOR REVERSE GEAR) |
| 33332 | Gear, 2ND |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33333 | Gear, 3RD |
| 33335 | Gear, 1ST |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33338 | Bush OR Bearing, 5TH Gear |
| 33344 | Bush, Reverse Gear |
| 33344A | Key OR Ball, Reverse Gear Bearing |
| 33345 | Bush, 1ST Gear |
| 33345A | Ball (FOR 1ST GEAR BUSH) |
| 33352 | Race, Reverse Gear Bearing Inner |
| 33352A | Key OR Ball, Reverse Gear Bearing Inner Race Lock |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33362A | Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) |
| 33363 | Sleeve, Transmission Hub, NO.1 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33368 | Ring, Synchronizer, NO.2 |
| 33369 | Ring, Synchronizer, NO.3 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33376 | Spring, Synchromesh Shifting Key (FOR NO.3 CLUTCH HUB) |
| 33377 | Key, Synchromesh Shifting (FOR NO.3 CLUTCH HUB) |
| 33385 | Retainer, Shifting Key |
| 33391 | Spring, Synchromesh Shifting Key, NO.2 |
| 33393 | Hub, Transmission Clutch, NO.3 |
| 33393A | Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3) |
| 33395 | Sleeve, Transmission Hub, NO.3 |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33402A | Bush OR Bearing (FOR REVERSE IDLER GEAR) |
| 33411 | Countershaft |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411B | Spacer(FOR COUNTER GEAR BEARING) |
| 33411D | Ring, Counter Gear Front Bearing Snap, NO.1 |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33411K | Race, Counter Bearing Outer(FOR REAR) |
| 33411P | Bearing, Countershaft Center |
| 33411Q | Ring, Counter Gear Front Bearing Snap, NO.2 |
| 33411R | Ring, Snap, Counter Gear Rear Bearing |
| 33421 | Gear, Counter |
| 33422A | Ring, Shaft Snap (FOR COUNTERSHAFT GEAR) |
| 33428 | Gear, Countershaft 5TH |
| 33431 | Spacer, Counter Gear, NO.1 |
| 33431A | Spacer, Counter Gear, NO.2 |
| 33433 | Plate, Counter Gear Rear Bearing Lock |
| 33441 | Washer, Counter Gear Side Thrust, NO.1 |
| 33442 | Washer, Counter Gear Side Thrust, NO.2 |
| 33451 | Shaft, Reverse Idler Gear |
| 33451B | Bush (FOR REVERSE IDLER GEAR SHAFT) |
| 33451D | Ring, Shaft Snap (FOR REVERSE IDLER GEAR SHAFT) |
| 33451E | Ring, E (FOR REVERSE IDLER GEAR SHAFT) |
| 33452 | Stopper, Reverse Idler Gear Shaft |
| 33454 | Bolt, Shaft Retaining |
| 33462 | Washer, Reverse Idler Thrust |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481A | Key OR Ball, Speedometer Drive Gear (MTM) |
| 33481B | Ring OR Spacer (FOR MTM SPEEDOMETER DRIVE GEAR) |
| 33481E | Clip (FOR SPEEDOMETER DRIVE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
