Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

19 part groups · 3 illustrations

Illustrations

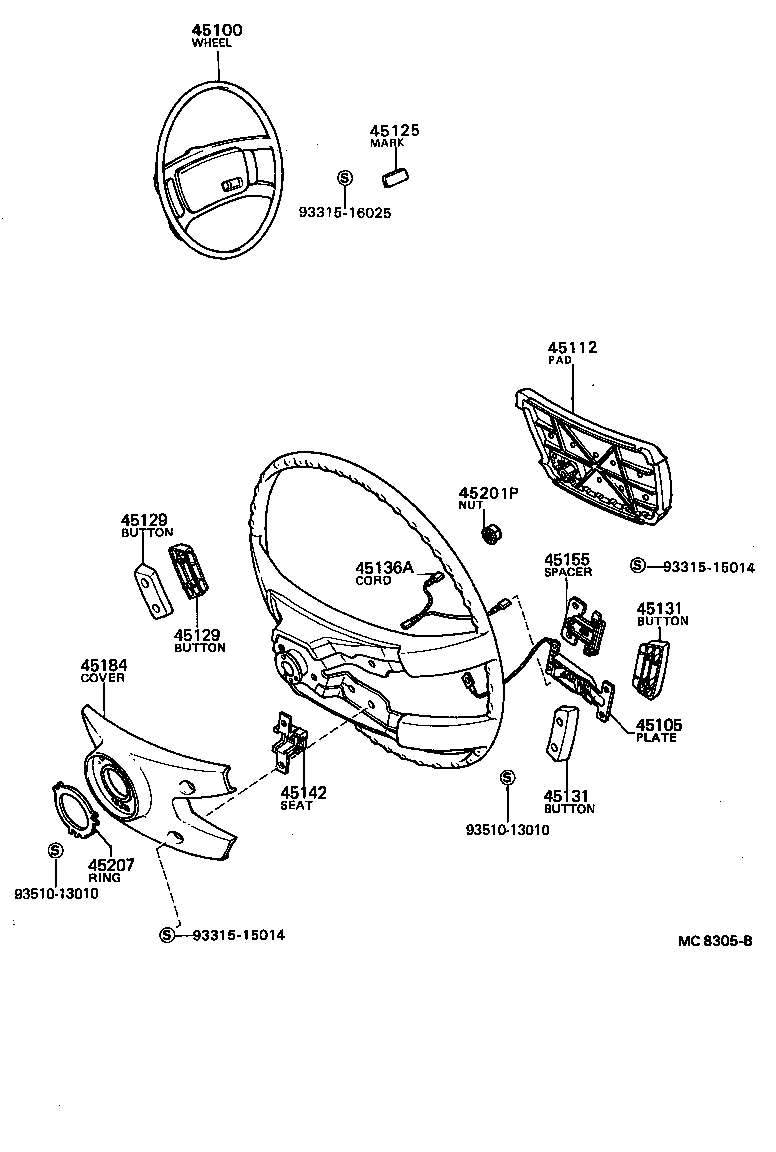

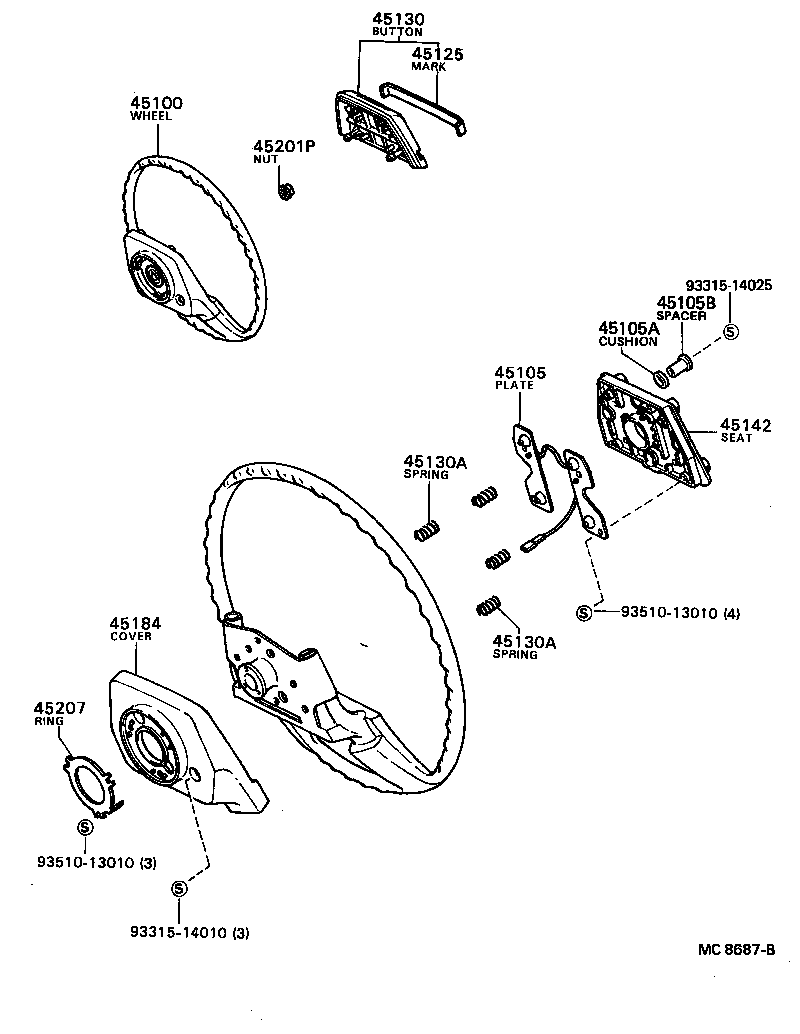

Figure MC6871B MC6871B 1980-09 → 1982-08 Figure MC8305B MC8305B 1980-09 → 1982-08 Figure MC8687B MC8687B 1982-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
