Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

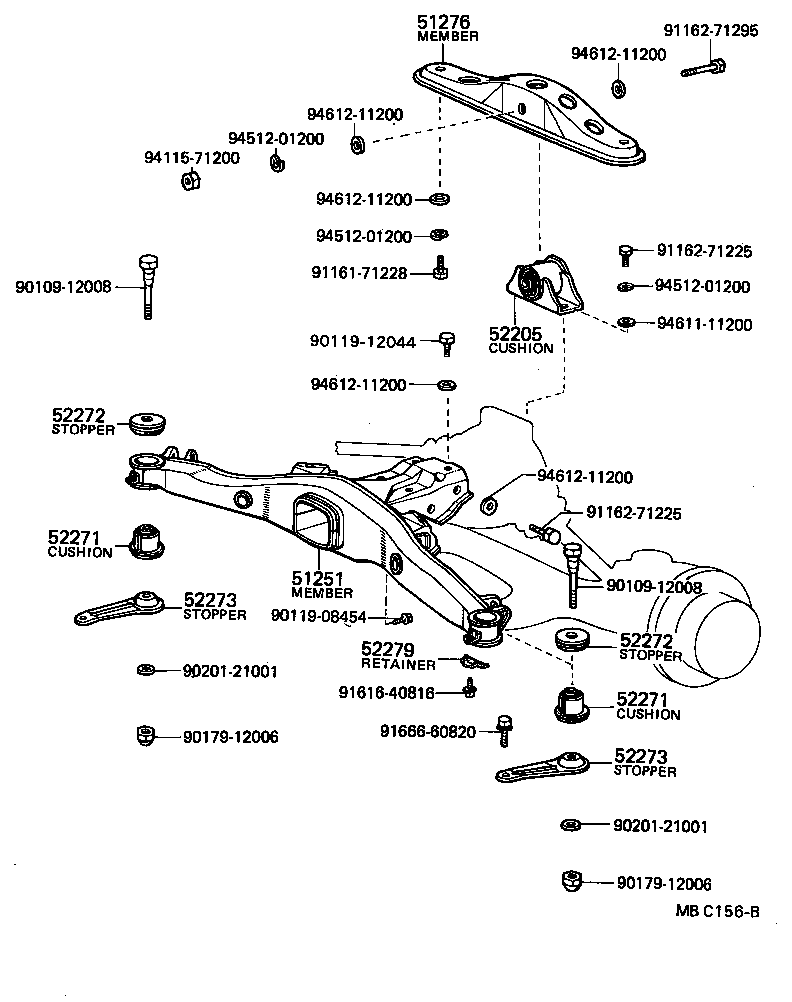

Figure MBB880G MBB880G 1980-09 → — Figure MBC156B MBC156B 1982-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204B Damper Sub-assy, Front Suspension Member
51214 Brace, Front Side Member TO Suspension Crossmember
51251 Member Sub-assy, Rear Suspension
51276 Member, Differential Support
51296 Bolt, Front Suspension Member Mounting
51441 Cover, Engine Under, NO.1
51961 Hook, NO.1
51962 Hook, NO.2
51967 Hook, Transport, Rear
52205 Cushion Sub-assy, Differential Support
52271 Cushion, Rear Suspension Member
52272 Stopper, Rear Suspension Member, Upper
52273 Stopper, Rear Suspension Member, Lower
52279 Retainer, Rear Suspension Member Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
