Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 4 illustrations

Illustrations

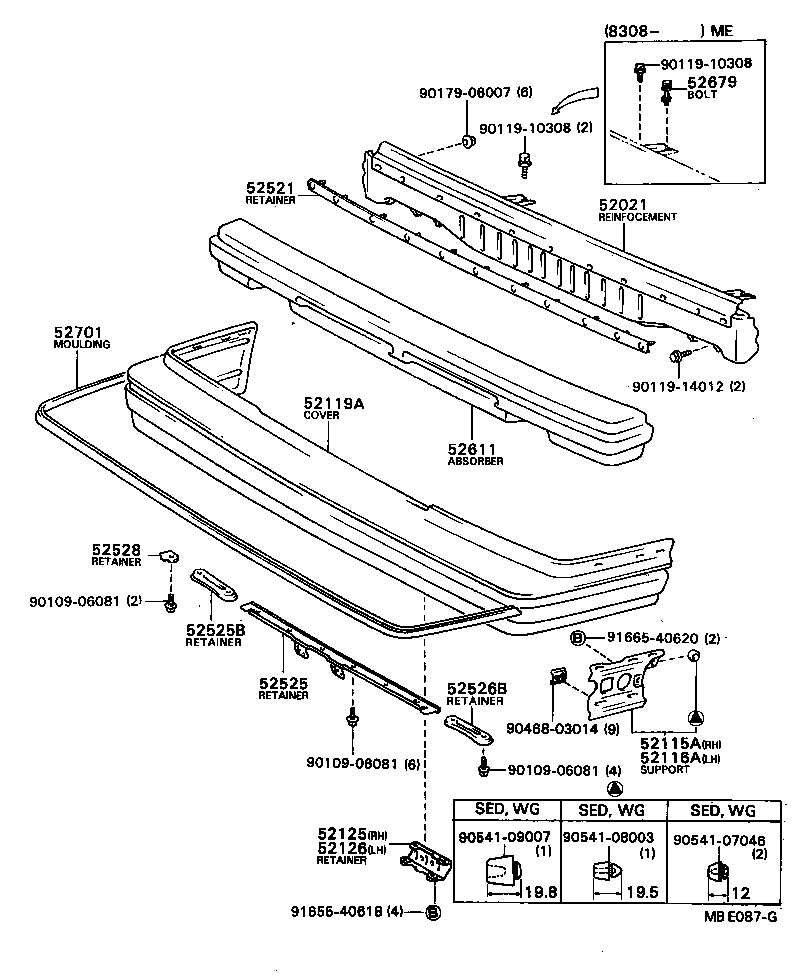

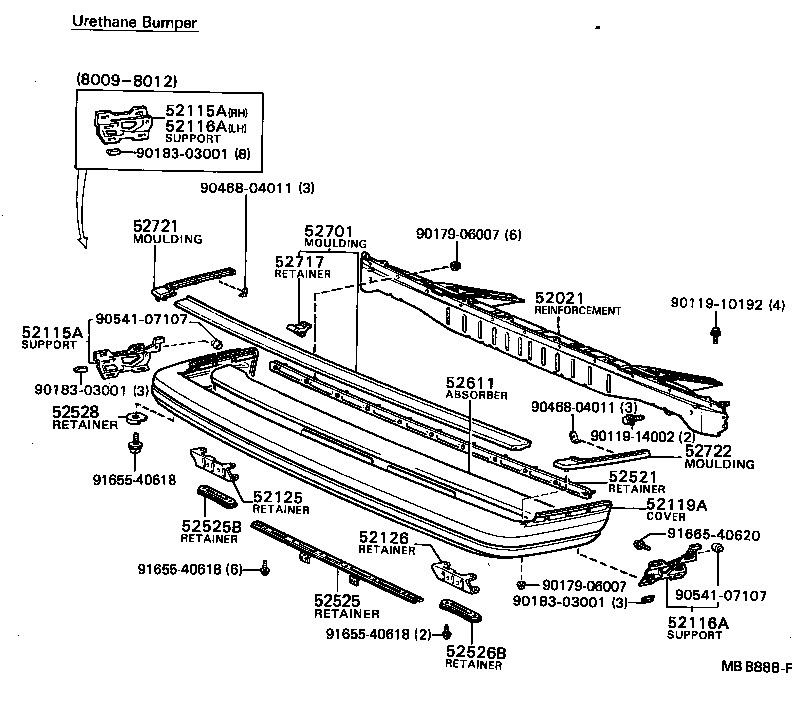

Figure MBB887C MBB887C 1980-09 → 1982-08 Figure MBB887C MBB887C 1982-09 → — Figure MBB888F MBB888F 1980-09 → 1982-08 Figure MBE087G MBE087G 1982-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125 Retainer, Front Bumper, RH
52126 Retainer, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52679 Bolt, Front Bumper Arm
52701 Moulding Sub-assy, Front Bumper
52717 Retainer, Front Bumper Moulding
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
