Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04

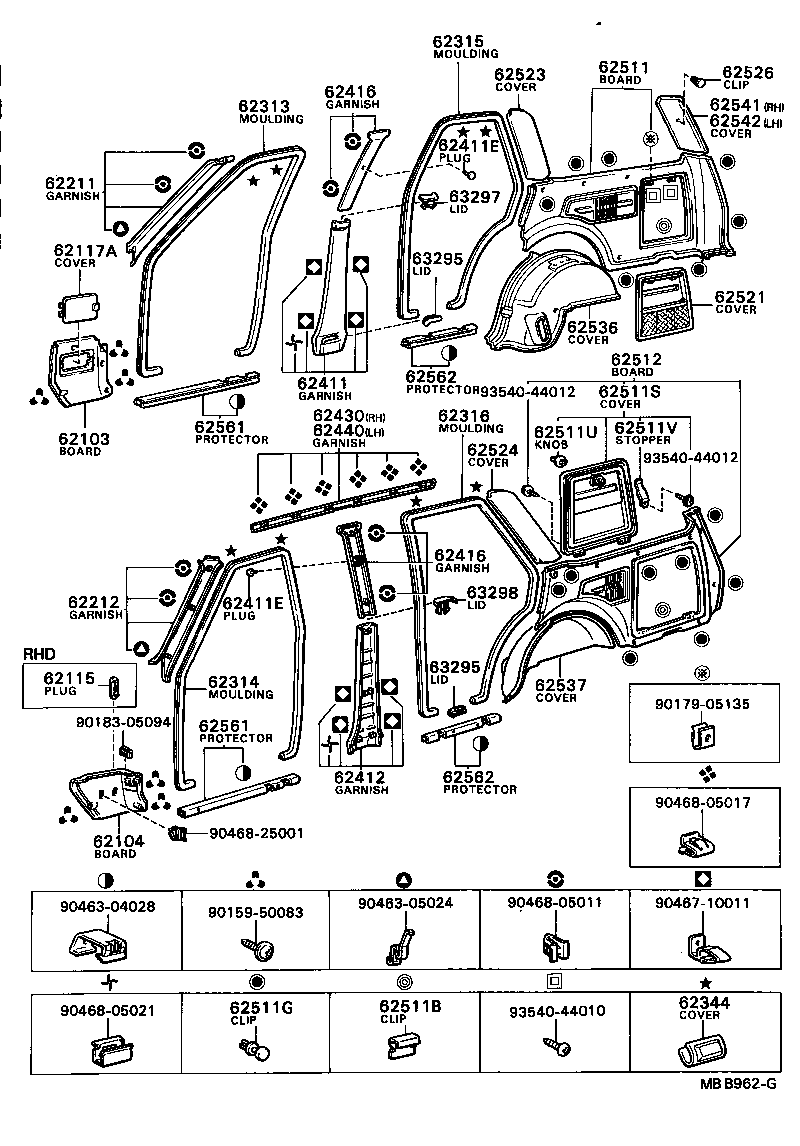

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62115 | Plug, Cowl Side Trim |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62344 | Cover, Door Opening Trim Moulding |
| 62411 | Garnish, Center Pillar, RH |
| 62411E | Plug, Hole (FOR SEAT BELT) |
| 62412 | Garnish, Center Pillar, LH |
| 62416 | Garnish, Center Pillar, Upper |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62461G | Retainer, Door Trim |
| 62462 | Garnish, Roof Side Trim, LH |
| 62481A | Base, Roof Side Inner Garnish, RH |
| 62482A | Base, Roof Side Inner Garnish, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511S | Cover, Quarter Trim Jack |
| 62511U | Knob, Jack Cover |
| 62511V | Stopper, Jack Cover |
| 62512 | Board, Quarter Inside Trim, LH |
| 62521 | Cover, Quarter Inside Service Hole, RH |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62526 | Clip, Quarter Window Garnish |
| 62535 | Pad, Quarter Wheel House Trim |
| 62536 | Cover, Quarter Wheel House Trim Front, RH |
| 62537 | Cover, Quarter Wheel House Trim Front, LH |
| 62541 | Cover, Quarter Pillar Upper Garnish, RH |
| 62542 | Cover, Quarter Pillar Upper Garnish, LH |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62581C | Garnish, Rear Window Side, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 63295 | Lid, Center Pillar Garnish Belt Hole, Lower |
| 63297 | Lid, Center Pillar Garnish Belt Hole, RH |
| 63298 | Lid, Center Pillar Garnish Belt Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
