Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04
Front Seat & Seat Track

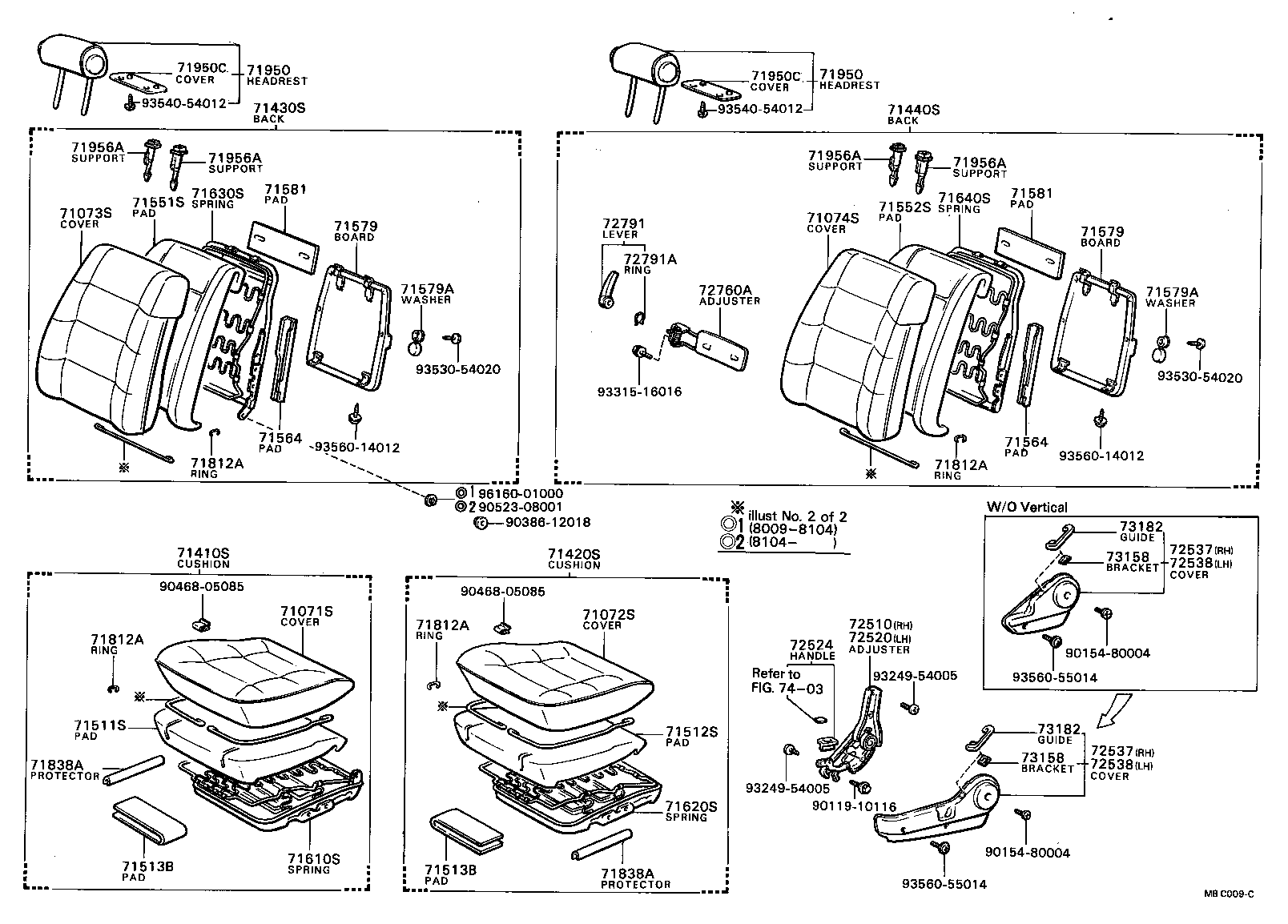

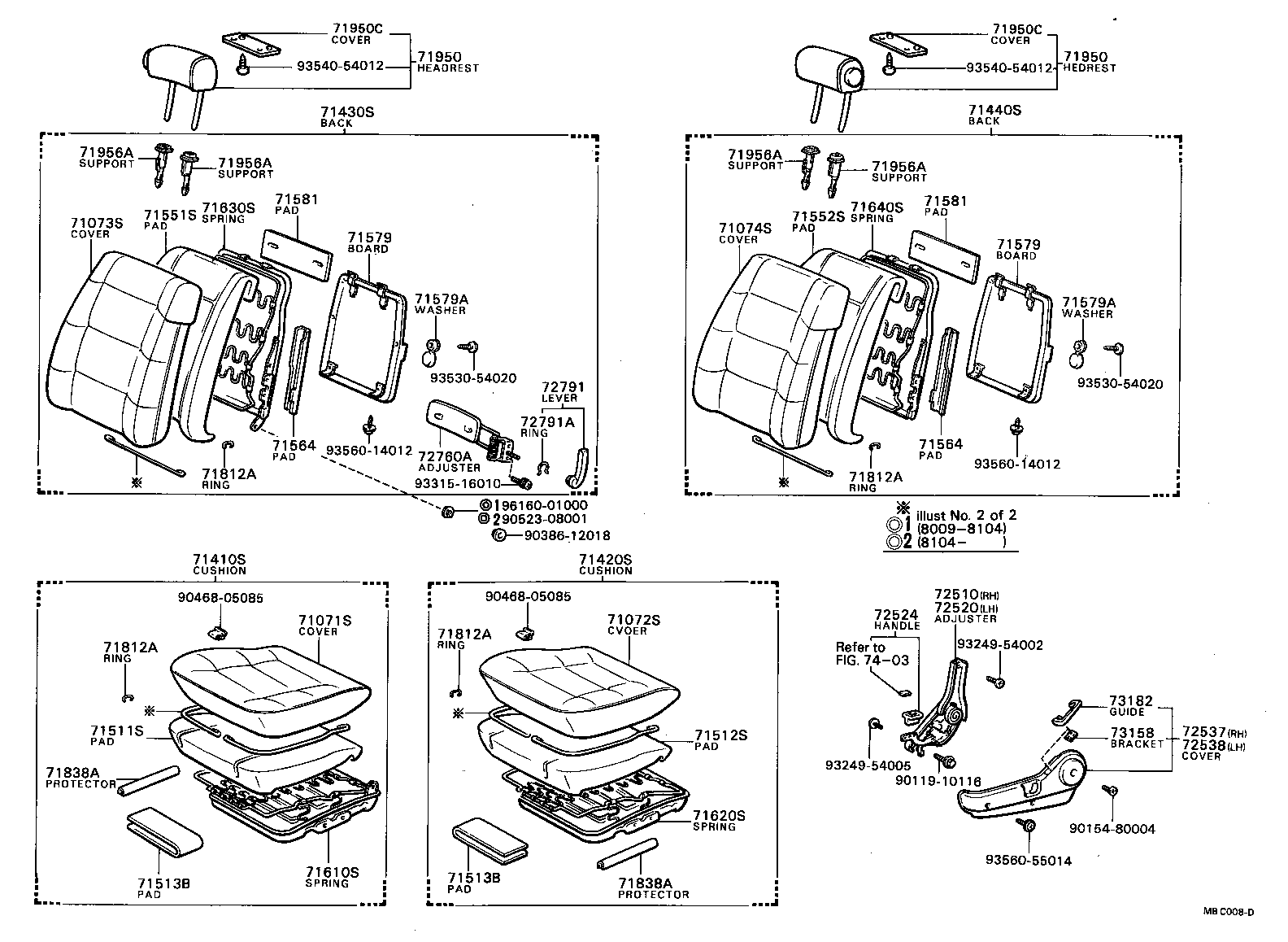

53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071P | Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073P | Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074P | Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410P | Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430P | Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440P | Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511P | Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71513B | Pad, Front Seat Cushion, B |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71522A | Pad, Front Seat Cushion Silencer, B |
| 71523A | Pad, Front Seat Cushion Silencer, C |
| 71551P | Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552P | Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71564 | Pad, Front Seatback, Side |
| 71579 | Board, Front Seatback |
| 71579A | Washer, Front Seatback Board Setting |
| 71581 | Pad, Front Seatback Silencer |
| 71610P | Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630P | Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640P | Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71810 | Armrest Assy, Front Seat Center |
| 71810A | Lock Sub-assy, Front Seat Armrest |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71838A | Protector, Front Seat Cushion Edge |
| 71950 | Headrest Assy, Front Seat |
| 71950C | Cover, Front Seat Headrest Under |
| 71956A | Support, Front Seat Headrest |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72537 | Cover, Reclining Hinge Outer, RH |
| 72538 | Cover, Reclining Hinge Outer, LH |
| 72760A | Adjuster Assy, Lumbar Support |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 73158 | Bracket, Seat Belt Guide Set |
| 73182 | Guide, Front Seat Lap Belt, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
