Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

27 part groups · 7 illustrations

Illustrations

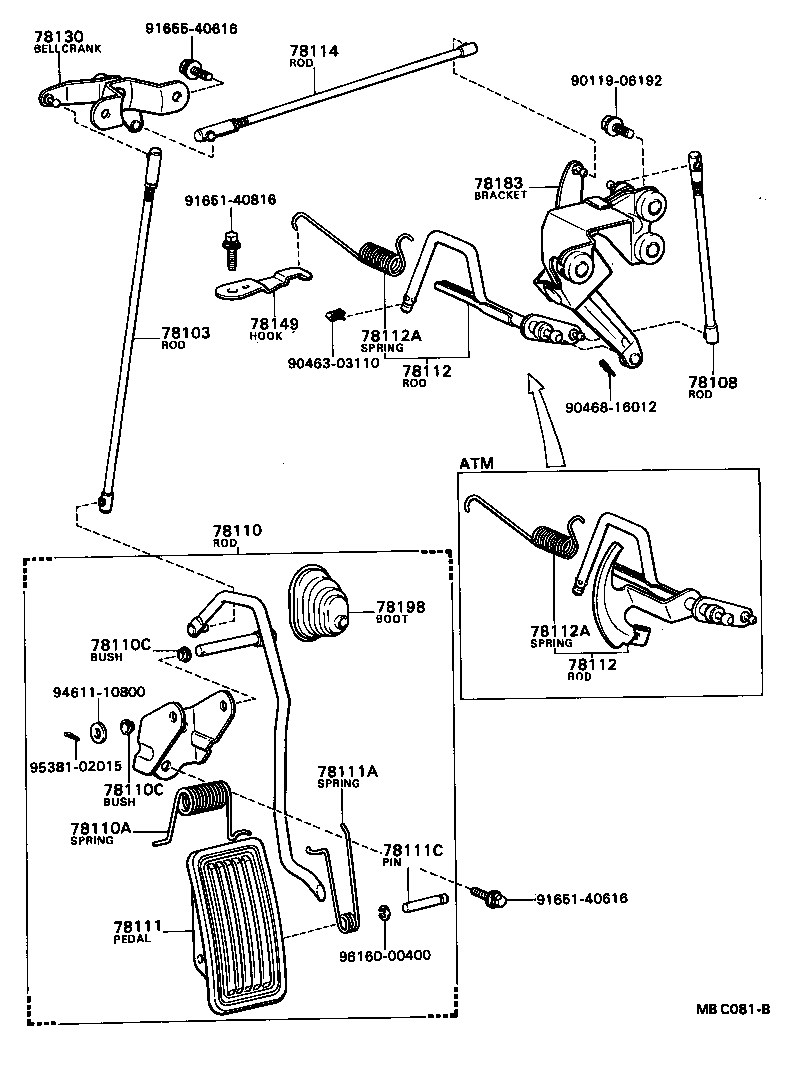

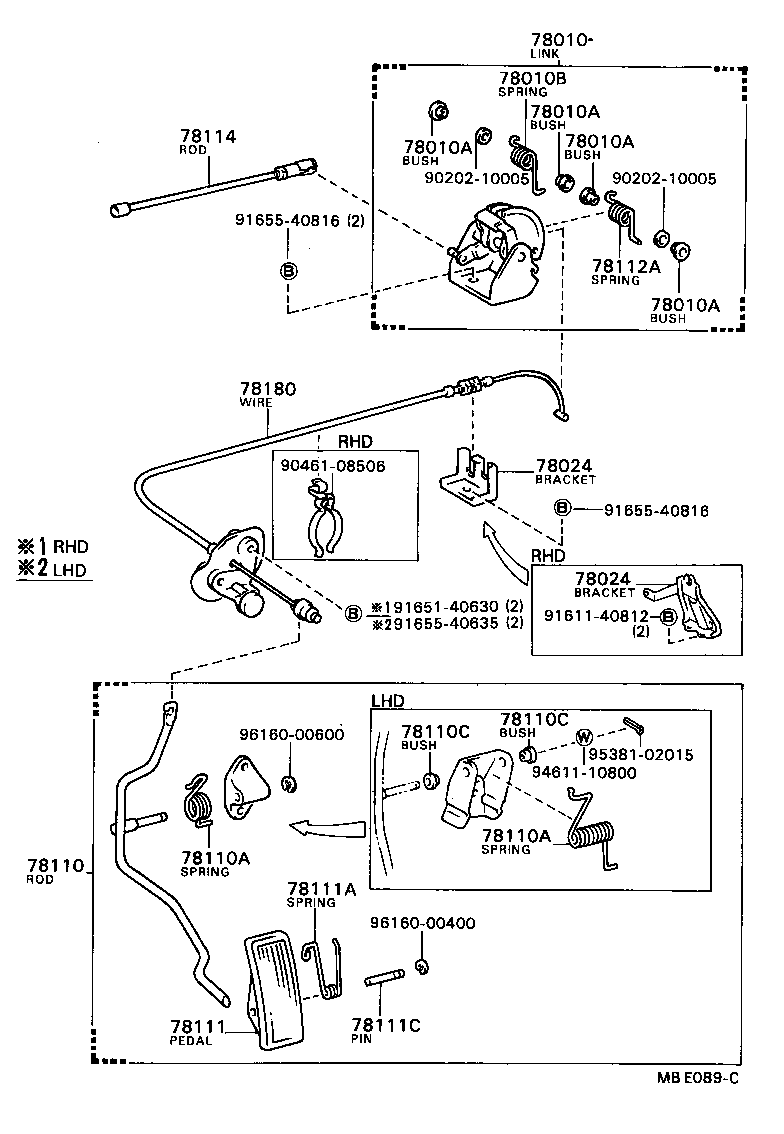

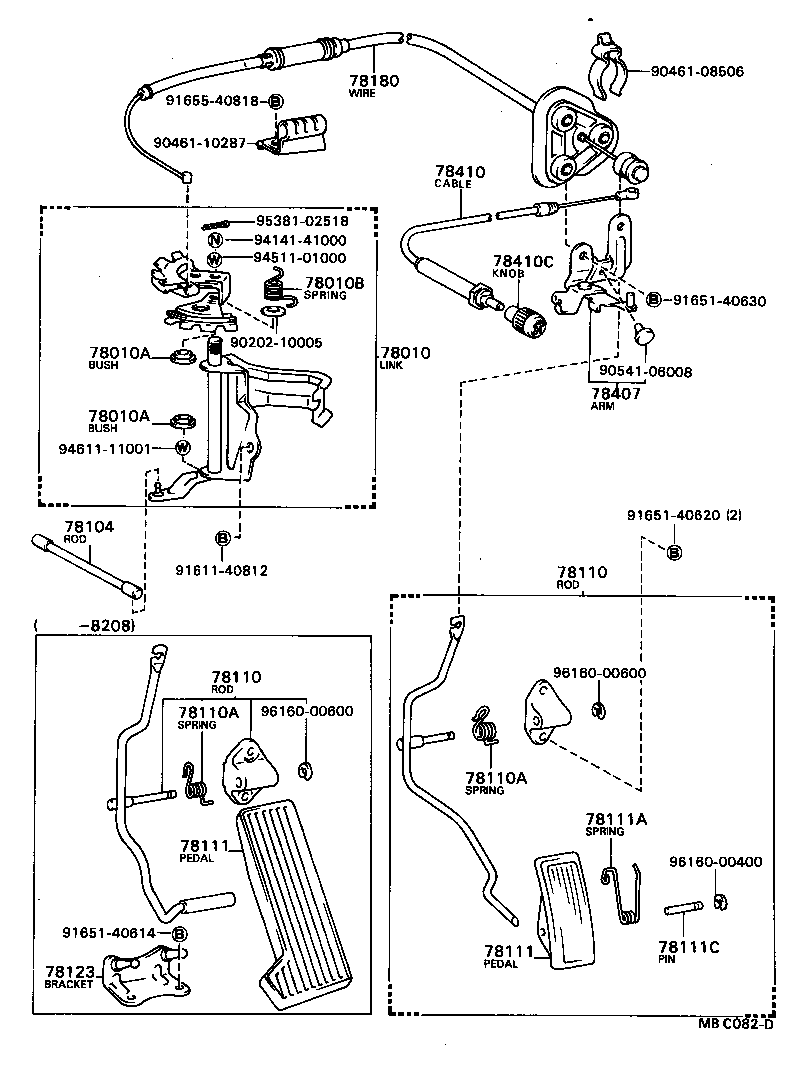

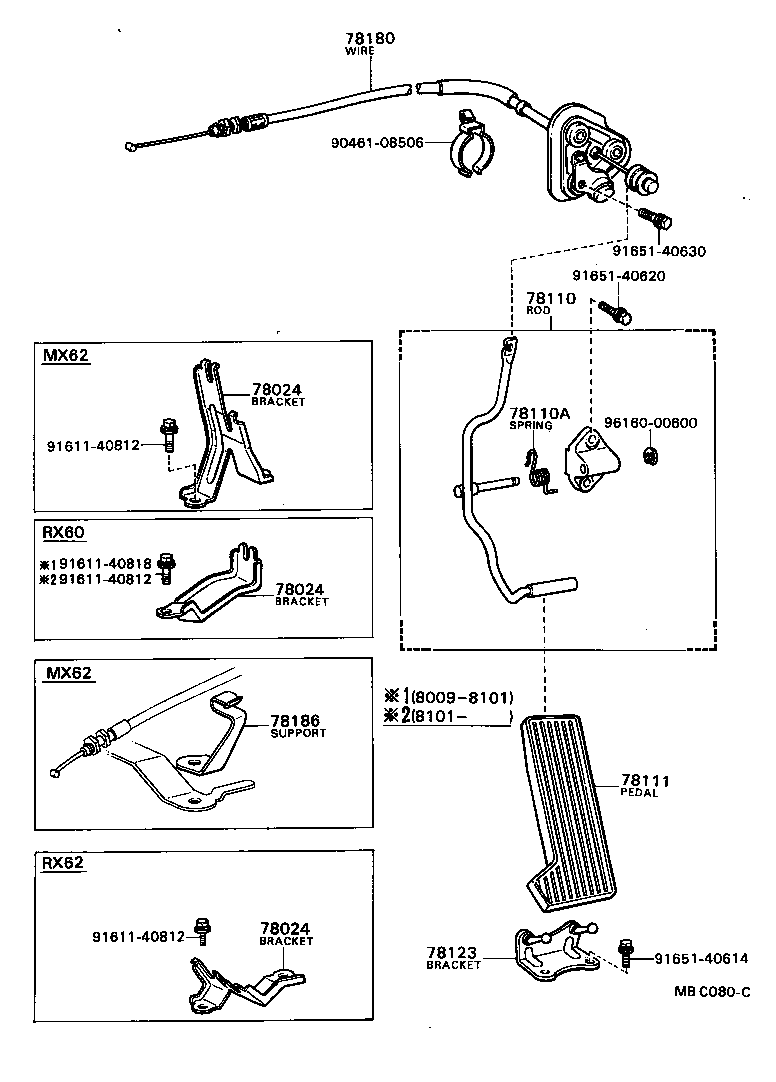

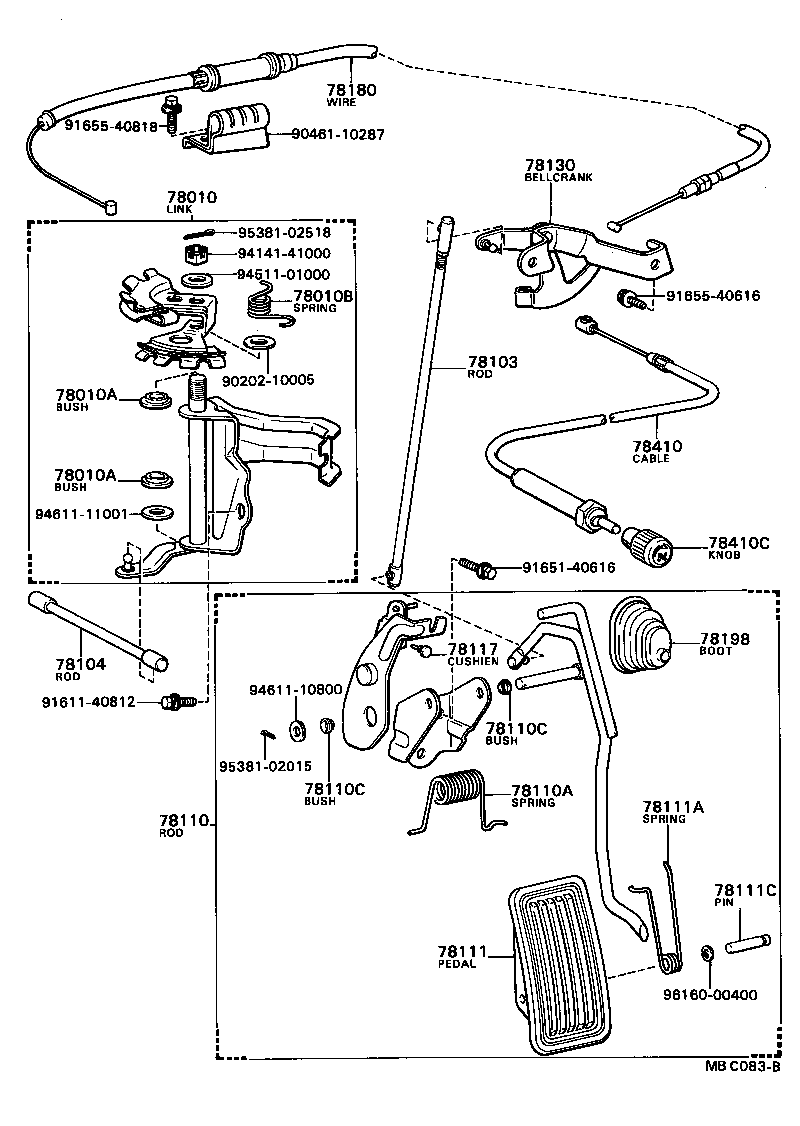

Figure MBC079B MBC079B 1980-09 → — Figure MBE089C MBE089C 1982-08 → — Figure MBC080C MBC080C 1980-09 → 1982-08 Figure MBE120A MBE120A 1982-08 → — Figure MBC081B MBC081B 1980-09 → — Figure MBC082D MBC082D 1980-09 → — Figure MBC083B MBC083B 1980-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78010A Bush (FOR ACCELERATOR LINK)
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78112A Spring (FOR ACCELRATOR CONNECTING ROD)
78114 Rod Sub-assy, Accelerator Connecting, NO.5
78117 Cushion (FOR ACCELERATOR ROD)
78123 Bracket, Accelerator Pedal Support
78130 Bellcrank Assy, Accelerator
78149 Hook, Accelerator Torque Rod Spring
78180 Wire Assy, Accelerator
78183 Bracket, Accelerator Link Rod
78186 Support, Accelerator Control Cable, NO.1
78198 Boot, Accelerator Connecting Rod
78407 Arm Sub-assy, Throttle Control
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
