Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

29 part groups · 3 illustrations

Illustrations

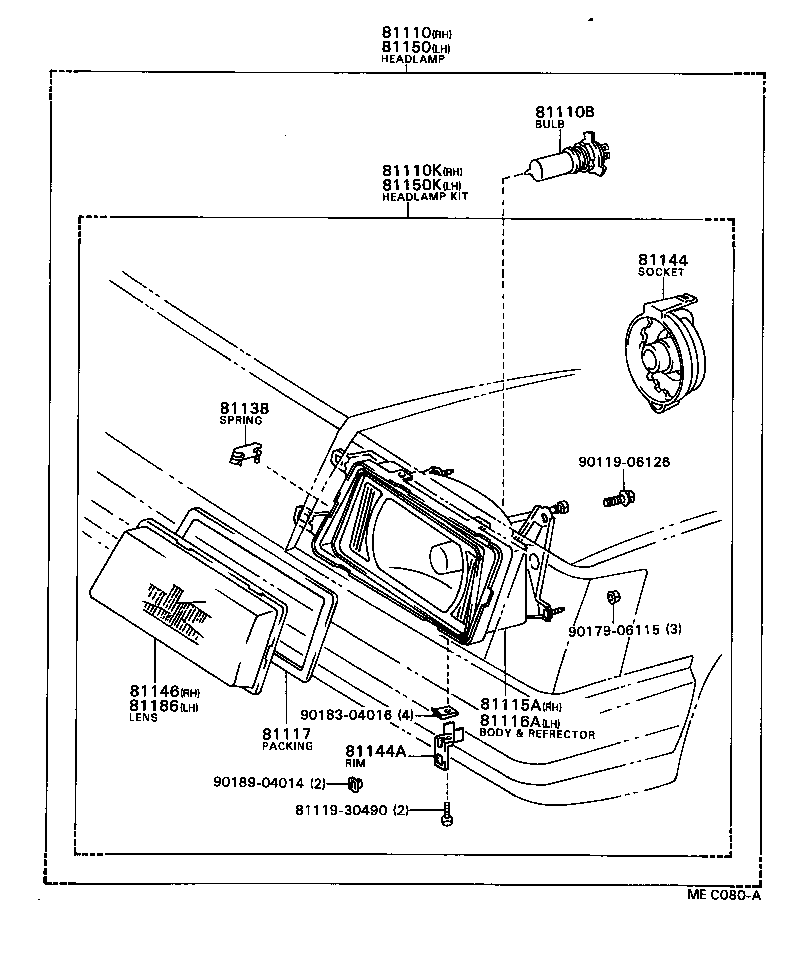

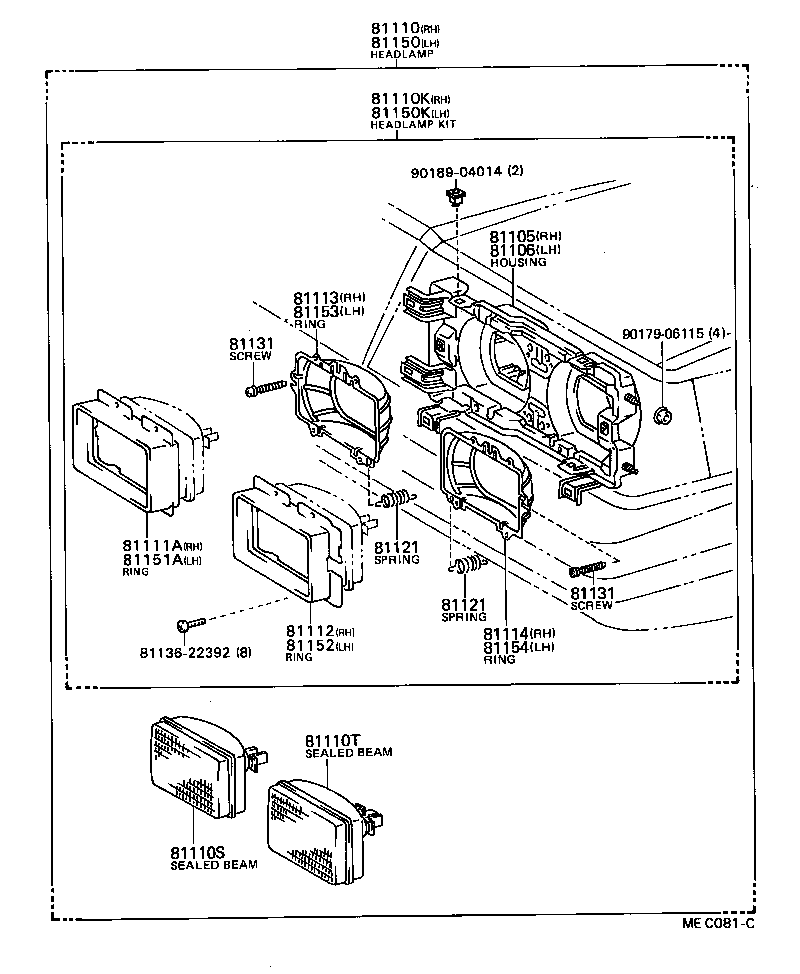

Figure MEA023A MEA023A 1980-09 → 1982-08 Figure MEC080A MEC080A 1982-08 → — Figure MEC081C MEC081C 1983-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110K Headlamp Kit, W/O Sealed Beam, RH
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81115A Body And Reflector Sub-assy, Headlamp, RH
81116A Body And Reflector Sub-assy, Headlamp, LH
81117 Packing, Headlamp Housing
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81136 Protector, Headlamp, NO.1 RH
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81144A Rim, Headlamp Fitting
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81150K Headlamp Kit, W/O Sealed Beam, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81176 Protector, Headlamp, NO.1 LH
81186 Lens, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
