Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

44 part groups · 11 illustrations

Illustrations

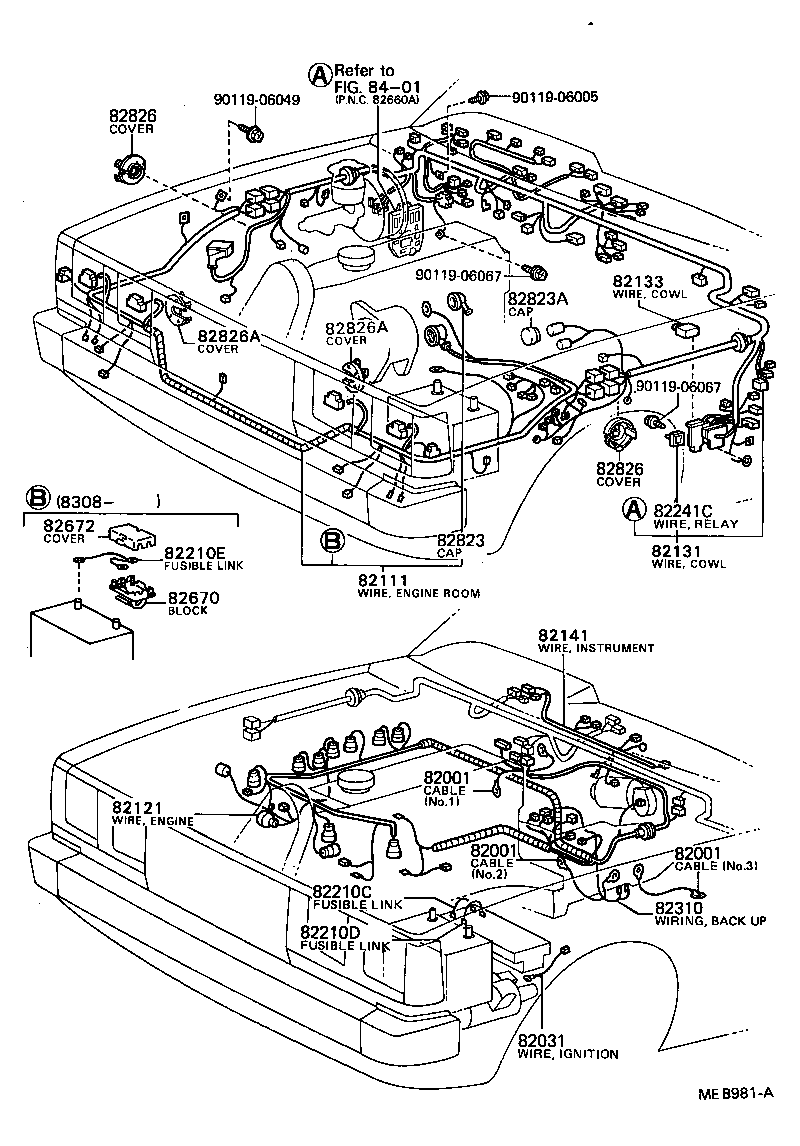

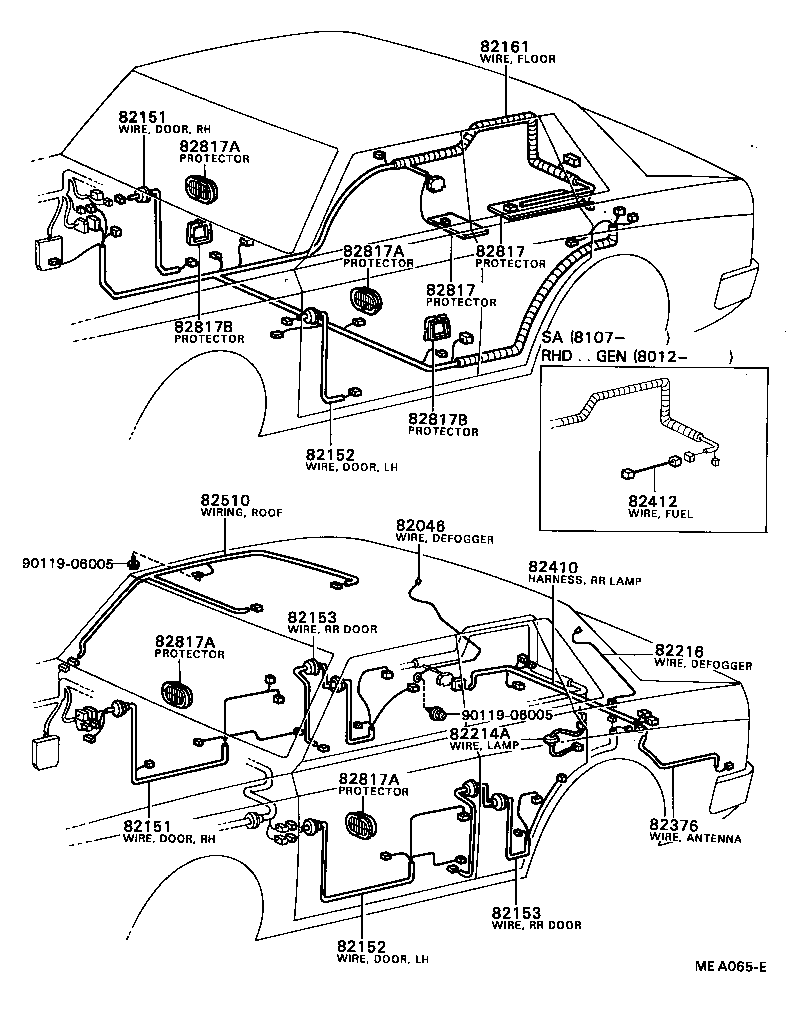

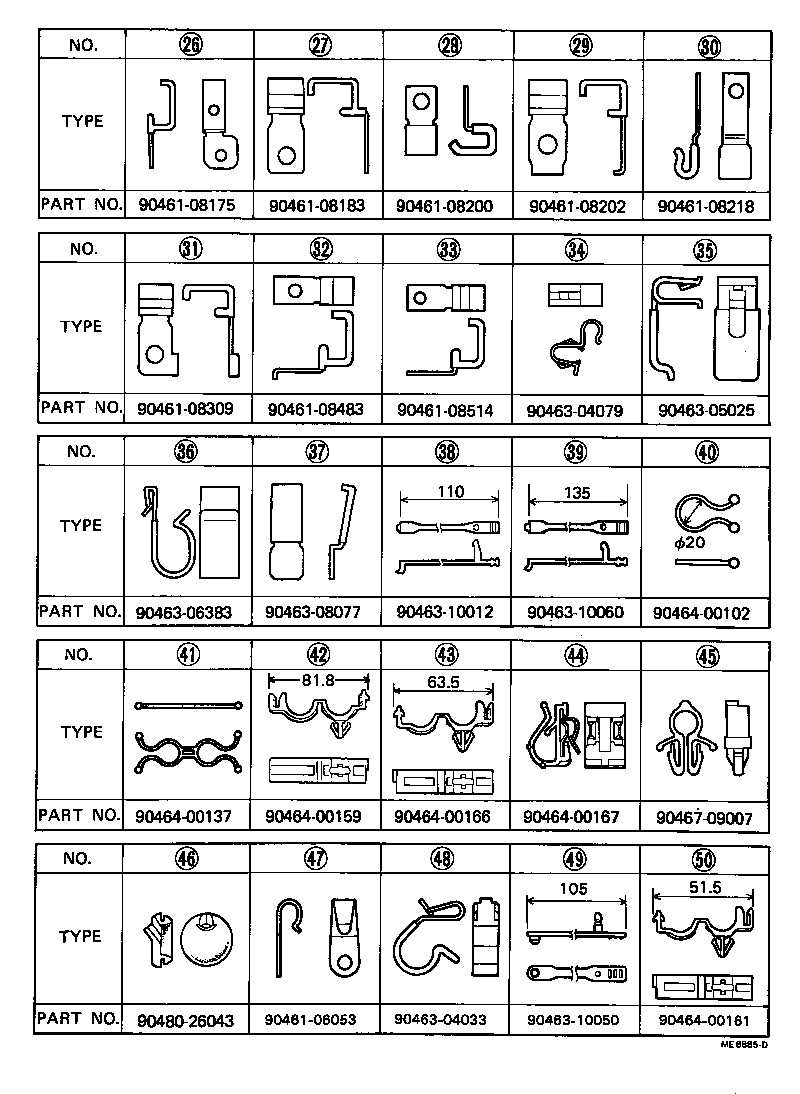

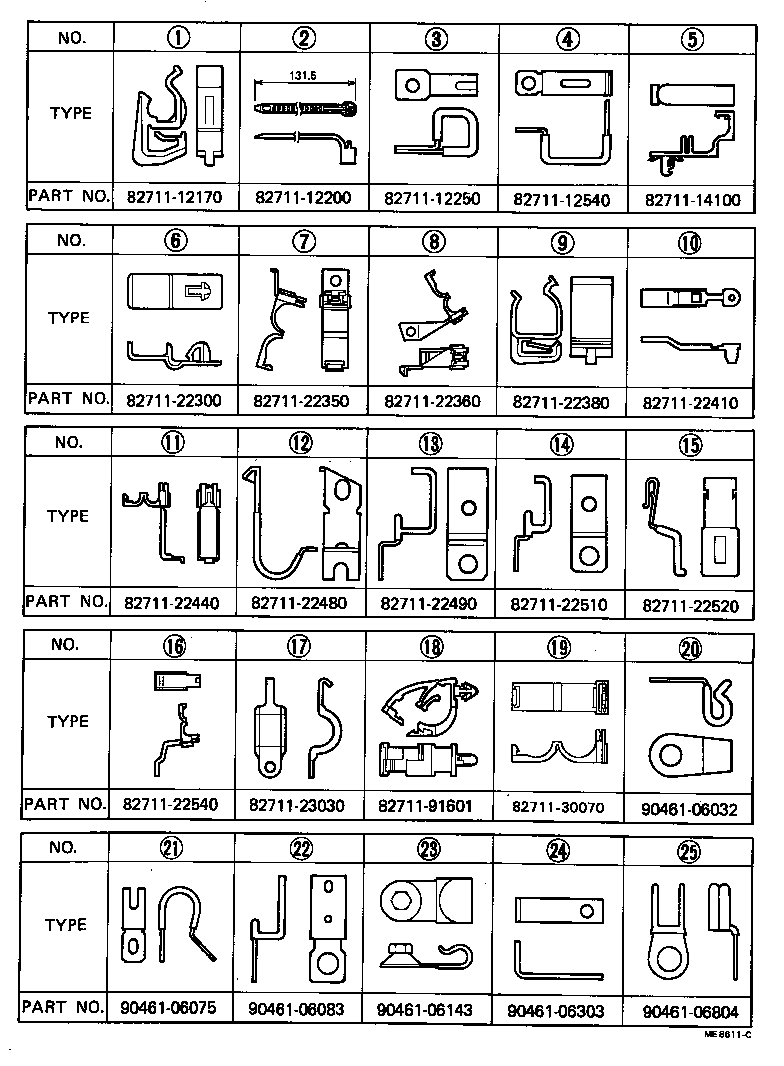

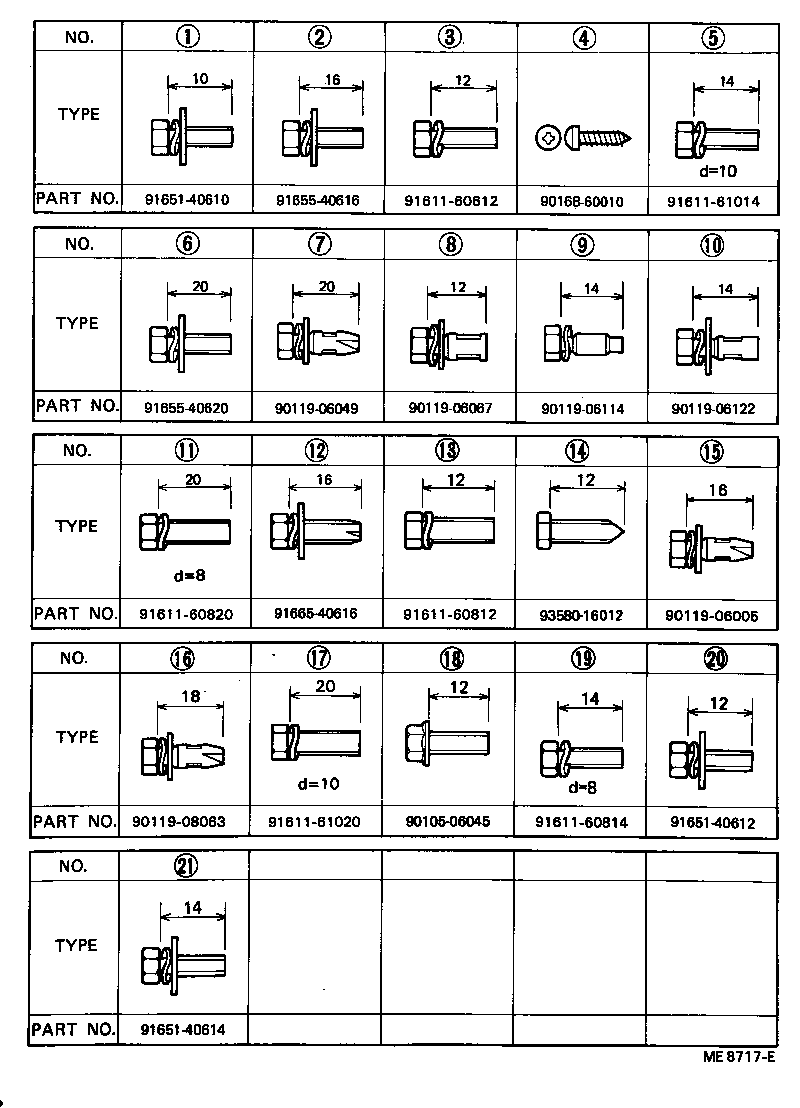

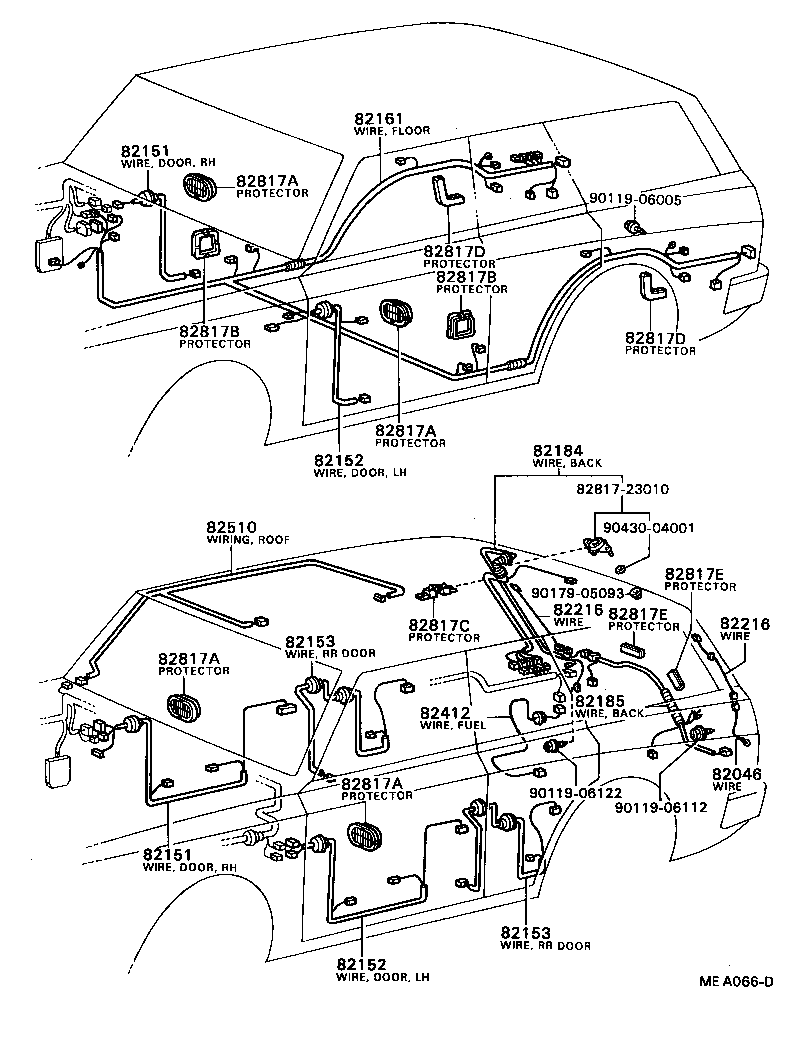

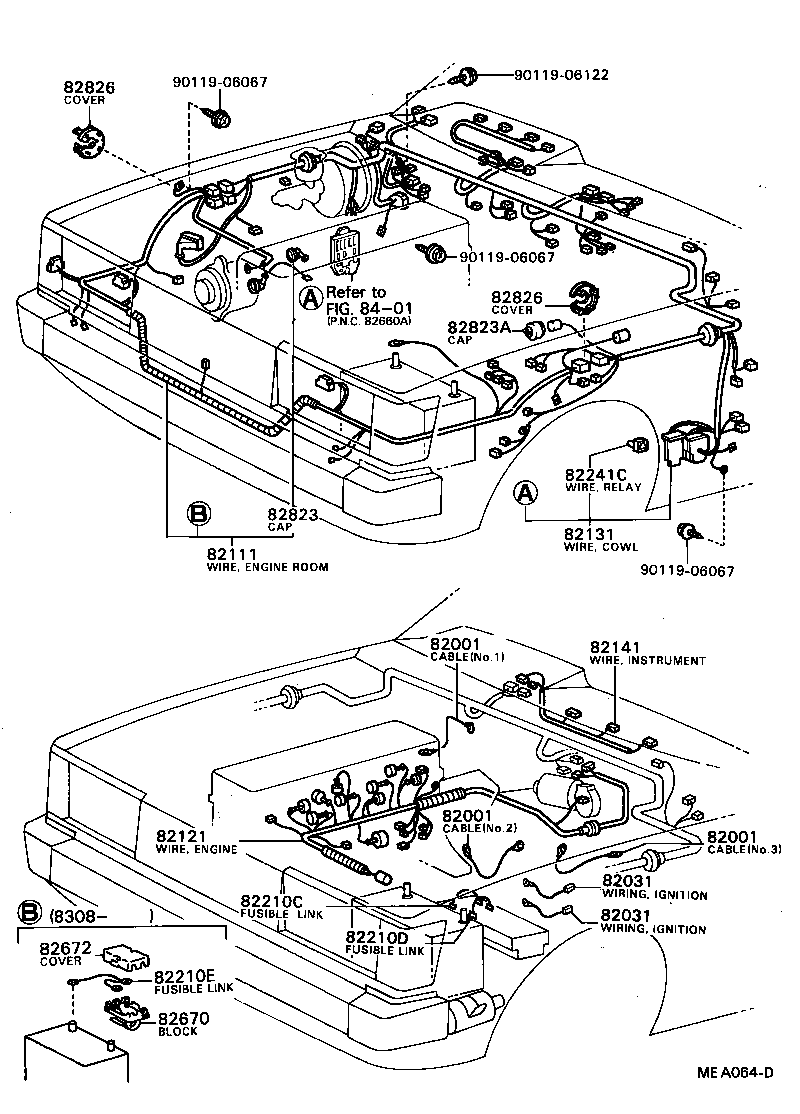

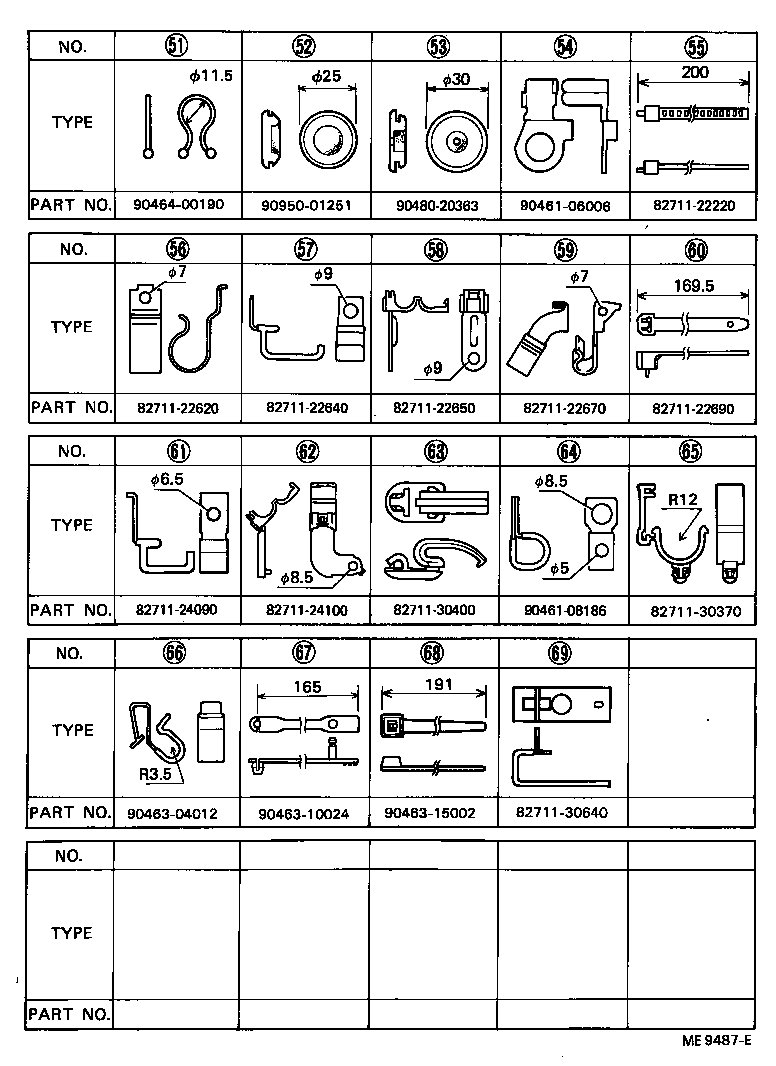

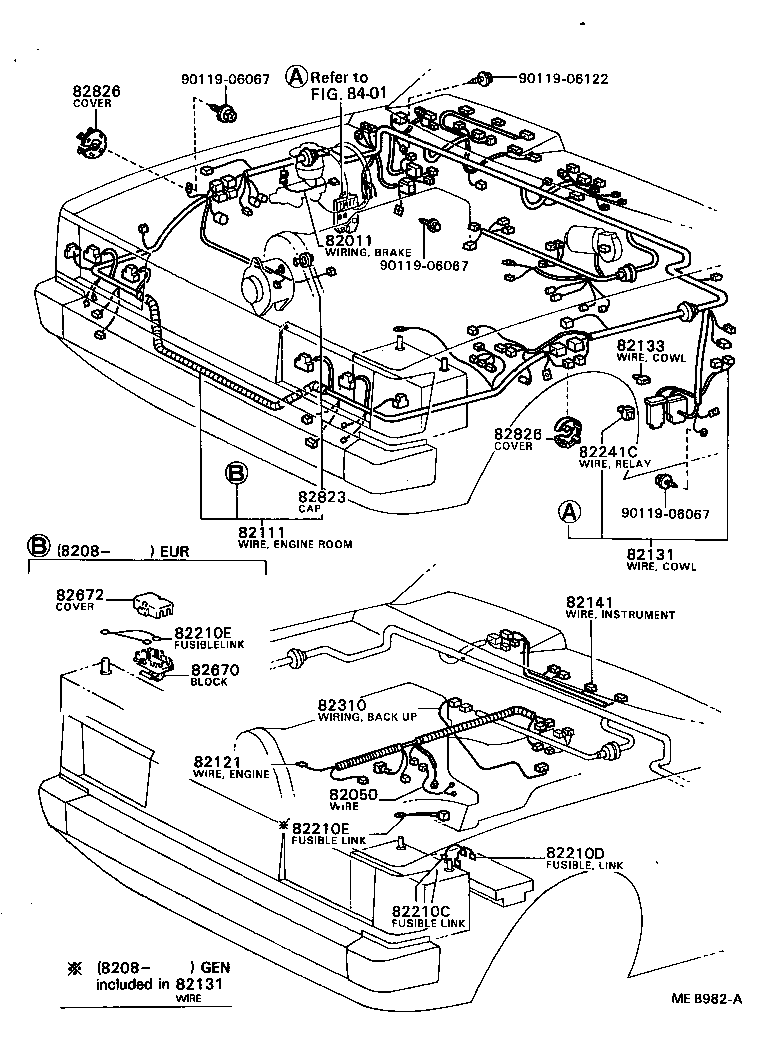

Figure MEA063B MEA063B 1980-09 → — Figure MEB981A MEB981A 1982-08 → — Figure MEA064D MEA064D 1980-09 → — Figure MEB982A MEB982A 1980-09 → — Figure MEA065E MEA065E 1980-09 → — Figure MEA066D MEA066D 1980-09 → — Figure MEA636B MEA636B 1980-09 → — Figure ME8611C ME8611C 1980-09 → — Figure ME8885D ME8885D 1980-09 → — Figure ME9487E ME9487E 1980-09 → — Figure ME8717E ME8717E 1980-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82121 Wire, Engine
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82241C Wire, Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82376 Wire, Motor Antenna
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82510 Wiring Assy, Roof
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82826 Cover, Wiring Harness Hole
82826A Cover, Wiring Harness Hole, NO.2
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
