Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

10 part groups · 3 illustrations

Illustrations

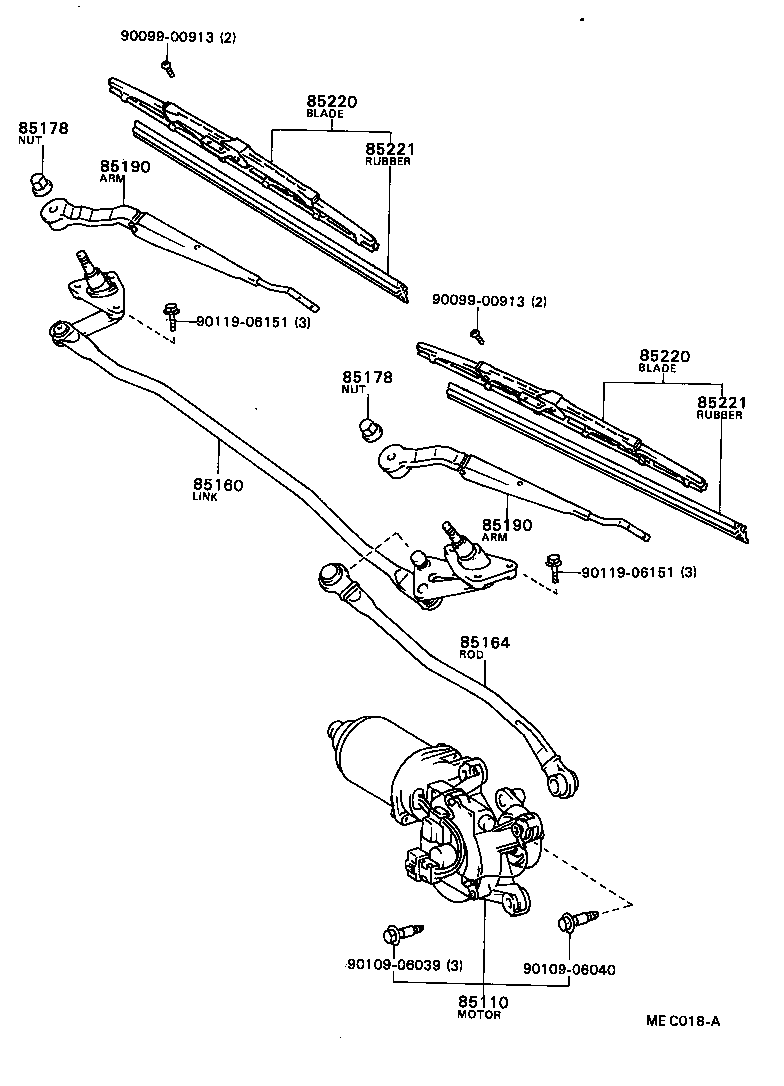

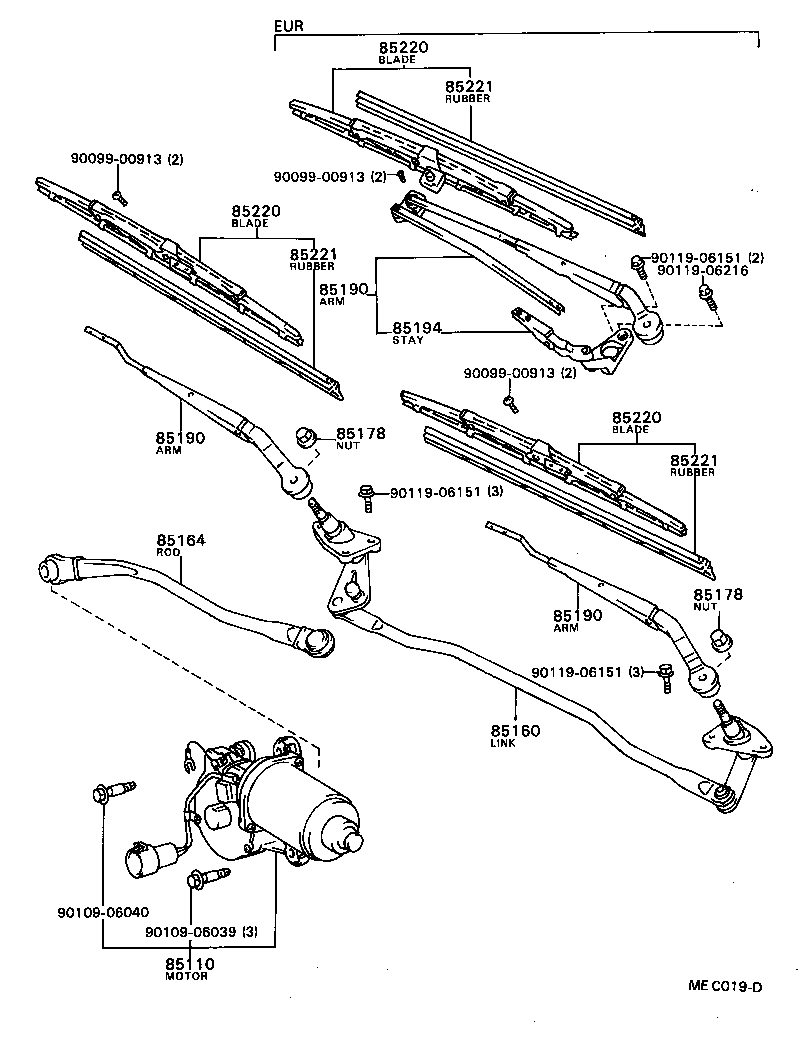

Figure MEA124B MEA124B 1980-09 → 1982-08 Figure MEC018A MEC018A 1982-08 → — Figure MEC019D MEC019D 1982-08 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85164 Rod, Windshield Wiper Link, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85194 Stay, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85225 Wing, Wiper Blade
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
