Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

21 part groups · 3 illustrations

Illustrations

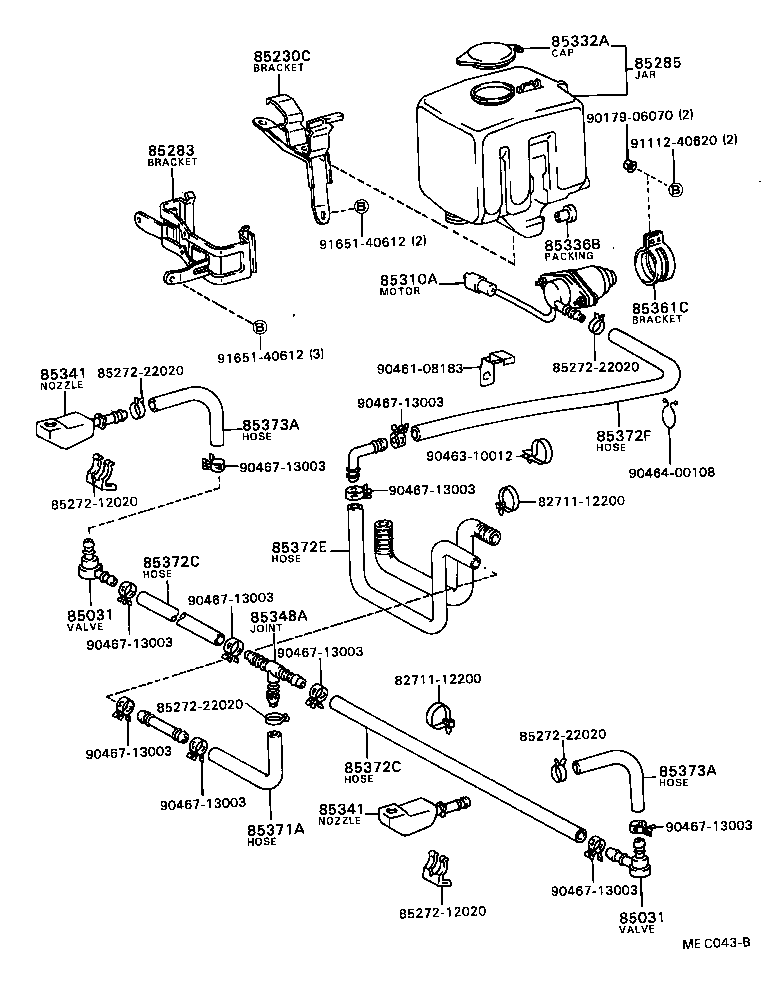

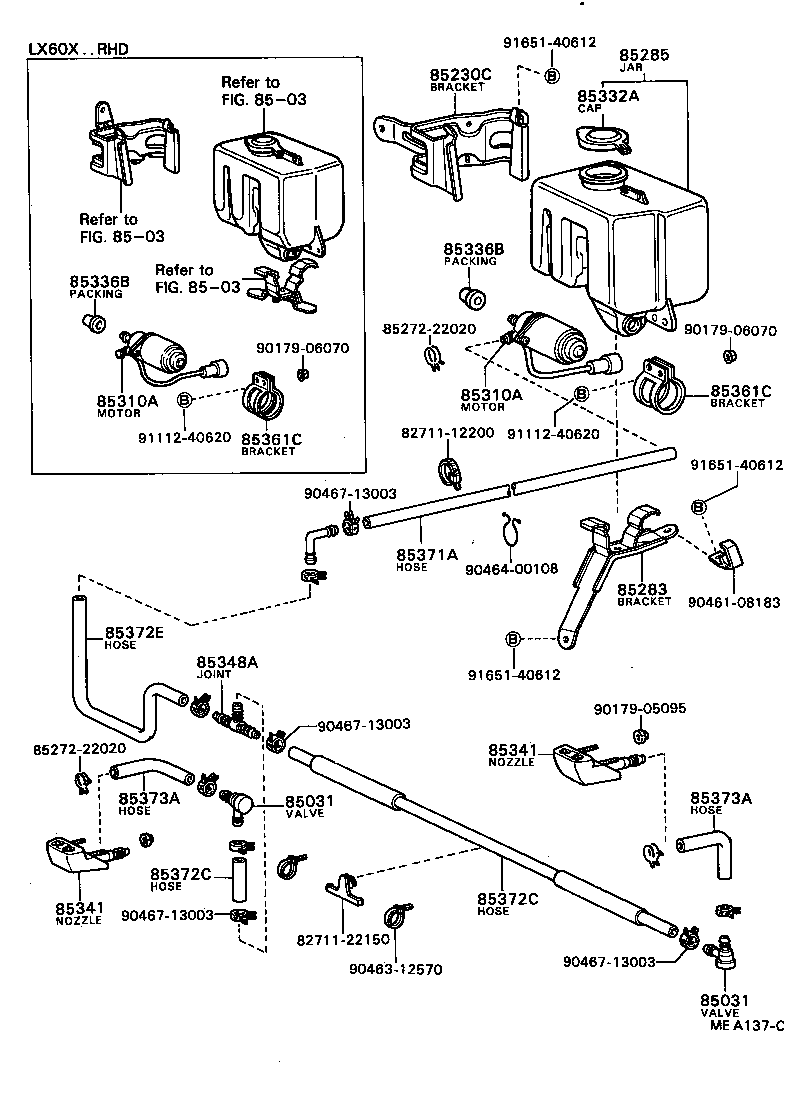

Figure MEA136D MEA136D 1980-09 → 1982-08 Figure MEA137C MEA137C 1980-09 → 1982-08 Figure MEC043B MEC043B 1982-08 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85230C Bracket Assy, Headlamp Cleaner
85283 Bracket, Headlamp Cleaner Washer
85284 Hose Assy, Headlamp Cleaner Washer
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85320A Motor And Bracket Assy, Headlamp Cleaner Washer
85332A Cap, Headlamp Cleaner Washer Jar
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85361C Bracket, Washer
85370A Hose Assy, Headlamp Cleaner Washer, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
85372E Hose, Headlamp Cleaner Washer(FROM JOINT TO JOINT)
85372F Hose, Headlamp Cleaner Washer(FROM JOINT TO JOINT)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
