Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

19 part groups · 3 illustrations

Illustrations

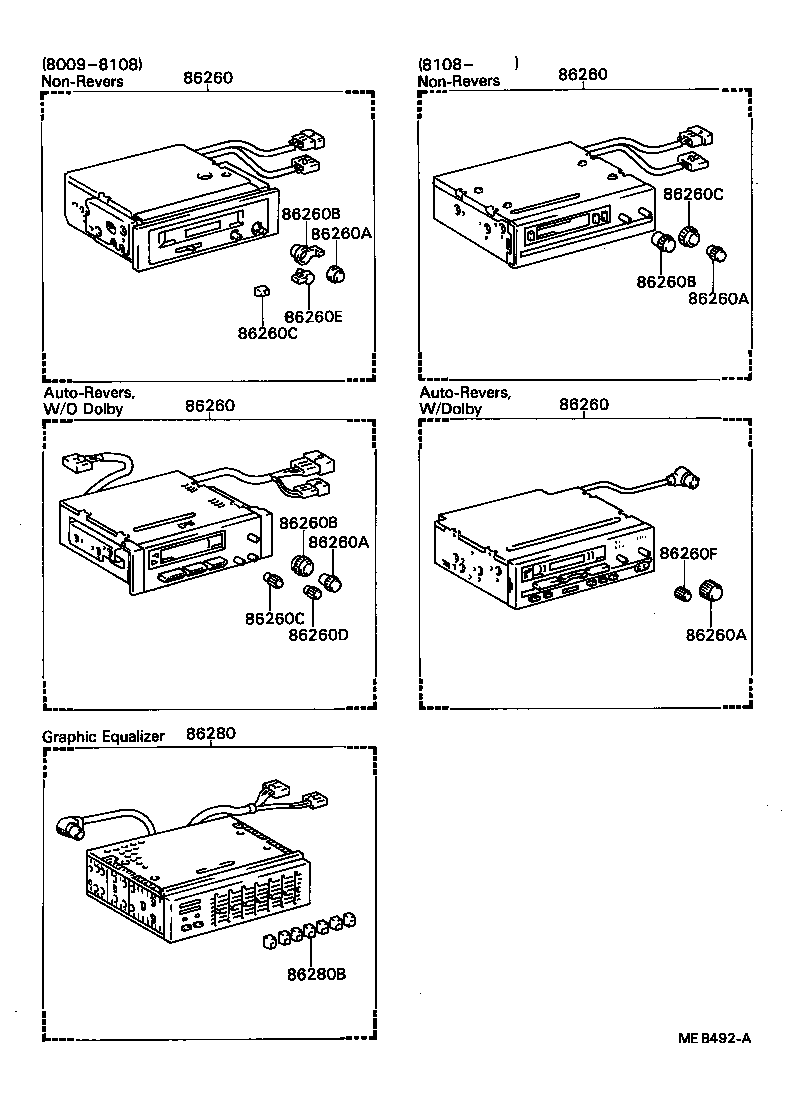

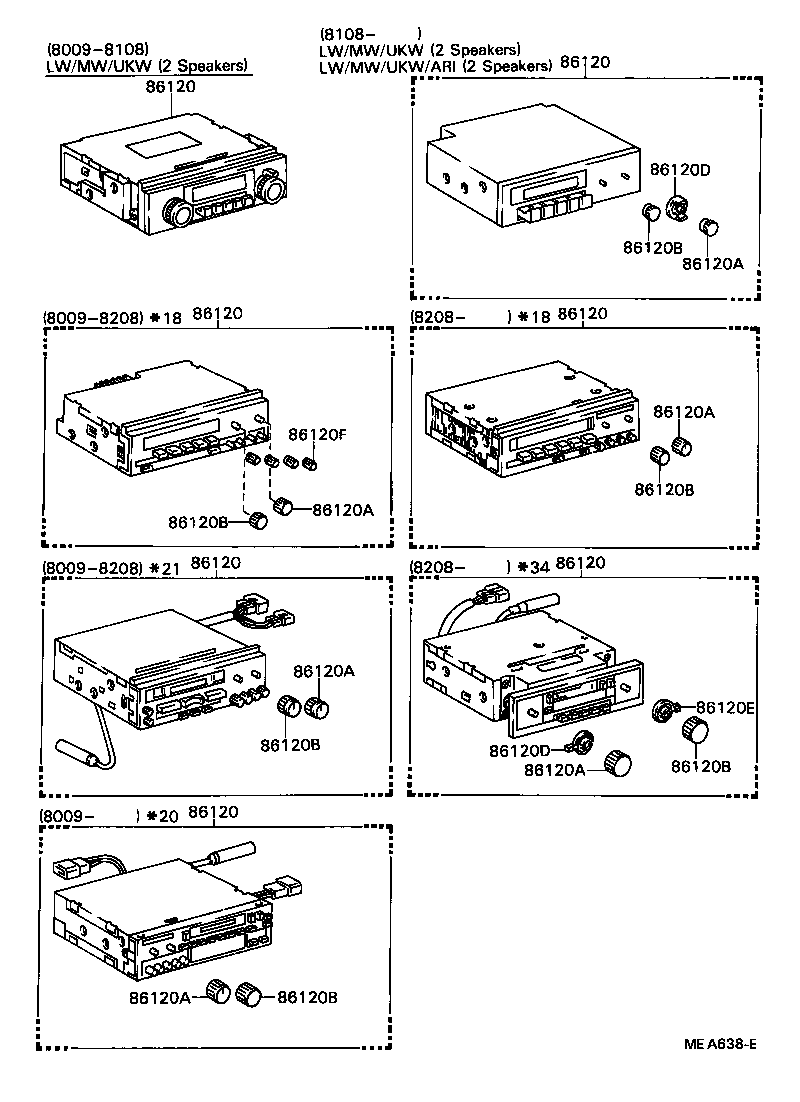

Figure MEA143E MEA143E 1980-09 → — Figure MEA638E MEA638E 1980-09 → — Figure MEB492A MEB492A 1980-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120C Knob, Radio Receiver Tuning, NO.2
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86120F Knob, Radio Receiver Sub Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86260C Knob, Tape Player Balance
86260D Knob, Tape Player Fader
86260E Knob, Tape Player Eject
86260F Knob, Tape Player Microphone Volume
86280 Amplifier Assy, Stereo Component
86280B Knob, Amplifier Graphic Equalizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
