Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

13 part groups · 7 illustrations

Illustrations

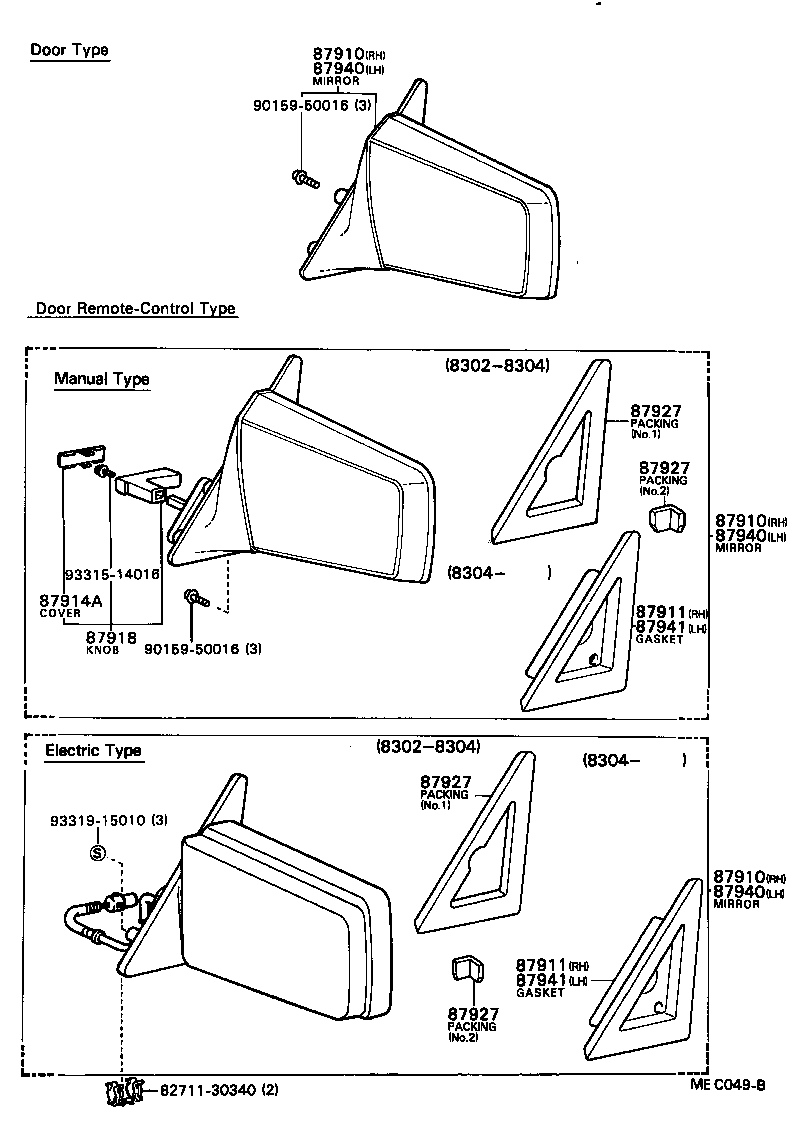

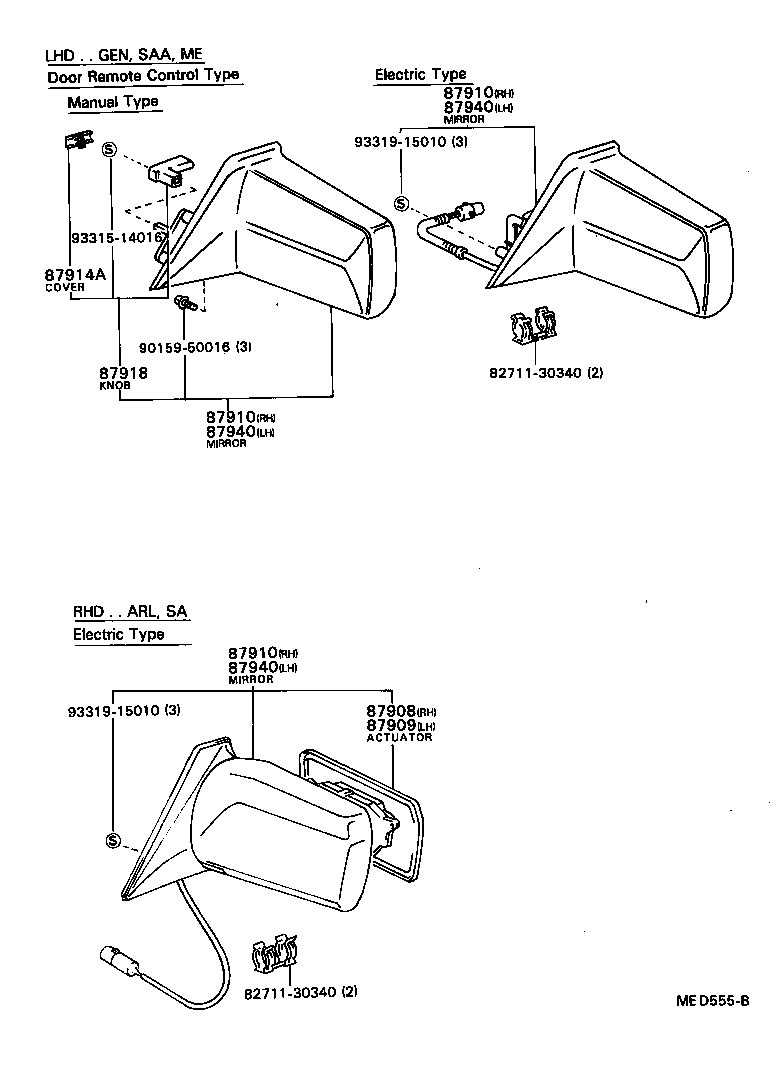

Figure MEA156C MEA156C 1980-09 → — Figure MEC049B MEC049B 1980-09 → 1983-07 Figure MEC049B MEC049B 1983-07 → 1983-12 Figure MEC049B MEC049B 1983-07 → — Figure MEC049B MEC049B 1983-12 → — Figure MED555B MED555B 1983-07 → — Figure MED555B MED555B 1983-12 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87914A Cover, Outer Mirror Knob
87918 Knob, Control Outer Mirror
87927 Packing, Rear View Outside Mirror Stay
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
