Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04

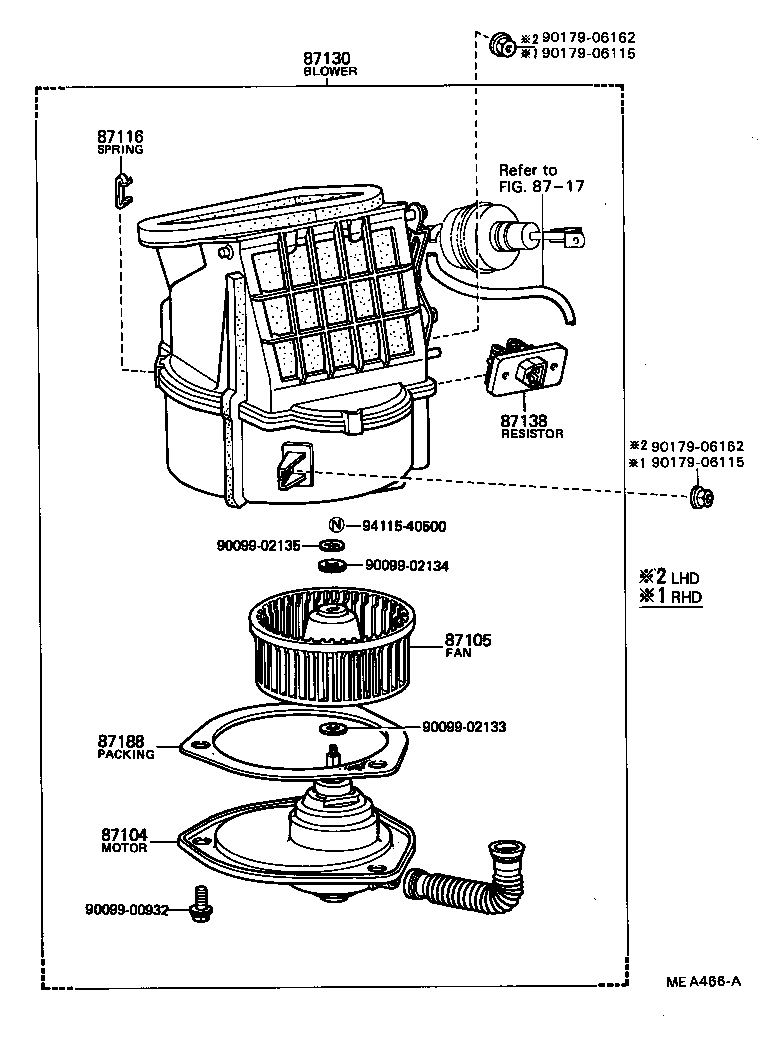

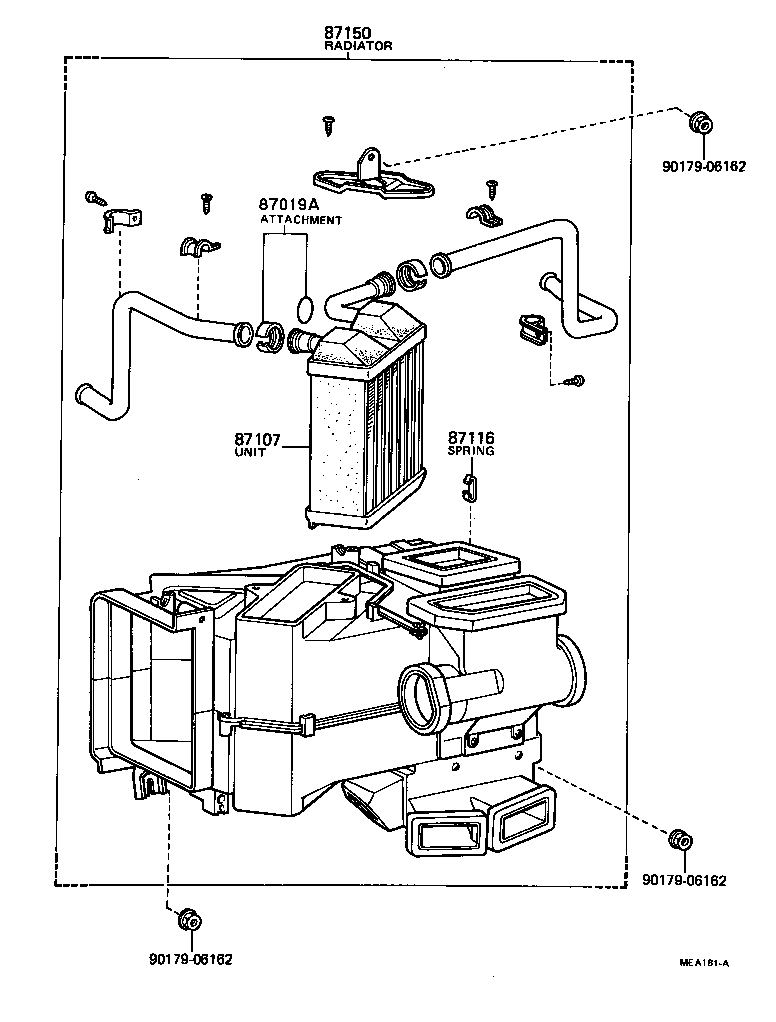

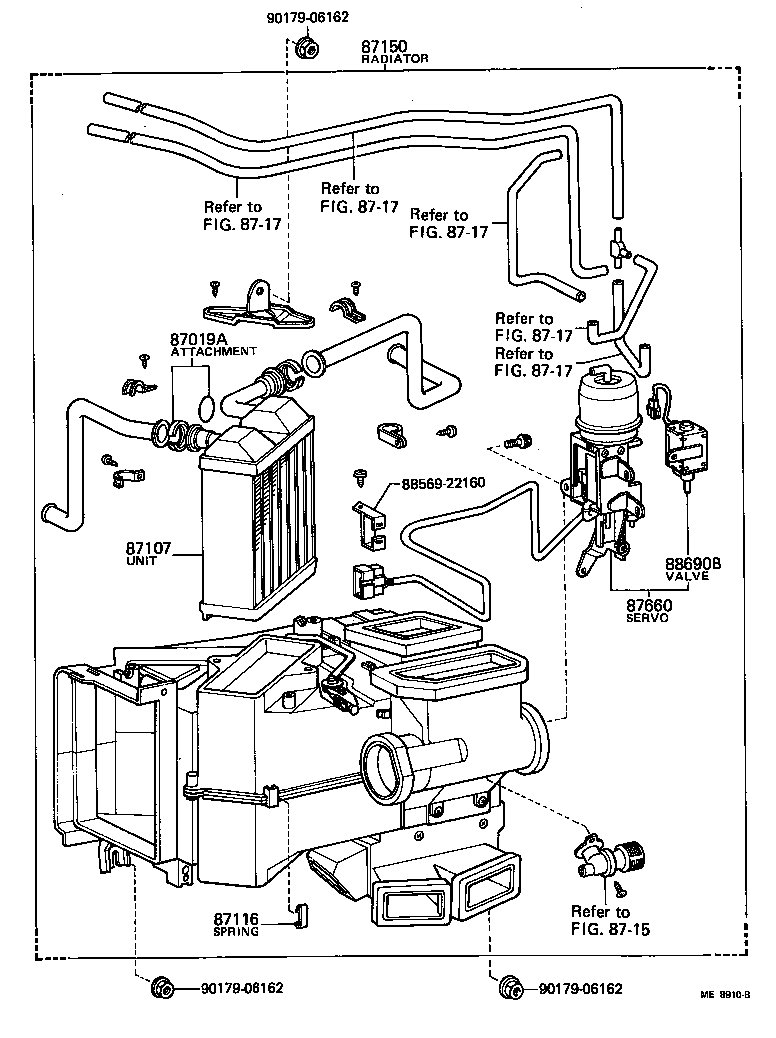

Heating & Air Conditioning - Heater Unit & Blower
12 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019A | Attachment, Heater |
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87116 | Spring, Heater Case Fastening |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87188 | Packing, Heater Blower Motor |
| 87660 | Servo Assy, Air Conditioner |
| 88690B | Valve Assy, Cooler Magnet |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
