Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

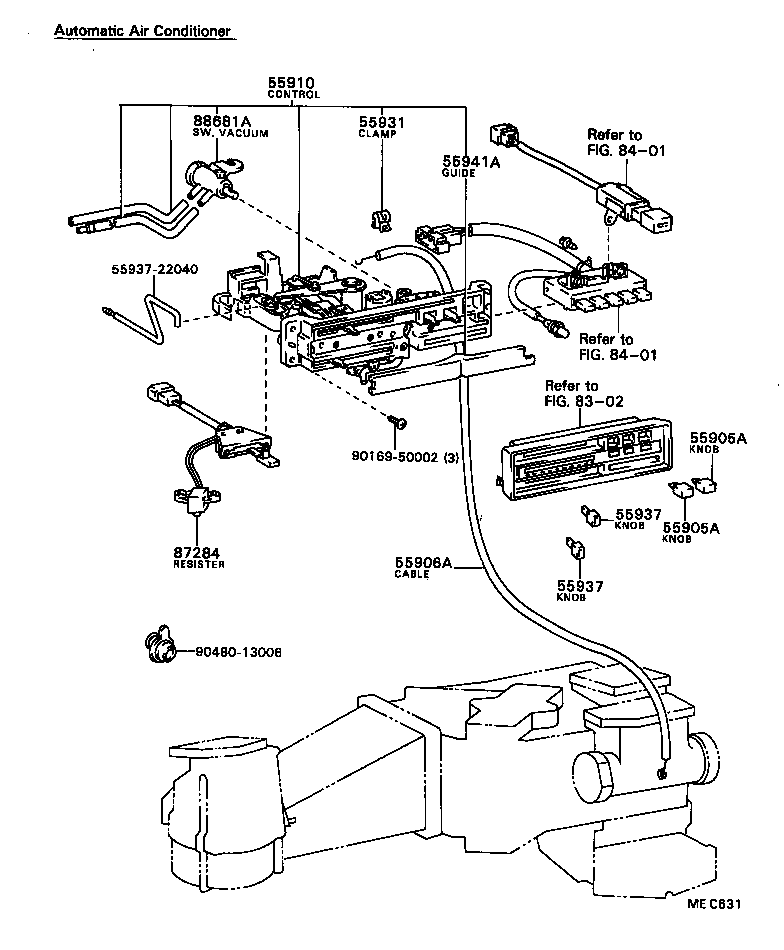

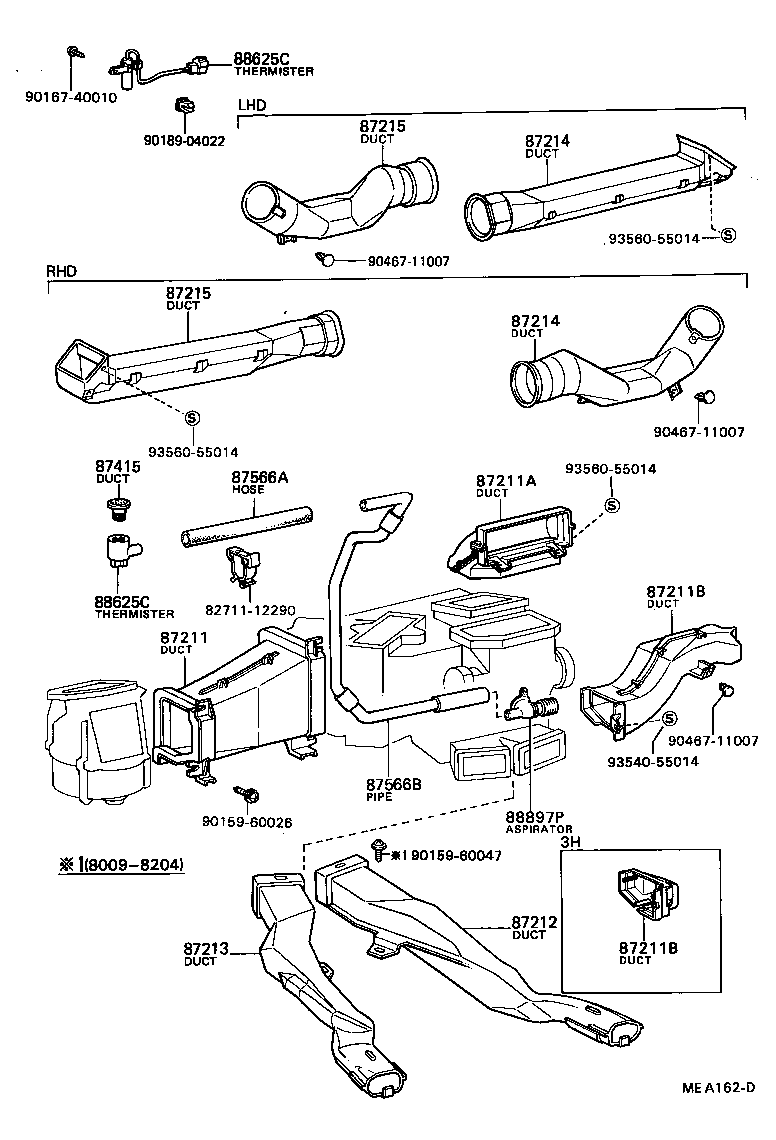

Figure MEA161C MEA161C 1980-09 → — Figure MEC631 MEC631 1982-08 → — Figure MEA162D MEA162D 1980-09 → —

Part groups

PNCDescription
55903 Lever Sub-assy, Heater Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55941A Guide, Heater Control
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87284 Resistor Sub-assy, Variable
87415 Duct, Air
87566A Hose, Air Duct
87566B Pipe, Air Duct
88605A Harness Sub-assy, Cooler Wiring
88625C Thermistor, Cooler
88681A Switch, Heater Control Vacuum, NO.1
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
