Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 4 illustrations

Illustrations

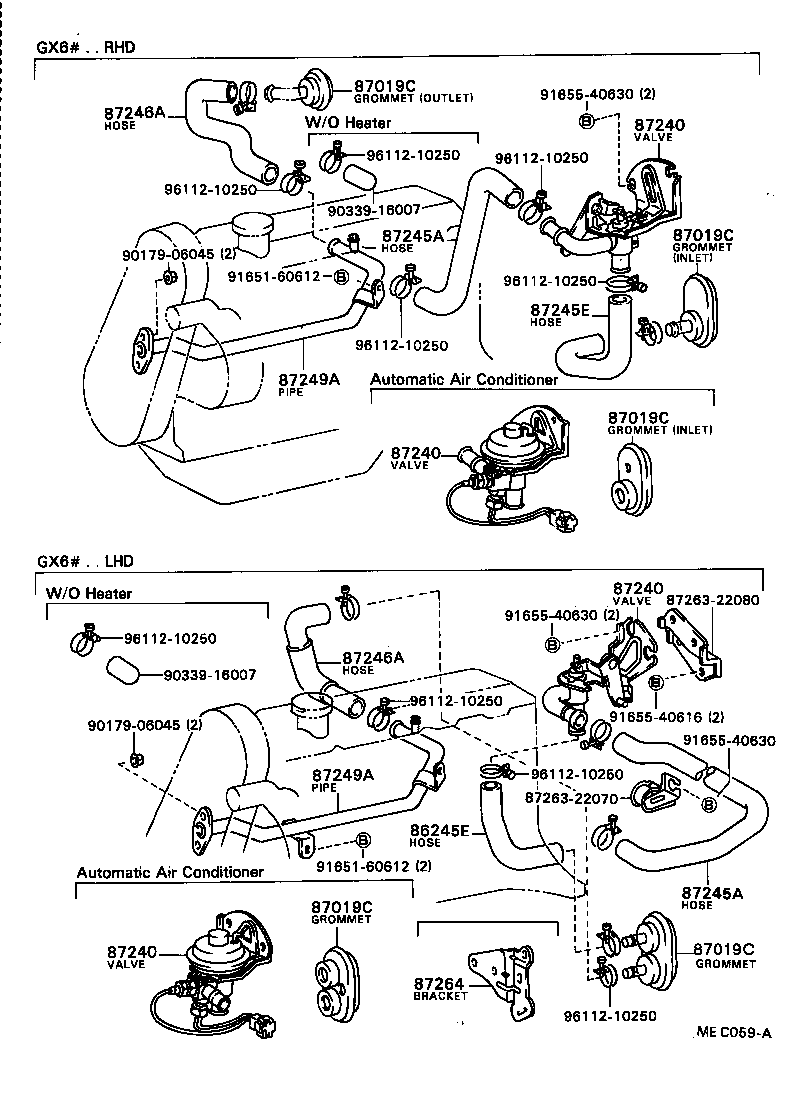

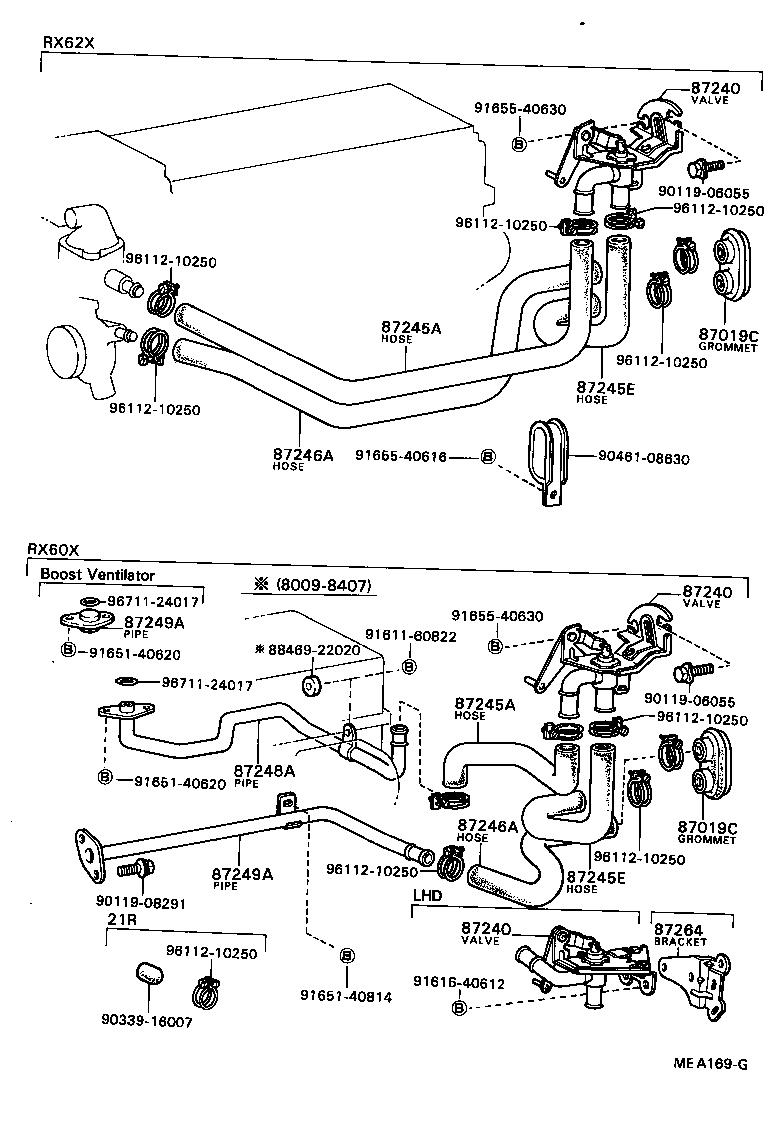

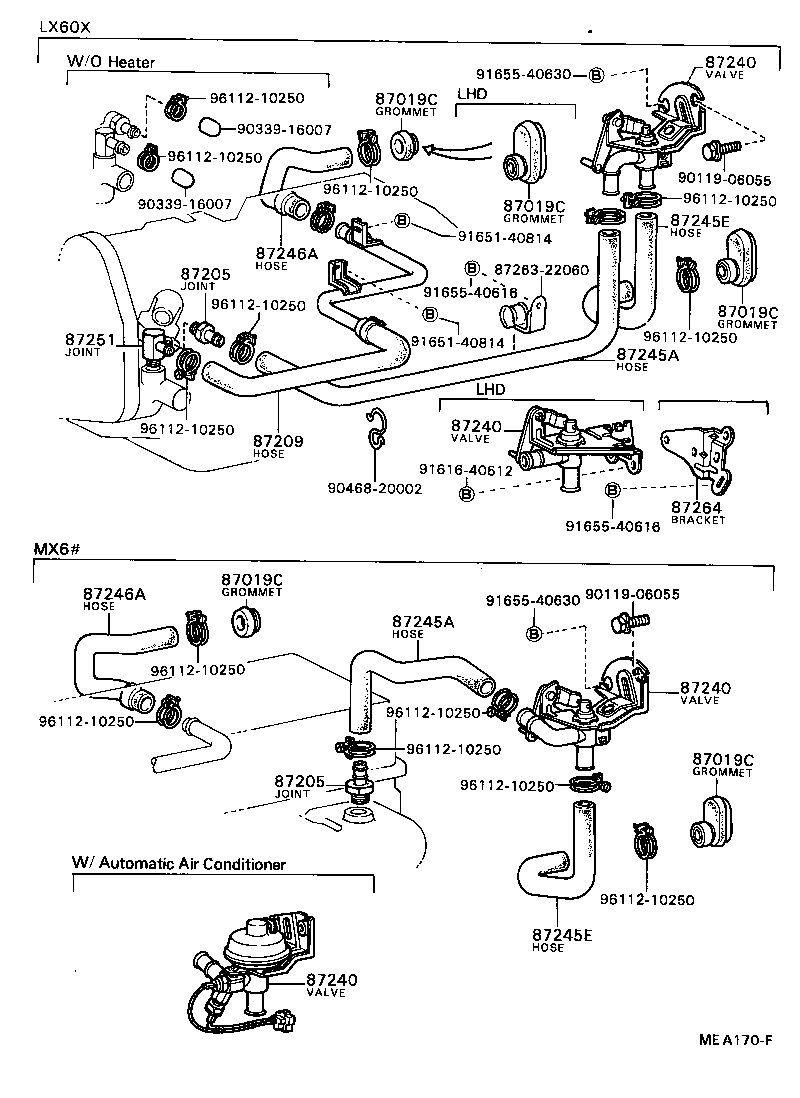

Figure MEA168B MEA168B 1980-09 → — Figure MEA169G MEA169G 1980-09 → — Figure MEC059A MEC059A 1982-08 → — Figure MEA170F MEA170F 1980-09 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87264 Bracket, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
