Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

16 part groups · 4 illustrations

Illustrations

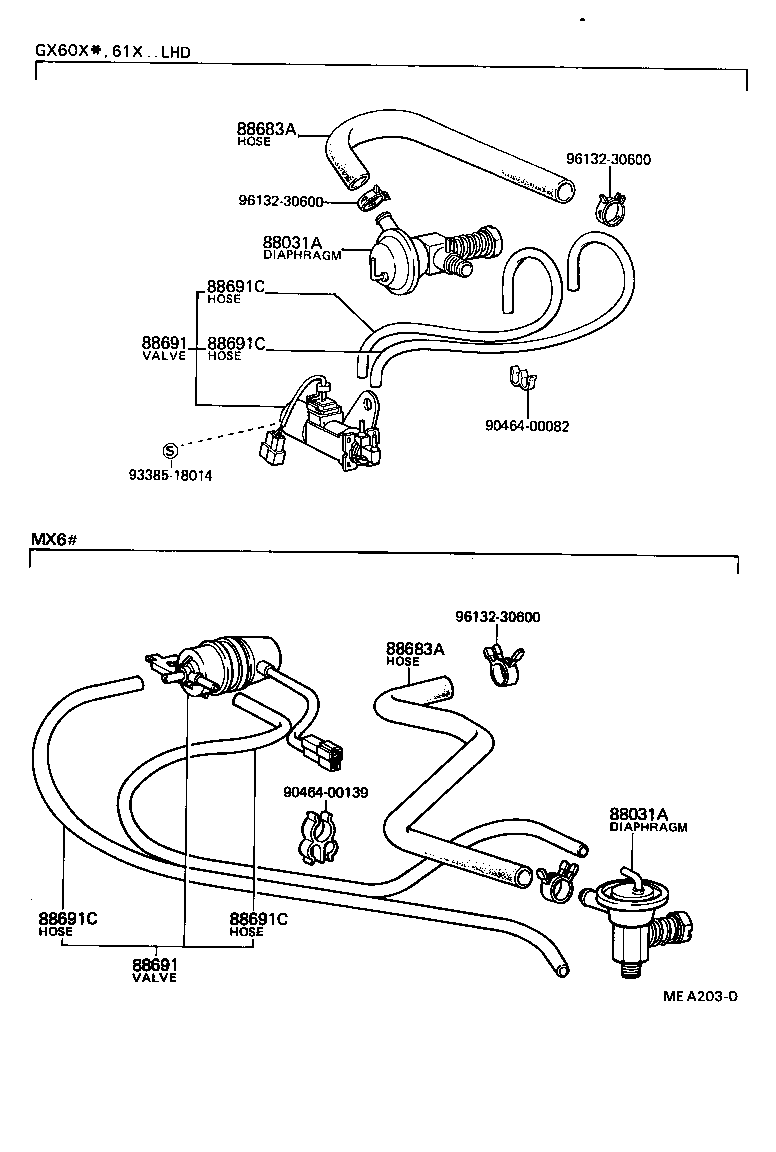

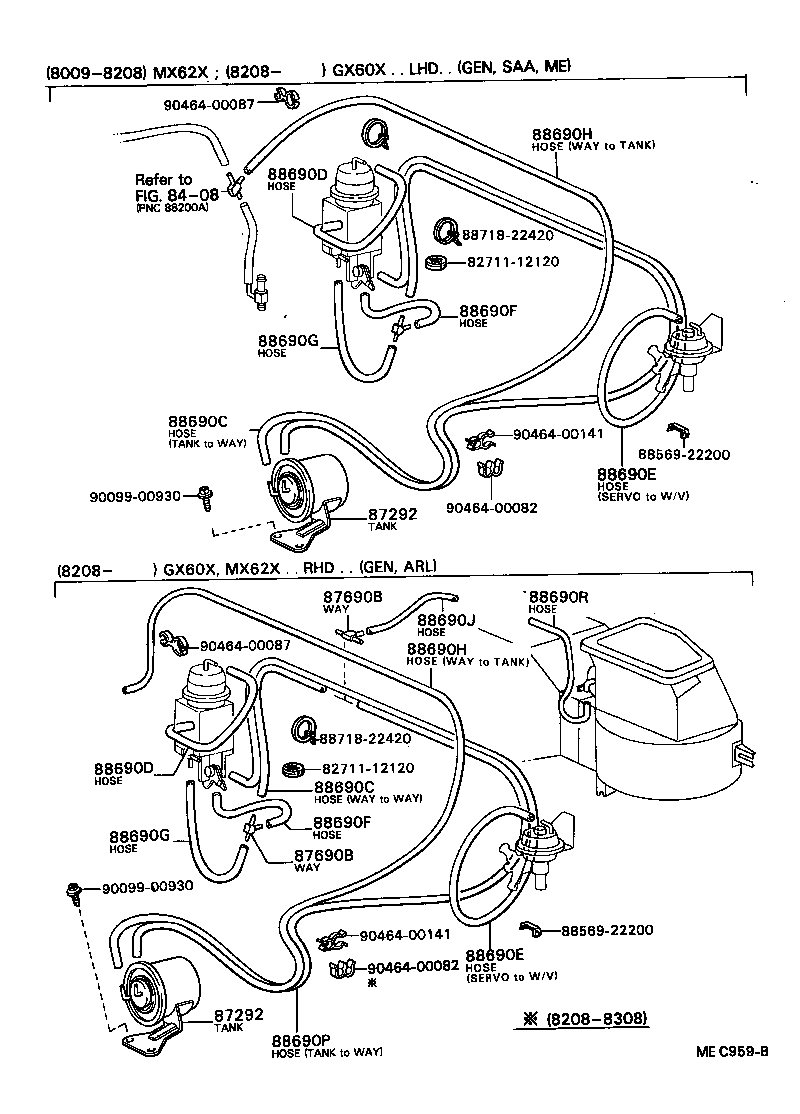

Figure MEA202D MEA202D 1980-09 → — Figure MEA203D MEA203D 1980-09 → — Figure MEA203D MEA203D 1982-08 → — Figure MEC959B MEC959B 1980-09 → —

Part groups

PNCDescription
87292 Tank, Vacuum
87690B Way, 3
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88683A Hose (ENGINE TO MAGNET VALVE)
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88690F Hose, Vacuum, NO.4 (FOR HEATER OR AIR CONDITIONER)
88690G Hose, Vacuum, NO.5 (FOR HEATER OR AIR CONDITIONER)
88690H Hose, Vacuum, NO.6 (FOR HEATER OR AIR CONDITIONER)
88690J Hose, Vacuum, NO.7 (FOR HEATER OR AIR CONDITIONER)
88690P Hose, Vacuum, NO.8 (FOR HEATER OR AIR CONDITIONER)
88690R Hose, Vacuum, NO.9 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
