Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

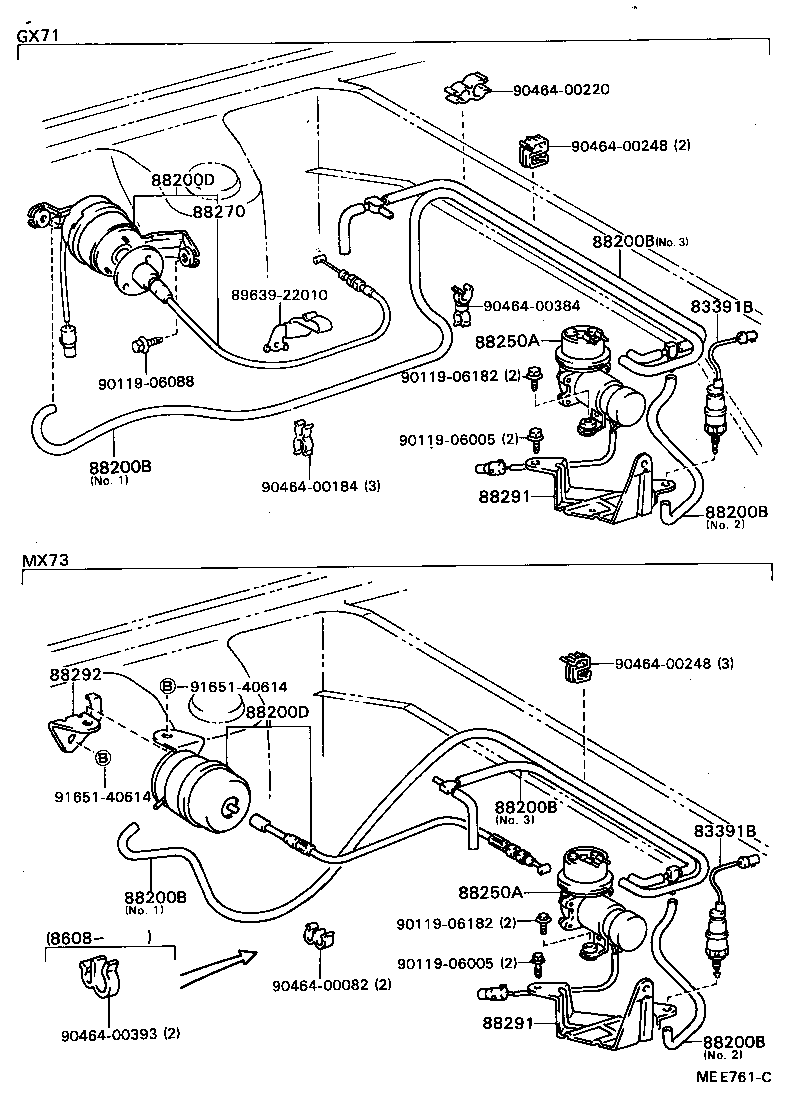

Exploded illustration MEE761C 9046400220 — not listed in this catalogue 9046400248 — not listed in this catalogue 88200D — ACTUATOR ASSY, CRUISE CONTROL (16 parts) 88270 — CABLE ASSY, CRUISE CONTROL(AUTO DRIVE) (5 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts) 8963922010 — not listed in this catalogue 83391B — SWITCH, AUTO DRIVE VACUUM (3 parts) 9046400384 — not listed in this catalogue 88250A — PUMP ASSY, CRUISE CONTROL (12 parts) 9011906182 — not listed in this catalogue 9011906088 — not listed in this catalogue 9011906005 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts) 9046400184 — not listed in this catalogue 88291 — BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 (7 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts) 9046400248 — not listed in this catalogue 88292 — BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2 (2 parts) 9165140614 — not listed in this catalogue 88200D — ACTUATOR ASSY, CRUISE CONTROL (16 parts) 9165140614 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts) 83391B — SWITCH, AUTO DRIVE VACUUM (3 parts) 88250A — PUMP ASSY, CRUISE CONTROL (12 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts) 9011906182 — not listed in this catalogue 9011906005 — not listed in this catalogue 9046400082 — not listed in this catalogue 88291 — BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 (7 parts) 9046400393 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (22 parts)
MEE761C · 16 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
83391B — Switch, Auto Drive Vacuum
83391-22040 Switch, Auto Drive Vacuum
1984-08 → 1988-08 ended
GX71 ME,SA —
83391-22040 Switch, Auto Drive Vacuum
1986-08 → 1988-08 ended
MX73 GD,GLX,GT,GTX —
83391-22040 Switch, Auto Drive Vacuum
1984-08 → 1986-08 ended
MX73 GD,GLX,GTX —
88200B — Hose, Cruise Control Vacuum
88283-22040 note Hose, Cruise Control Vacuum
1986-08 → 1988-08 ended
MX73 GLX —
88283-22040 note Hose, Cruise Control Vacuum
1984-08 → 1986-08 ended
MX73 RHD (EUR,GEN,SA) —
88283-22040 note Hose, Cruise Control Vacuum
1985-08 → 1986-08 ended
MX73 GLX ARL —
88283-22050 note Hose, Cruise Control Vacuum
1984-08 → 1986-08 ended
GX71 ME —
88283-22060 note Hose, Cruise Control Vacuum
1984-08 → 1986-08 ended
MX73 LHD EUG —
88283-22070 Hose, Cruise Control Vacuum
1984-08 → 1985-08 ended
MX73 ARL —
88283-22090 note Hose, Cruise Control Vacuum
1985-04 → 1988-08 ended
MX73 HT —
88283-22090 note Hose, Cruise Control Vacuum
1984-11 → 1988-08 ended
MX73 GD —
88283-22100 Hose, Cruise Control Vacuum
1985-02 → 1988-08 ended
GX71 SA —
90445-08206 note Hose, Cruise Control Vacuum
1984-08 → 1986-08 ended
MX73 LHD EUG —
90445-08209 note Hose, Cruise Control Vacuum
1984-08 → 1985-05 ended
MX73 LHD EUG —
90445-08218 note Hose, Cruise Control Vacuum
1985-05 → 1986-08 ended
MX73 LHD EUG —
90445-08223 note Hose, Cruise Control Vacuum
1984-08 → 1986-08 ended
GX71 ME —
90445-08249 note Hose, Cruise Control Vacuum
1984-11 → 1986-08 ended
MX73 ME —
90447-04097 note Hose, Cruise Control Vacuum
1986-08 → 1988-08 ended
MX73 HT —
90447-04097 note Hose, Cruise Control Vacuum
1986-08 → 1988-08 ended
MX73 GD —
95411-10160 note Hose, Cruise Control Vacuum
1984-11 → 1986-08 ended
MX73 RHD (EUR,GEN,SA) —
95411-10160 note Hose, Cruise Control Vacuum
1984-08 → 1984-11 ended
MX73 RHD EUG —
95411-10160 note Hose, Cruise Control Vacuum
1986-08 → 1988-08 ended
MX73 GLX —
95411-10160 note Hose, Cruise Control Vacuum
1985-08 → 1986-08 ended
MX73 GLX ARL —
95411-19930 note Hose, Cruise Control Vacuum
1985-04 → 1988-08 ended
MX73 HT —
95411-19930 note Hose, Cruise Control Vacuum
1984-08 → 1988-08 ended
MX73 GD —
88200D — Actuator Assy, Cruise Control
88200-22110 Actuator Assy, Cruise Control
1984-08 → 1986-08 ended
MX73 RHD GLX —
88200-22110 Actuator Assy, Cruise Control
1985-02 → 1987-08 ended
GX71 SA —
88200-22110 Actuator Assy, Cruise Control
1986-08 → 1987-08 ended
MX73 GLX SA —
88200-22111 Actuator Assy, Cruise Control
1987-08 → 1988-01 ended
GX71 SA —
88200-22111 Actuator Assy, Cruise Control
1987-08 → 1988-01 ended
MX73 GLX SA —
88200-22112 Actuator Assy, Cruise Control
1988-01 → 1988-08 ended
MX73 GLX SA —
88200-22112 Actuator Assy, Cruise Control
1988-01 → 1988-08 ended
GX71 SA —
88200-22120 Actuator Assy, Cruise Control
1984-08 → 1986-08 ended
MX73 LHD EUG —
88200-22130 Actuator Assy, Cruise Control
1984-08 → 1986-08 ended
GX71 ME —
88200-22140 Actuator Assy, Cruise Control
1984-11 → 1986-08 ended
MX73 ME —
88200-22150 Actuator Assy, Cruise Control
1986-08 → 1986-09 ended
MX73 GLX (ARL,GEN) —
88200-22151 Actuator Assy, Cruise Control
1986-09 → 1988-08 ended
MX73 GLX (ARL,GEN) —
88200-22170 Actuator Assy, Cruise Control
1986-08 → 1988-01 ended
MX73 HT —
88200-22170 Actuator Assy, Cruise Control
1986-08 → 1988-01 ended
MX73 GD —
88200-22171 Actuator Assy, Cruise Control
1988-01 → 1988-08 ended
MX73 GD —
88200-22171 Actuator Assy, Cruise Control
1988-01 → 1988-08 ended
MX73 HT —
88250A — Pump Assy, Cruise Control
88250-22010 Pump Assy, Cruise Control
1984-08 → 1986-08 ended
MX73 RHD (EUR,GEN,SA) —
88250-22010 Pump Assy, Cruise Control
1986-08 → 1988-04 ended
MX73 GLX —
88250-22010 Pump Assy, Cruise Control
1985-08 → 1986-08 ended
MX73 GLX ARL —
88250-22011 Pump Assy, Cruise Control
1988-04 → 1988-08 ended
MX73 GLX —
88250-22021 Pump Assy, Cruise Control
1984-08 → 1986-08 ended
MX73 LHD EUG —
88250-22030 Pump Assy, Cruise Control
1985-04 → 1988-01 ended
MX73 HT —
88250-22030 Pump Assy, Cruise Control
1984-08 → 1988-01 ended
MX73 GD —
88250-22031 Pump Assy, Cruise Control
1988-01 → 1988-08 ended
MX73 GD —
88250-22031 Pump Assy, Cruise Control
1988-01 → 1988-08 ended
MX73 HT —
88250-22040 Pump Assy, Cruise Control
1984-08 → 1985-08 ended
MX73 ARL —
88250-22050 Pump Assy, Cruise Control
1985-02 → 1988-01 ended
GX71 SA —
88250-22051 Pump Assy, Cruise Control
1988-01 → 1988-08 ended
GX71 SA —
88270 — Cable Assy, Cruise Control(AUTO DRIVE)
83731-22010 Cable Assy, Cruise Control(AUTO DRIVE)
1986-08 → 1988-08 ended
MX73 GLX SA —
83731-22010 Cable Assy, Cruise Control(AUTO DRIVE)
1985-02 → 1988-08 ended
GX71 SA —
83731-22010 Cable Assy, Cruise Control(AUTO DRIVE)
1984-08 → 1986-08 ended
MX73 RHD GLX —
83731-22011 Cable Assy, Cruise Control(AUTO DRIVE)
1986-08 → 1988-08 ended
MX73 GLX (ARL,GEN) —
83731-22030 Cable Assy, Cruise Control(AUTO DRIVE)
1984-08 → 1986-08 ended
MX73 LHD EUG —
88291 — Bracket, Cruise Control(AUTO DRIVE), NO.1
88291-22070 Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1986-08 ended
MX73 RHD (EUR,GEN,SA) —
88291-22070 Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-08 → 1986-08 ended
MX73 GLX ARL —
88291-22070 Bracket, Cruise Control(AUTO DRIVE), NO.1
1986-08 → 1988-08 ended
MX73 GLX —
88291-22080 Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1986-08 ended
MX73 LHD EUG —
88291-22090 Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1988-08 ended
MX73 GD —
88291-22090 Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-04 → 1988-08 ended
MX73 HT —
88291-22100 Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-02 → 1988-08 ended
GX71 SA —
88292 — Bracket, Cruise Control(AUTO DRIVE), NO.2
88292-22040 Bracket, Cruise Control(AUTO DRIVE), NO.2
1984-11 → 1988-08 ended
MX73 GD —
88292-22040 Bracket, Cruise Control(AUTO DRIVE), NO.2
1985-04 → 1988-08 ended
MX73 HT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
