Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

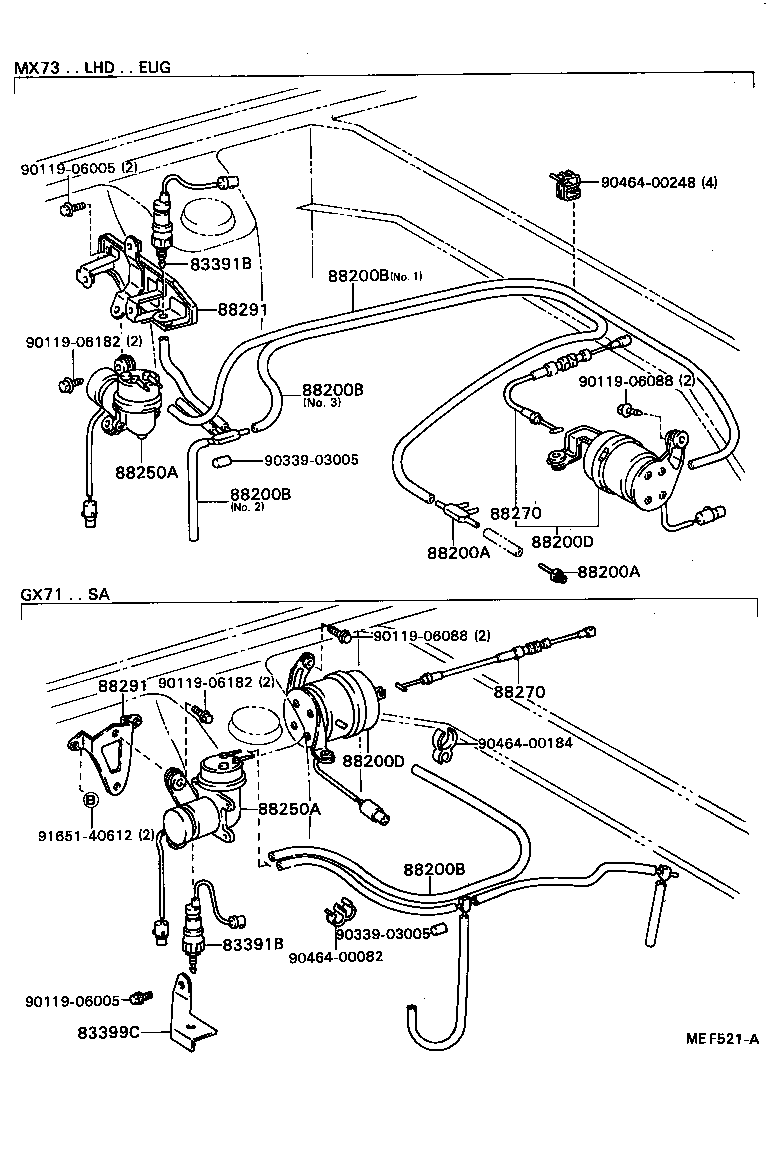

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83391B — Switch, Auto Drive Vacuum | ||||
| 83391-22040 |
Switch, Auto Drive Vacuum
1984-08 → 1988-08
ended
|
GX71 ME,SA | — | |
| 83391-22040 |
Switch, Auto Drive Vacuum
1986-08 → 1988-08
ended
|
MX73 GD,GLX,GT,GTX | — | |
| 83391-22040 |
Switch, Auto Drive Vacuum
1984-08 → 1986-08
ended
|
MX73 GD,GLX,GTX | — | |
| 83399C — Bracket, Vacuum Switch | ||||
| 83399-20070 |
Bracket, Vacuum Switch
1984-08 → 1985-08
ended
|
MX73 ARL | — | |
| 83399-22011 |
Bracket, Vacuum Switch
1985-02 → 1988-08
ended
|
GX71 SA | — | |
| 88200A — Union OR Way, Cruise Control Vacuum | ||||
| 90404-51093 note |
Union OR Way, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
MX73 EUR,GEN,SA | — | |
| 90404-51093 note |
Union OR Way, Cruise Control Vacuum
1985-08 → 1986-08
ended
|
MX73 GLX ARL | — | |
| 90404-51093 note |
Union OR Way, Cruise Control Vacuum
1986-08 → 1988-08
ended
|
MX73 GLX | — | |
| 90414-04002 note |
Union OR Way, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88200B — Hose, Cruise Control Vacuum | ||||
| 88283-22040 note |
Hose, Cruise Control Vacuum
1986-08 → 1988-08
ended
|
MX73 GLX | — | |
| 88283-22040 note |
Hose, Cruise Control Vacuum
1985-08 → 1986-08
ended
|
MX73 GLX ARL | — | |
| 88283-22040 note |
Hose, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
MX73 RHD (EUR,GEN,SA) | — | |
| 88283-22050 note |
Hose, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
GX71 ME | — | |
| 88283-22060 note |
Hose, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88283-22070 |
Hose, Cruise Control Vacuum
1984-08 → 1985-08
ended
|
MX73 ARL | — | |
| 88283-22090 note |
Hose, Cruise Control Vacuum
1984-11 → 1988-08
ended
|
MX73 GD | — | |
| 88283-22090 note |
Hose, Cruise Control Vacuum
1985-04 → 1988-08
ended
|
MX73 HT | — | |
| 88283-22100 |
Hose, Cruise Control Vacuum
1985-02 → 1988-08
ended
|
GX71 SA | — | |
| 90445-08206 note |
Hose, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 90445-08209 note |
Hose, Cruise Control Vacuum
1984-08 → 1985-05
ended
|
MX73 LHD EUG | — | |
| 90445-08218 note |
Hose, Cruise Control Vacuum
1985-05 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 90445-08223 note |
Hose, Cruise Control Vacuum
1984-08 → 1986-08
ended
|
GX71 ME | — | |
| 90445-08249 note |
Hose, Cruise Control Vacuum
1984-11 → 1986-08
ended
|
MX73 ME | — | |
| 90447-04097 note |
Hose, Cruise Control Vacuum
1986-08 → 1988-08
ended
|
MX73 HT | — | |
| 90447-04097 note |
Hose, Cruise Control Vacuum
1986-08 → 1988-08
ended
|
MX73 GD | — | |
| 95411-10160 note |
Hose, Cruise Control Vacuum
1986-08 → 1988-08
ended
|
MX73 GLX | — | |
| 95411-10160 note |
Hose, Cruise Control Vacuum
1985-08 → 1986-08
ended
|
MX73 GLX ARL | — | |
| 95411-10160 note |
Hose, Cruise Control Vacuum
1984-11 → 1986-08
ended
|
MX73 RHD (EUR,GEN,SA) | — | |
| 95411-10160 note |
Hose, Cruise Control Vacuum
1984-08 → 1984-11
ended
|
MX73 RHD EUG | — | |
| 95411-19930 note |
Hose, Cruise Control Vacuum
1985-04 → 1988-08
ended
|
MX73 HT | — | |
| 95411-19930 note |
Hose, Cruise Control Vacuum
1984-08 → 1988-08
ended
|
MX73 GD | — | |
| 88200D — Actuator Assy, Cruise Control | ||||
| 88200-22110 |
Actuator Assy, Cruise Control
1984-08 → 1986-08
ended
|
MX73 RHD GLX | — | |
| 88200-22110 |
Actuator Assy, Cruise Control
1985-02 → 1987-08
ended
|
GX71 SA | — | |
| 88200-22110 |
Actuator Assy, Cruise Control
1986-08 → 1987-08
ended
|
MX73 GLX SA | — | |
| 88200-22111 |
Actuator Assy, Cruise Control
1987-08 → 1988-01
ended
|
GX71 SA | — | |
| 88200-22111 |
Actuator Assy, Cruise Control
1987-08 → 1988-01
ended
|
MX73 GLX SA | — | |
| 88200-22112 |
Actuator Assy, Cruise Control
1988-01 → 1988-08
ended
|
MX73 GLX SA | — | |
| 88200-22112 |
Actuator Assy, Cruise Control
1988-01 → 1988-08
ended
|
GX71 SA | — | |
| 88200-22120 |
Actuator Assy, Cruise Control
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88200-22130 |
Actuator Assy, Cruise Control
1984-08 → 1986-08
ended
|
GX71 ME | — | |
| 88200-22140 |
Actuator Assy, Cruise Control
1984-11 → 1986-08
ended
|
MX73 ME | — | |
| 88200-22150 |
Actuator Assy, Cruise Control
1986-08 → 1986-09
ended
|
MX73 GLX (ARL,GEN) | — | |
| 88200-22151 |
Actuator Assy, Cruise Control
1986-09 → 1988-08
ended
|
MX73 GLX (ARL,GEN) | — | |
| 88200-22170 |
Actuator Assy, Cruise Control
1986-08 → 1988-01
ended
|
MX73 HT | — | |
| 88200-22170 |
Actuator Assy, Cruise Control
1986-08 → 1988-01
ended
|
MX73 GD | — | |
| 88200-22171 |
Actuator Assy, Cruise Control
1988-01 → 1988-08
ended
|
MX73 GD | — | |
| 88200-22171 |
Actuator Assy, Cruise Control
1988-01 → 1988-08
ended
|
MX73 HT | — | |
| 88250A — Pump Assy, Cruise Control | ||||
| 88250-22010 |
Pump Assy, Cruise Control
1984-08 → 1986-08
ended
|
MX73 RHD (EUR,GEN,SA) | — | |
| 88250-22010 |
Pump Assy, Cruise Control
1985-08 → 1986-08
ended
|
MX73 GLX ARL | — | |
| 88250-22010 |
Pump Assy, Cruise Control
1986-08 → 1988-04
ended
|
MX73 GLX | — | |
| 88250-22011 |
Pump Assy, Cruise Control
1988-04 → 1988-08
ended
|
MX73 GLX | — | |
| 88250-22021 |
Pump Assy, Cruise Control
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88250-22030 |
Pump Assy, Cruise Control
1984-08 → 1988-01
ended
|
MX73 GD | — | |
| 88250-22030 |
Pump Assy, Cruise Control
1985-04 → 1988-01
ended
|
MX73 HT | — | |
| 88250-22031 |
Pump Assy, Cruise Control
1988-01 → 1988-08
ended
|
MX73 HT | — | |
| 88250-22031 |
Pump Assy, Cruise Control
1988-01 → 1988-08
ended
|
MX73 GD | — | |
| 88250-22040 |
Pump Assy, Cruise Control
1984-08 → 1985-08
ended
|
MX73 ARL | — | |
| 88250-22050 |
Pump Assy, Cruise Control
1985-02 → 1988-01
ended
|
GX71 SA | — | |
| 88250-22051 |
Pump Assy, Cruise Control
1988-01 → 1988-08
ended
|
GX71 SA | — | |
| 88270 — Cable Assy, Cruise Control(AUTO DRIVE) | ||||
| 83731-22010 |
Cable Assy, Cruise Control(AUTO DRIVE)
1984-08 → 1986-08
ended
|
MX73 RHD GLX | — | |
| 83731-22010 |
Cable Assy, Cruise Control(AUTO DRIVE)
1985-02 → 1988-08
ended
|
GX71 SA | — | |
| 83731-22010 |
Cable Assy, Cruise Control(AUTO DRIVE)
1986-08 → 1988-08
ended
|
MX73 GLX SA | — | |
| 83731-22011 |
Cable Assy, Cruise Control(AUTO DRIVE)
1986-08 → 1988-08
ended
|
MX73 GLX (ARL,GEN) | — | |
| 83731-22030 |
Cable Assy, Cruise Control(AUTO DRIVE)
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88291 — Bracket, Cruise Control(AUTO DRIVE), NO.1 | ||||
| 88291-22070 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1986-08
ended
|
MX73 RHD (EUR,GEN,SA) | — | |
| 88291-22070 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-08 → 1986-08
ended
|
MX73 GLX ARL | — | |
| 88291-22070 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1986-08 → 1988-08
ended
|
MX73 GLX | — | |
| 88291-22080 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1986-08
ended
|
MX73 LHD EUG | — | |
| 88291-22090 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1984-08 → 1988-08
ended
|
MX73 GD | — | |
| 88291-22090 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-04 → 1988-08
ended
|
MX73 HT | — | |
| 88291-22100 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1985-02 → 1988-08
ended
|
GX71 SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
