Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

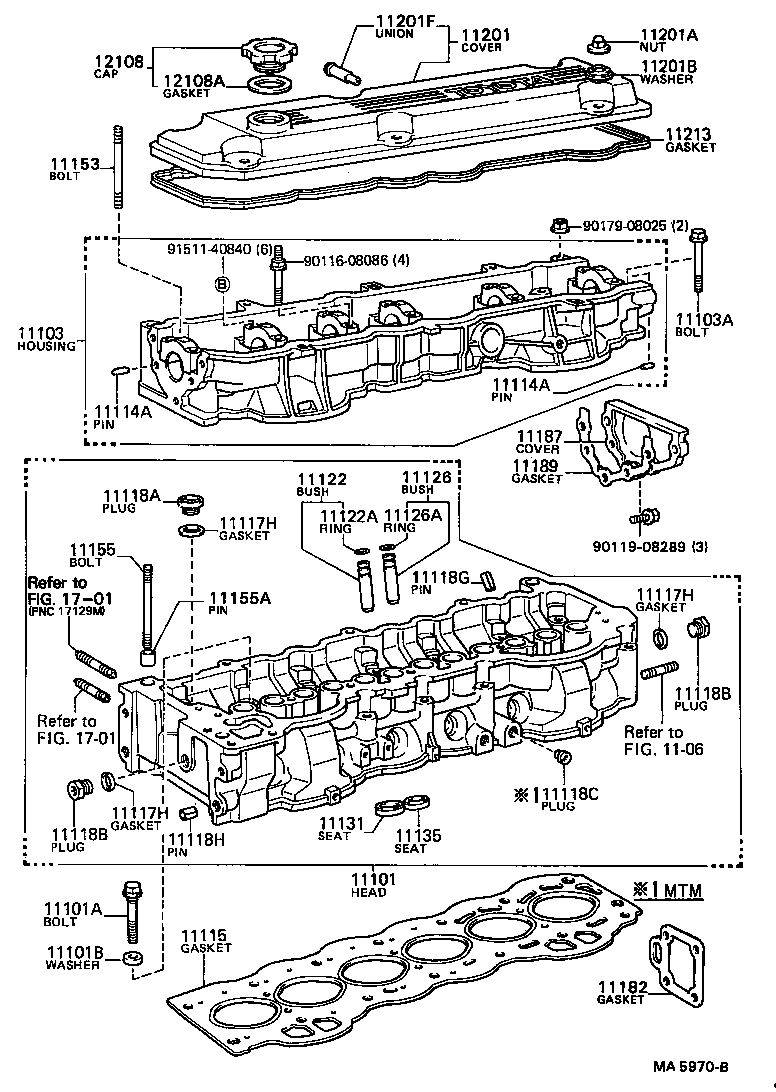

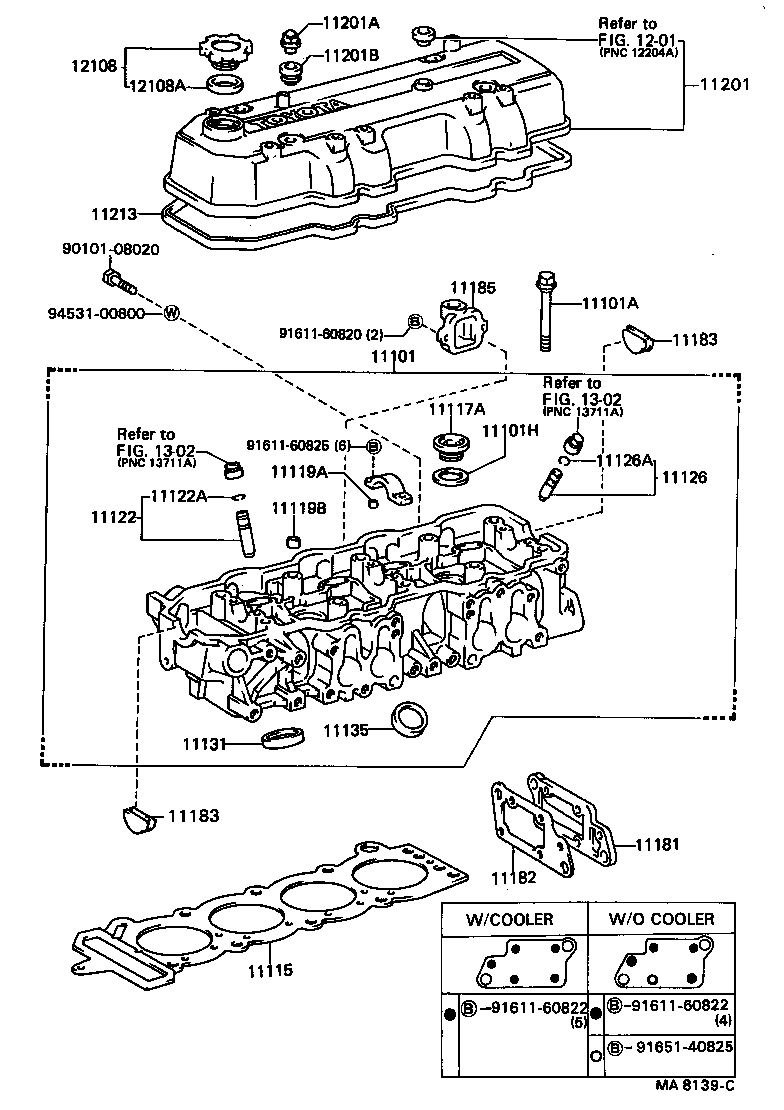

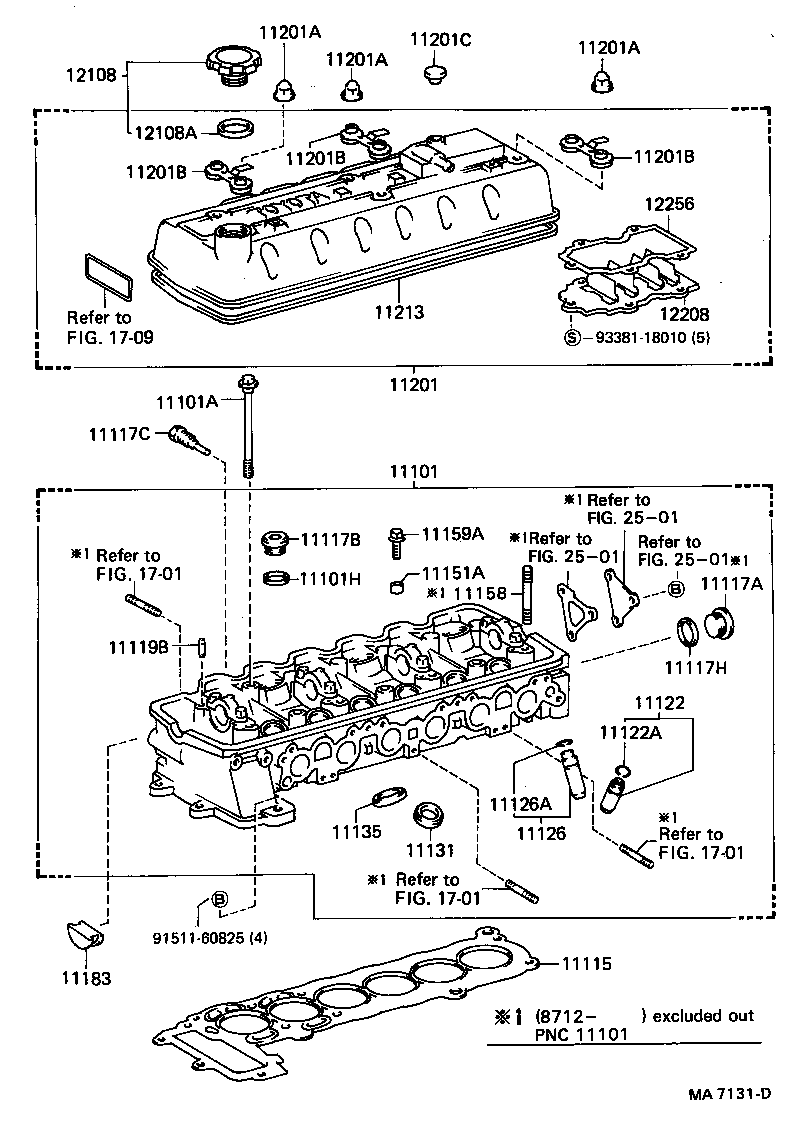

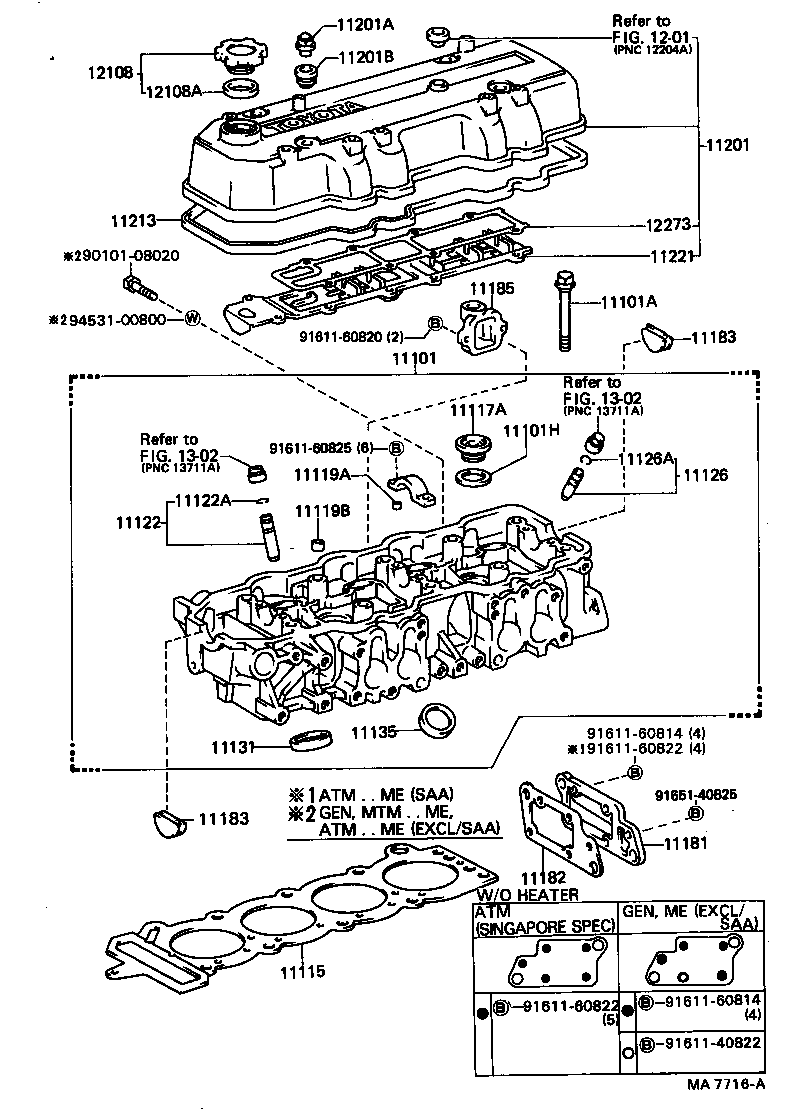

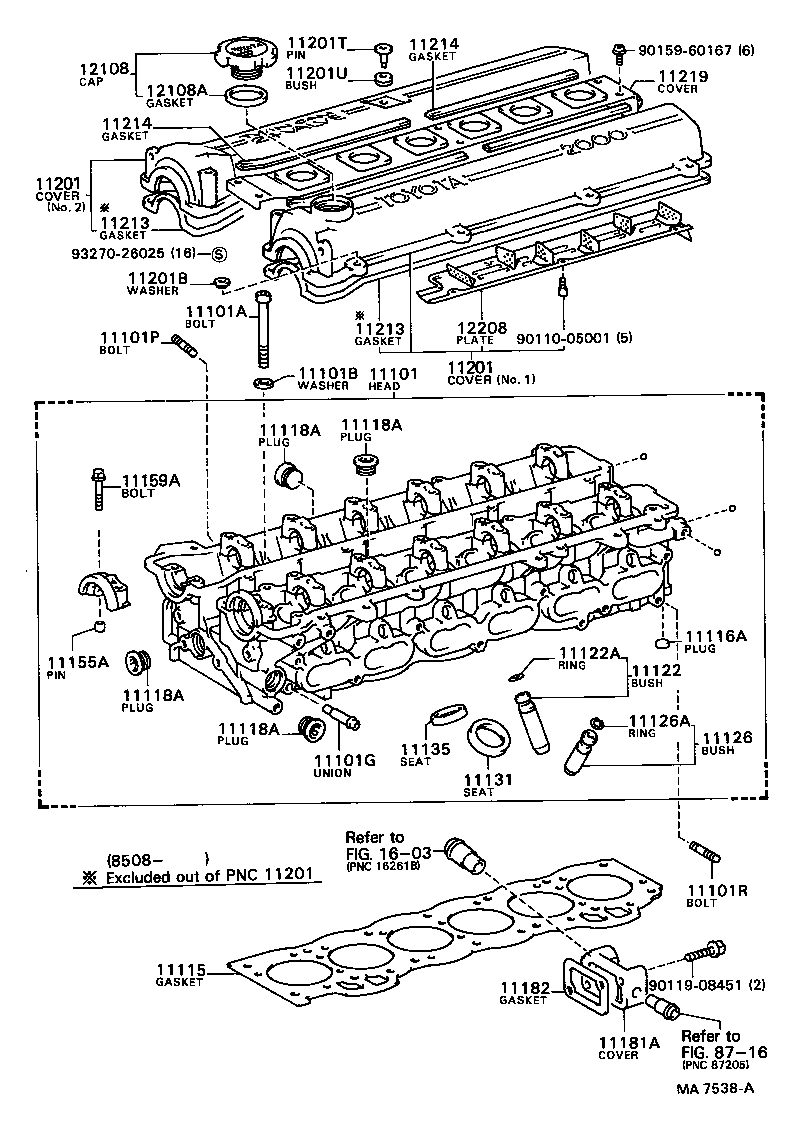

Cylinder Head
83 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101G | Union(FOR CYLINDER HEAD) |
| 11101H | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11101P | Bolt, Stud(FOR DISTRIBUTOR) |
| 11101R | Bolt, Stud(FOR FUEL PIPE) |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11113 | Housing, Camshaft, NO.1 |
| 11113A | Seal, Oil(FOR CAMSHAFT HOUSING) |
| 11114 | Housing, Camshaft, NO.2 |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11117 | Gasket, Camshaft Housing, NO.1 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11117C | Plug, W/Head Taper Screw, NO.3 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11118 | Gasket, Camshaft Housing, NO.2 |
| 11118A | Plug, Straight, NO.1 |
| 11118B | Plug, Straight, NO.2 |
| 11118C | Plug, Straight, NO.3 |
| 11118F | Plug, Taper, NO.1 |
| 11118G | Pin, Slotted Spring, NO.1 |
| 11118H | Pin, Slotted Spring, NO.2 |
| 11119A | Pin, Straight, NO.1 |
| 11119B | Pin, Straight, NO.2 |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11153 | Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER) |
| 11155 | Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11181A | Cover, Cylinder Head, Rear |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11183 | Plug, Semicircular |
| 11185 | Cover, Cylinder Head Side |
| 11185A | Cover, Camshaft Rear Housing, NO.1 |
| 11185B | Ring, O |
| 11186A | Cover, Camshaft Rear Housing, NO.2 |
| 11187 | Cover, Camshaft Housing, Rear |
| 11189 | Gasket, Camshaft Housing Rear Cover |
| 11191 | Tube, Spark Plug |
| 11191A | Gasket(FOR SPARK PLUG TUBE) |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201C | Plug(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE) |
| 11201F | Union(FOR POSITIVE CRANKCASE VENTILATION) |
| 11201T | Pin(FOR CYLINDER HEAD COVER) |
| 11201U | Bush(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11219 | Cover, Cylinder Head, NO.3 |
| 11221 | Separator, Cylinder Head Cover, NO.1 |
| 11492B | Plate, Water Seal |
| 11493A | Gasket, Water Seal Plate |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12208 | Plate Sub-assy, Ventilation Baffle |
| 12256 | Gasket, Ventilation Baffle |
| 12273 | Gasket, Oil Separator |
| 15320 | Regulator Assy, Oil Pressure |
| 15320A | Spring, Oil Pressure Regulator Valve |
| 15321A | Valve, Oil Pressure Regulator |
| 15323B | Bolt, Oil Pressure Regulator |
| 15323C | Gasket, Oil Pressure Regulator Bolt |
| 15328 | Gasket, Oil Pressure Regulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
