Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02

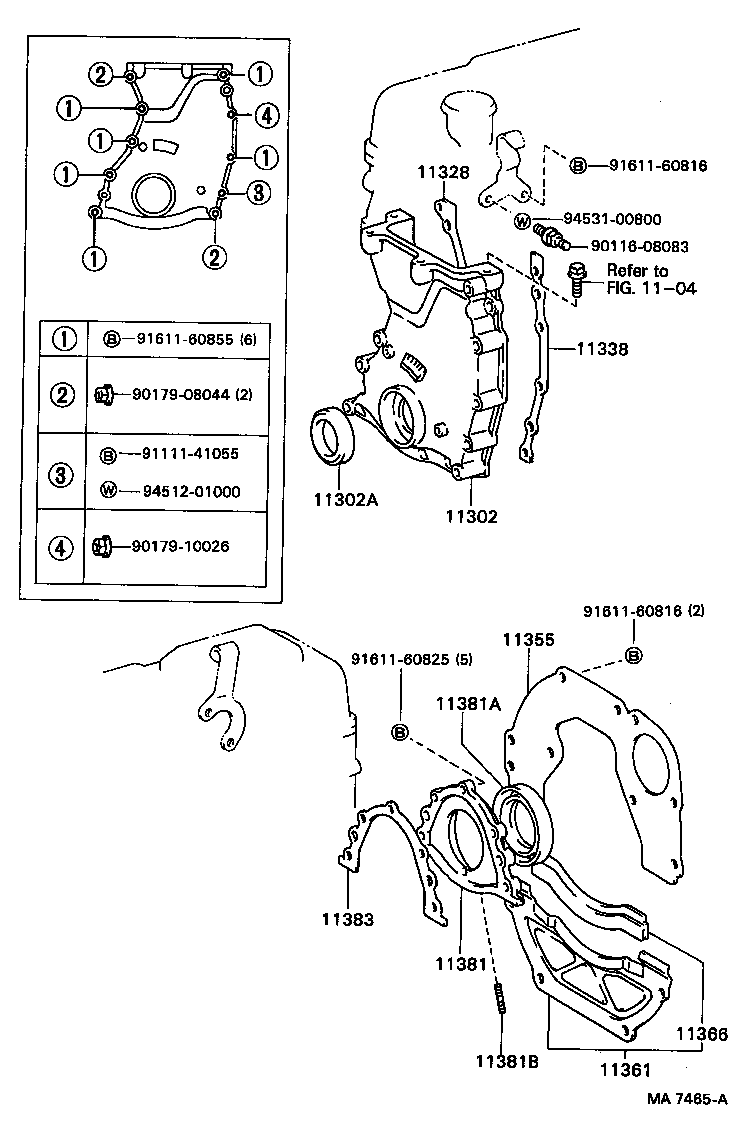

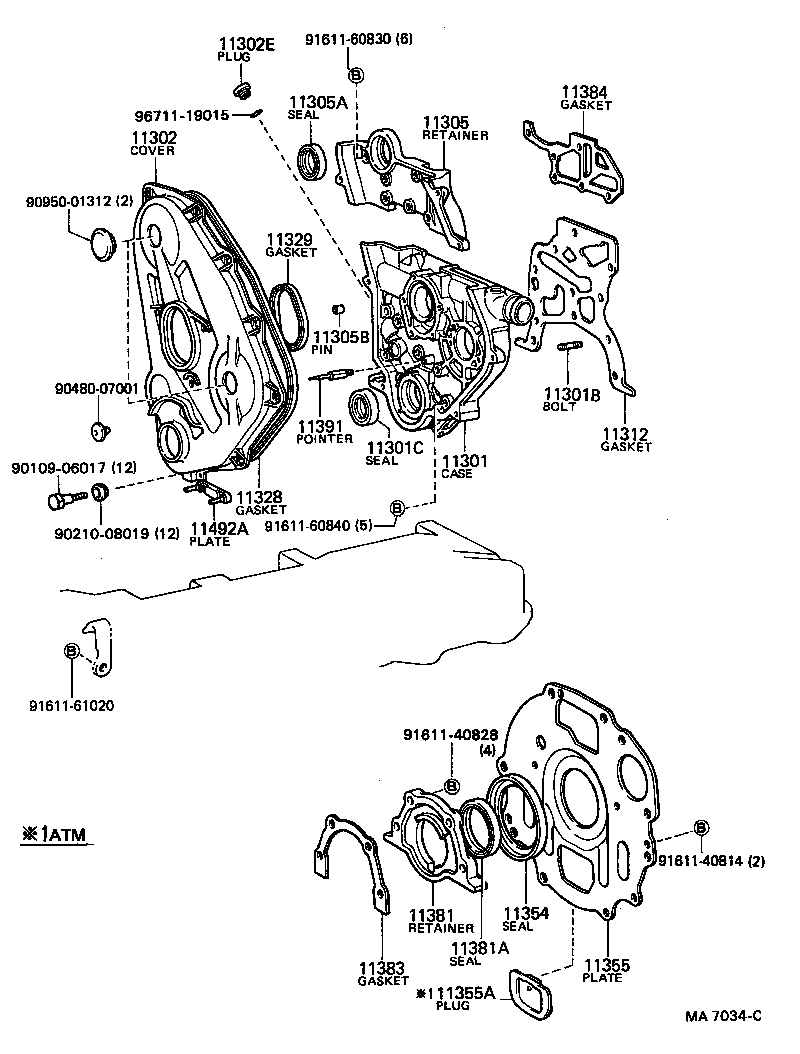

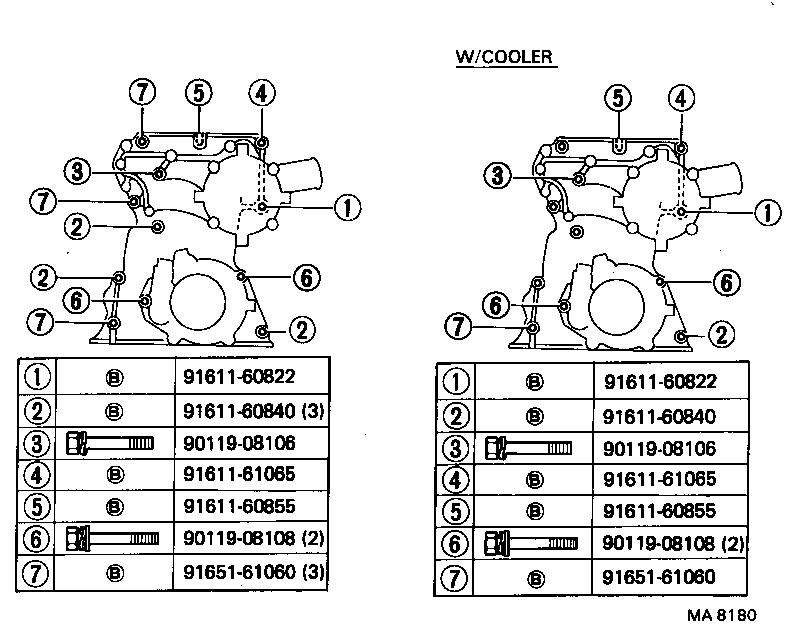

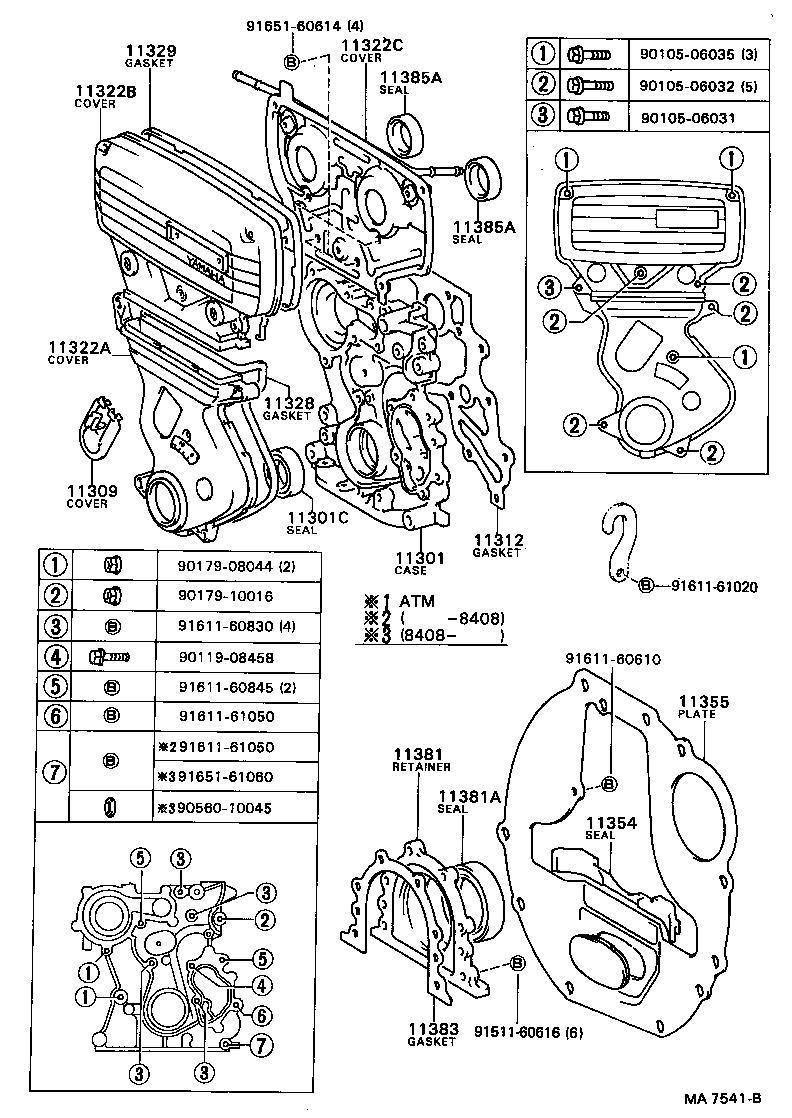

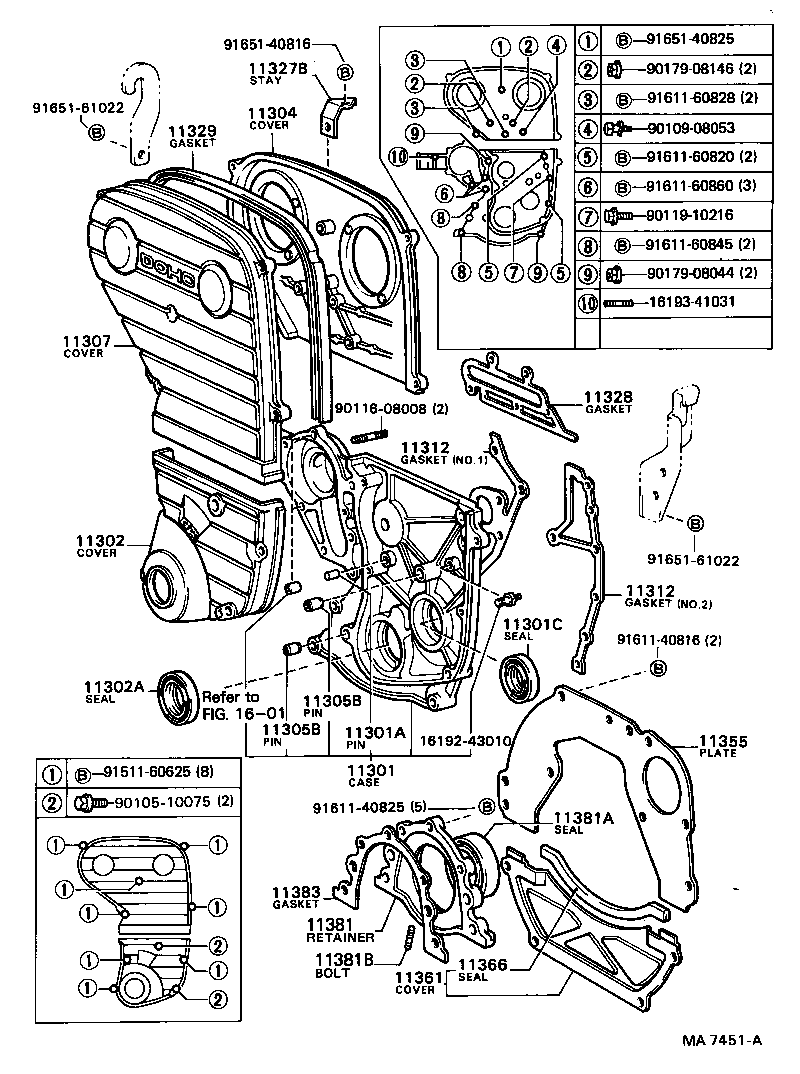

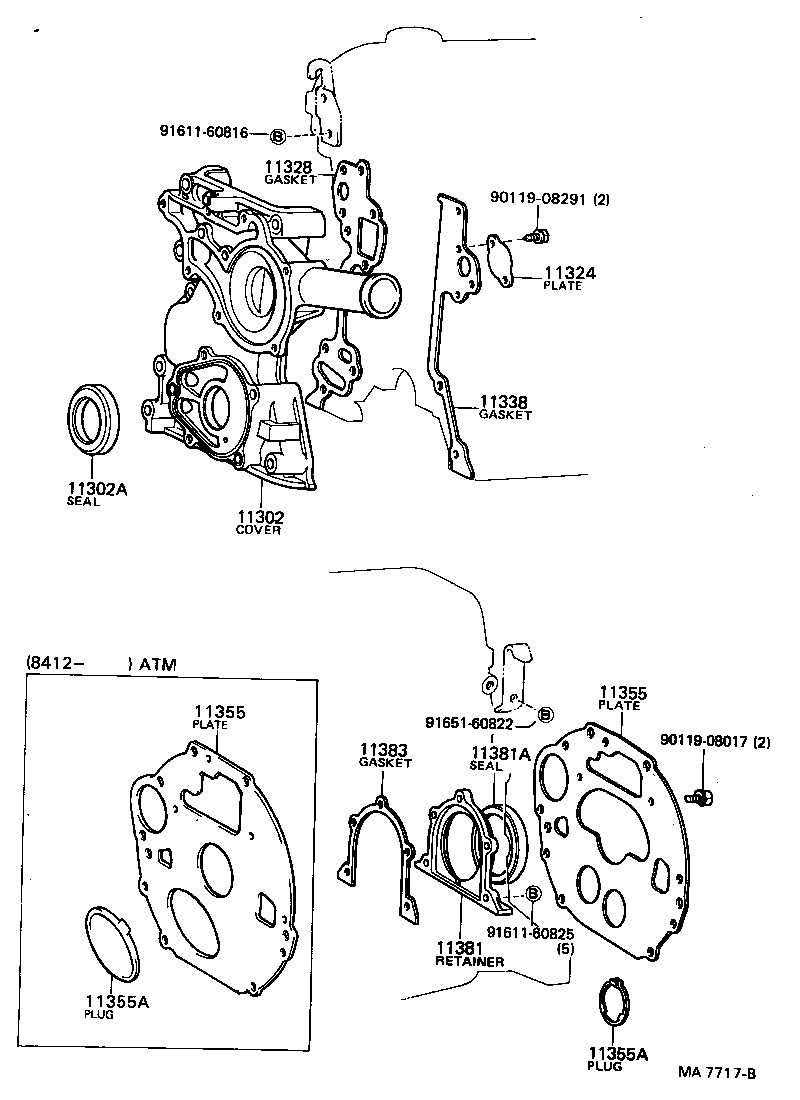

Timing Gear Cover & Rear End Plate

40 part groups · 8 illustrations

PNC	Description
11301	Case Sub-assy, Timing Gear
11301A	Pin, Straight(FOR TIMING GEAR CASE)
11301B	Bolt,Stud(FOR TIMING GEAR CASE)
11301C	Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301E	Gasket, Thermostat Guide
11301F	Plate, Water Pump Thermostat Guide
11302	Cover Sub-assy, Timing Chain OR Belt
11302A	Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E	Plug, Straight(FOR TIMING GEAR COVER)
11304	Cover, Timing Chain OR Belt, NO.2
11305	Retainer, Oil Seal, NO.2
11305A	Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B	Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307	Cover, Sub-assy, Timing Belt, NO.3
11309	Cover Sub-assy, Timing Belt, NO.4
11312	Gasket, Front End Plate
11314	Gasket, Timing Chain NO.2 Cover
11322A	Cover, Timing Belt, NO.1
11322B	Cover, Timing Belt, NO.2
11322C	Cover, Timing Belt, NO.3
11324	Plate, Timing Chain Cover
11327B	Stay, Timing Belt Cover
11328	Gasket, Timing Gear OR Chain Cover
11329	Gasket, Timing Gear Rear Cover
11338	Gasket, Timing Chain Cover, NO.2
11354	Seal, Flywheel Housing Dust
11355	Plate, Rear End
11355A	Plug, Hole(FOR REAR END PLATE)
11361	Cover, Flywheel Housing Under
11366	Seal, Flywheel Housing Under Cover Dust
11381	Retainer, Engine Rear Oil Seal
11381A	Seal, Engine Rear Oil
11381B	Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383	Gasket, Engine Rear Oil Seal Retainer
11384	Gasket, Oil Seal Retainer, NO.2
11385	Retainer, Camshaft Oil Seal
11385A	Seal, Oil(FOR CAMSHAFT)
11391	Pointer, Timing
11492A	Plate, Water Seal
12282	Hanger, Engine, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
