Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

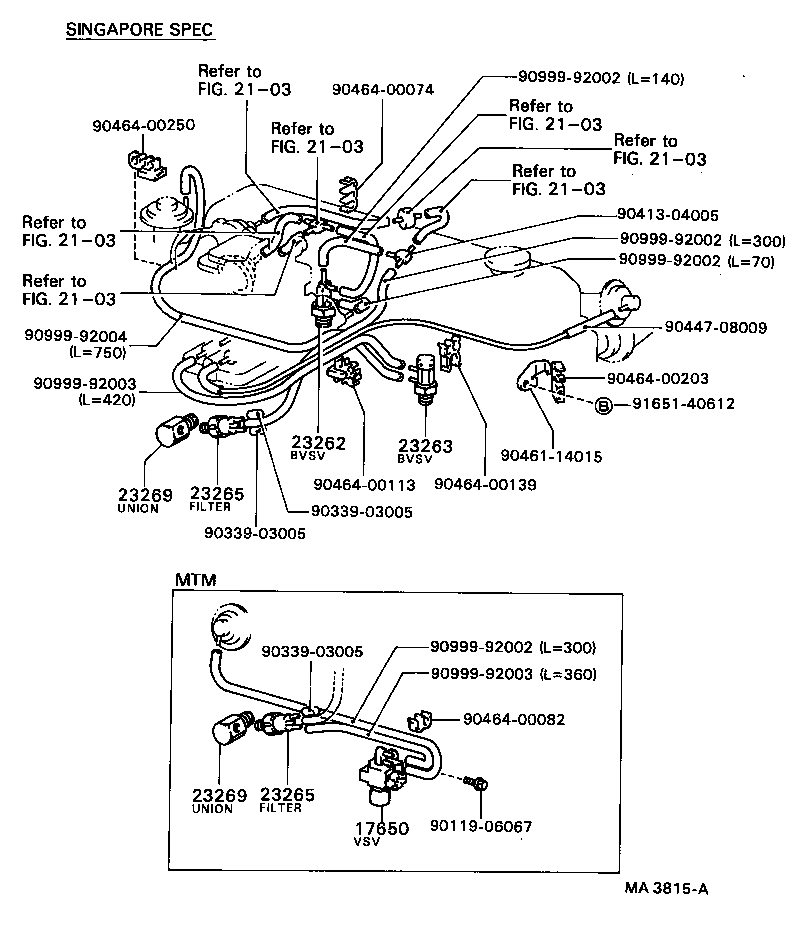

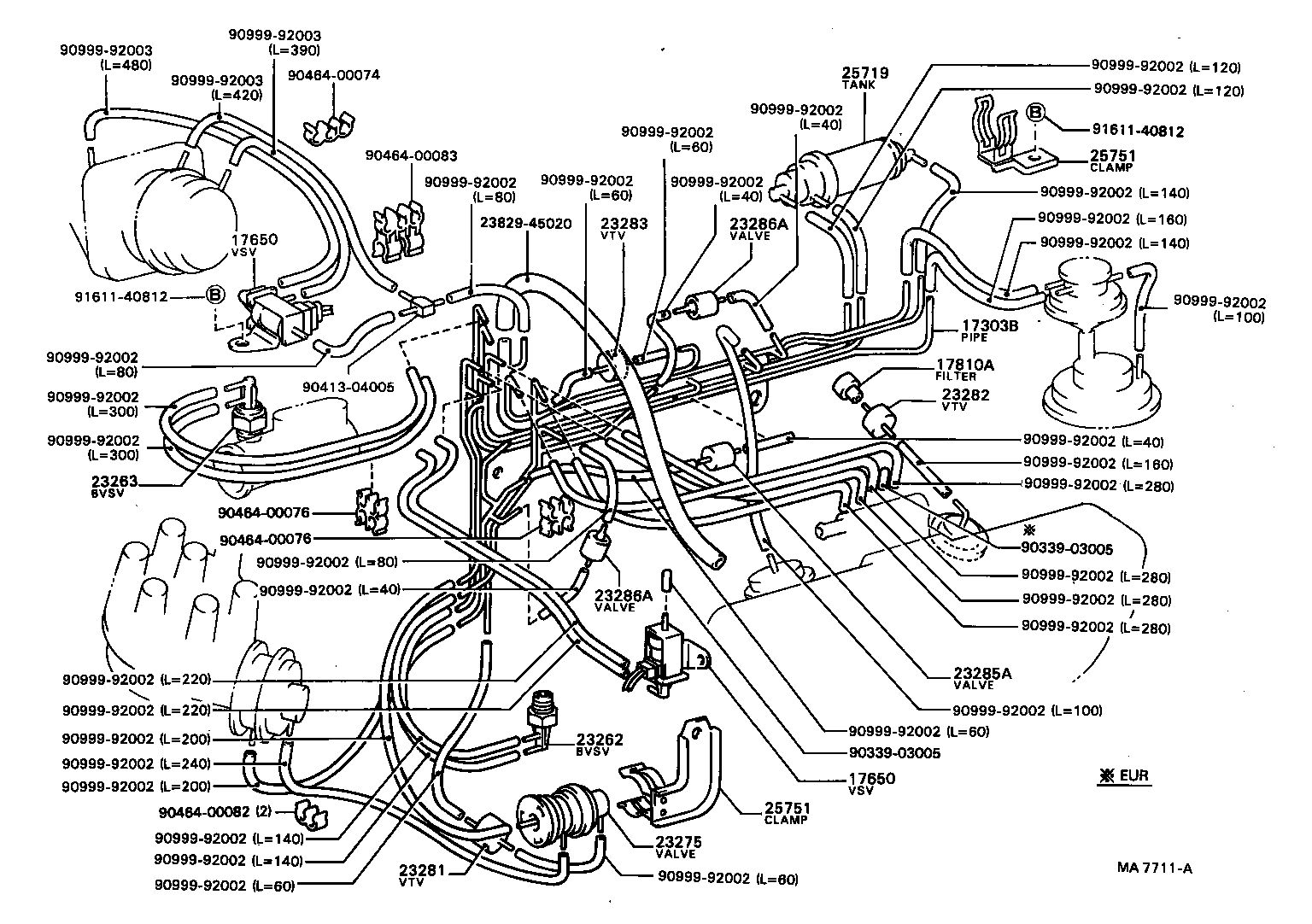

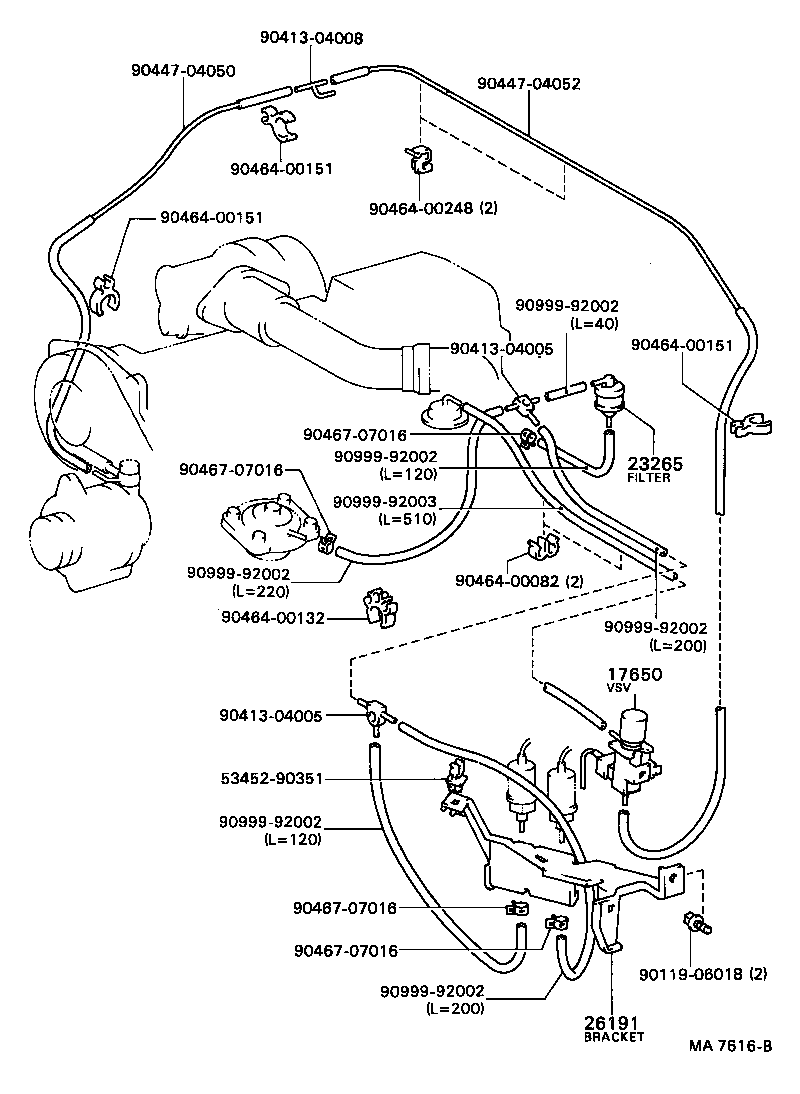

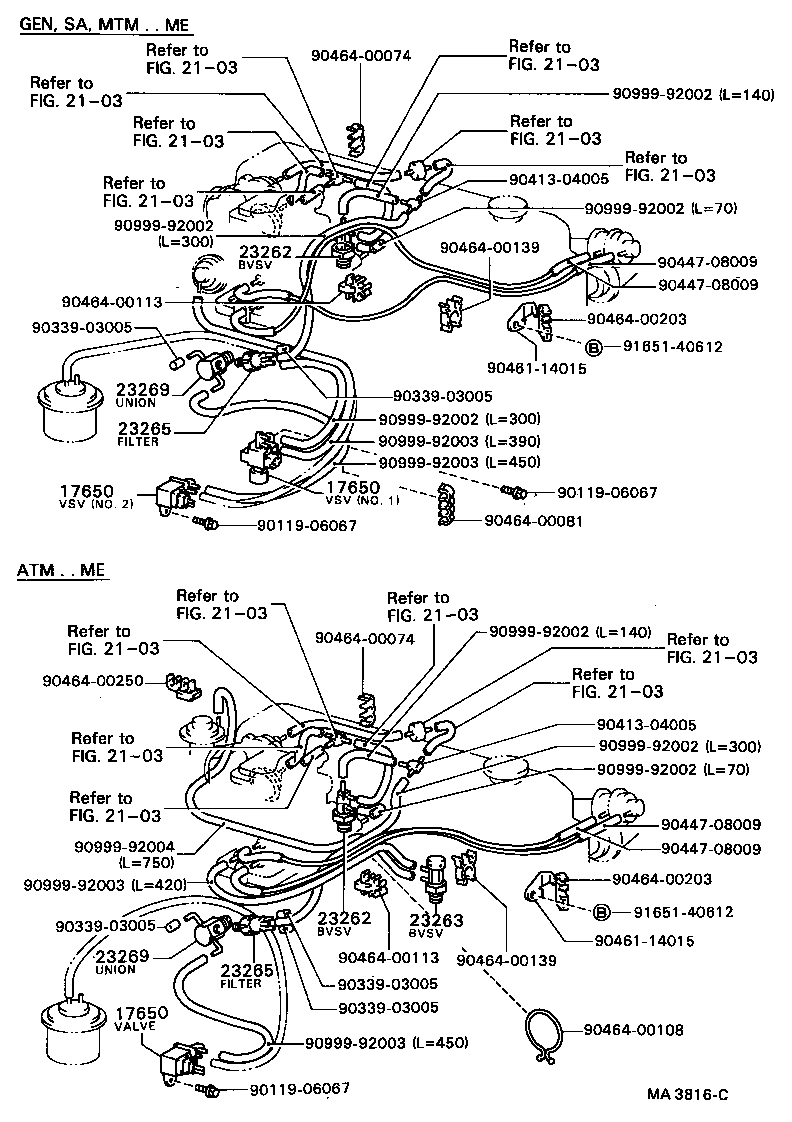

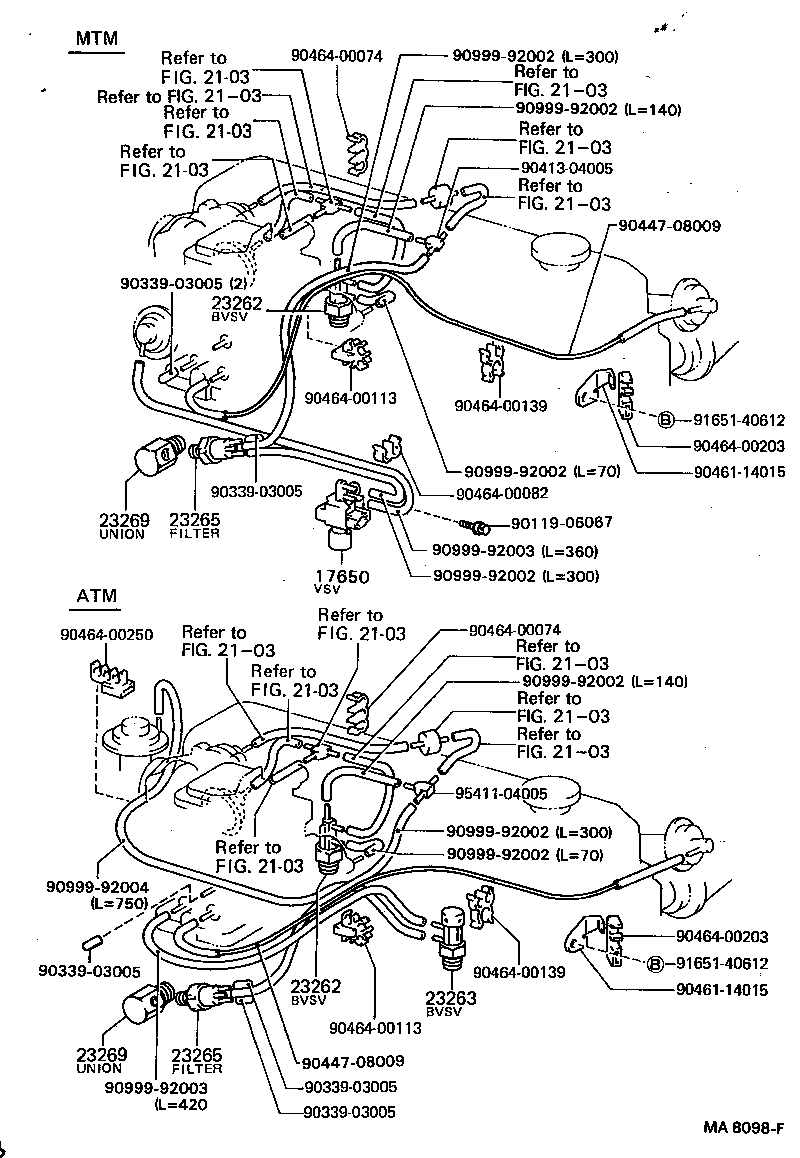

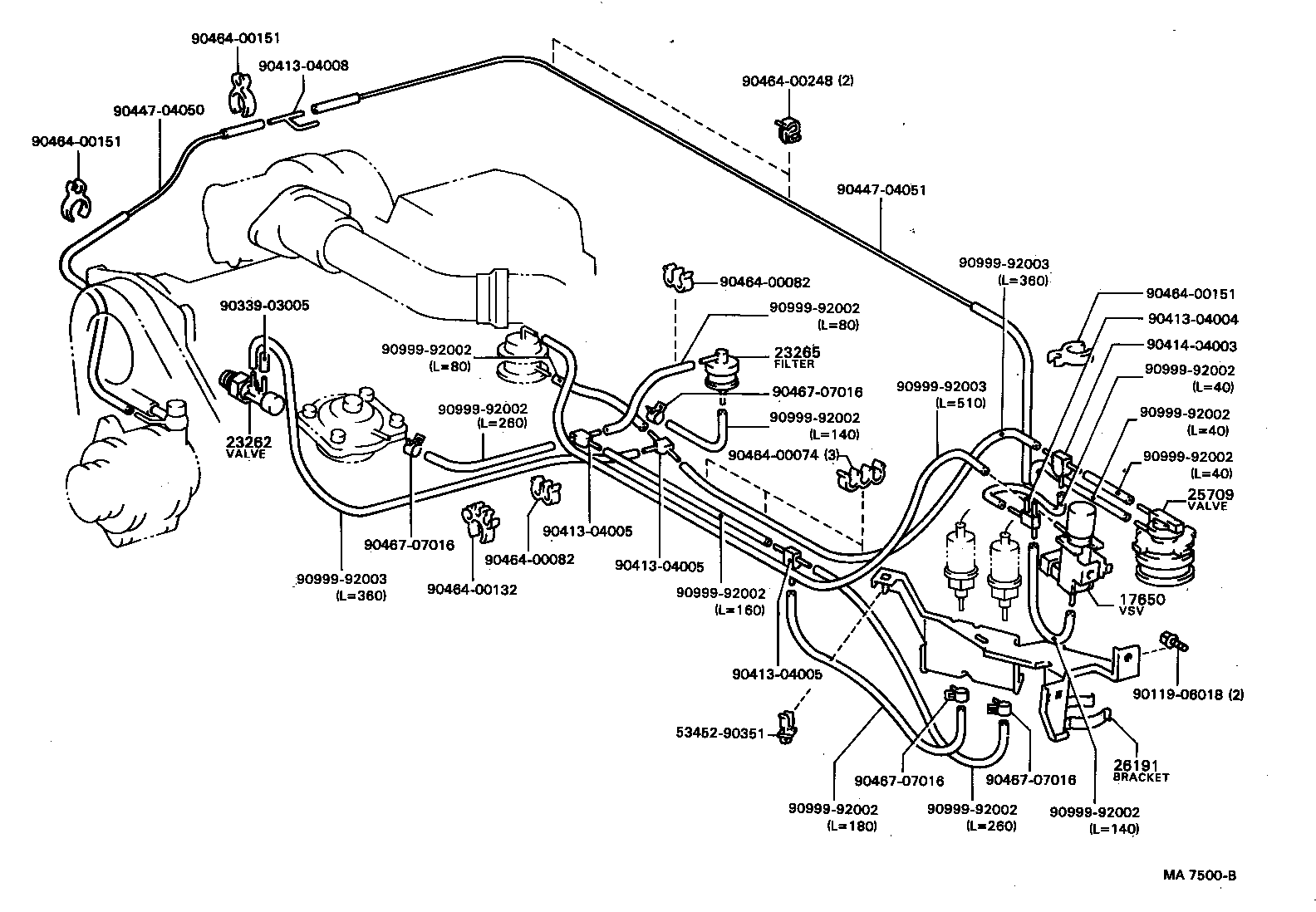

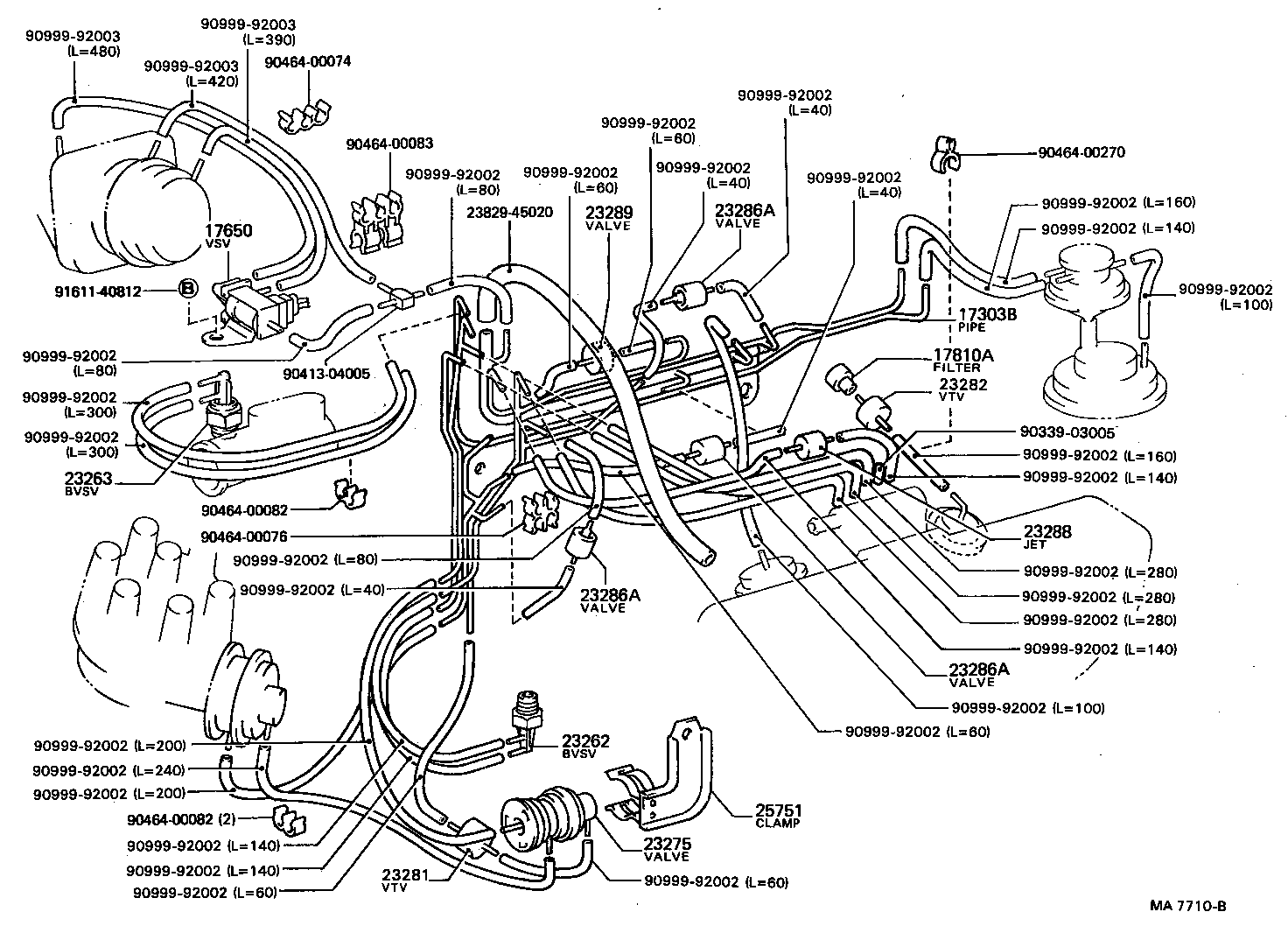

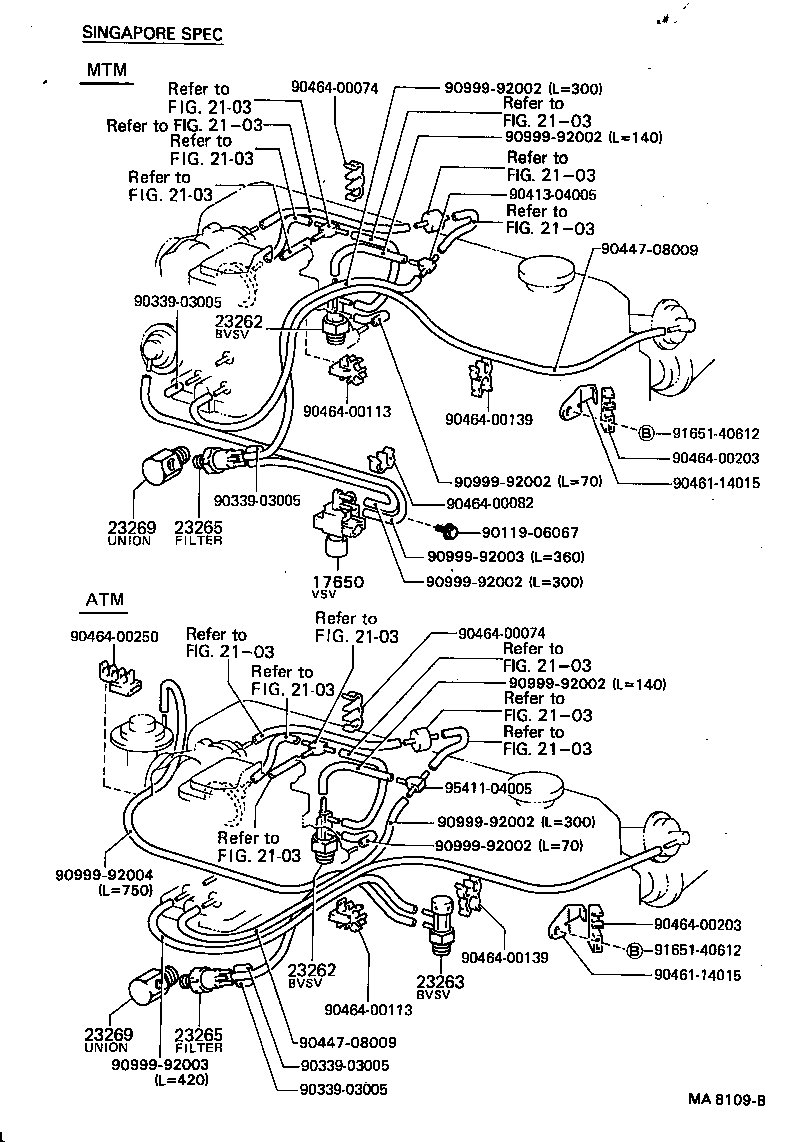

Vacuum Piping
32 part groups · 21 illustrations

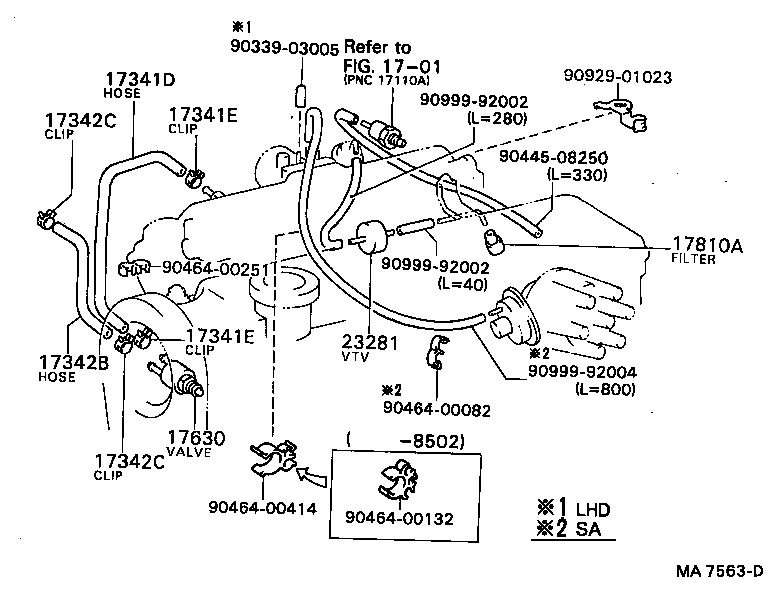

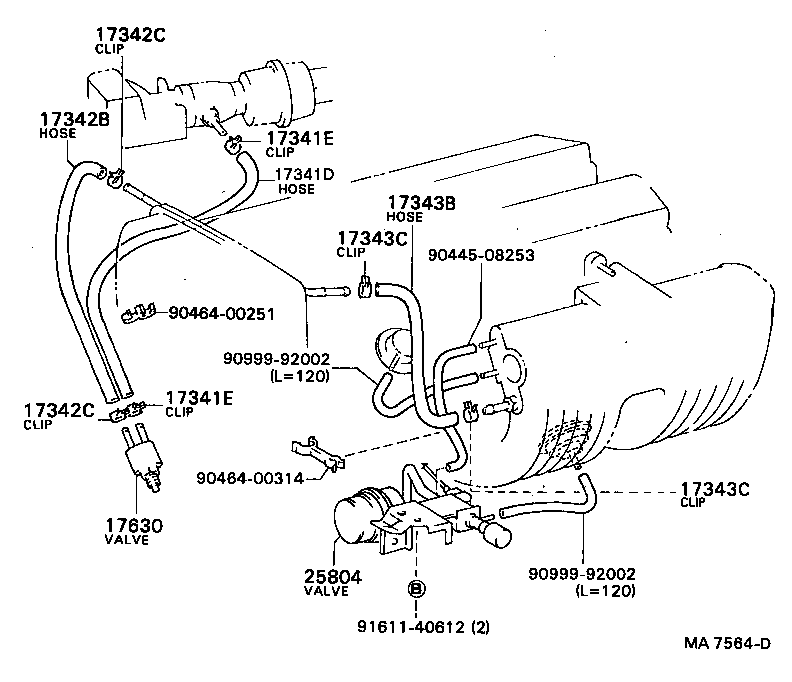

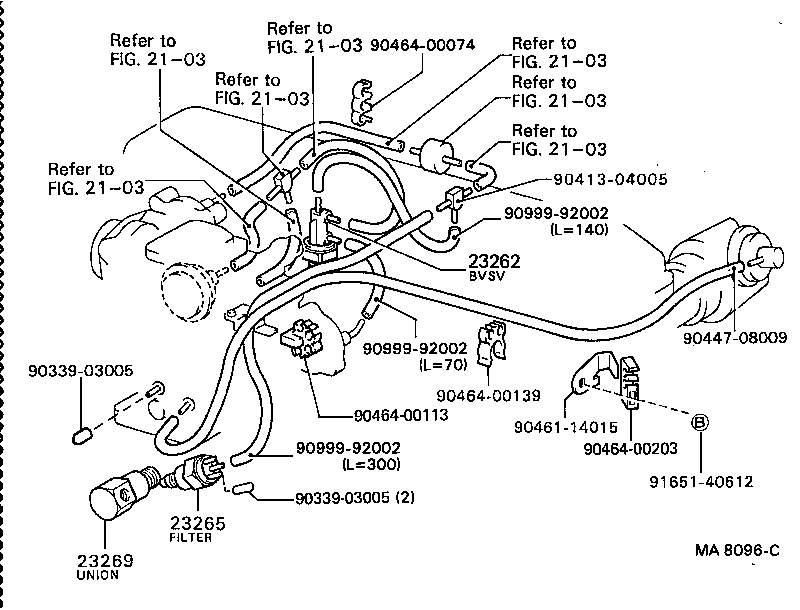

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303E | Hose, NO.1(FOR AIR PIPE) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343C | Clip, NO.3(FOR IDLE-UP HOSE) |
| 17344C | Hose, NO.4(FOR IDLE-UP) |
| 17344D | Clip, NO.4(FOR IDLE-UP HOSE) |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17345C | Clip, NO.5(FOR IDLE-UP HOSE) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17810A | Filter Assy, Air |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23263 | Valve, Bimetal Vacuum Switching, NO.2 |
| 23265 | Filter, Gas, NO.1 |
| 23269 | Union(FOR GAS FILTER) |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23282 | Valve, Vacuum Transmitting, NO.2 |
| 23283 | Valve, Vacuum Transmitting, NO.3 |
| 23285A | Valve, Check, NO.1 |
| 23286A | Valve, Check, NO.2 |
| 23288 | Jet, NO.1 |
| 23289 | Jet, NO.2 |
| 25709 | Valve Sub-assy, High Altitude Compensator |
| 25719 | Tank, Vacuum Surge |
| 25751 | Clamp, Vacuum Control Valve, NO.1 |
| 25804 | Valve Set, Vacuum Control |
| 26191 | Bracket, Intake Air Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
