Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

55 part groups · 11 illustrations

Illustrations

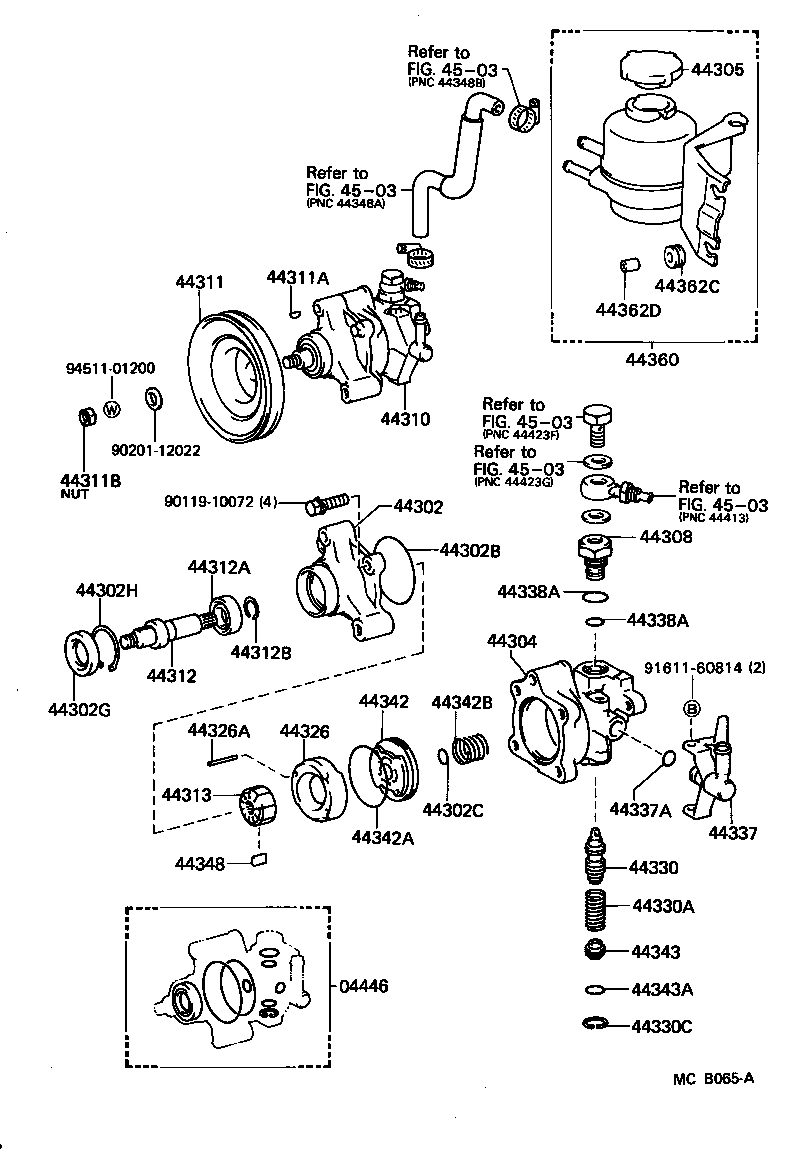

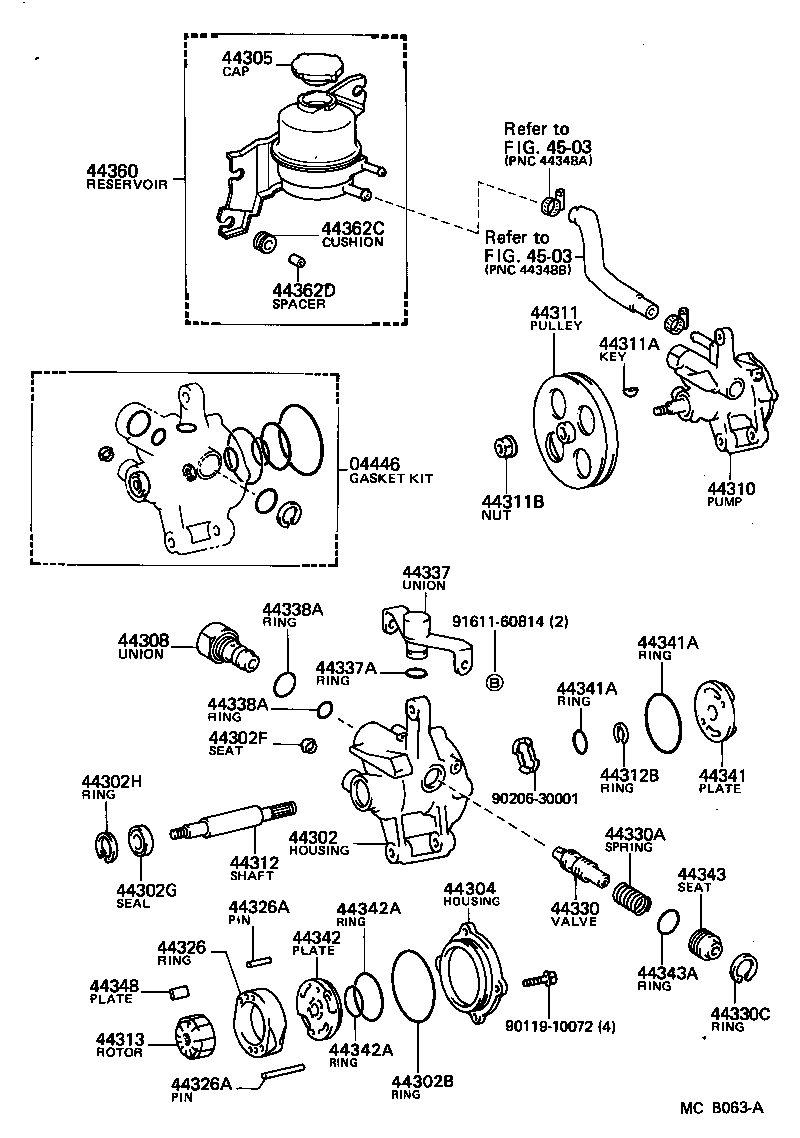

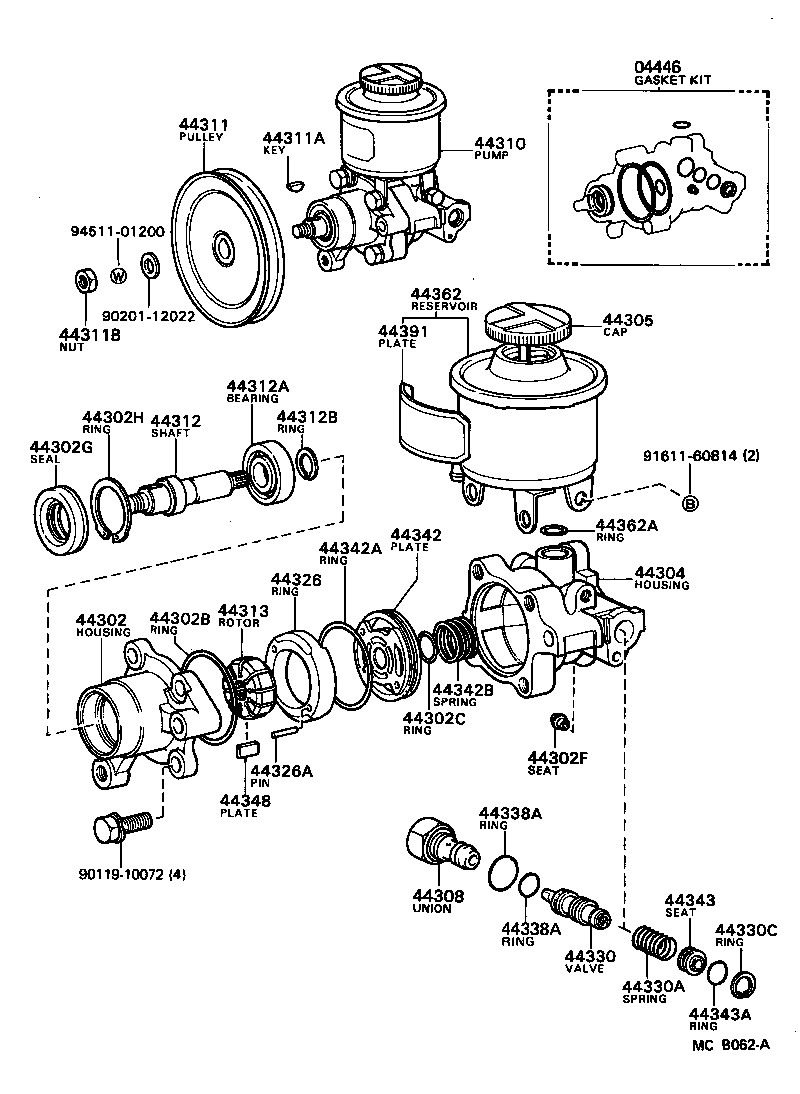

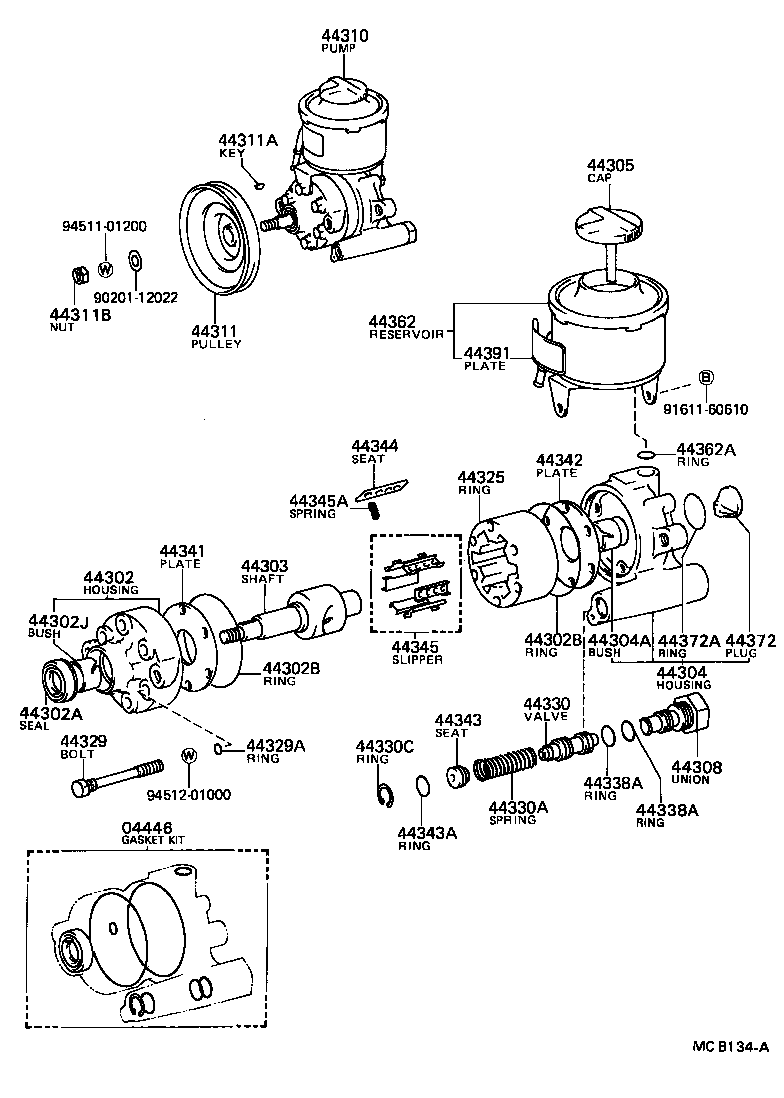

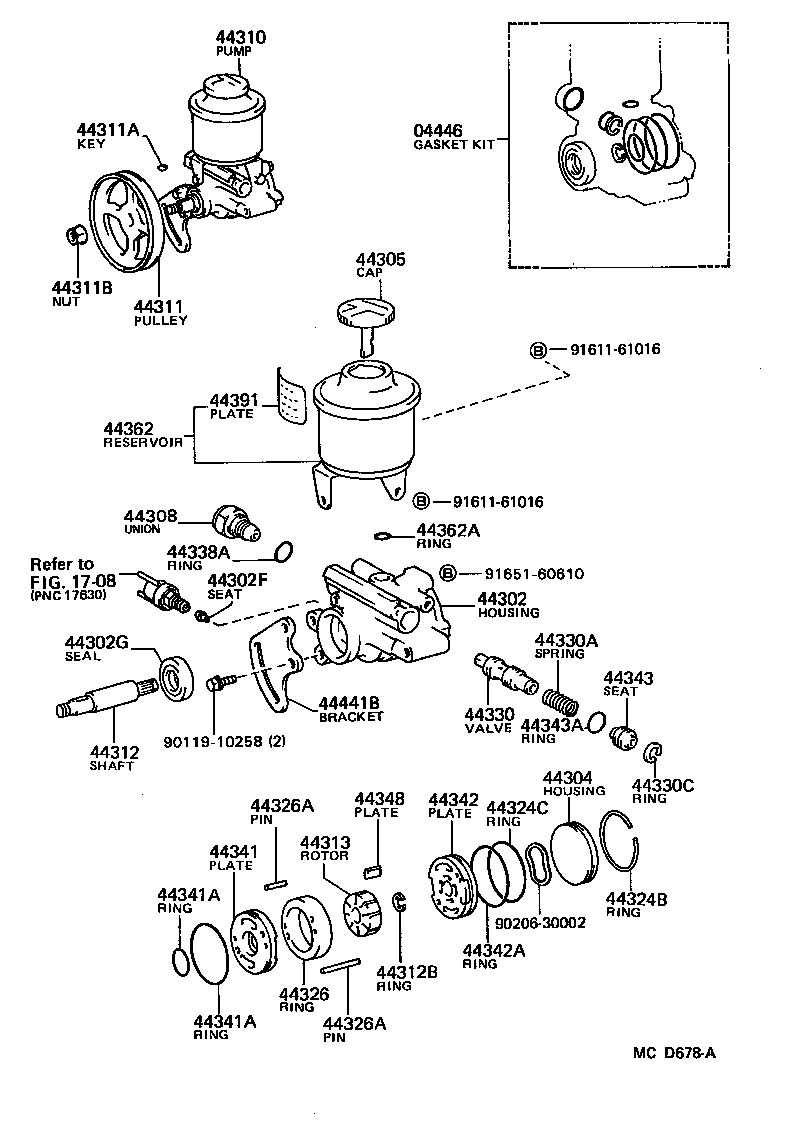

Figure MCB133A MCB133A 1984-08 → — Figure MCB062A MCB062A 1984-08 → 1986-08 Figure MCB062A MCB062A 1984-08 → — Figure MCB062A MCB062A 1985-08 → — Figure MCB062A MCB062A 1986-08 → 1986-11 Figure MCD678A MCD678A 1986-08 → 1986-11 Figure MCD678A MCD678A 1986-11 → — Figure MCB063A MCB063A 1984-08 → 1986-08 Figure MCB134A MCB134A 1984-08 → 1985-08 Figure MCB134A MCB134A 1985-08 → 1986-08 Figure MCB065A MCB065A 1984-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302 Housing Sub-assy, Vane Pump, Front
44302A Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44302C Ring, O, NO.2(FOR VANE PUMP HOUSING)
44302F Seat, Union(FOR VANE PUMP HOUSING)
44302G Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
44302H Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
44302J Bush(FOR VANE PUMP HOUSING)
44303 Shaft Sub-assy, W/Rotor
44304 Housing Sub-assy, Vane Pump, Rear
44304A Bush, Bimetal Formed(FOR PUMP HOUSING REAR)
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44312 Shaft, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44313 Rotor, Vane Pump
44324B Ring, Hole Snap(FOR PUMP HOUSING REAR)
44324C Ring, O(FOR PUMP HOUSING REAR)
44325 Ring, Fixed(FOR VANE PUMP)
44326 Ring, Cam(FOR VANE PUMP)
44326A Pin, Straight(FOR VANE PUMP CAM RING)
44329 Bolt, Vane Pump Front Housing & Rear Housing Set
44329A Ring, O(FOR VANE PUMP HOUSING SET BOLT)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44330C Ring, Snap(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44341 Plate, Vane Pump Side, Front
44341A Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
44342 Plate, Vane Pump Side, Rear
44342A Ring, O(FOR VANE PUMP SIDE PLATE REAR)
44342B Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
44343 Seat, Flow Control Spring
44343A Ring, O(FOR FLOW CONTROL SPRING SEAT)
44344 Seat, Spring(FOR VANE PUMP)
44345 Slipper, Vane Pump
44345A Spring, Compression(FOR VANE PUMP SLIPPER)
44348 Plate, Vane Pump
44360 Reservoir Assy, Vane Pump Oil
44362 Reservoir, Oil(FOR VANE PUMP)
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44362C Cushion(FOR VANE PUMP OIL RESERVOIR)
44362D Spacer(FOR VANE PUMP OIL RESERVOIR)
44372 Plug, Power Steering Pump Tight
44372A Ring, O(FOR POWER STEERING PUMP TIGHT PLUG)
44391 Plate, Power Steering Oil Reservoir Caution
44441B Bracket, Pump, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
