Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

26 part groups · 16 illustrations

Illustrations

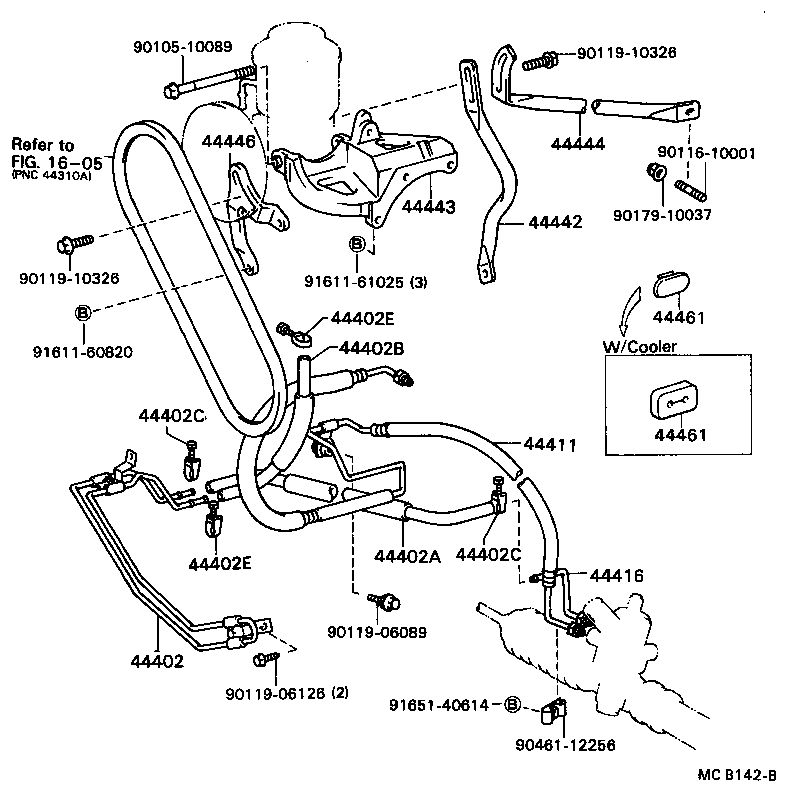

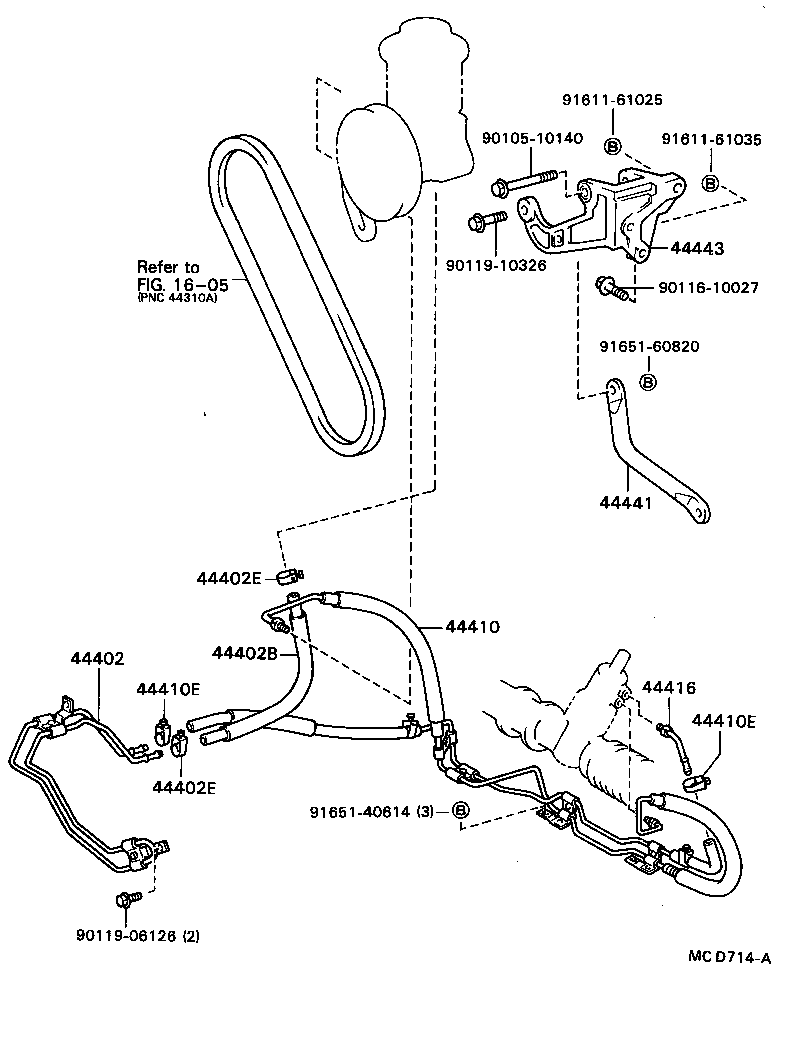

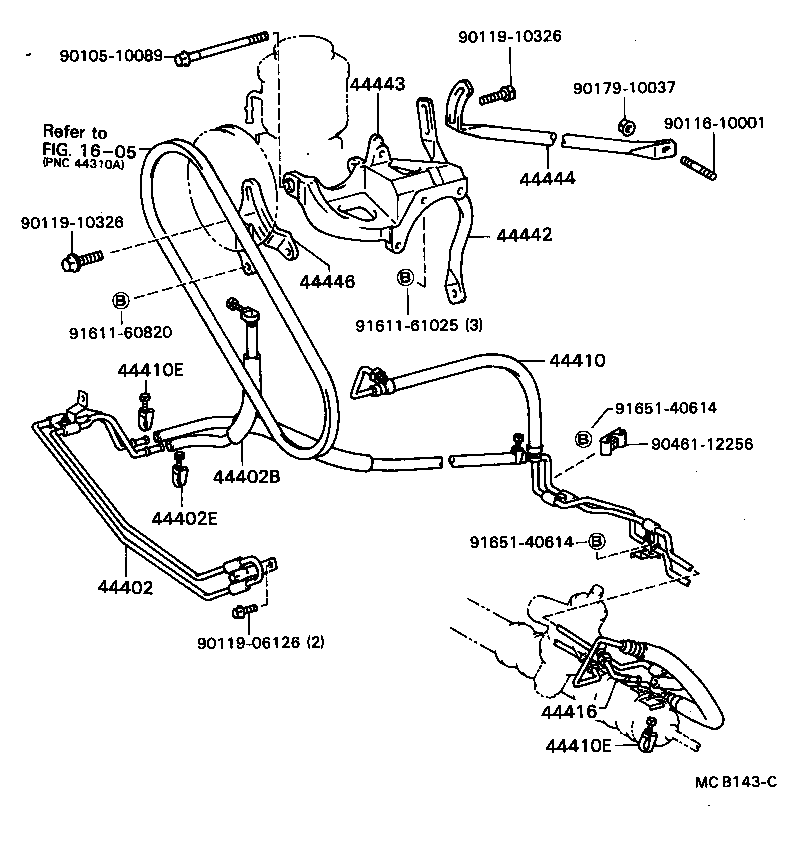

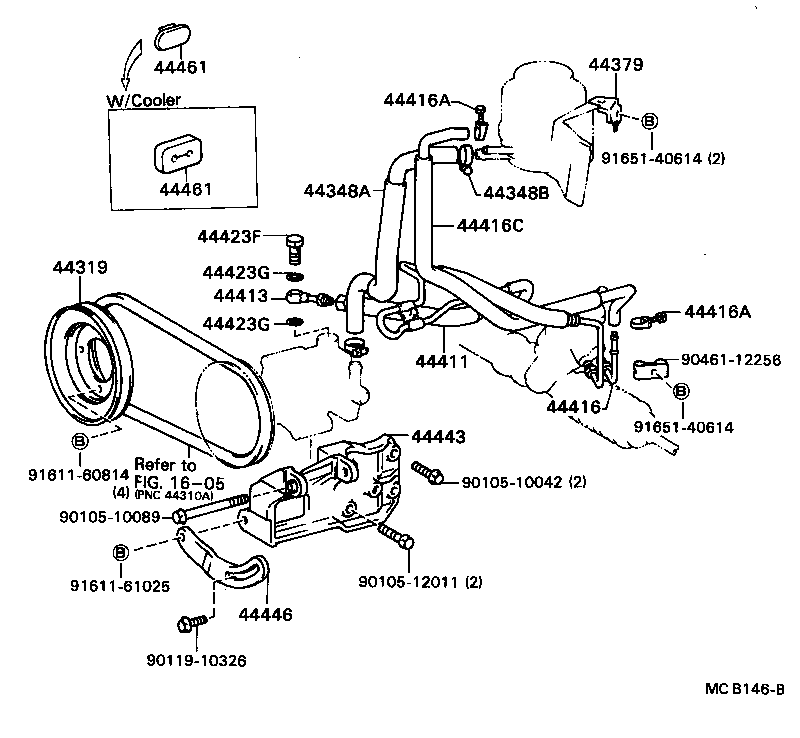

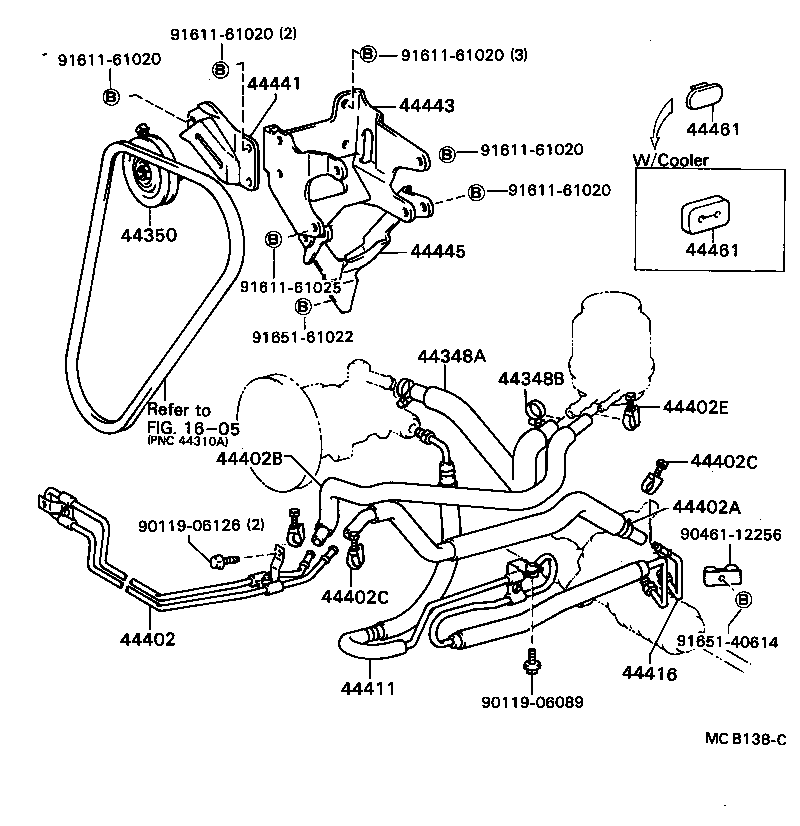

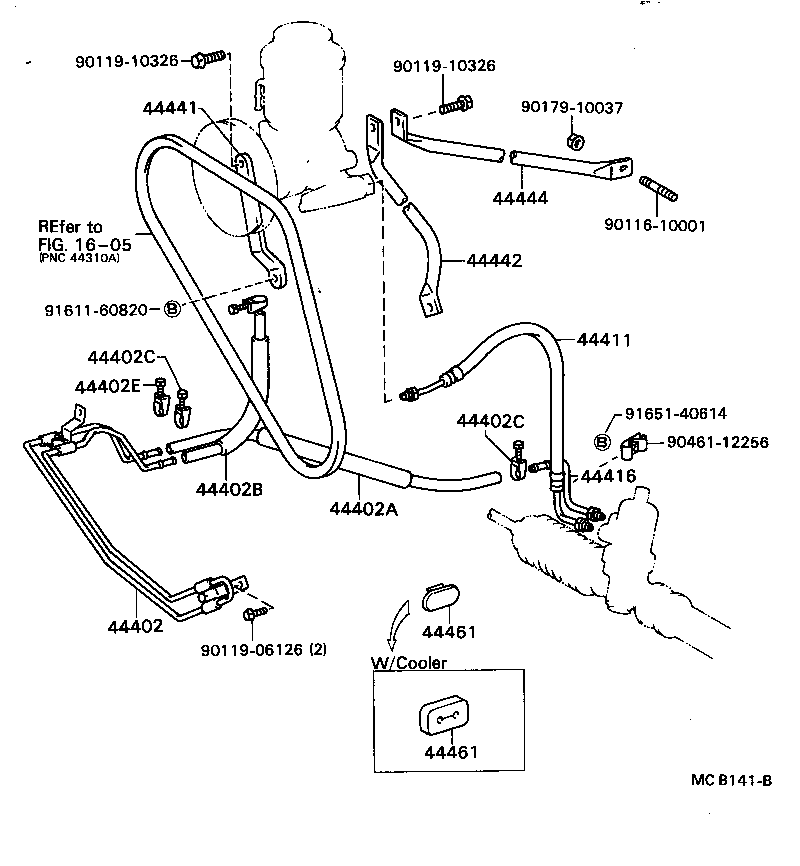

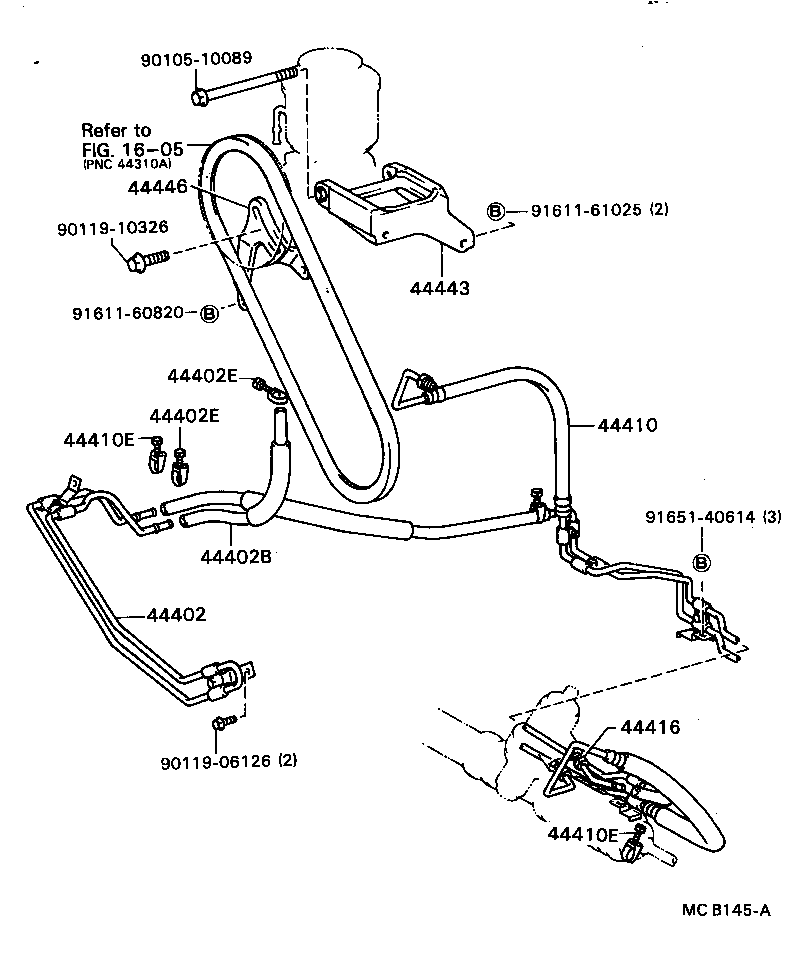

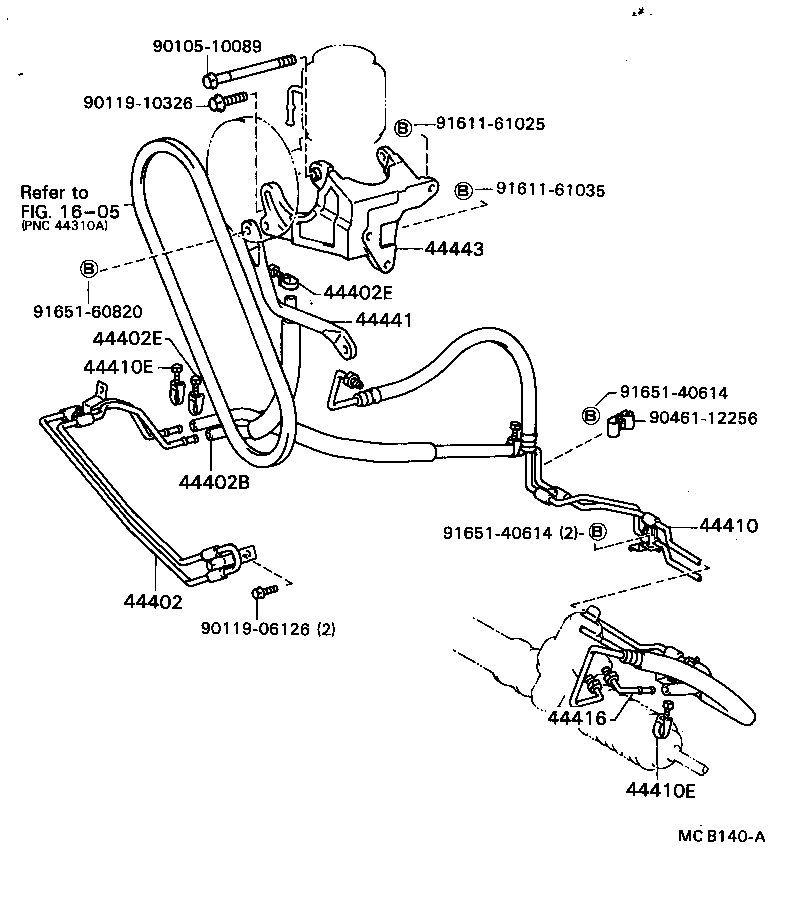

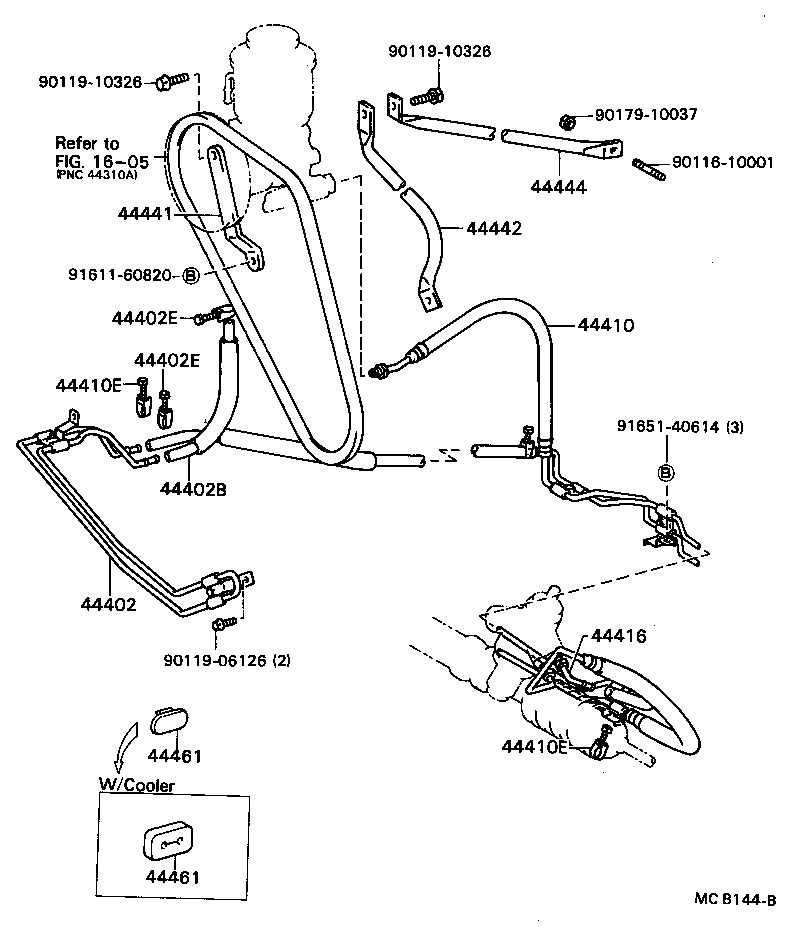

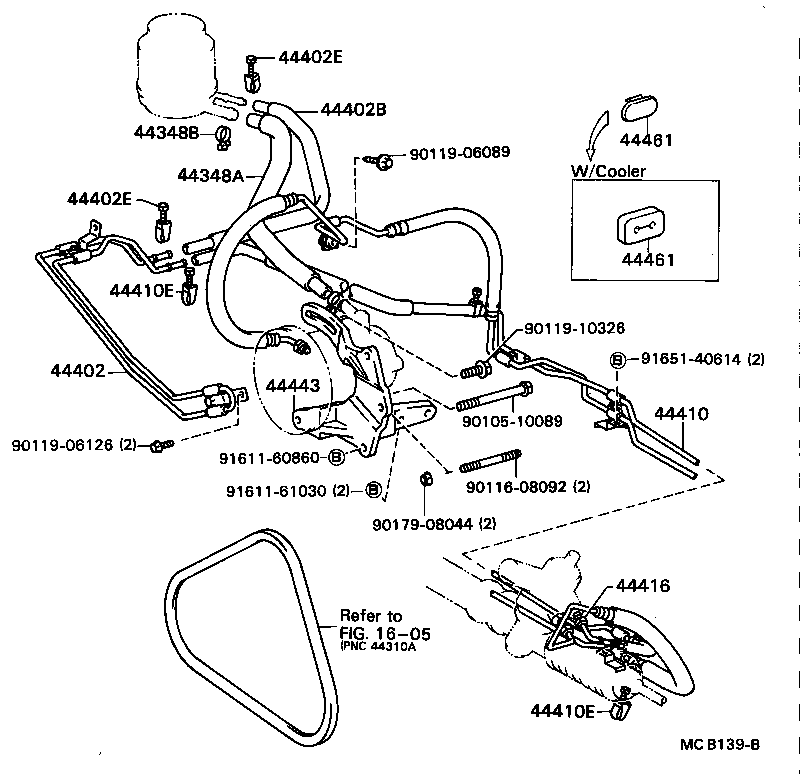

Figure MCB137E MCB137E 1984-08 → — Figure MCB138C MCB138C 1984-08 → — Figure MCB068A MCB068A 1984-08 → 1986-08 Figure MCB068A MCB068A 1986-08 → — Figure MCD679A MCD679A 1986-08 → — Figure MCB139B MCB139B 1984-08 → 1986-08 Figure MCB140A MCB140A 1984-08 → 1986-08 Figure MCD714A MCD714A 1986-08 → — Figure MCB141B MCB141B 1984-08 → 1985-08 Figure MCB142B MCB142B 1984-08 → — Figure MCB142B MCB142B 1985-08 → — Figure MCB143C MCB143C 1984-08 → 1986-08 Figure MCB143C MCB143C 1984-08 → — Figure MCB144B MCB144B 1984-08 → 1986-08 Figure MCB145A MCB145A 1984-11 → — Figure MCB146B MCB146B 1984-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44379 Bracket, Oil Reservoir, NO.2
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44410 Tube Assy, Pressure Feed
44410E Clamp(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416A Clamp(FOR RETURN HOSE)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
