Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

2 part groups · 3 illustrations

Illustrations

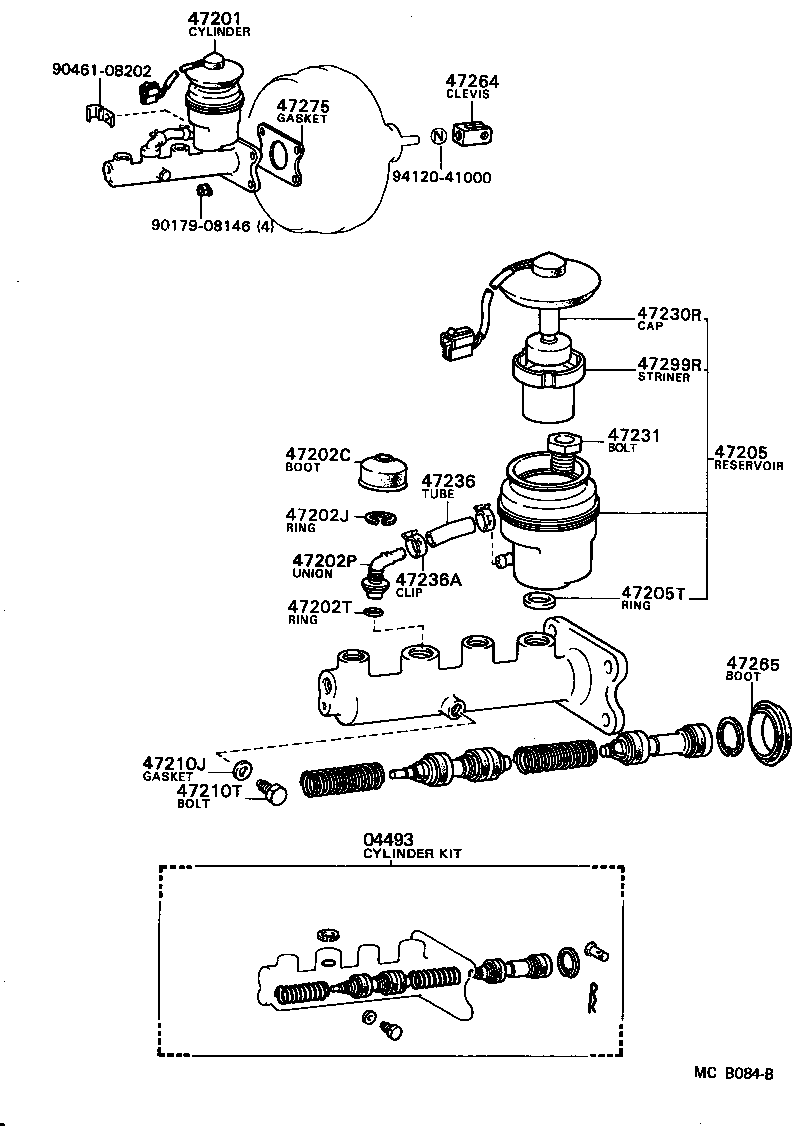

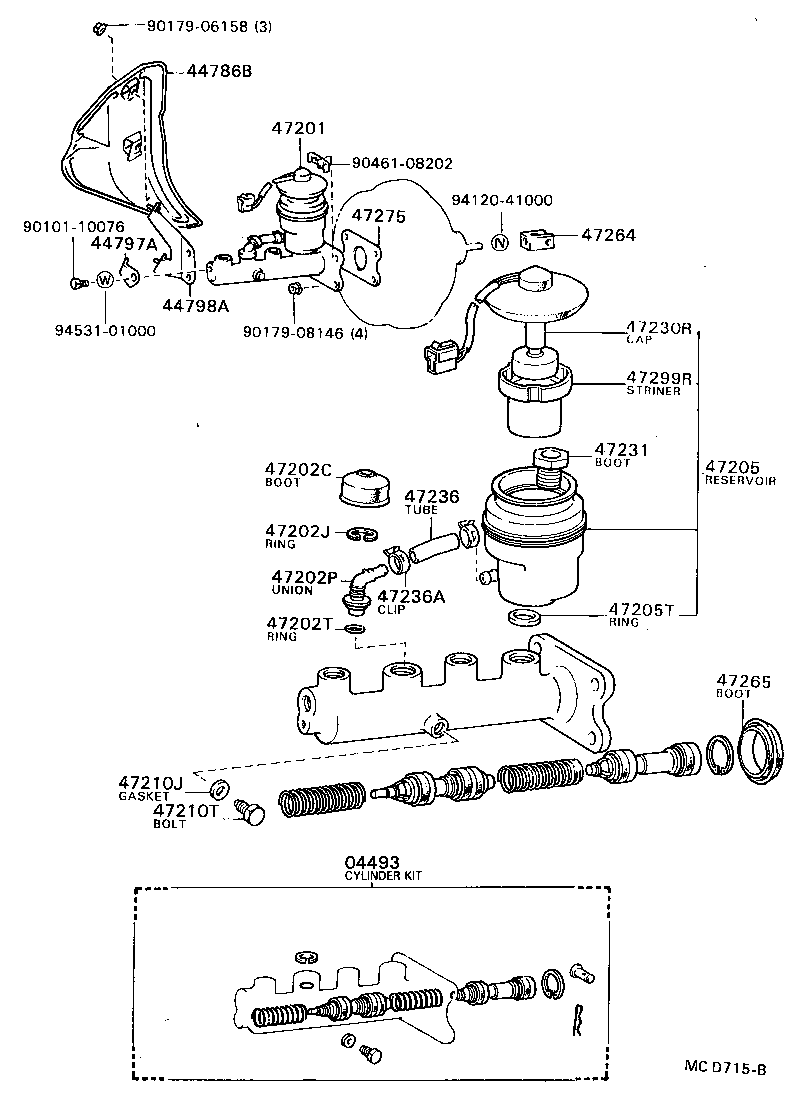

Figure MCB412A MCB412A 1984-08 → — Figure MCB084B MCB084B 1984-08 → — Figure MCD715B MCD715B 1986-08 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47205T Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
