Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

39 part groups · 23 illustrations

Illustrations

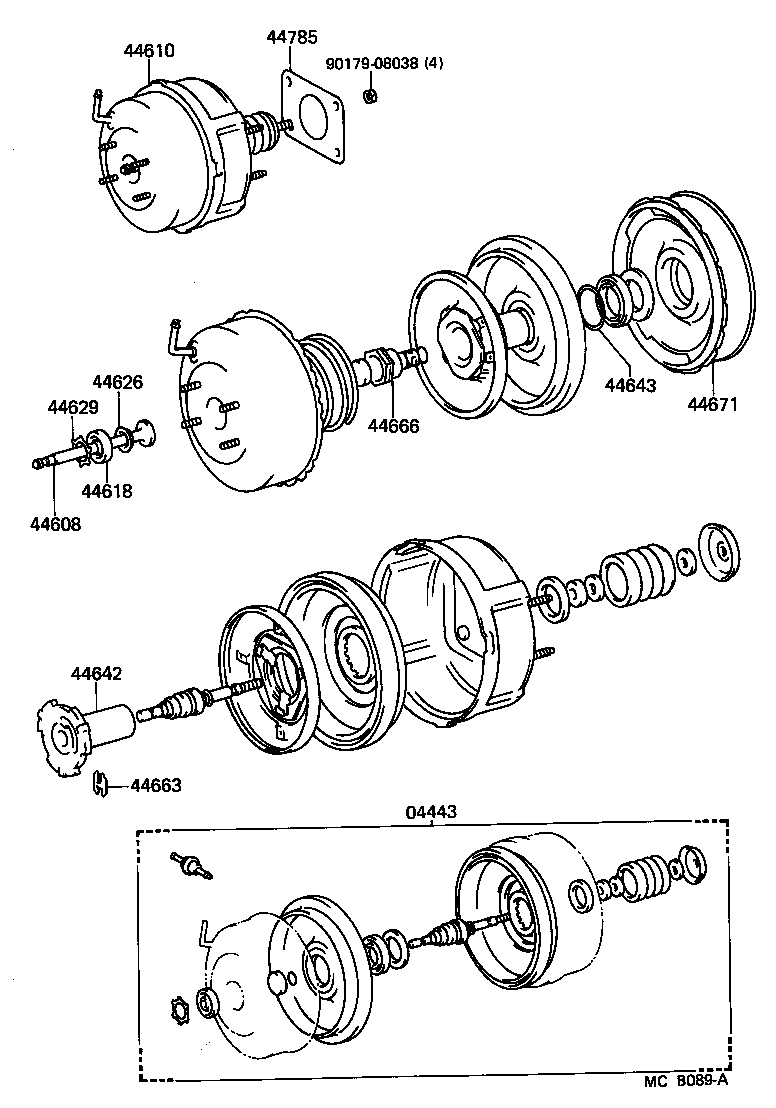

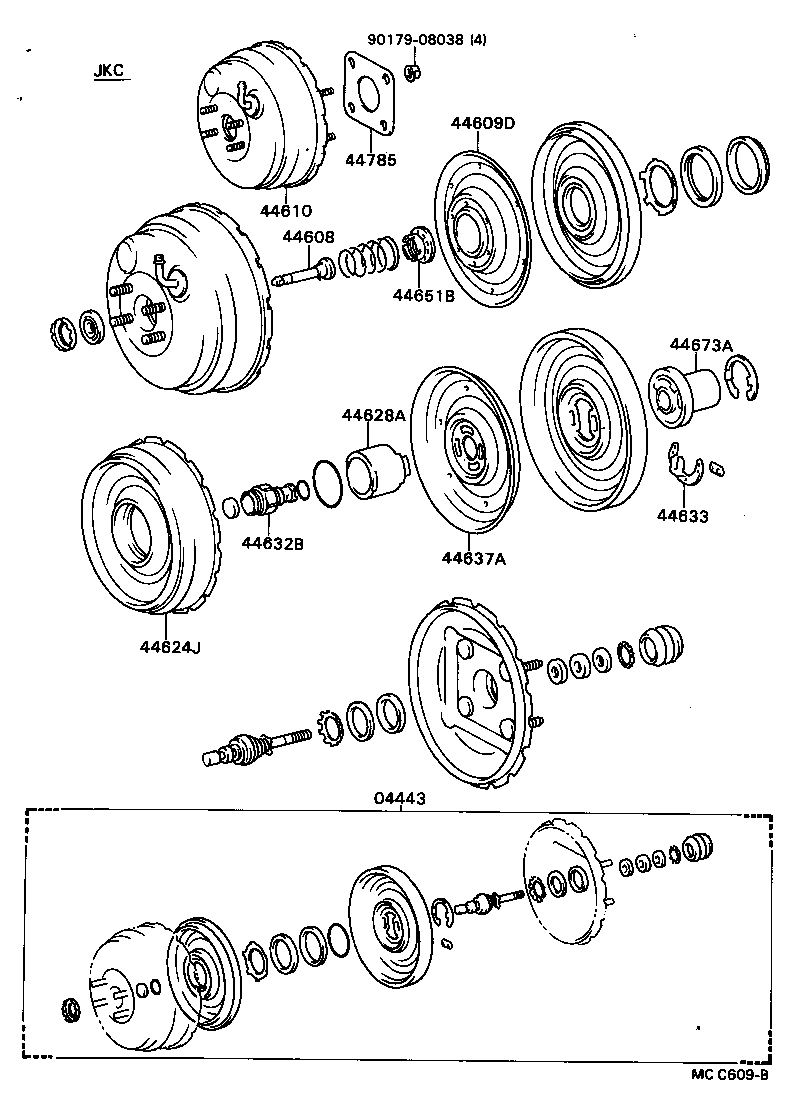

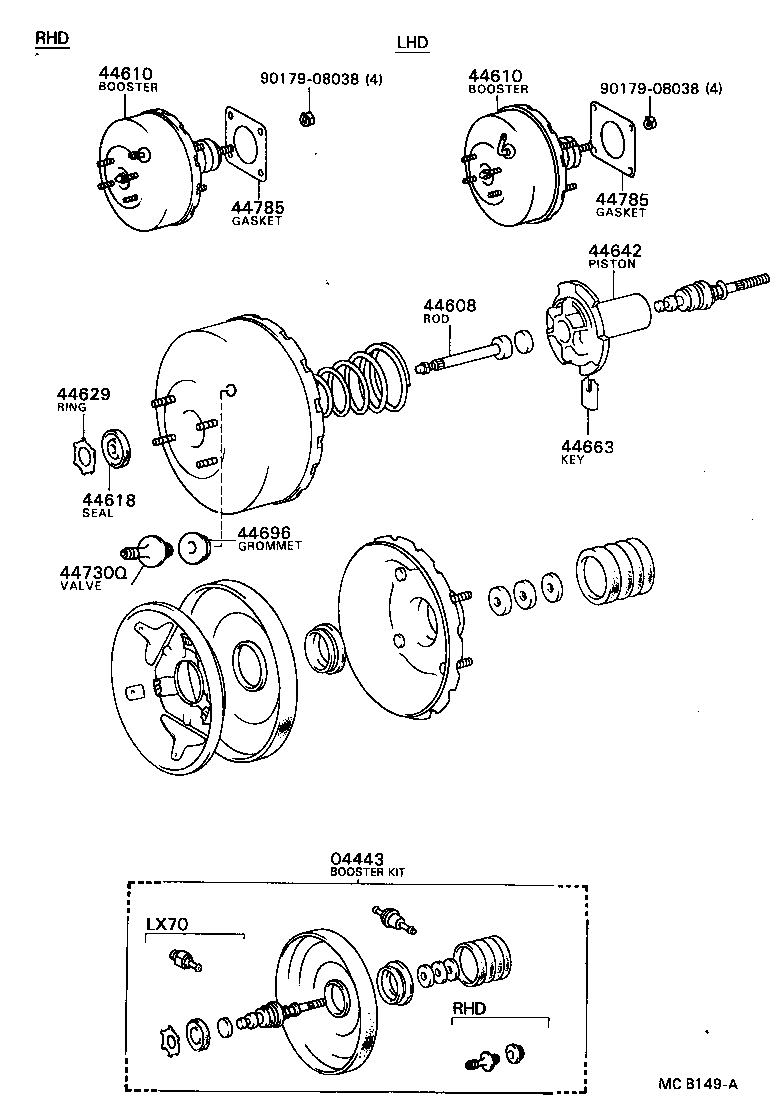

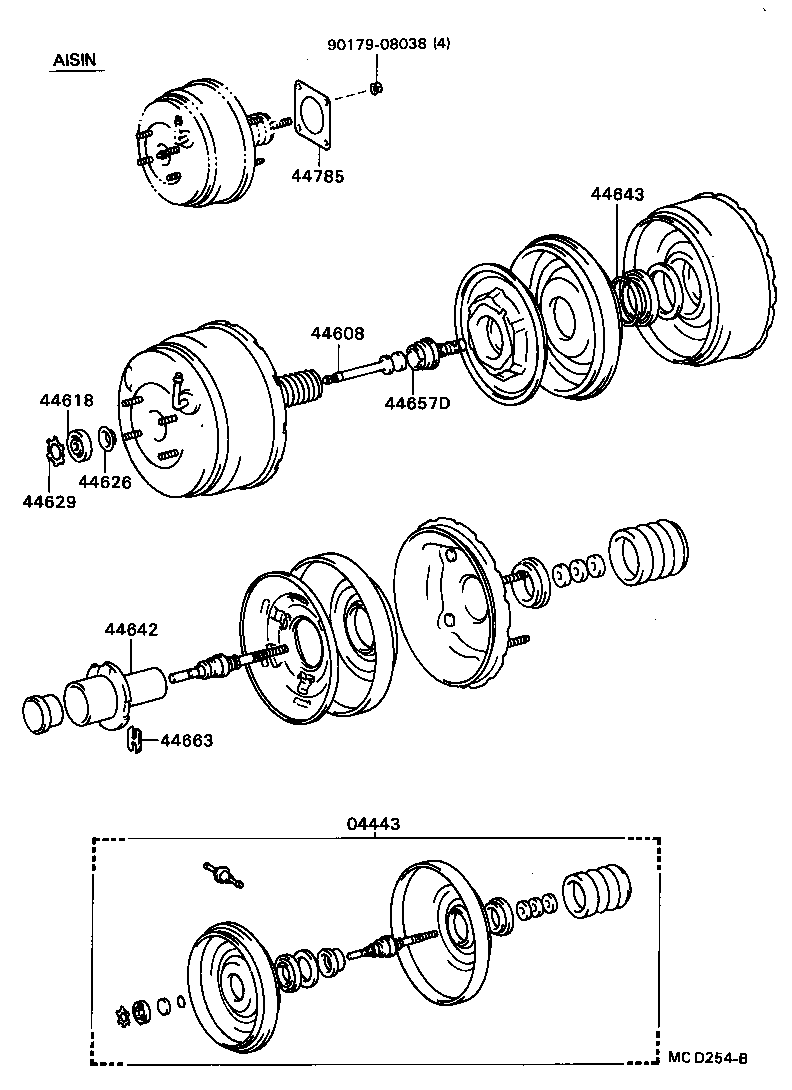

Figure MCB148C MCB148C 1984-08 → 1985-08 Figure MCB148C MCB148C 1984-08 → — Figure MCB148C MCB148C 1985-02 → — Figure MCB148C MCB148C 1985-08 → — Figure MCB148C MCB148C 1987-05 → — Figure MCC609B MCC609B 1985-08 → — Figure MCD254B MCD254B 1985-08 → — Figure MCB149A MCB149A 1984-08 → 1985-02 Figure MCB149A MCB149A 1985-02 → 1985-08 Figure MCB149A MCB149A 1985-02 → 1987-05 Figure MCC066A MCC066A 1985-02 → — Figure MCB089A MCB089A 1984-08 → — Figure MCB089A MCB089A 1985-08 → — Figure MCB151 MCB151 1984-08 → 1987-05 Figure MCB151 MCB151 1987-05 → — Figure MCD716 MCD716 1986-08 → — Figure MCC067 MCC067 1985-02 → — Figure MCB152B MCB152B 1984-08 → 1986-08 Figure MCB153 MCB153 1984-08 → — Figure MCB154A MCB154A 1984-08 → — Figure MCB155 MCB155 1984-08 → — Figure MCB156A MCB156A 1984-08 → — Figure MCB157 MCB157 1984-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44609D Plate & Retainer Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44624J Plate, Booster Center
44626 Retainer, Booster Rod Cup
44628A Body, Booster Center
44629 Ring, Circular Internal
44632B Hub, Booster Reaction Disk
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44651B Nut, Booster
44657D Case, Reaction Disc
44663 Key, Valve Stopper
44666 Case, Reaction Disc
44671 Body Sub-assy, NO.3
44673A Body, Booster Valve
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730Q Valve Assy, Vacuum Check, NO.2
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
