Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

26 part groups · 4 illustrations

Illustrations

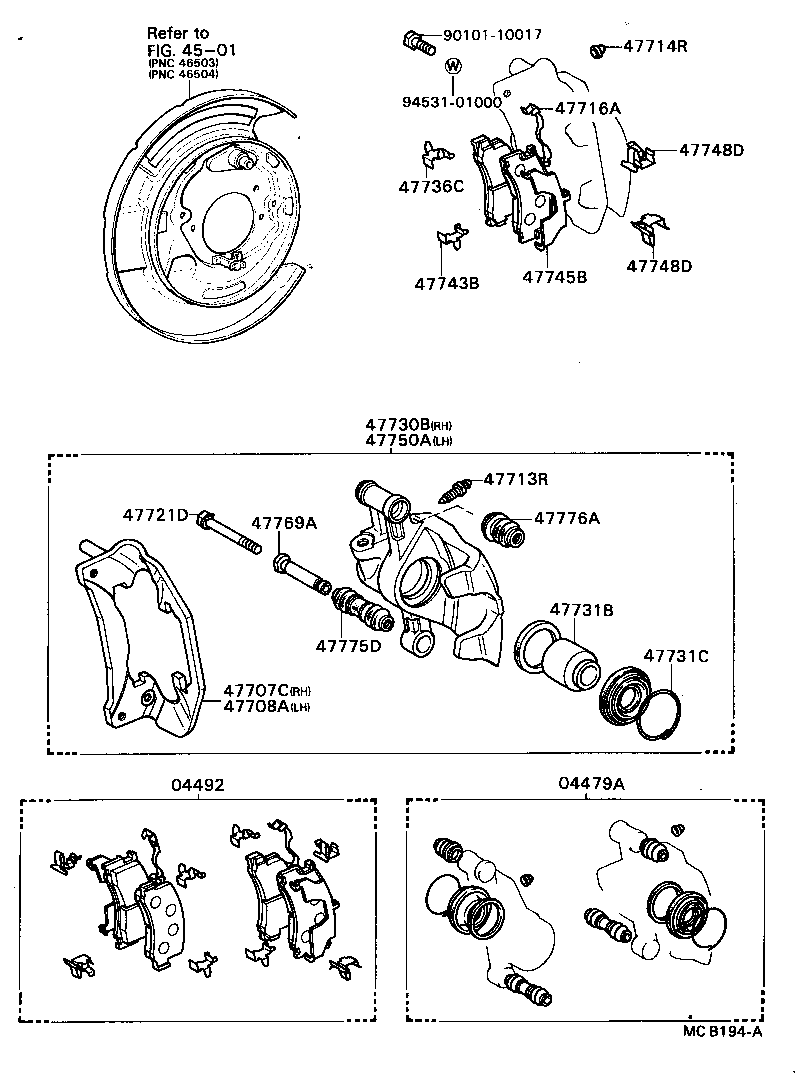

Figure MCB097B MCB097B 1984-08 → — Figure MCB097B MCB097B 1985-02 → — Figure MCB194A MCB194A 1984-08 → 1986-08 Figure MCT615 MCT615 1984-08 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04492 Pad Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
47707C Plate Sub-assy, Disc Brake Torque, Rear RH
47708A Plate Sub-assy, Disc Brake Torque, Rear LH
47713R Plug, Bleeder(FOR REAR DISC BRAKE)
47714R Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47716A Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47731C Ring, Set(FOR REAR DISC BRAKE PISTON)
47736C Plate, Rear Disc Brake Pad Guide
47743B Spring, Anti-rattle, NO.2(FOR REAR DISC BRAKE)
47744C Shim, Anti-squeal, NO.1(FOR REAR DISC BRAKE)
47745B Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
47748D Spring, Anti-rattle, NO.1(FOR REAR DISC BRAKE)
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47776A Boot, Main Pin(FOR REAR DISC BRAKE)
47779A Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
