Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

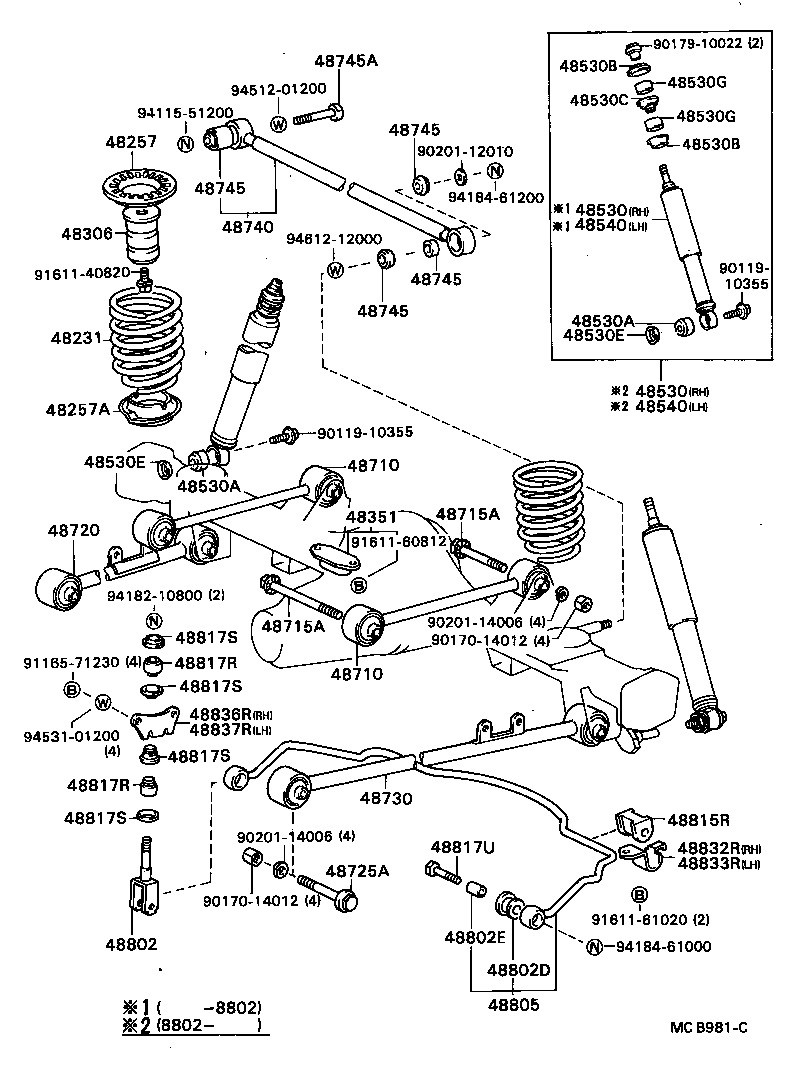

Rear Spring & Shock Absorber
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 48190R | Cam Assy, Camber Adjust |
| 48198R | Cam, Rear Suspension Camber Adjust, NO.2 |
| 48231 | Spring, Coil, Rear |
| 48257 | Insulator, Rear Coil Spring |
| 48257A | Insulator, Rear Coil Spring, Lower |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48341 | Bumper, Rear Spring |
| 48351 | Bumper, Differential Carrier |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530E | Washer, Rear Shock Absorber Cushion, NO.4 |
| 48530G | Cushion, Rear Shock Absorber, NO.1 |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48703 | Arm Sub-assy, Rear Suspension, RH |
| 48703F | Plug, Hole(FOR REAR SUSPENSION ARM) |
| 48707 | Arm Sub-assy, Rear Suspension, LH |
| 48710 | Arm Assy, Upper Control |
| 48715A | Bolt, Hexagon(FOR UPPER CONTROL ARM) |
| 48720 | Arm Assy, Lower Control, RH |
| 48725 | Bush, Lower Control Arm |
| 48725A | Bolt(FOR LOWER CONTROL ARM) |
| 48730 | Arm Assy, Lower Control, LH |
| 48740 | Rod Assy, Rear Lateral Control |
| 48745 | Bush, Lateral Control Rod |
| 48745A | Bolt, Hexagon(FOR LATERAL CONTROL ROD) |
| 48802 | Link Sub-assy, Stabilizer |
| 48802D | Bush, Stabilizer Link |
| 48802E | Spacer(FOR REAR STABILIZER BAR) |
| 48805 | Bar Sub-assy, Rear Stabilizer |
| 48812 | Bar, Stabilizer, Rear |
| 48815R | Bush, Stabilizer(FOR REAR) |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48817S | Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR) |
| 48817T | Collar(FOR STABILIZER REAR BAR) |
| 48817U | Bolt(FOR REAR STABILIZER) |
| 48823R | Cover, Stabilizer Link(FOR REAR) |
| 48832R | Bracket, Rear Stabilizer Bar, NO.1 RH |
| 48833R | Bracket, Rear Stabilizer Bar, NO.1 LH |
| 48836R | Bracket, Rear Stabilizer End, RH |
| 48837R | Bracket, Rear Stabilizer End, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
