Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

25 part groups · 2 illustrations

Illustrations

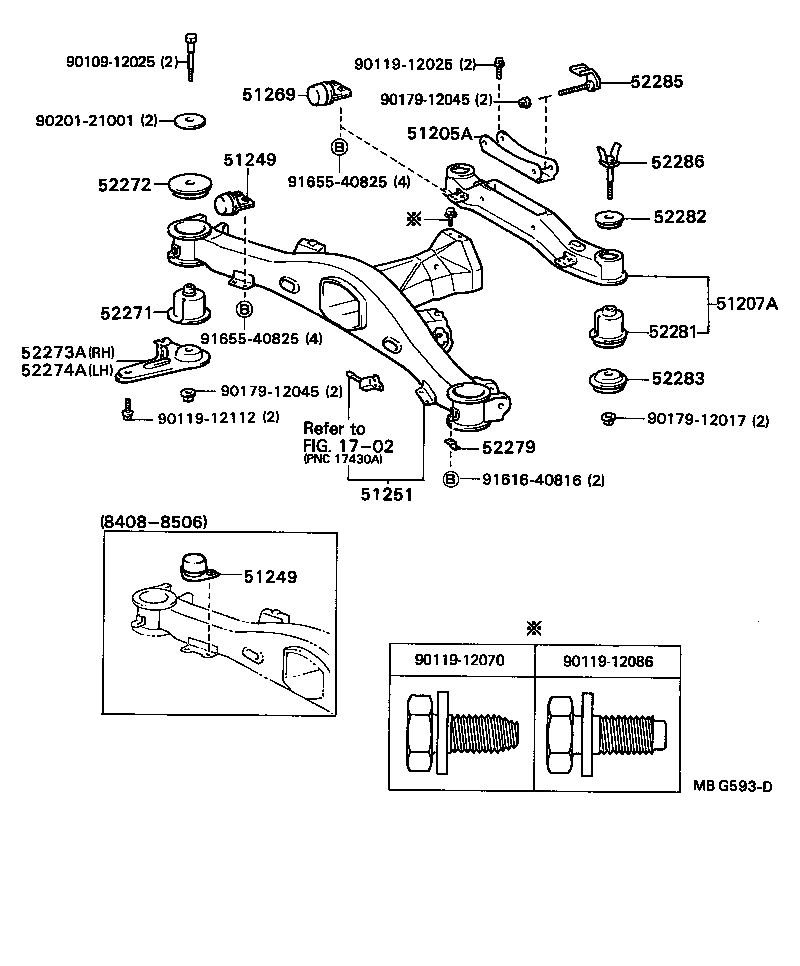

Figure MBG671C MBG671C 1984-08 → — Figure MBG593D MBG593D 1984-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51205A Bracket Sub-assy, Differential Support
51207A Member Sub-assy, Differential Support
51228 Plate, Suspension Member Set
51249 Damper, Rear Suspension Member
51251 Member Sub-assy, Rear Suspension
51269 Damper, Differential Support Member
51403A Brace Sub-assy, Front Suspension Member, RH
51404A Brace Sub-assy, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51448 Protector, Oil Pan
51961 Hook, NO.1
51961A Hook, NO.3
51962 Hook, NO.2
52271 Cushion, Rear Suspension Member
52272 Stopper, Rear Suspension Member, Upper
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52279 Retainer, Rear Suspension Member Cushion
52281 Cushion, Differential Support Member
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52285 Bolt, Differential Support Member Mounting, NO.1
52286 Bolt, Differential Support Member Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
