Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

Figure MBG674C

MBG674C 1984-08 → 1986-08

Figure MBG674C

MBG674C 1986-08 → —

Figure MBK895

MBK895 1986-08 → —

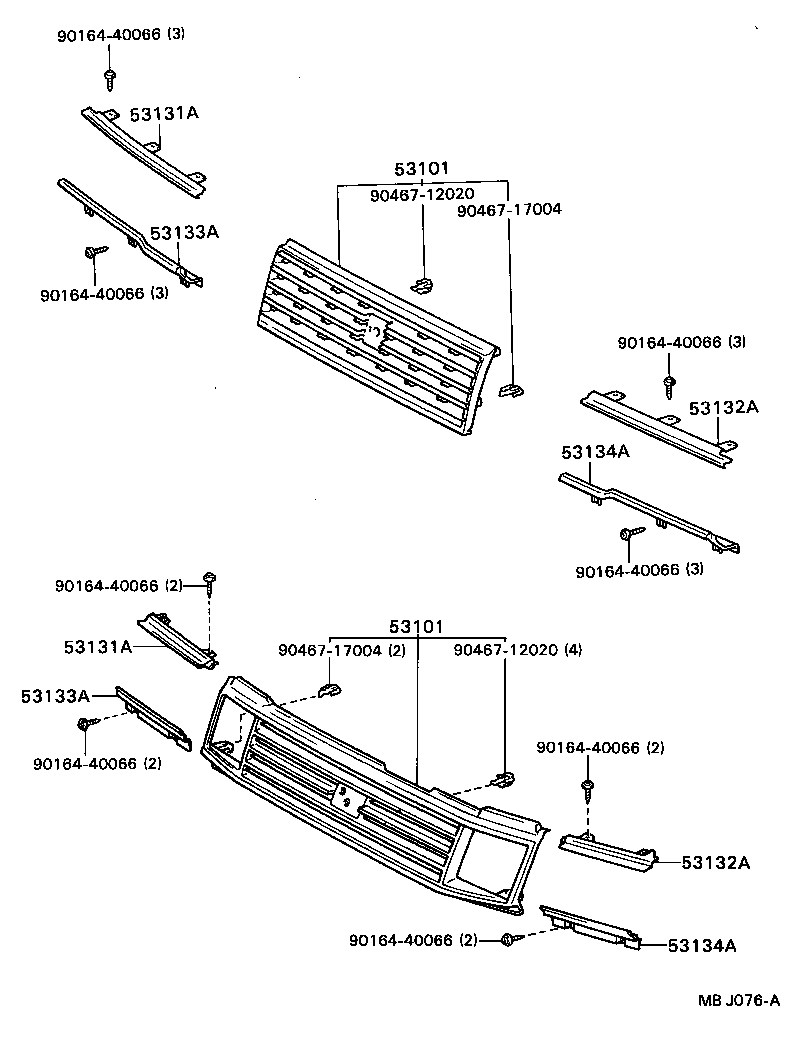

Figure MBJ076A

MBJ076A 1985-04 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH
53133A	Door, Headlamp, Lower RH
53134A	Door, Headlamp, Lower LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
