Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

25 part groups · 2 illustrations

Illustrations

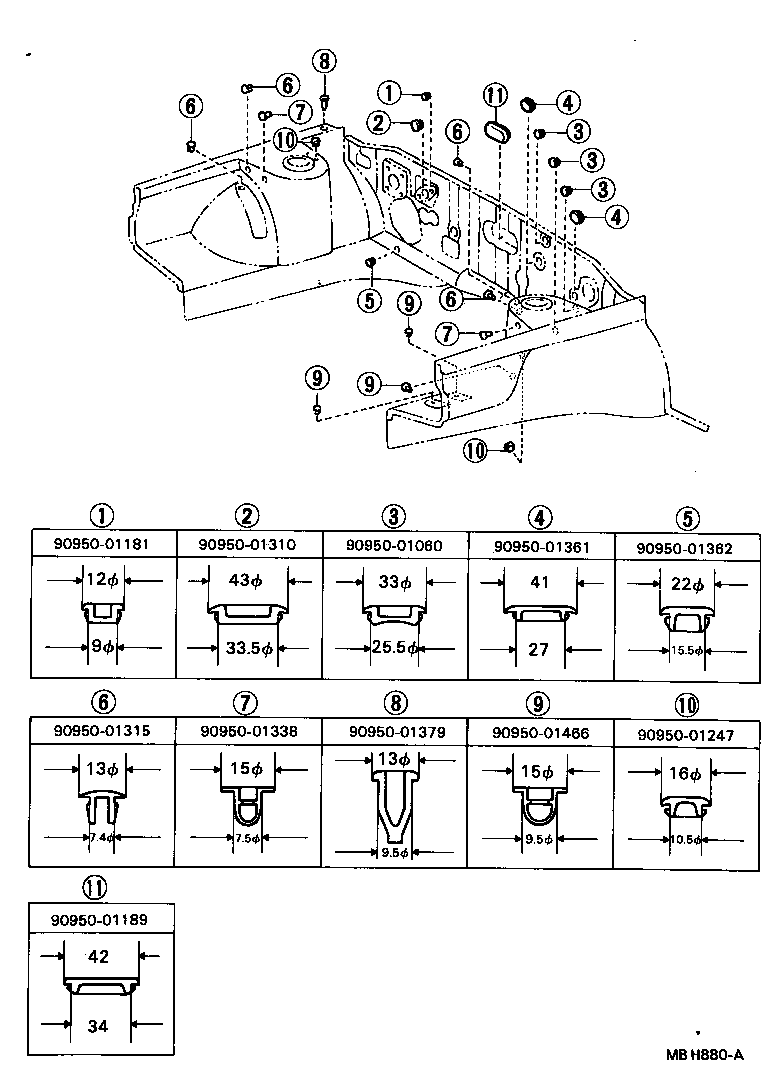

Figure MBG676G MBG676G 1984-08 → — Figure MBH880A MBH880A 1984-08 → —

Part groups

PNCDescription
53183A Seal, Headlamp Cover, RH
53184A Seal, Headlamp Cover, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53211 Support, Radiator, RH
53212 Support, Radiator, LH
53286 Cover, Front Bumper Arm Hole
53378A Seal, Hood Air Intake Duct
53378B Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53396 Seal, Radiator Support TO Headlamp
53633 Shield, Hood Lock Control Cable
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53733C Patch, Front Fender Apron
53769 Plate, Ignition Coil Mounting, LH
53777 Support, Battery Carrier, NO.2
53791 Cover, Cool Air Intake Hole
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55220 Insulator Assy, Dash Panel, NO.2
55223A Insulator, Dash Panel, Outer
55250B Insulator Assy, Dush Panel, NO.3
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
