Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

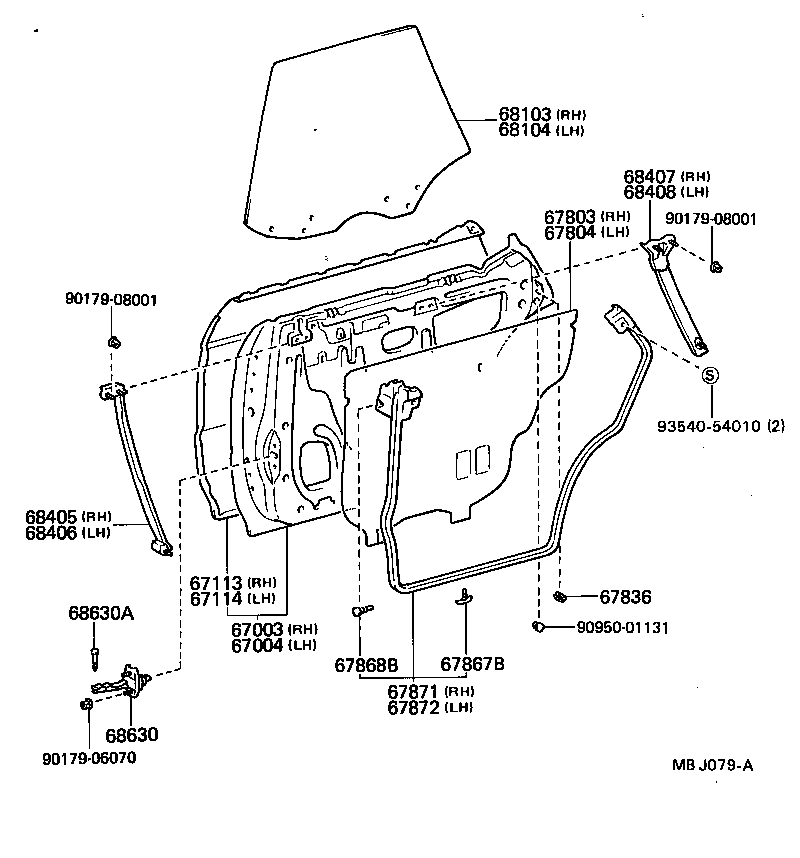

Rear Door Panel & Glass
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62367B | Clip, Door Window Glass, Rear RH |
| 62368B | Clip, Door Window Glass, Rear LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405 | Bar Sub-assy, Rear Door Window Division, RH |
| 67406 | Bar Sub-assy, Rear Door Window Division, LH |
| 67485B | Seal, Rear Door Division Bar, Inside, RH |
| 67486B | Seal, Rear Door Division Bar, Inside, LH |
| 67489 | Seal, Rear Door Division Bar |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67785B | Holder, Door Locking Button Collar(FOR REAR DOOR) |
| 67803 | Cover Sub-assy, Rear Door Service Hole, RH |
| 67804 | Cover Sub-assy, Rear Door Service Hole, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868B | Clip, Door Glass Weatherstrip(FOR REAR DOOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142 | Run, Rear Door Glass |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68405 | Guide Sub-assy, Rear Door Window, Front RH |
| 68406 | Guide Sub-assy, Rear Door Window, Front LH |
| 68407 | Guide Sub-assy, Rear Door Window, Rear RH |
| 68408 | Guide Sub-assy, Rear Door Window, Rear LH |
| 68630 | Check Assy, Rear Door |
| 68630A | Pin(FOR REAR DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
