Toyota Cressida
1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe
Discontinued model
Data version 1989-02

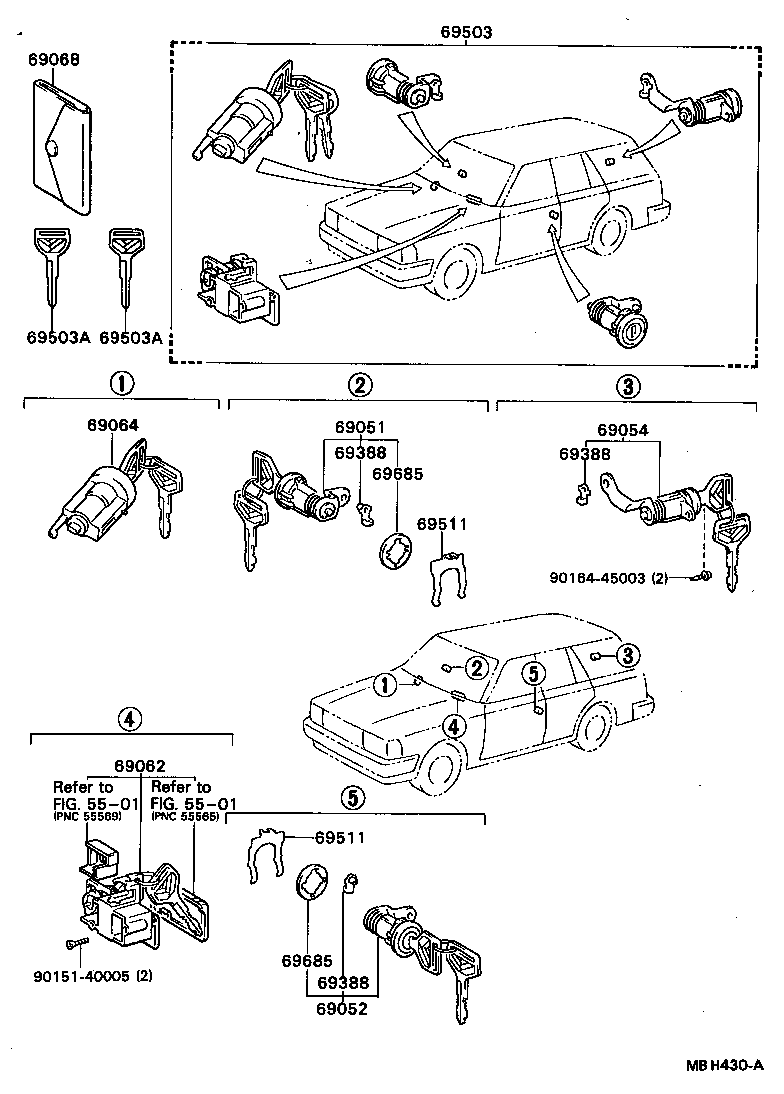

Lock Cylinder Set
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69061 | Cylinder & Key Set, Luggage Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69388 | Snap, Rod(FOR DOOR LOCK) |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69561 | Retainer, Luggage Compartment OR Back Door Lock Cylinder |
| 69562 | Lever, Luggage Compartment Door Lock |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
