Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

8 part groups · 2 illustrations

Illustrations

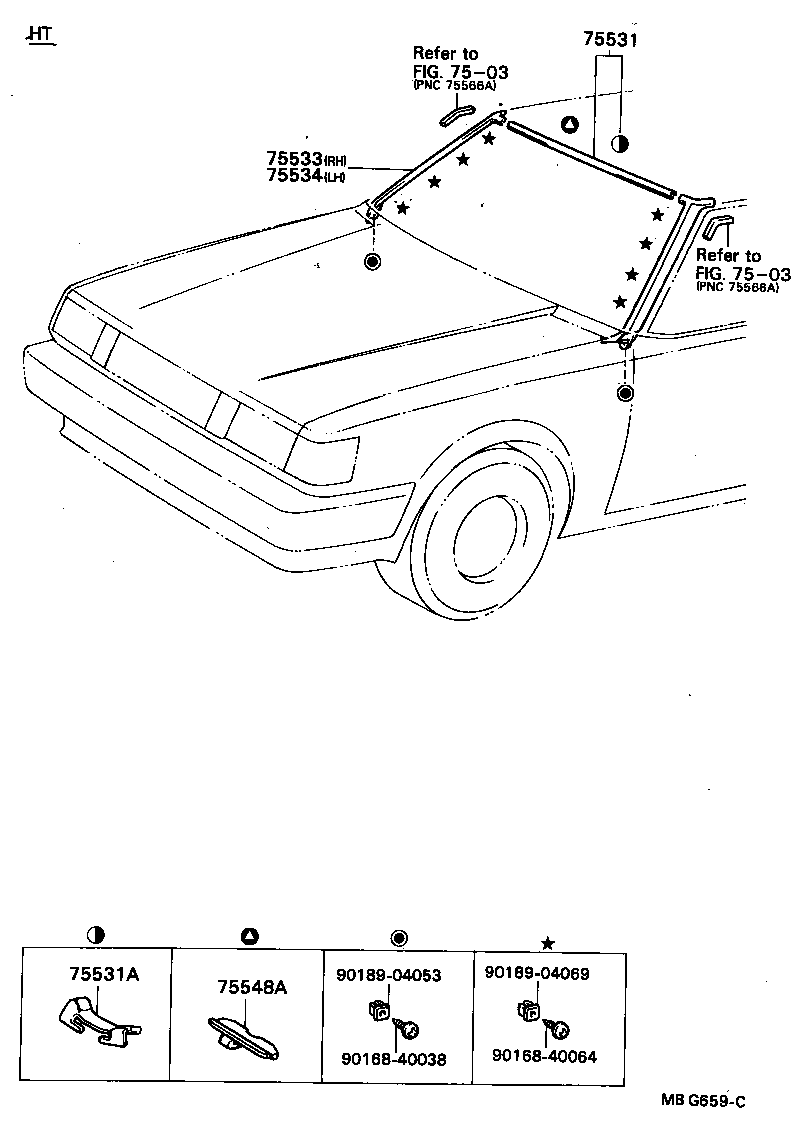

Figure MBG709B MBG709B 1984-08 → — Figure MBG659C MBG659C 1985-04 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75533 Moulding, Windshield, Outside RH
75533A Clip, Windshield Side Moulding, RH
75533B Cover, Windshield Moulding Joint, Upper RH
75534 Moulding, Windshield, Outside LH
75534B Cover, Windshield Moulding Joint, Upper LH
75548A Fastener, Windshield Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
