Factory parts data · Europe

Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

4 part groups · 3 illustrations

Illustrations

Figure MBJ064

MBJ064 1985-04 → 1987-08

Figure MBS060A

MBS060A 1987-08 → —

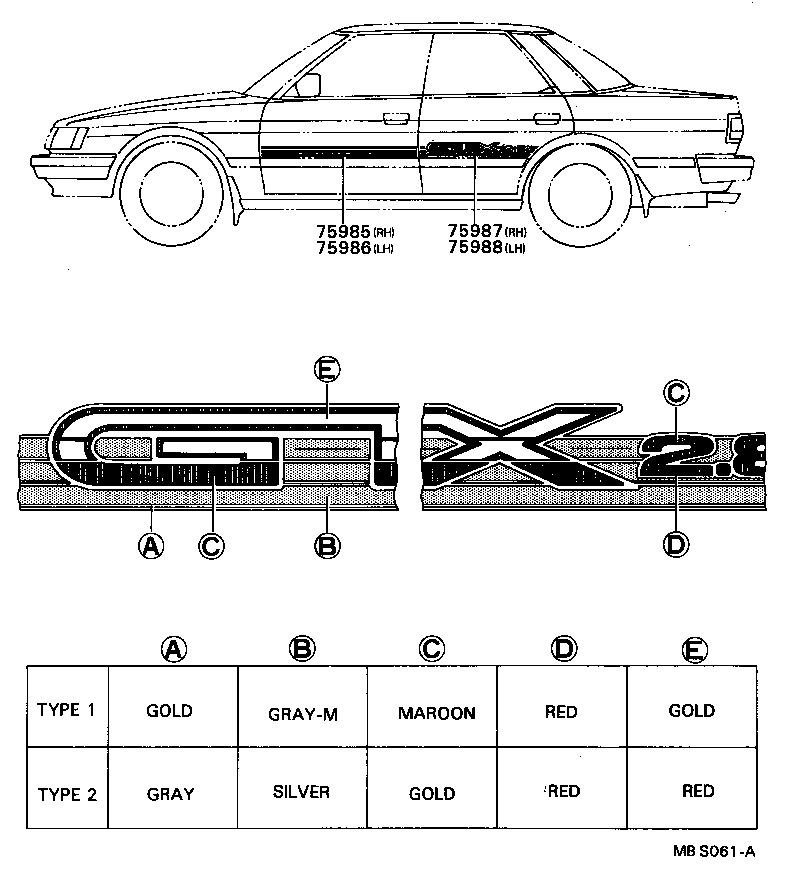

Figure MBS061A

MBS061A 1987-08 → —

Part groups

PNC	Description
75985	Stripe, Front Door, RH
75986	Stripe, Front Door, LH
75987	Stripe, Rear Door, RH
75988	Stripe, Rear Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
