Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

60 part groups · 17 illustrations

Illustrations

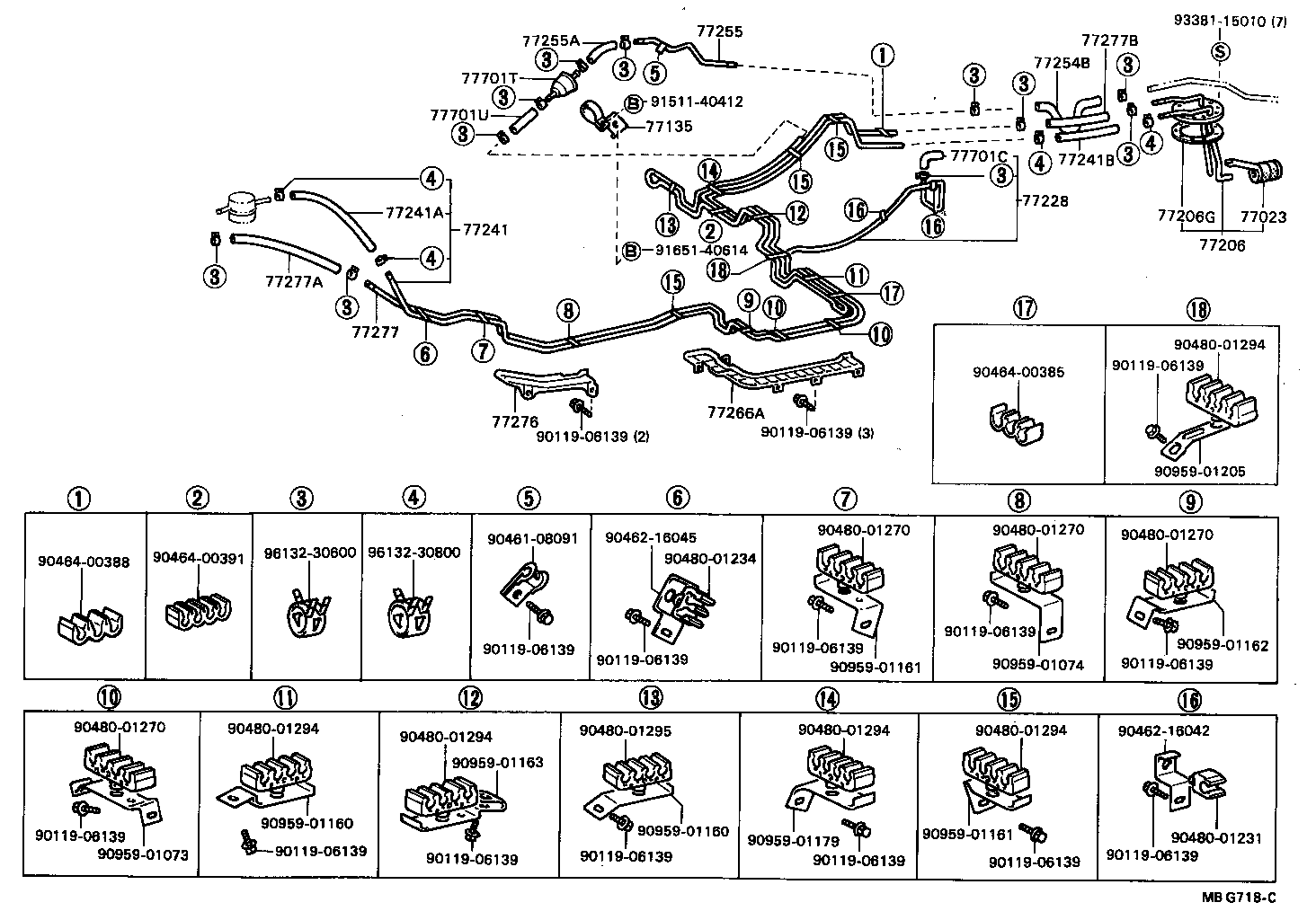

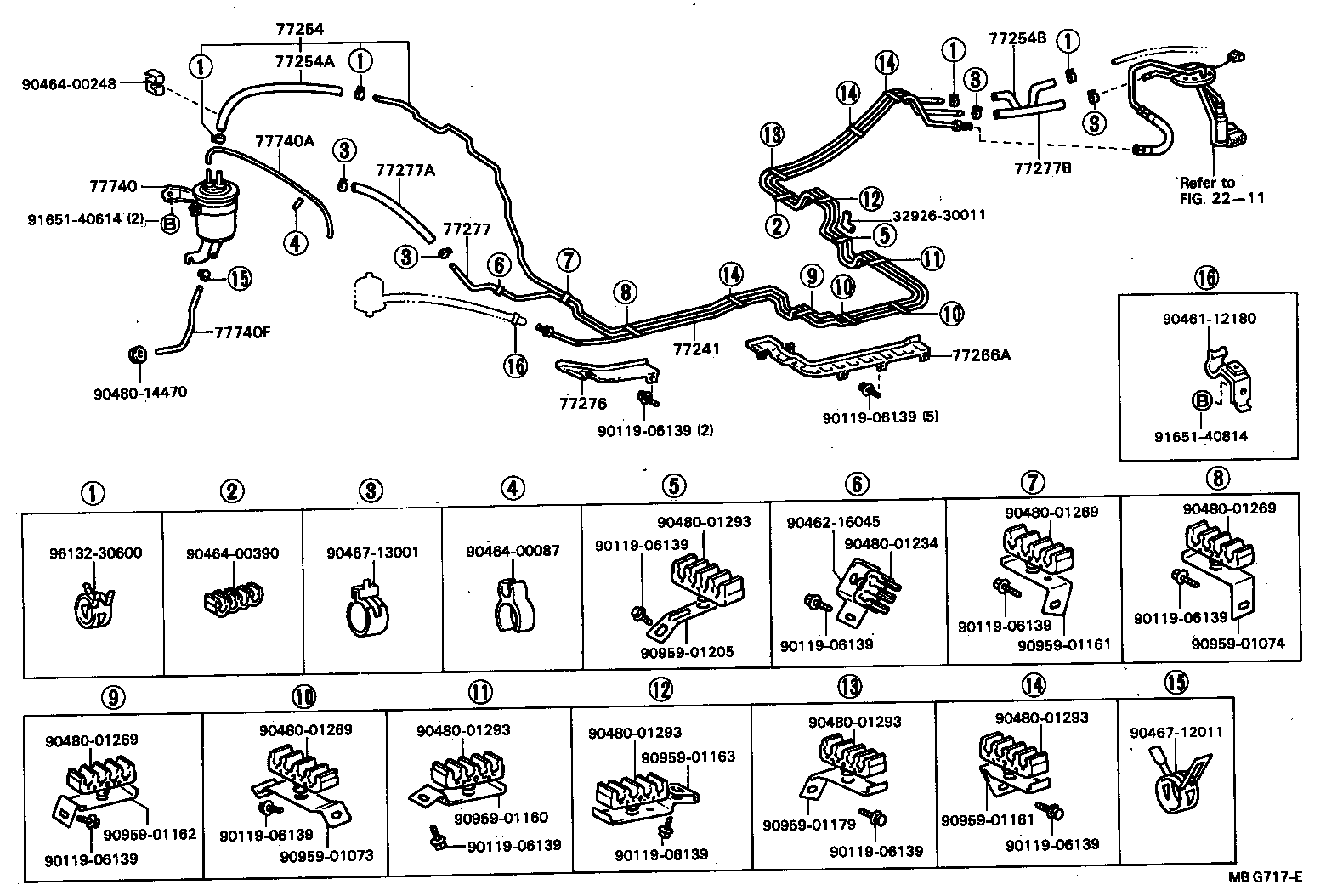

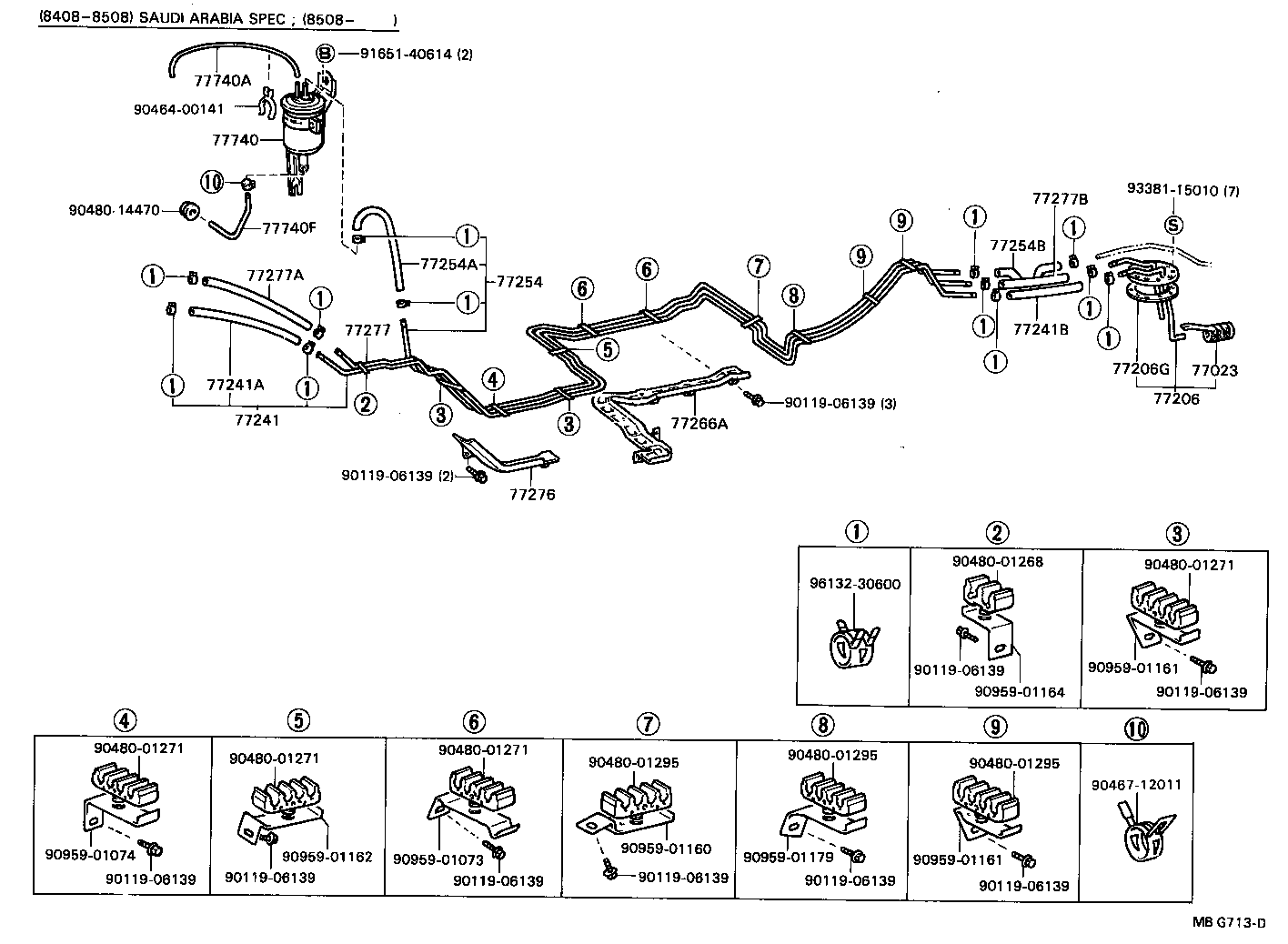

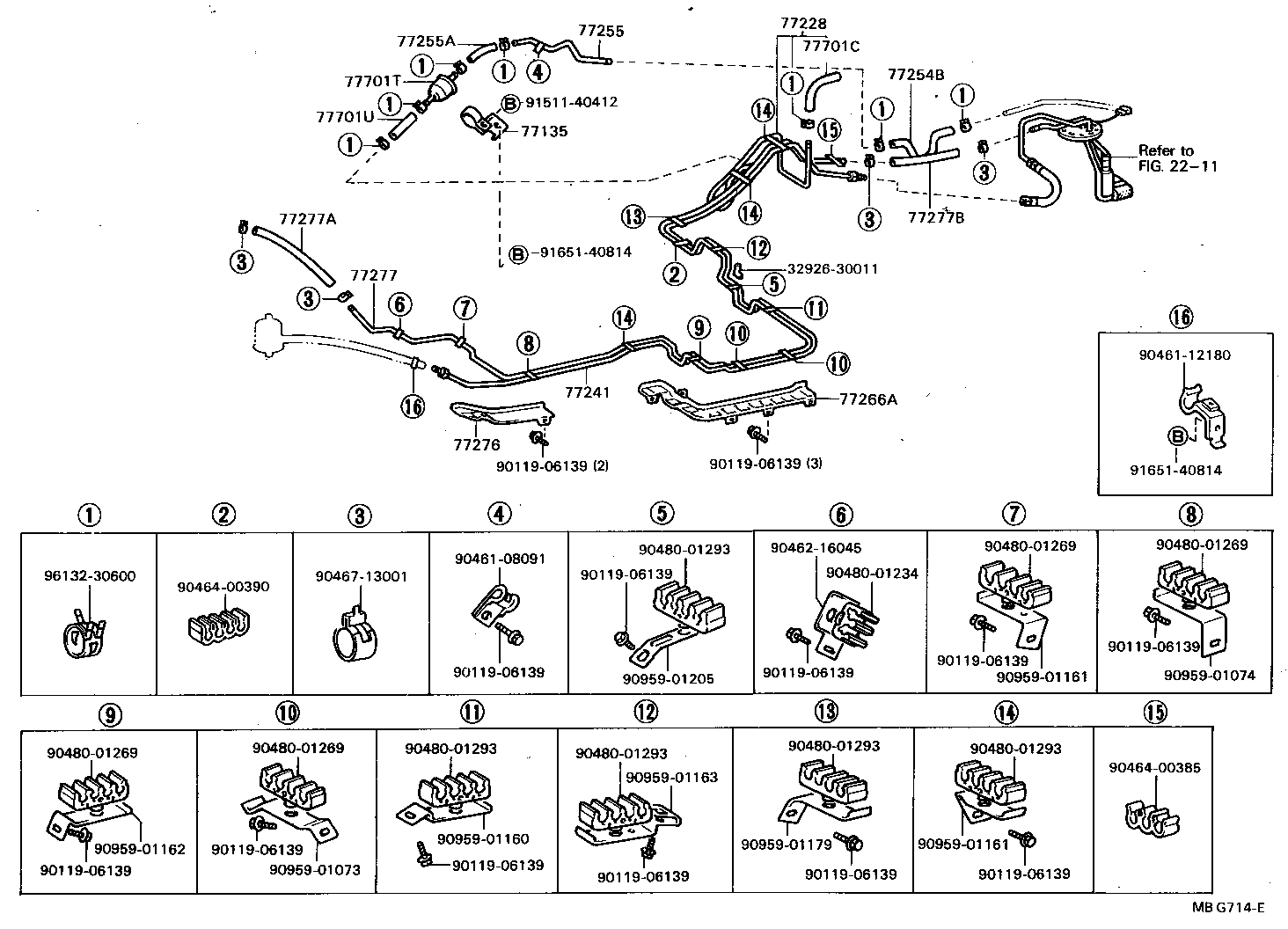

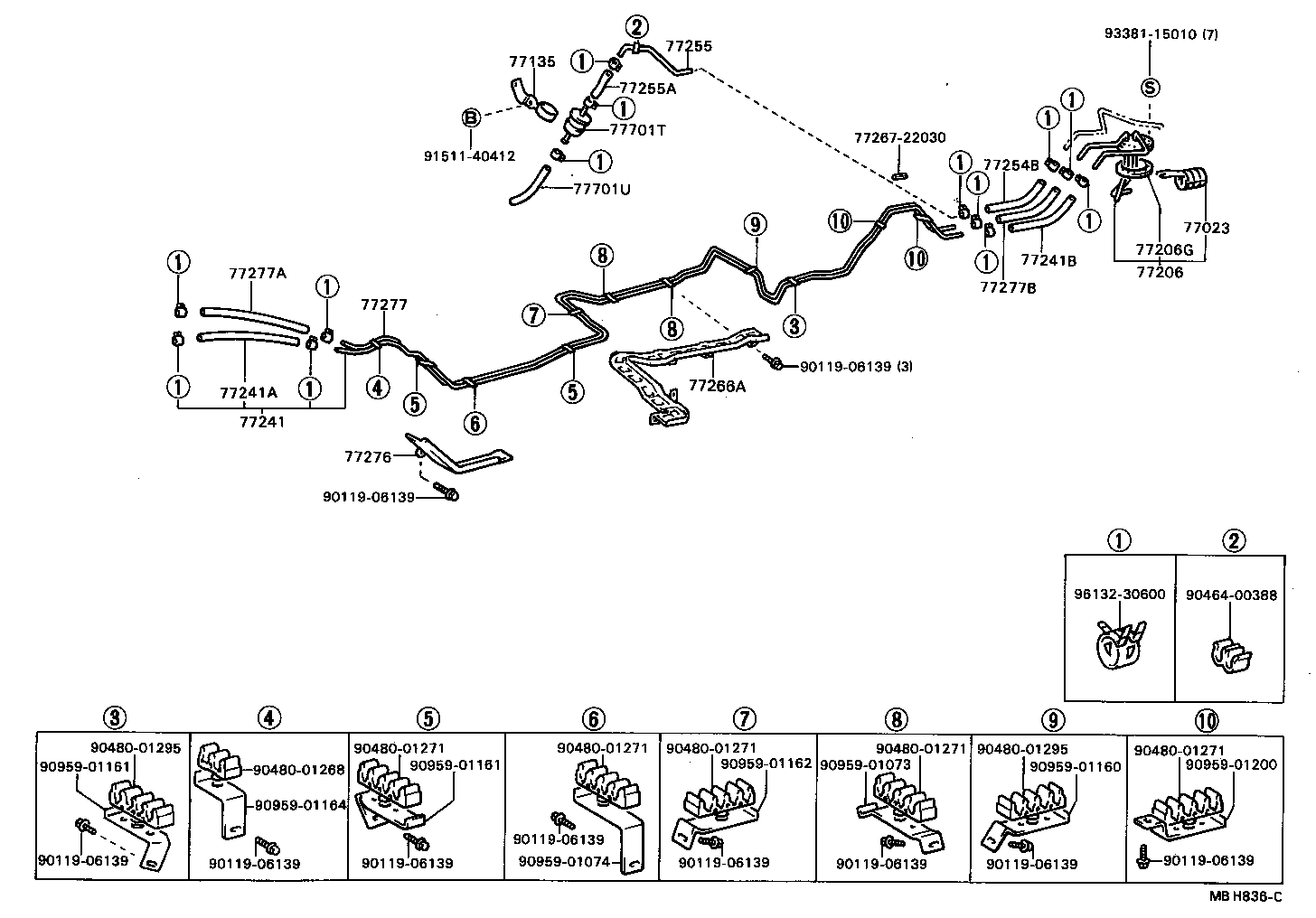

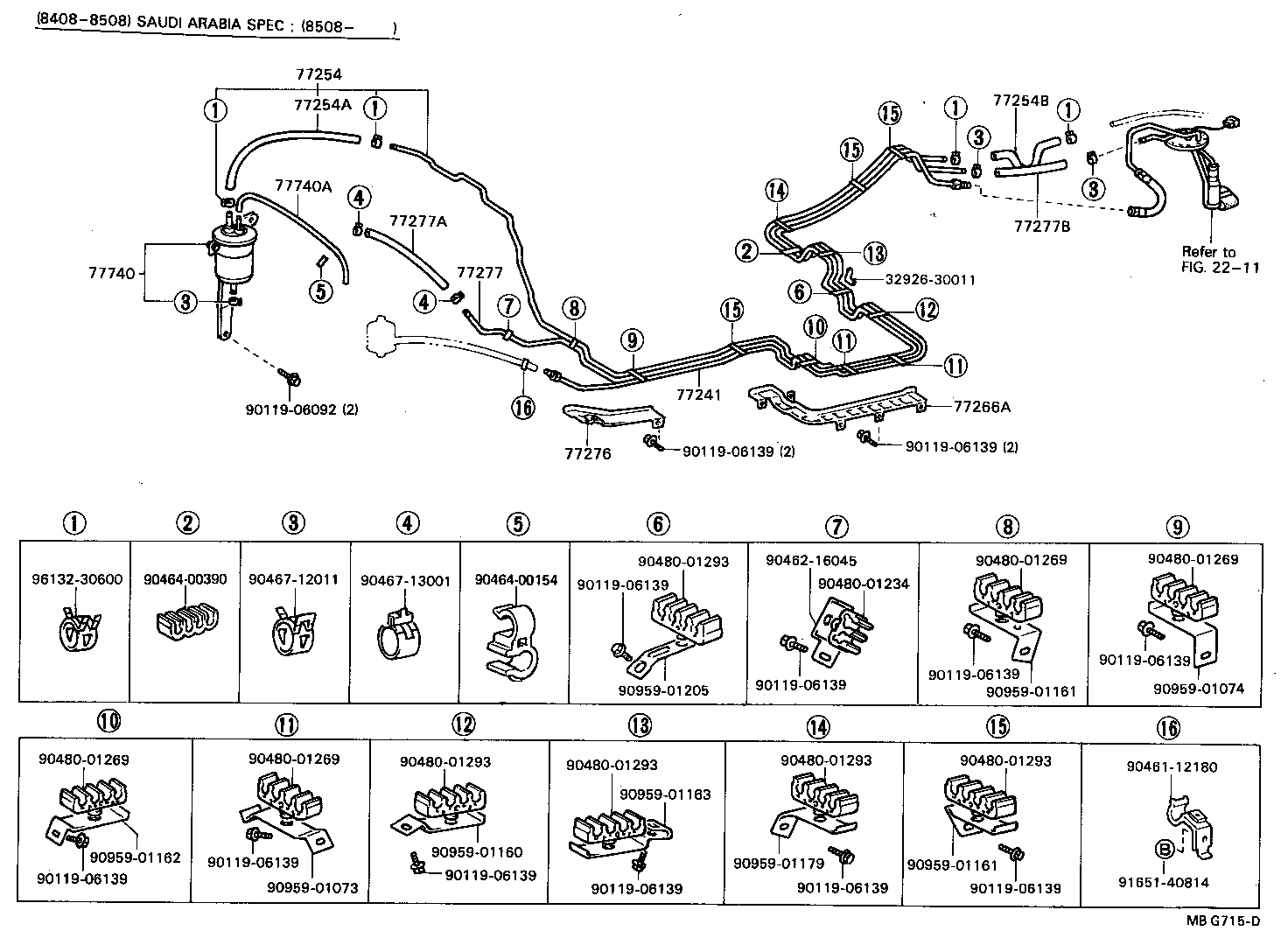

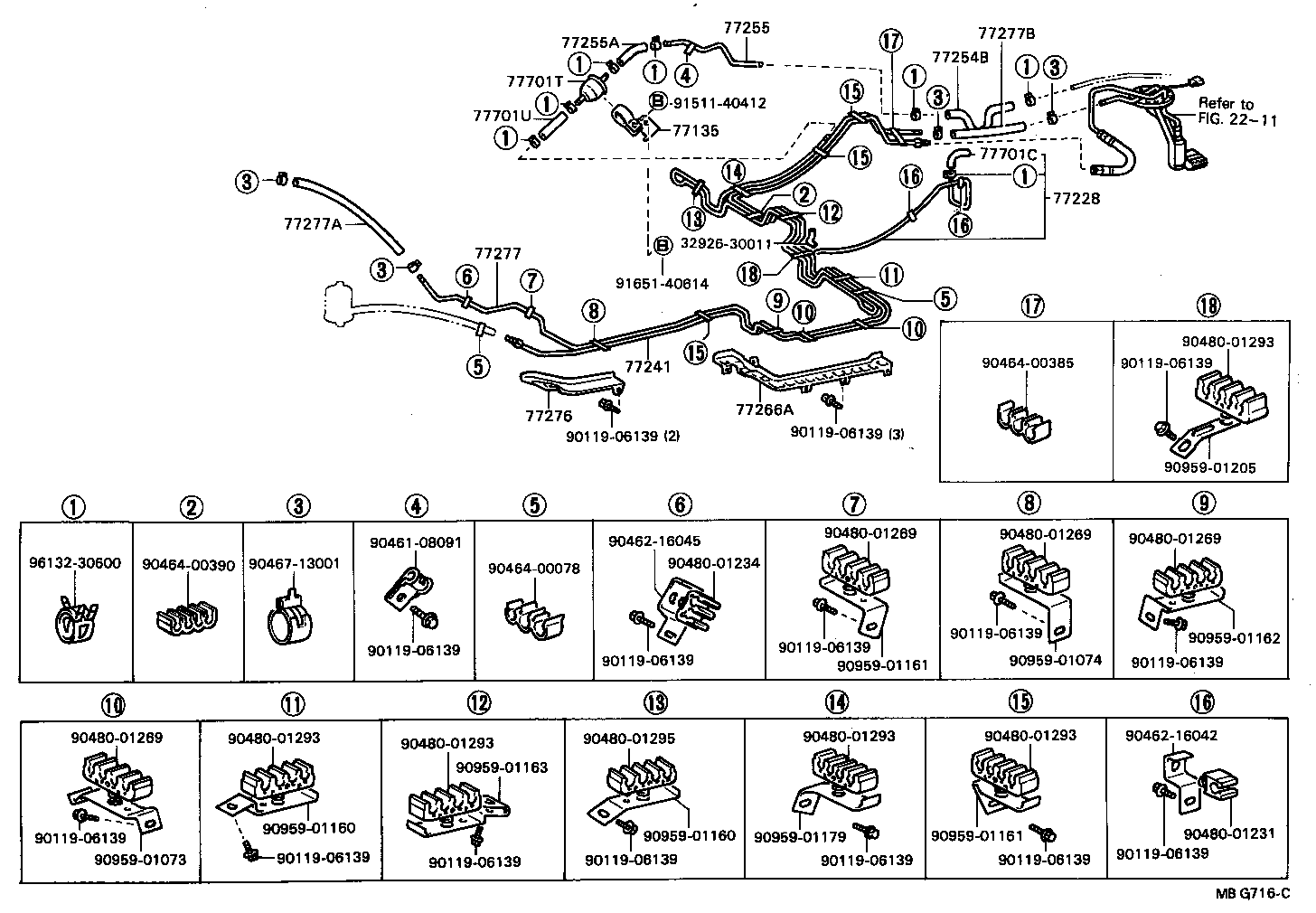

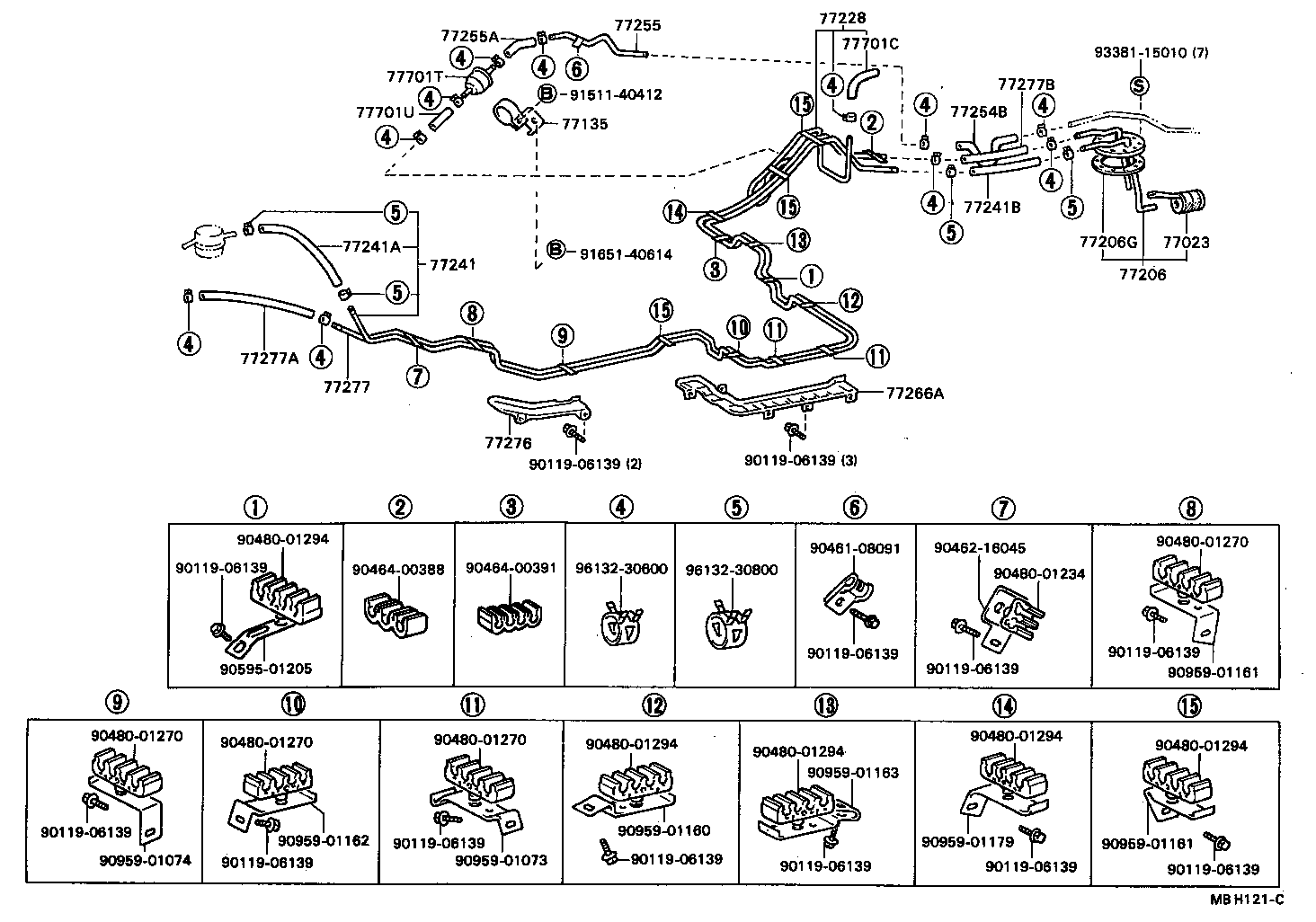

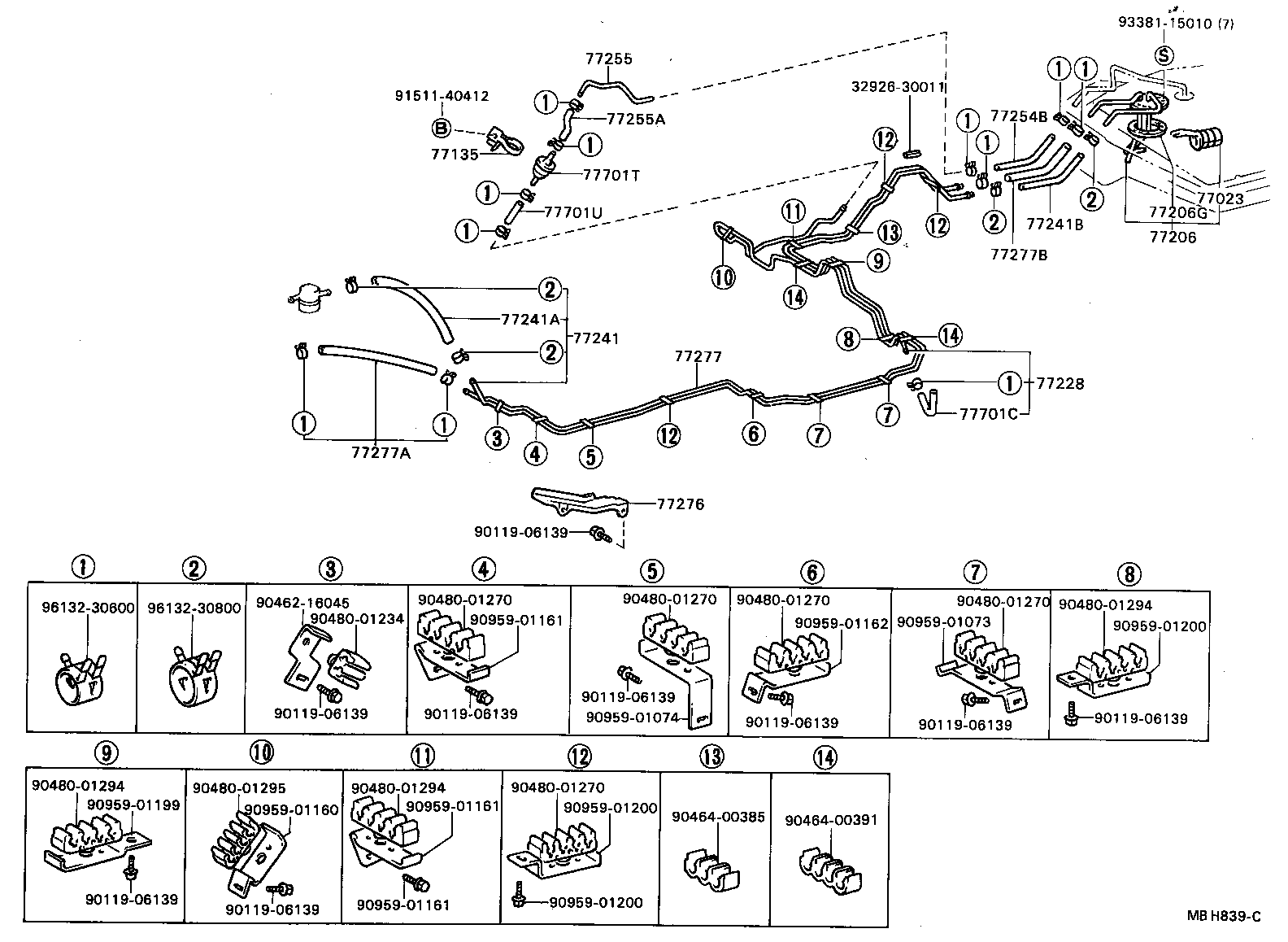

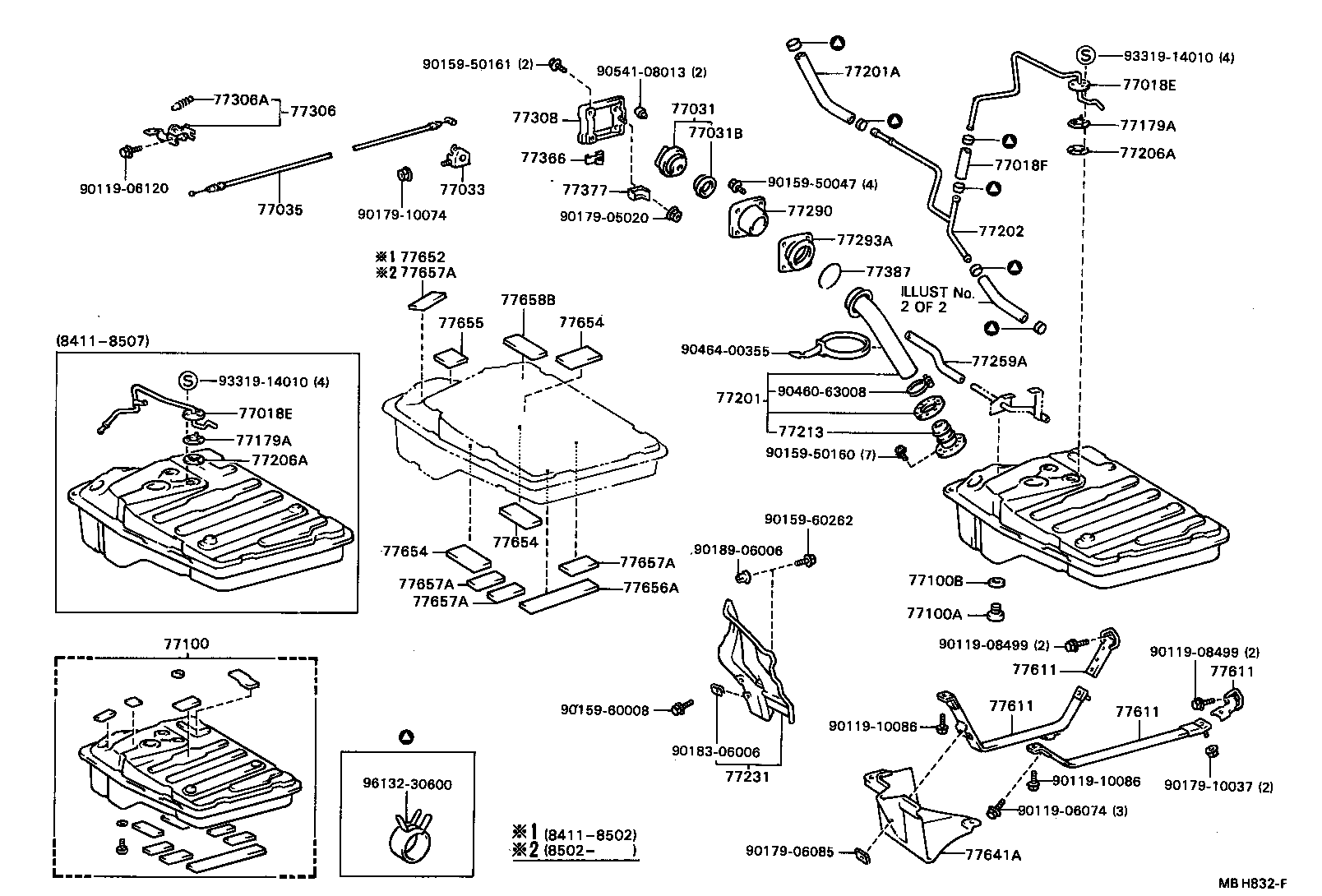

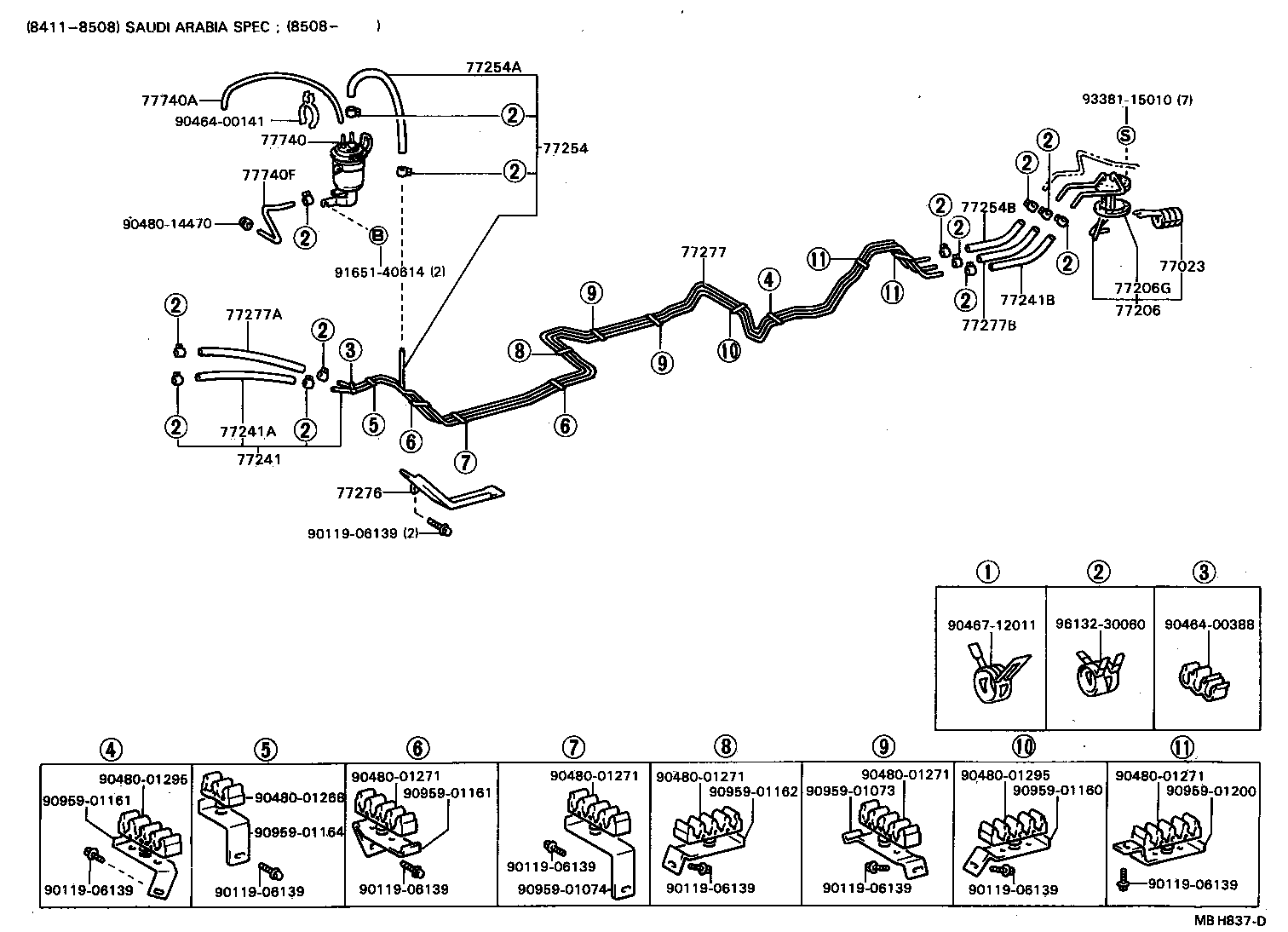

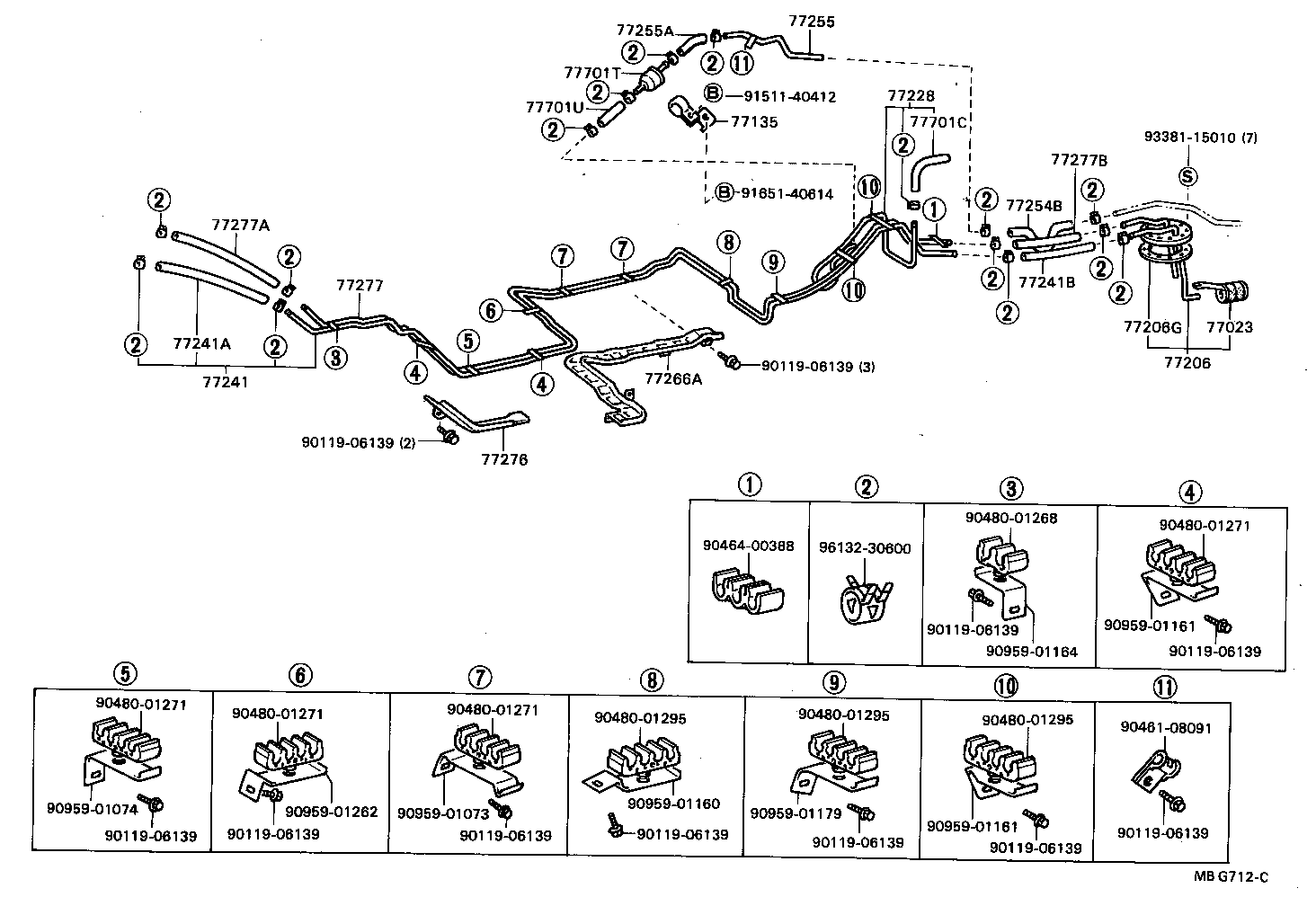

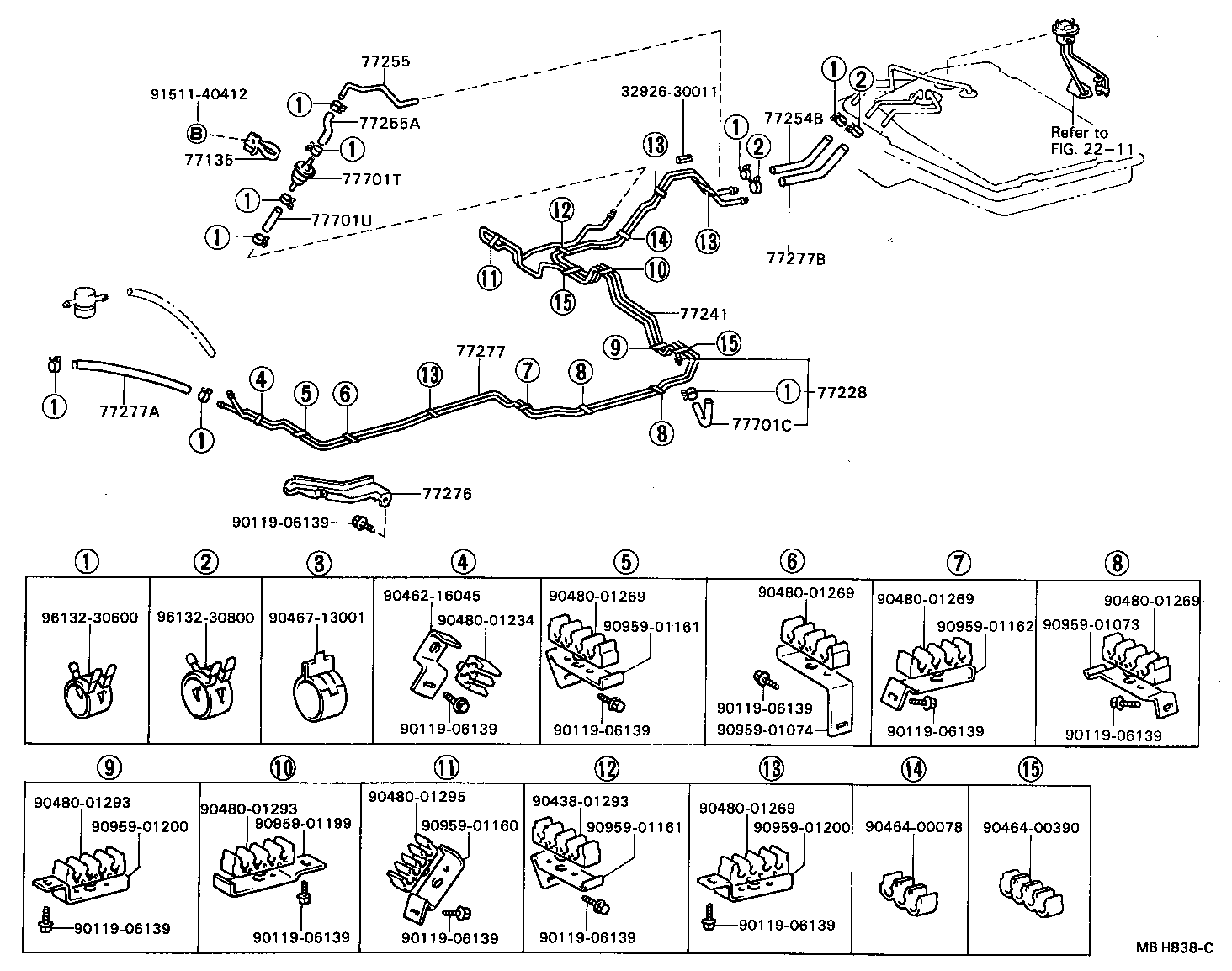

Figure MBH259G MBH259G 1984-08 → — Figure MBH832F MBH832F 1984-11 → — Figure MBG712C MBG712C 1984-08 → 1985-08 Figure MBG712C MBG712C 1985-08 → — Figure MBG713D MBG713D 1984-08 → — Figure MBG714E MBG714E 1984-08 → 1985-08 Figure MBG714E MBG714E 1985-08 → — Figure MBG715D MBG715D 1984-08 → 1986-08 Figure MBG716C MBG716C 1984-08 → 1986-08 Figure MBG717E MBG717E 1984-08 → — Figure MBH121C MBH121C 1984-08 → — Figure MBG718C MBG718C 1984-08 → 1986-08 Figure MBH836C MBH836C 1984-11 → 1985-08 Figure MBH836C MBH836C 1985-08 → — Figure MBH837D MBH837D 1984-11 → — Figure MBH838C MBH838C 1984-11 → 1986-08 Figure MBH839C MBH839C 1984-11 → 1986-08

Part groups

PNCDescription
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77018F Hose, Fuel Tank Evaporation Vent
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77201J Gasket(FOR FUEL TANK INLET PIPE)
77202 Tube Sub-assy, Breather
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206G Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77213B Hose, Fuel Tank TO Filler Pipe
77228 Tube, Fuel Tank Evaporation Vent, NO.2
77231 Protector, Inlet Tube
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77259A Hose, Fuel(FOR BREATHER TUBE)
77266A Protector, Fuel Tube, NO.1
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77290 Shield Assy, Fuel Tank Filler Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77306 Lever Sub-assy, Fuel Lid Lock Open
77306A Spring, Fuel Lid Open Lever
77308 Cover Sub-assy, Fuel Inlet Box
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77399 Hanger, Fuel Tank Cap
77611 Band, Fuel Tank
77641A Protector, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77655 Cushion, Fuel Tank, NO.3
77656A Cushion, Fuel Tank, NO.4
77657A Cushion, Fuel Tank, NO.5
77658B Cushion, Fuel Tank, NO.6
77701C Hose, Fuel, NO.3 (FOR BREATHER VALVE)
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
