Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

26 part groups · 7 illustrations

Illustrations

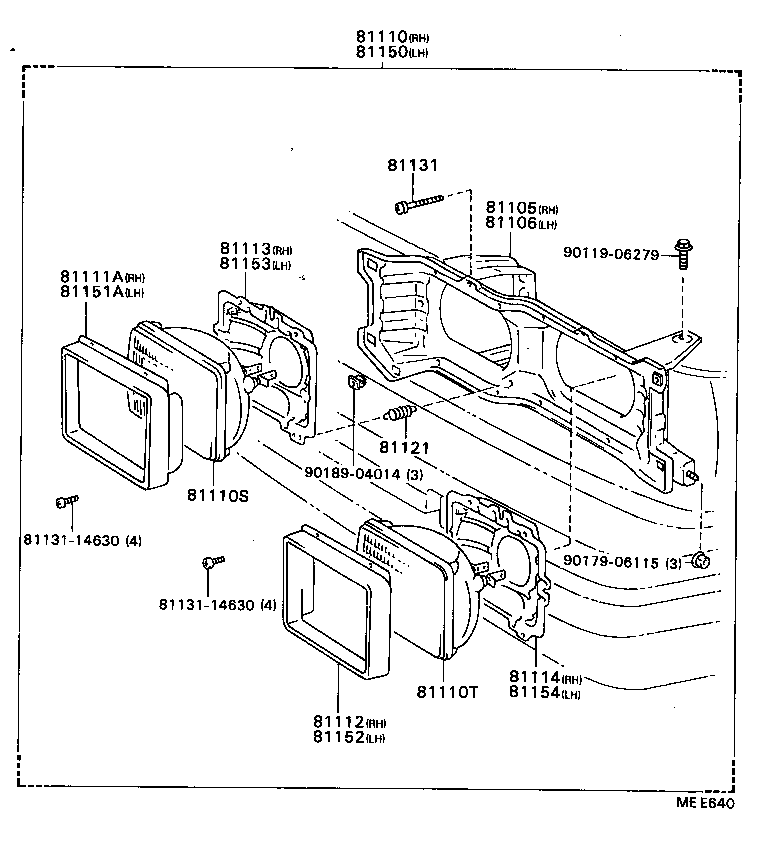

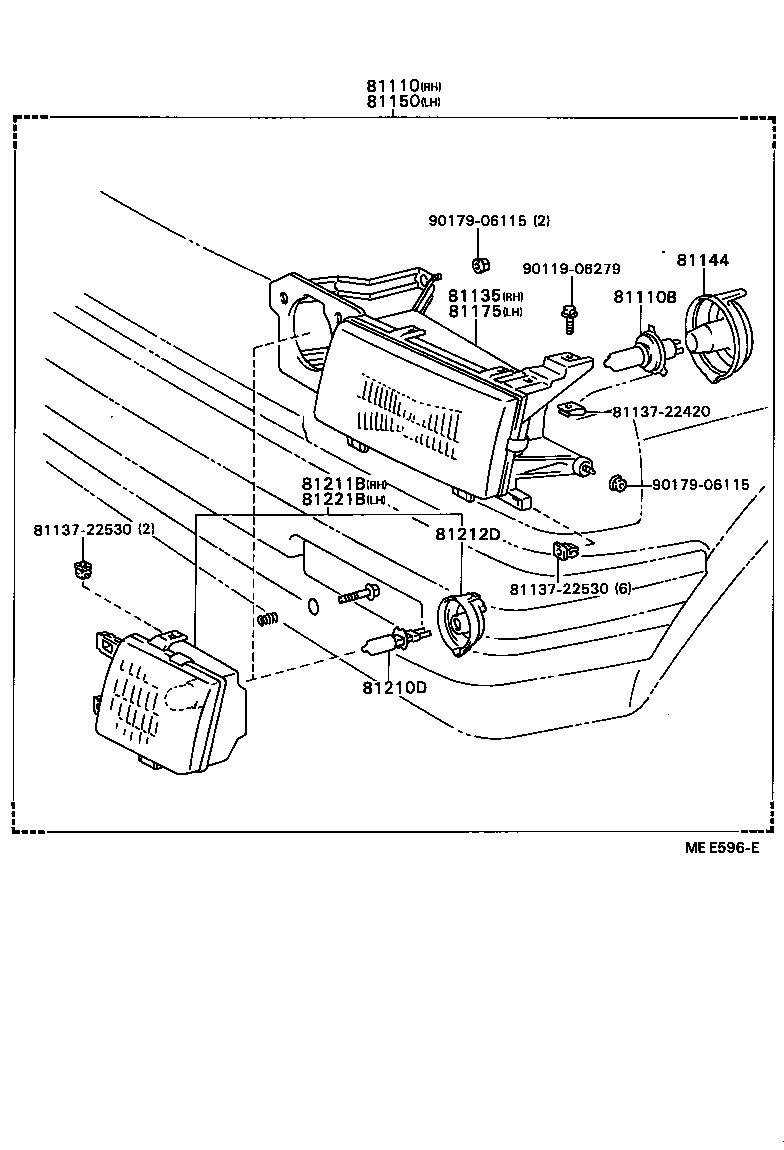

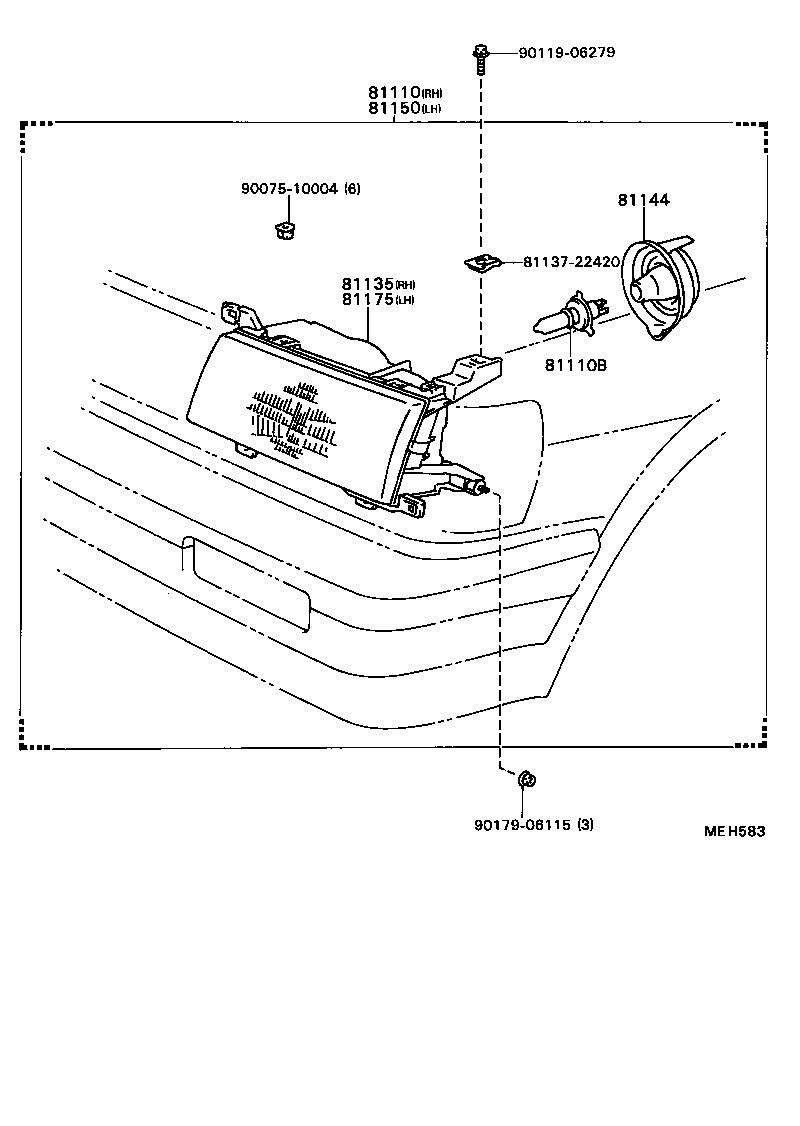

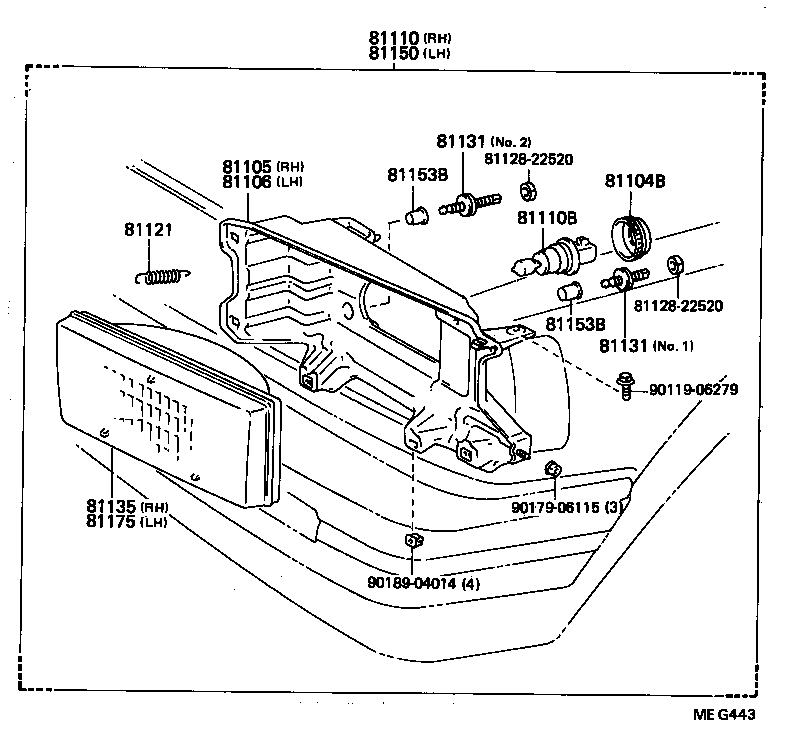

Figure MEE639 MEE639 1984-08 → 1986-08 Figure MEE639 MEE639 1984-08 → — Figure MEE640 MEE640 1984-08 → 1985-08 Figure MEG443 MEG443 1985-08 → 1986-08 Figure MEH582 MEH582 1986-08 → — Figure MEE596E MEE596E 1985-04 → 1986-08 Figure MEH583 MEH583 1986-08 → —

Part groups

PNCDescription
81104B Locking Cap, Headlamp
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81153B Bearing, Headlamp
81154 Ring, Sealed Beam Mounting, NO.2 LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
81211B Fog Lamp, RH
81212D Cover, Fog Lamp
81221B Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
