Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

11 part groups · 9 illustrations

Illustrations

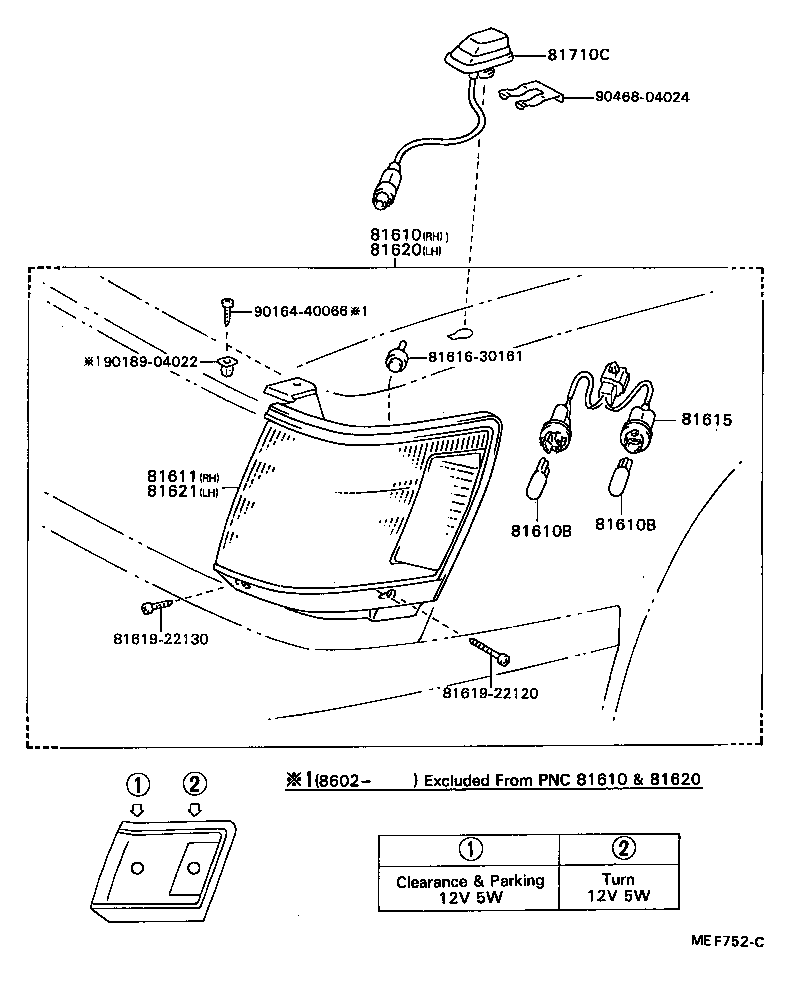

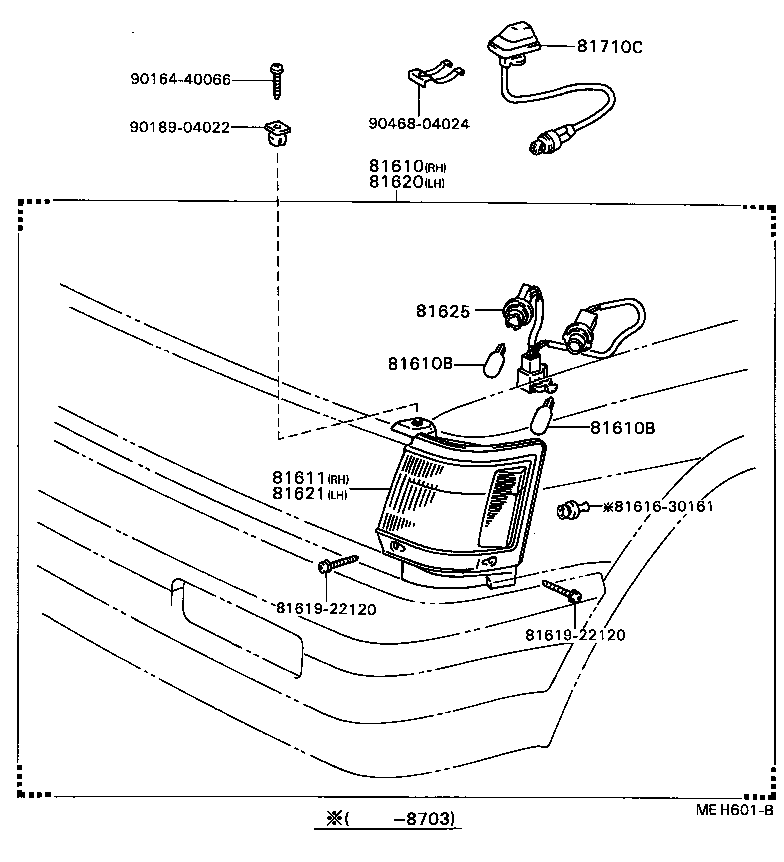

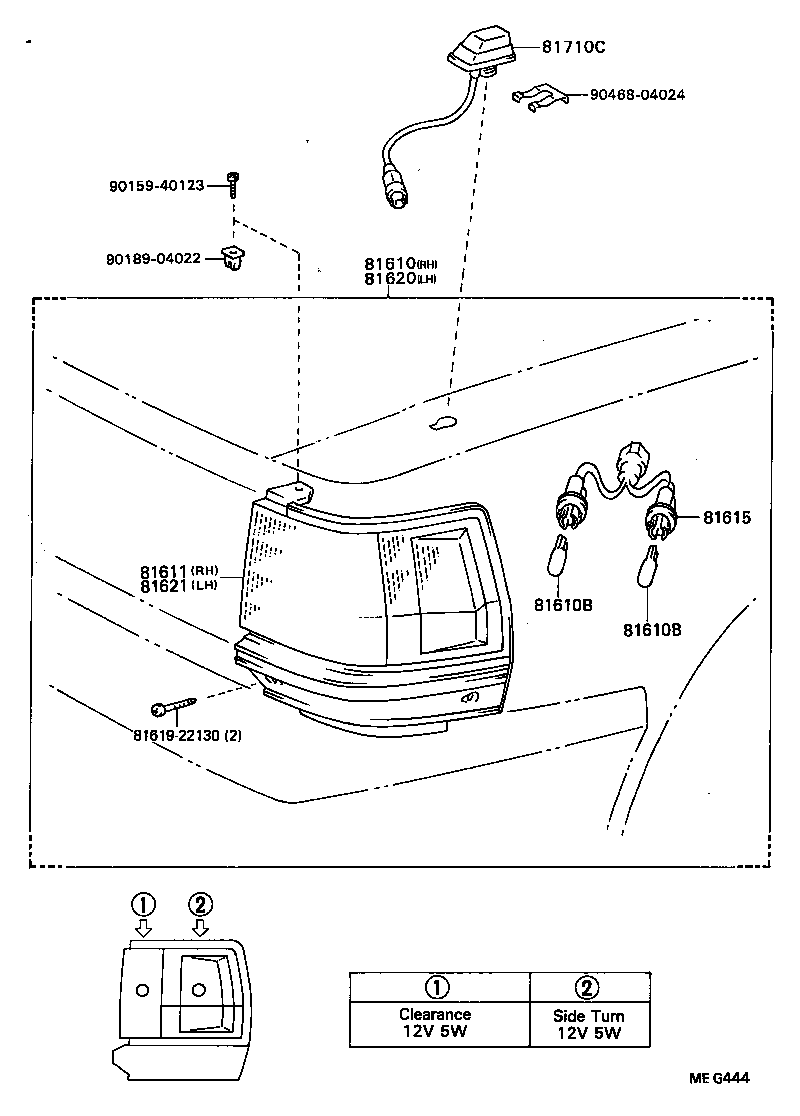

Figure MEE642D MEE642D 1984-08 → 1985-08 Figure MEE642D MEE642D 1984-08 → 1986-08 Figure MEG446 MEG446 1985-08 → 1986-08 Figure MEG446 MEG446 1985-08 → — Figure MEE643A MEE643A 1984-08 → 1985-08 Figure MEG444 MEG444 1985-08 → 1986-08 Figure MEG444 MEG444 1986-08 → — Figure MEF752C MEF752C 1985-04 → 1986-08 Figure MEH601B MEH601B 1986-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615 Socket And Wire, Clearance Lamp
81615A Socket Plug, Clearance Lamp
81616 Rim, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
81626 Rim, Parking And Clearance Lamp, LH
81710C Marker Assy, Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
