Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

16 part groups · 3 illustrations

Illustrations

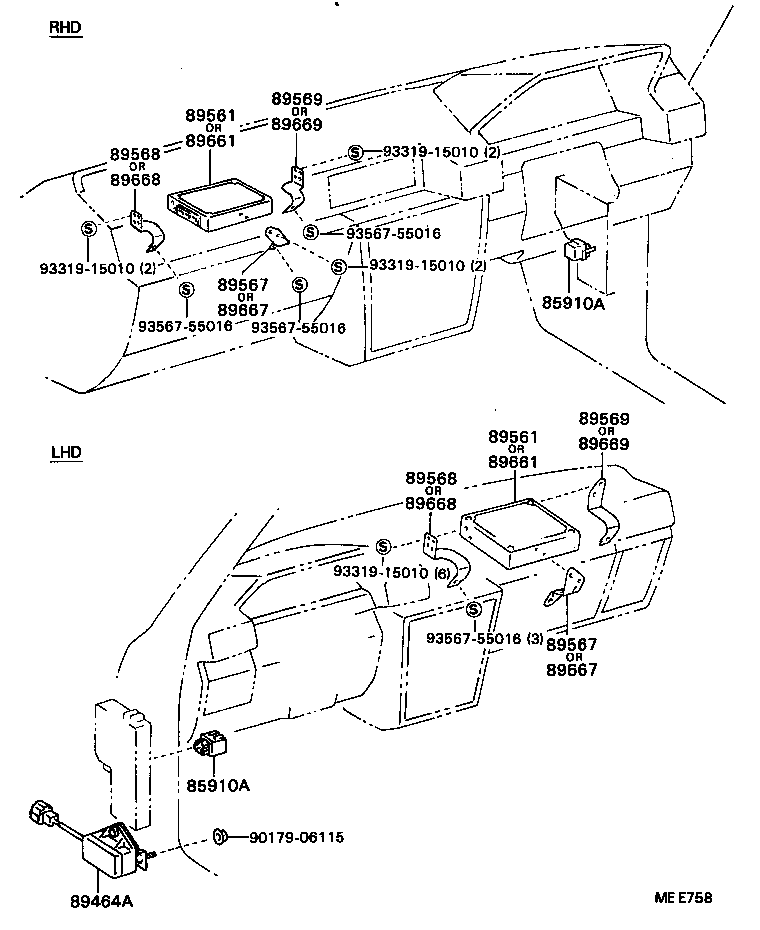

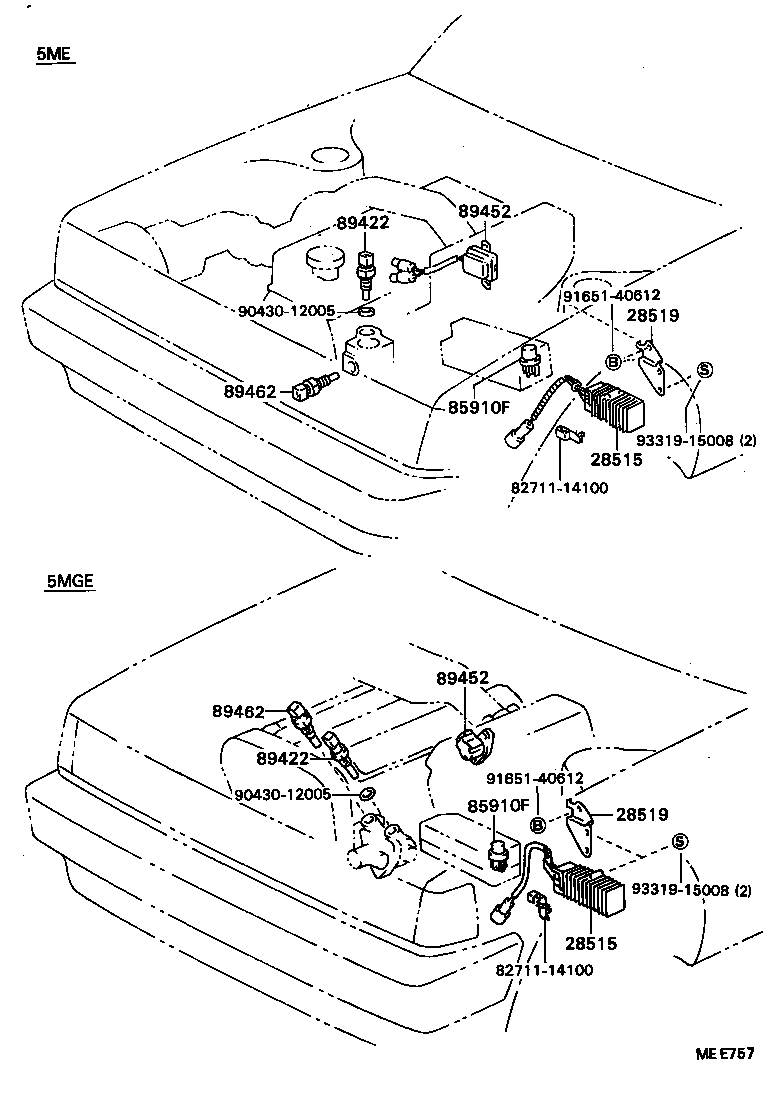

Figure MEE756 MEE756 1984-08 → — Figure MEE757 MEE757 1984-08 → — Figure MEE758 MEE758 1984-08 → —

Part groups

PNCDescription
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89464A Sensor, Altitude Compensation
89561 Computer, Fuel Injection
89567 Bracket, Fuel Injection Computer
89568 Bracket, Fuel Injection Computer
89569 Bracket, Fuel Injection Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
