Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 2 illustrations

Illustrations

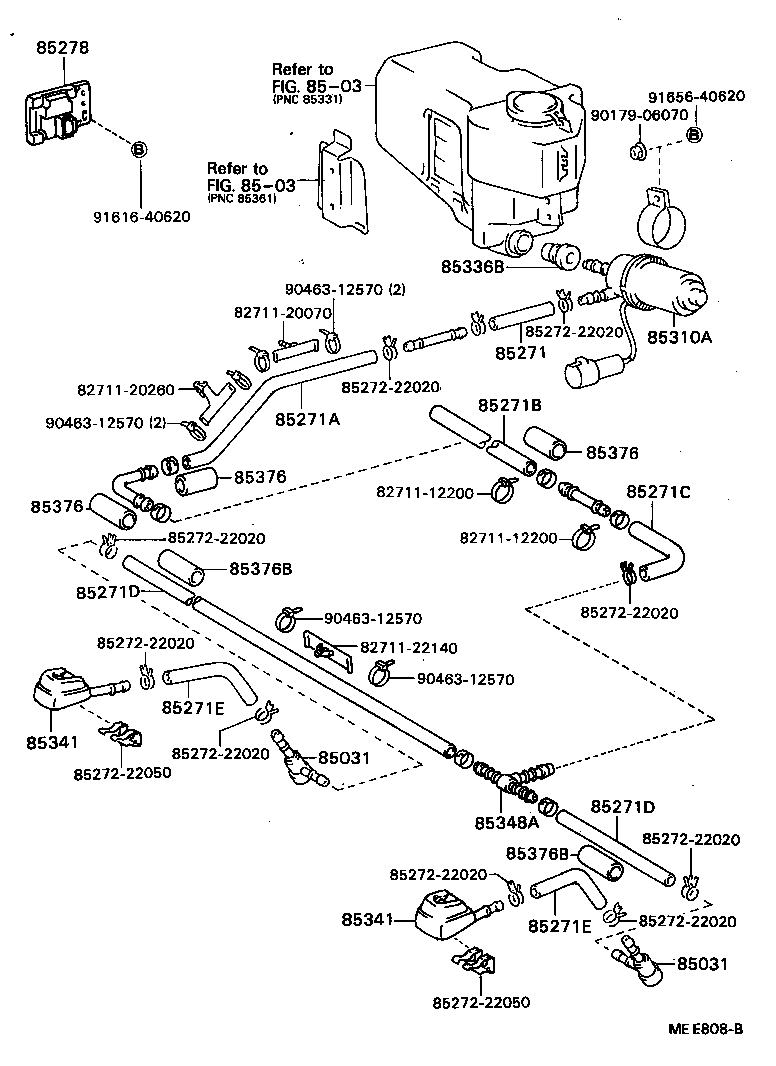

Figure MEF018C MEF018C 1984-08 → 1986-08 Figure MEE808B MEE808B 1984-08 → 1986-08

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85278 Relay Assy, Headlamp Cleaner Control
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85376 Protector, Headlamp Cleaner Hose, NO.1
85376B Protector, Headlamp Cleaner Hose, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
