Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 11 illustrations

Illustrations

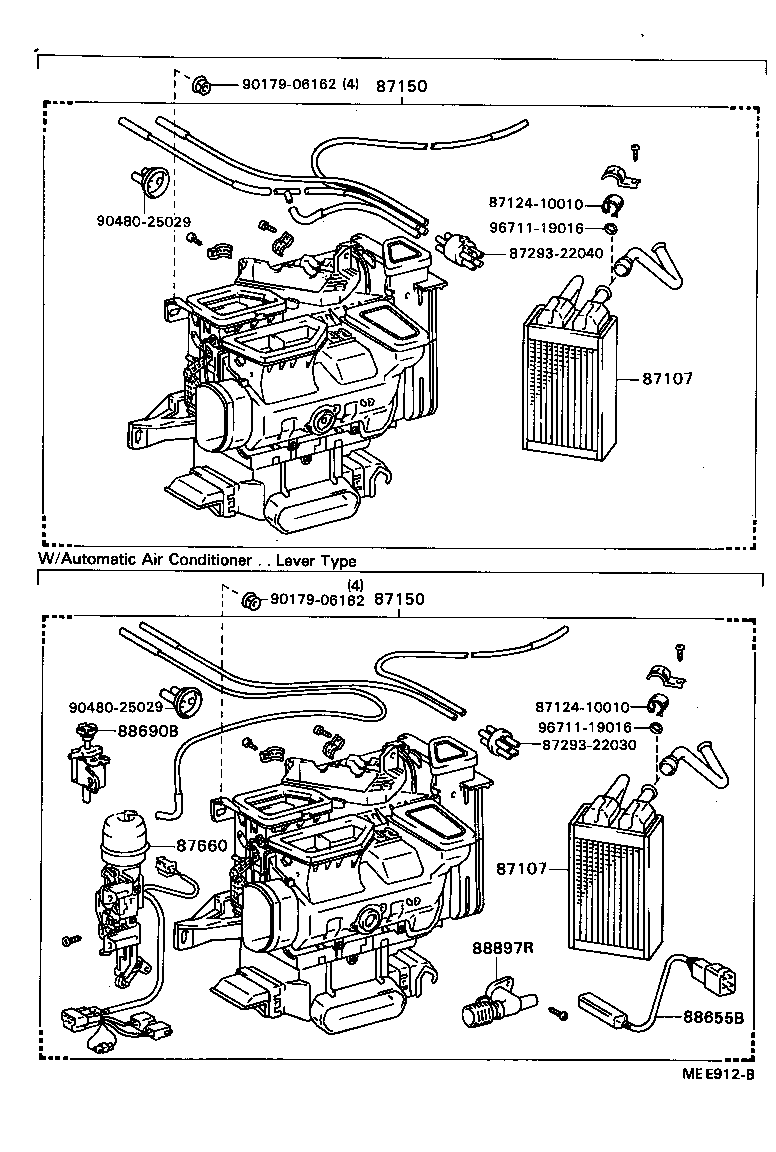

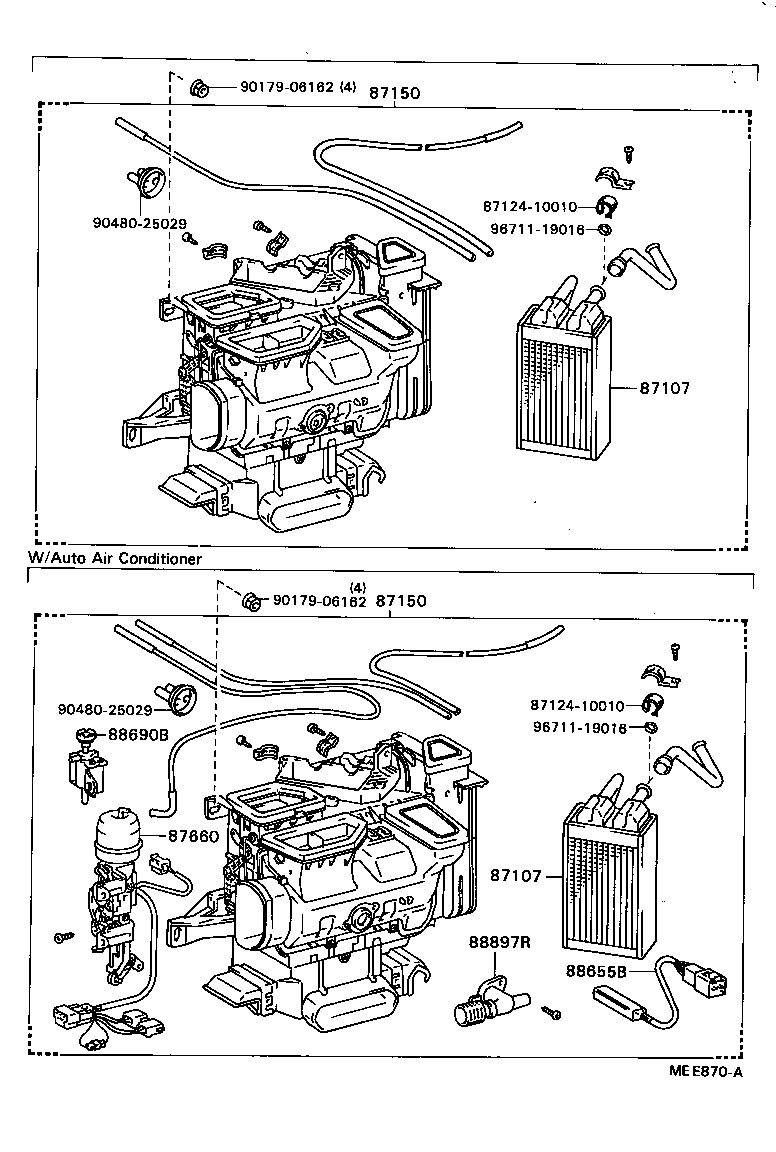

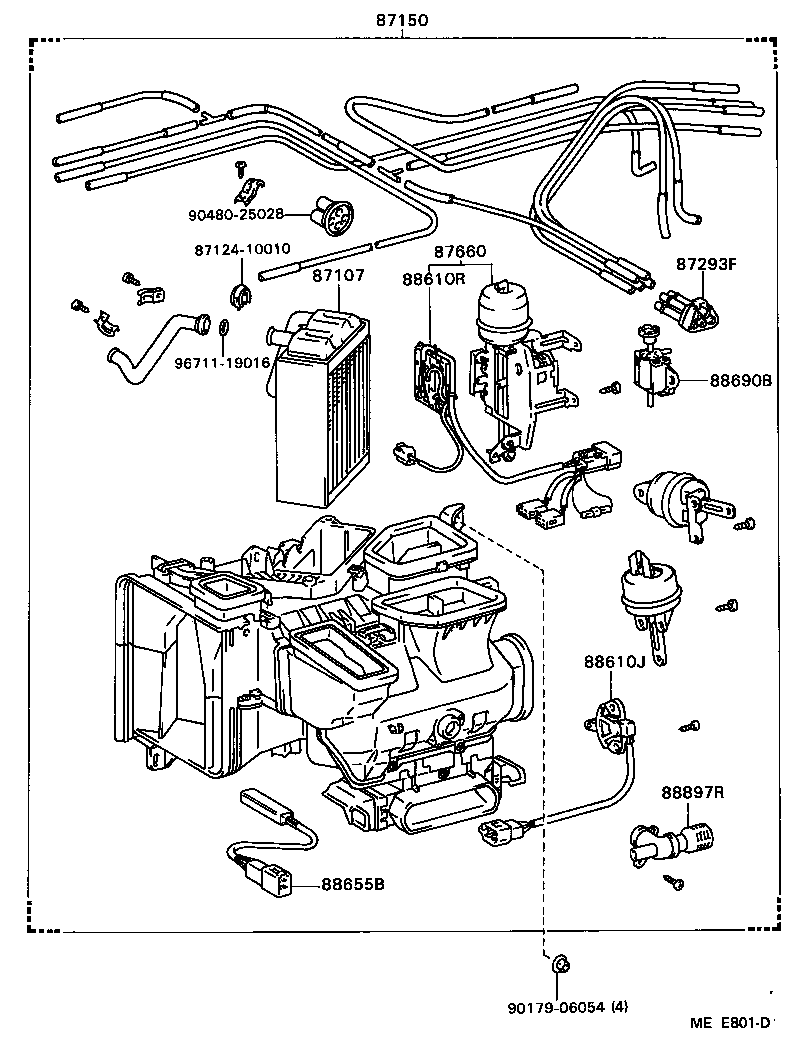

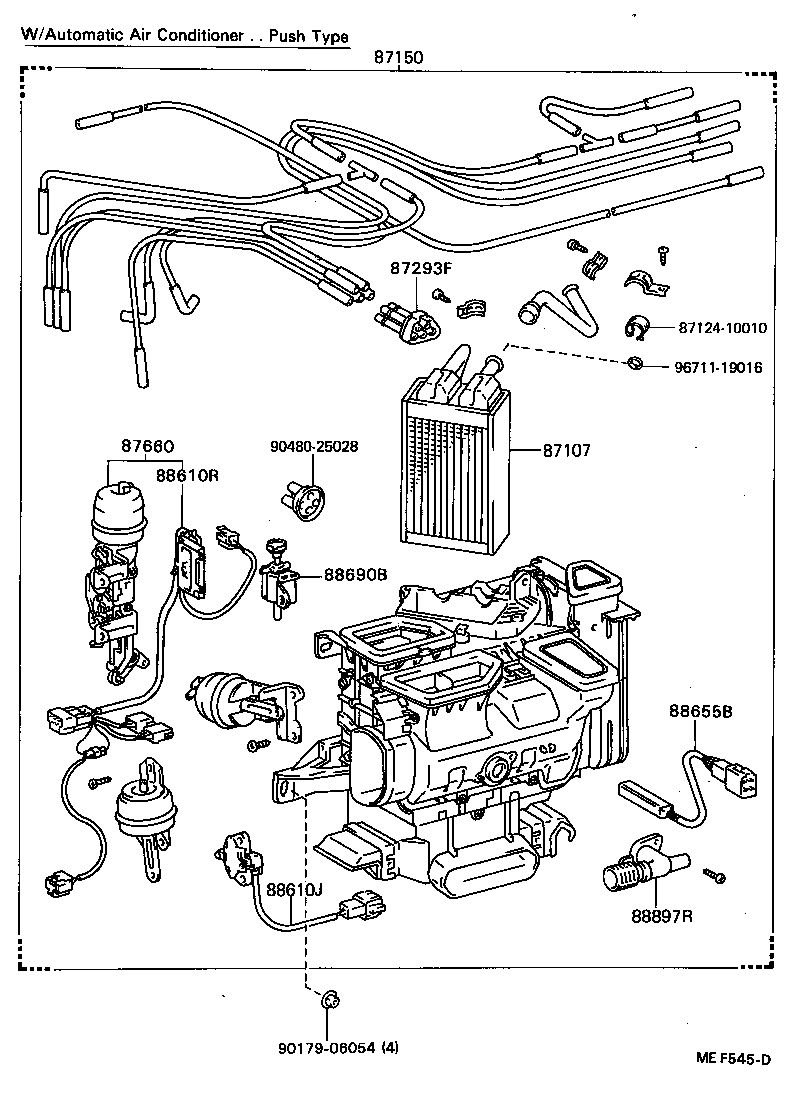

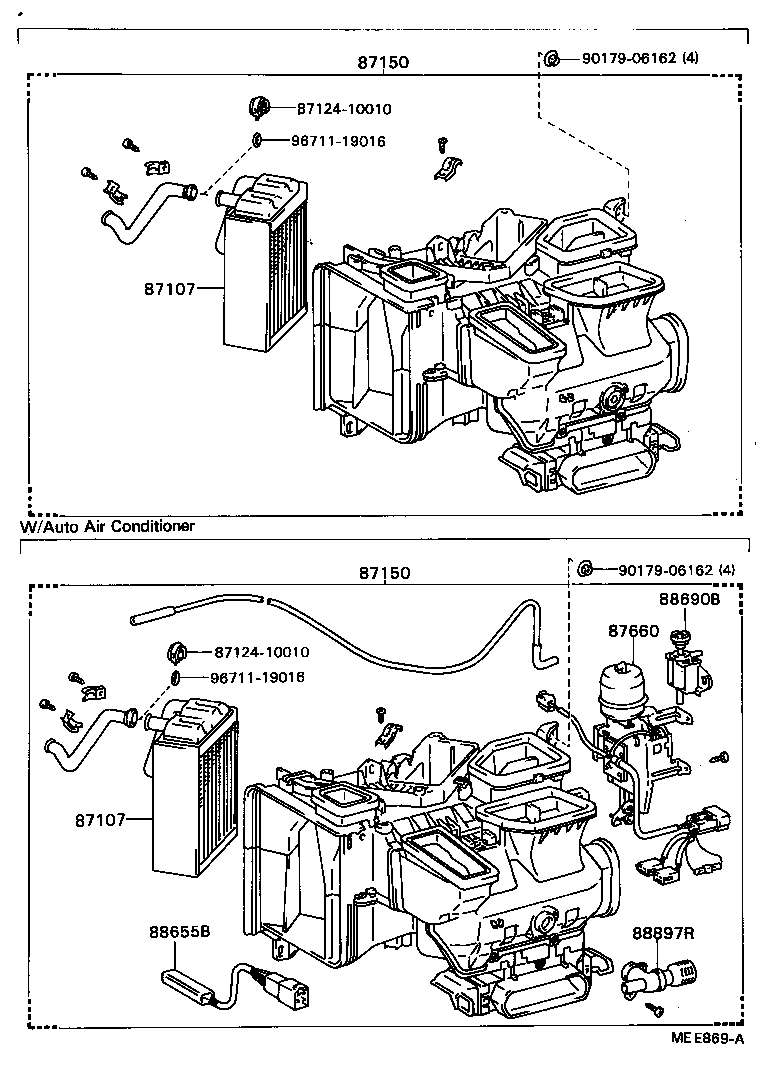

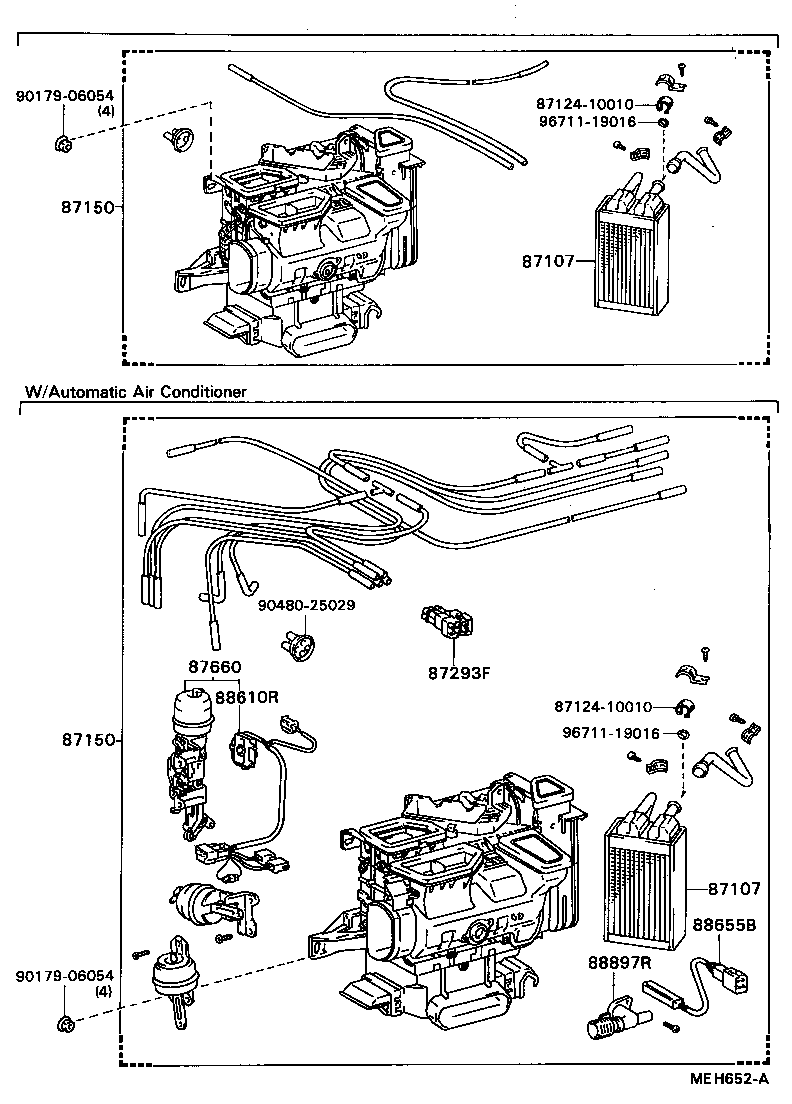

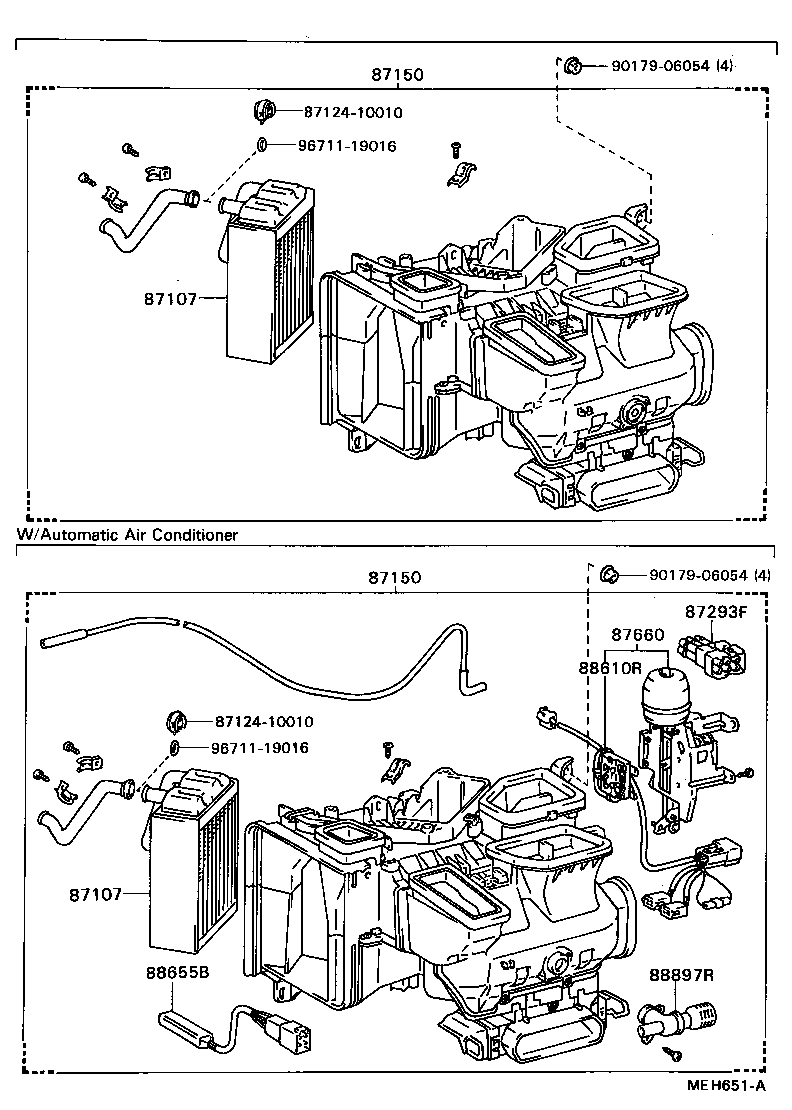

Figure MEE868D MEE868D 1984-08 → — Figure MEE869A MEE869A 1984-08 → 1986-08 Figure MEE869A MEE869A 1986-08 → — Figure MEH651A MEH651A 1986-08 → — Figure MEH651A MEH651A 1987-01 → — Figure MEE801D MEE801D 1984-11 → — Figure MEE870A MEE870A 1984-08 → 1986-08 Figure MEE912B MEE912B 1984-08 → 1986-08 Figure MEH652A MEH652A 1986-08 → — Figure MEF545D MEF545D 1984-11 → — Figure MEE913A MEE913A 1984-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87293F Connector, Vacuum
87660 Servo Assy, Air Conditioner
88610J Switch Assy, Control
88610R Switch Assy, Control
88655B Switch, Water Temperature
88690B Valve Assy, Cooler Magnet
88897R Aspirator
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
