Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 4 illustrations

Illustrations

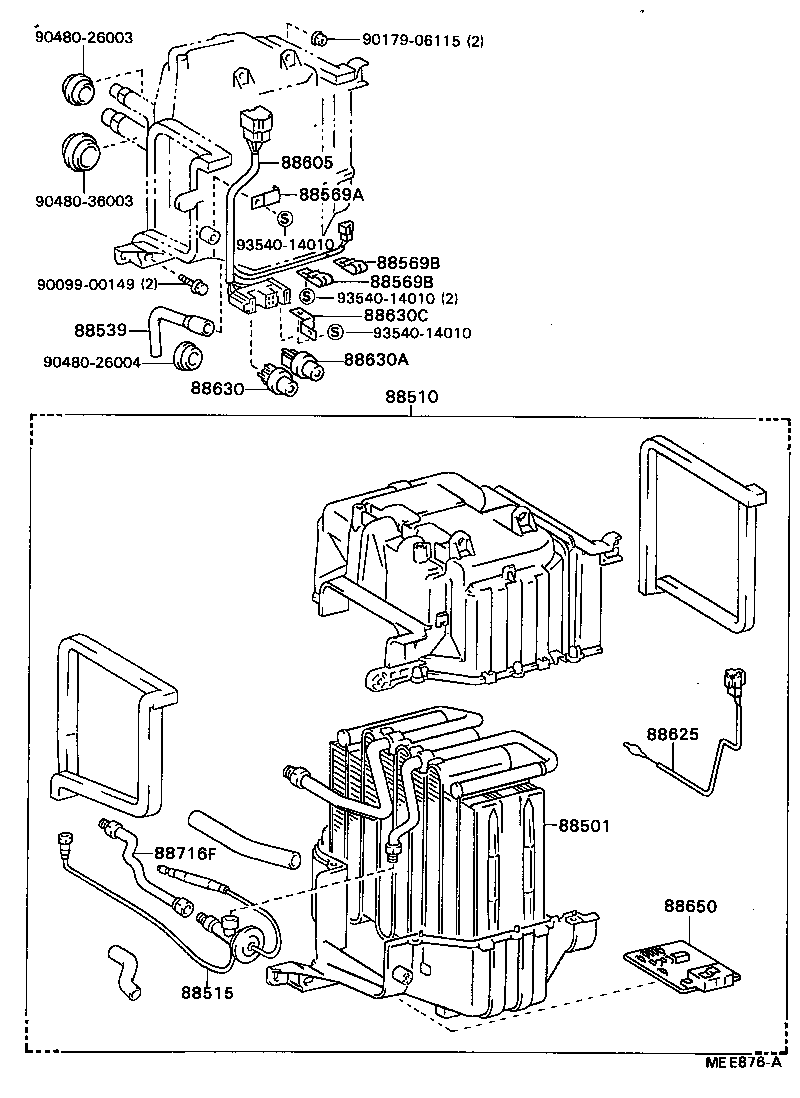

Figure MEE875D MEE875D 1984-08 → — Figure MEE876A MEE876A 1984-08 → — Figure MEE876A MEE876A 1987-01 → — Figure MEF776B MEF776B 1985-04 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88522 Door, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88569A Clamp, NO.1(FOR COOLER WIRING HARNESS)
88569B Clamp, NO.2(FOR COOLER WIRING HARNESS)
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630C Bracket, Cooler Relay
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88688C Bracket, Cooler Duct
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
