Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 10 illustrations

Illustrations

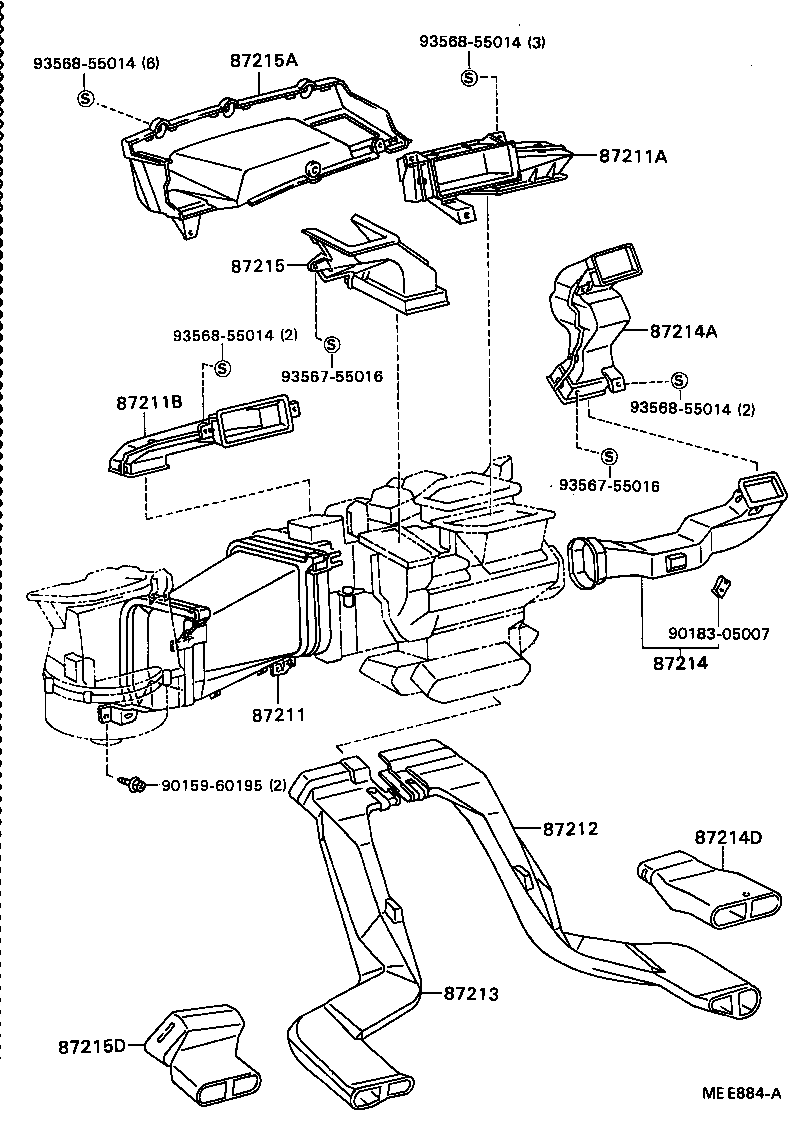

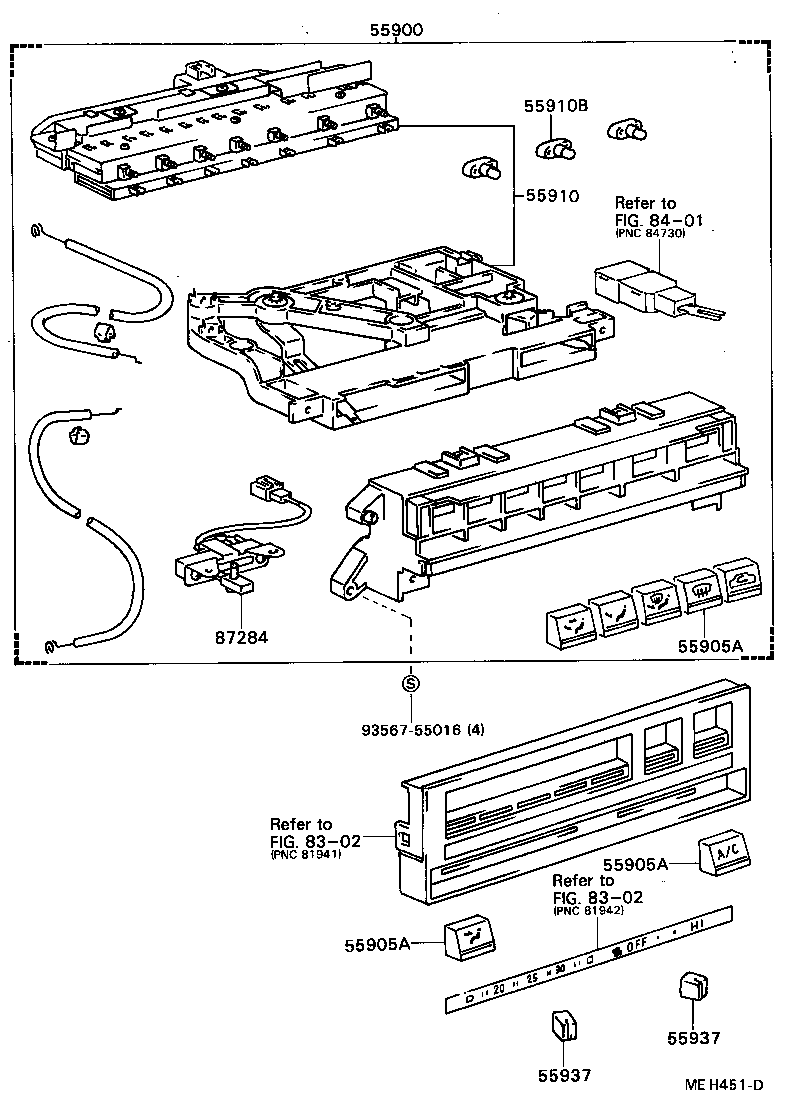

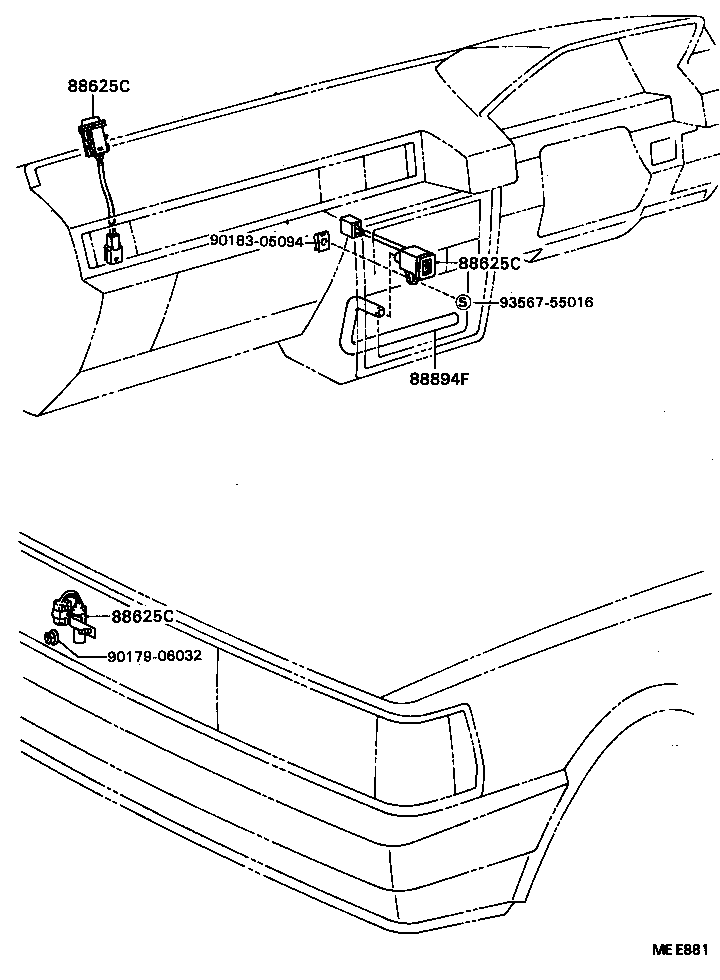

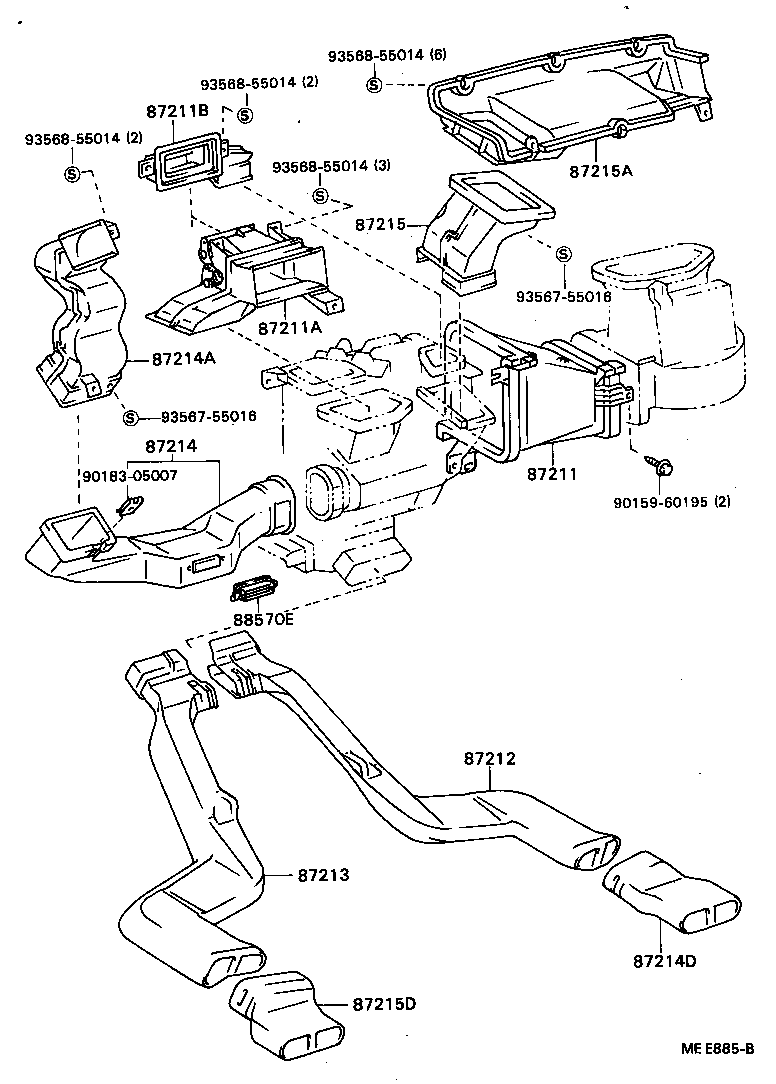

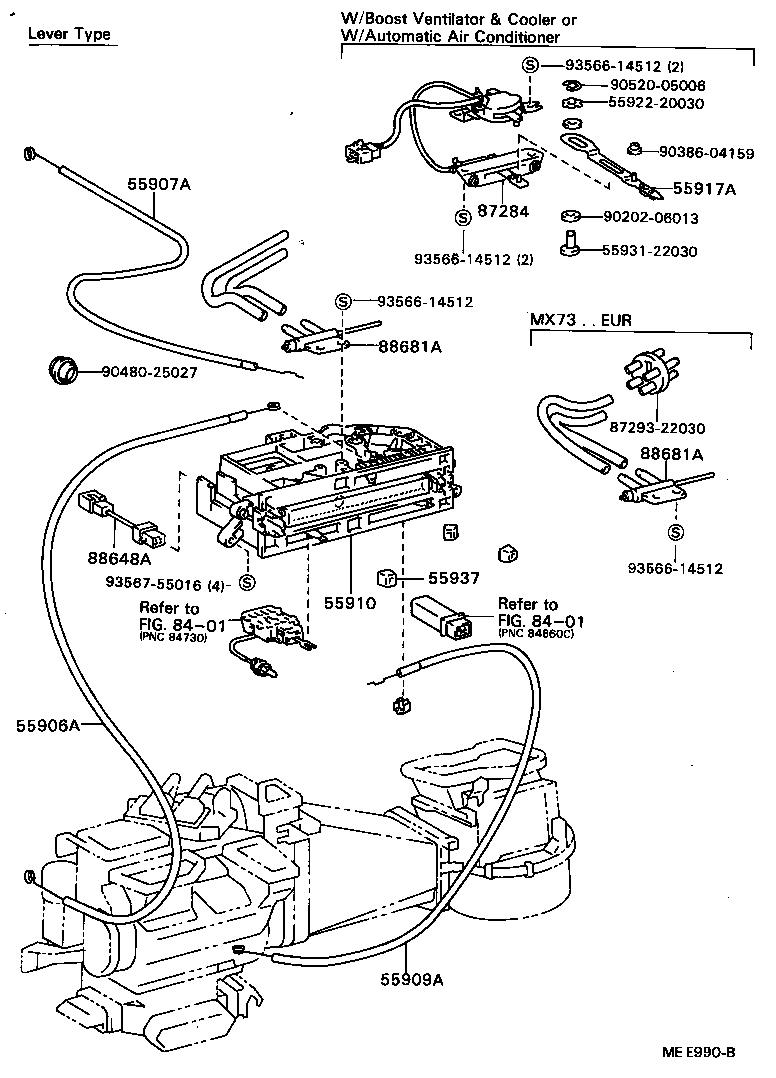

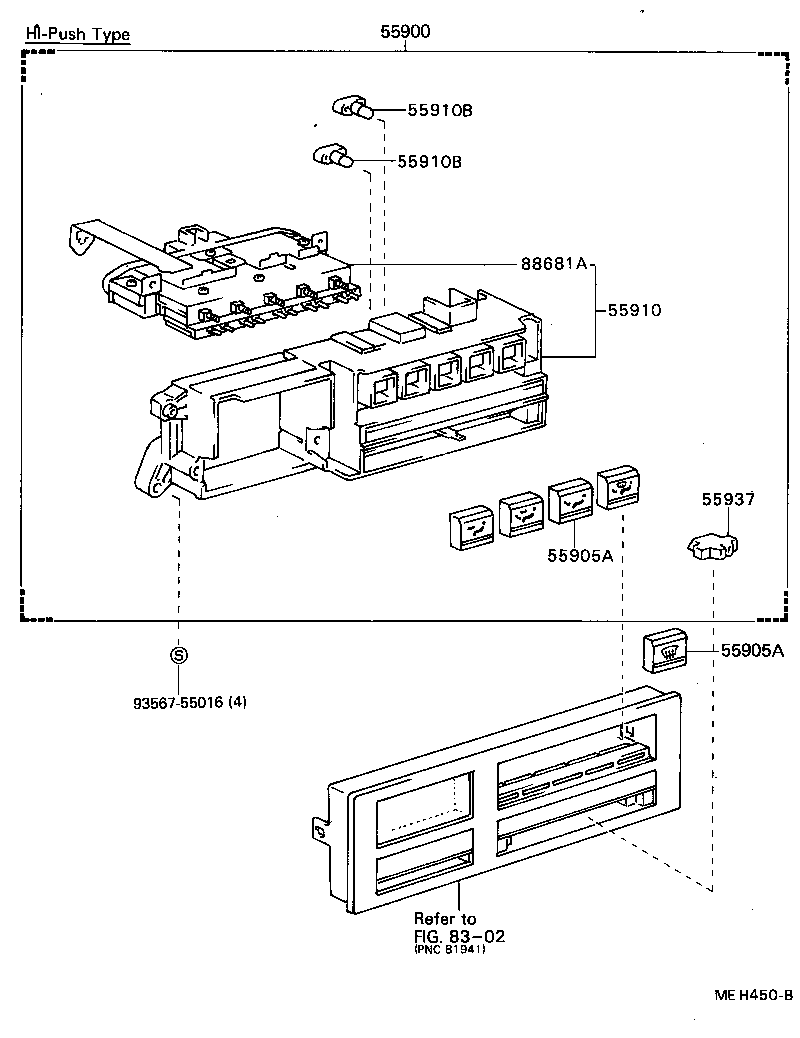

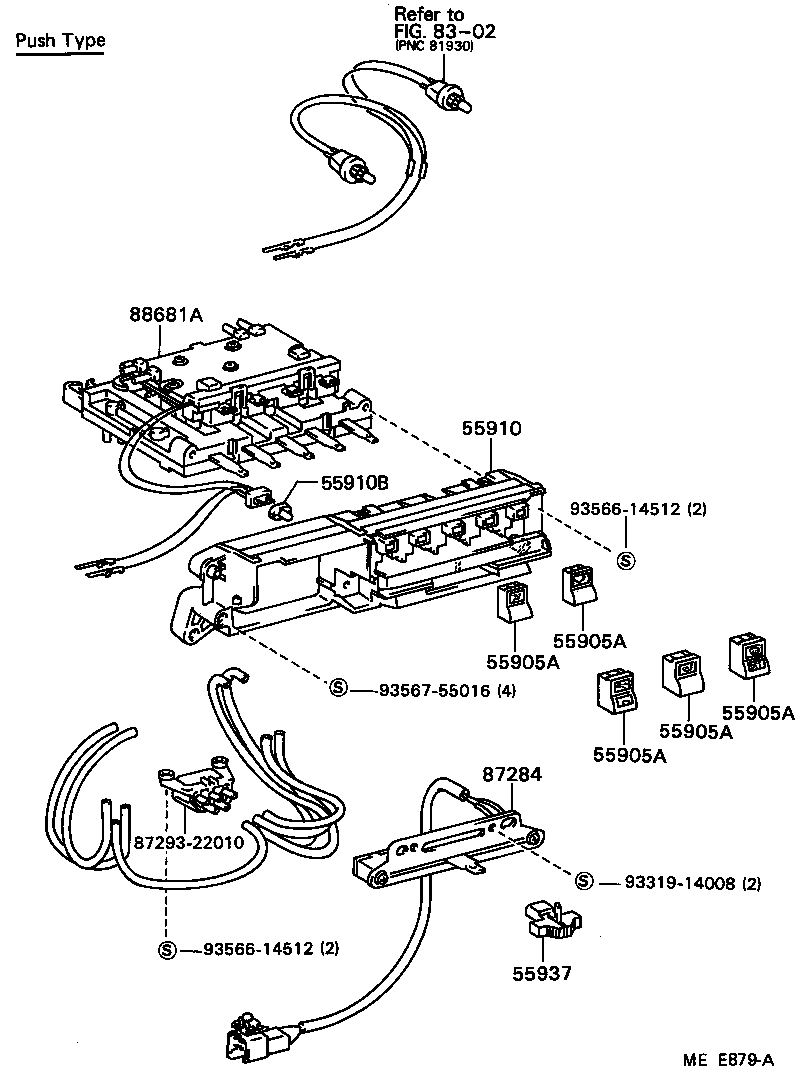

Figure MEE647B MEE647B 1984-08 → — Figure MEE647B MEE647B 1987-01 → — Figure MEE990B MEE990B 1984-08 → — Figure MEE879A MEE879A 1984-11 → 1986-08 Figure MEE879A MEE879A 1984-11 → — Figure MEH450B MEH450B 1986-08 → — Figure MEH451D MEH451D 1986-08 → — Figure MEE881 MEE881 1984-08 → — Figure MEE884A MEE884A 1984-08 → — Figure MEE885B MEE885B 1984-08 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55917A Lever, Temperature Damper Control
55937 Knob, Heater Control Lever
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87214D Duct, Air, Rear NO.3
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87215D Duct, Air, Rear NO.4
87284 Resistor Sub-assy, Variable
88570E Grille Assy, Air Outlet
88625C Thermistor, Cooler
88648A Wiring, Cooler
88681A Switch, Heater Control Vacuum, NO.1
88894F Hose, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
