Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

14 part groups · 8 illustrations

Illustrations

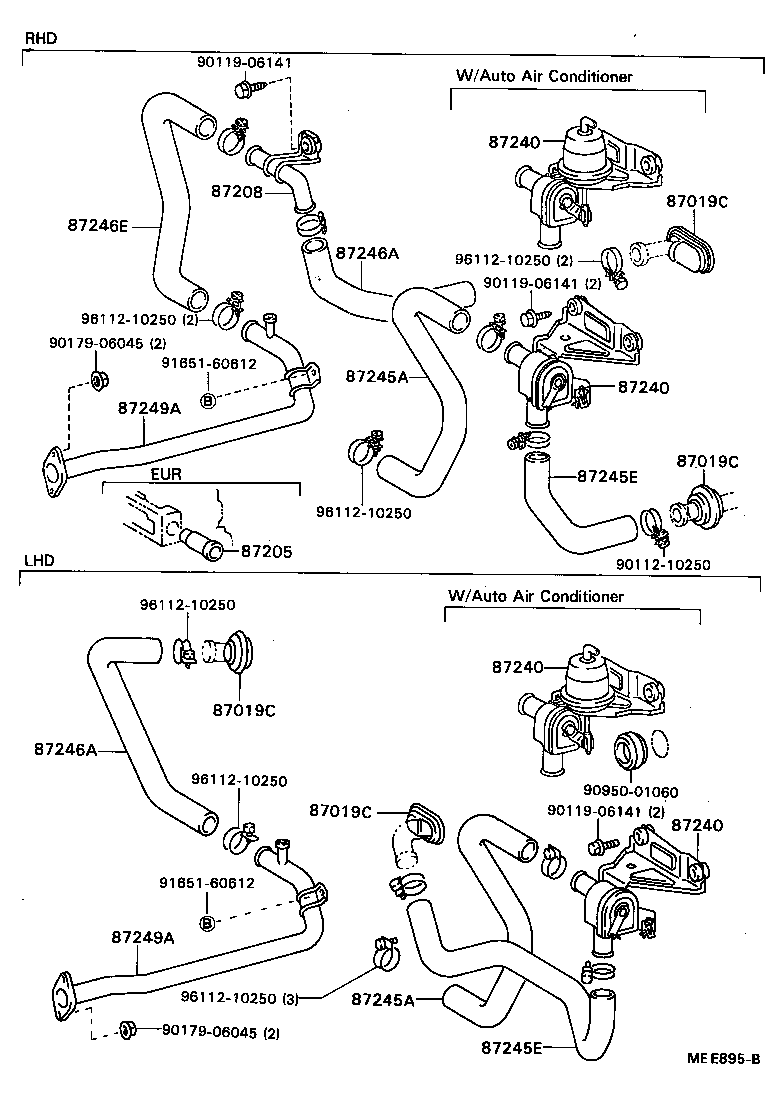

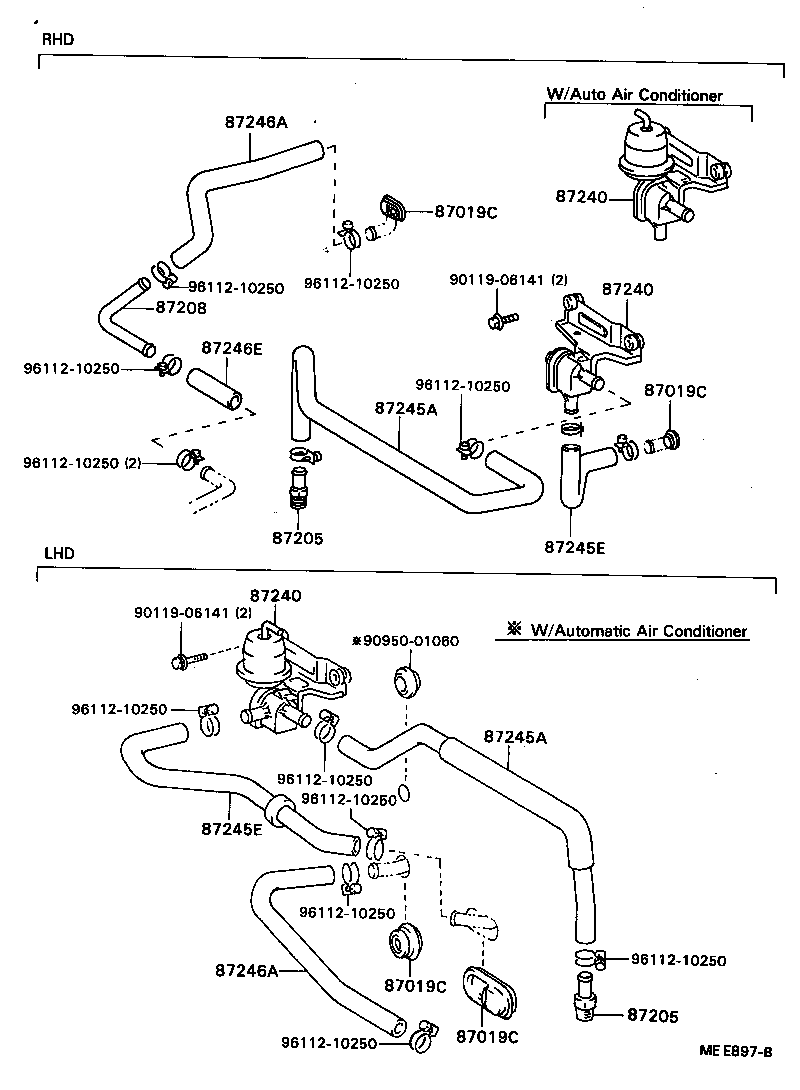

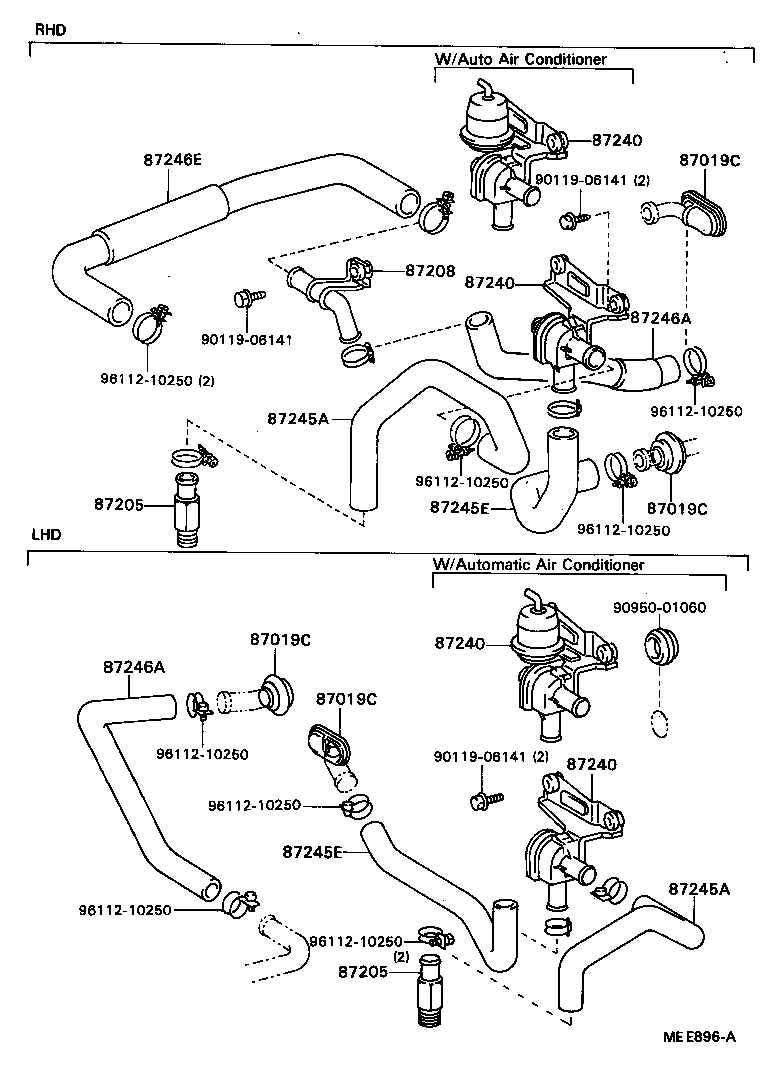

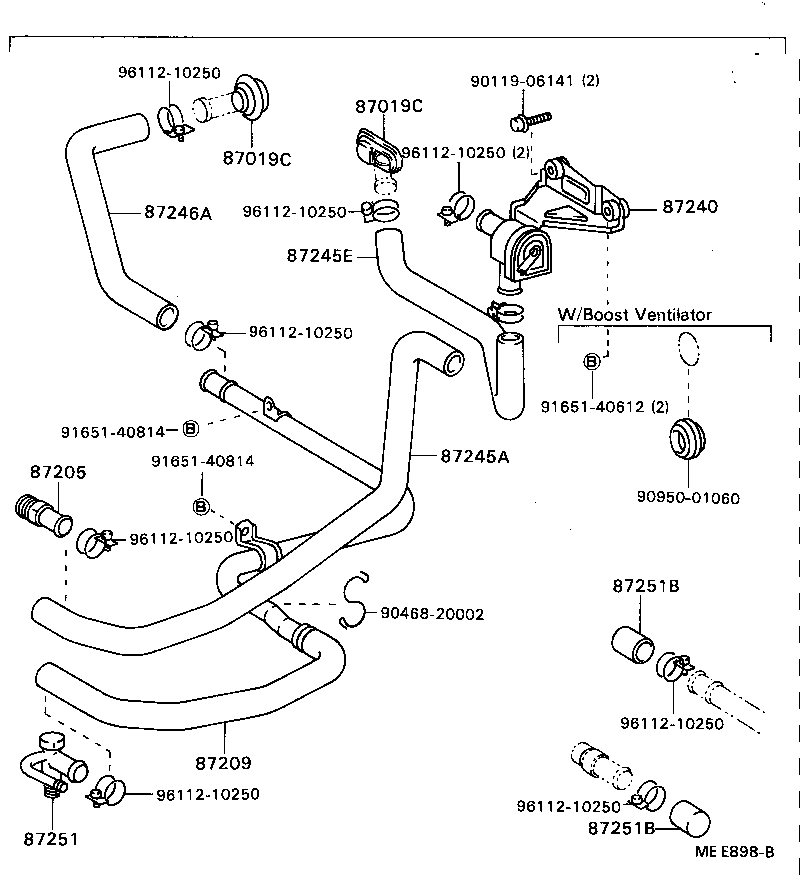

Figure MEE894B MEE894B 1984-08 → — Figure MEE895B MEE895B 1984-08 → — Figure MEE896A MEE896A 1984-08 → 1985-08 Figure MEE896A MEE896A 1984-08 → — Figure MEE897B MEE897B 1984-08 → — Figure MEE897B MEE897B 1985-08 → — Figure MEE898B MEE898B 1984-08 → — Figure MEF687 MEF687 1985-02 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
